Segment Type LCD Driver

Description
The HD61602 and the HD61603 are liquid crystal display driver (Large scale integrated circuit)LSIs with a TTL and CMOS compatible interface. Each of the LSIs can be connected to various microprocessors.
The HD61602 incorporates the power supply circuit for the liquid crystal display driver. Using the software-controlled liquid crystal driving method, several types of liquid crystals can be connected according to the applicationsThe
HD61603 is a liquid crystal display driver LSI only for static drive and has 64 segment outputs that can display 8 digits per chip.

Features
● Wide-range operating voltage
   - Operates in a wide range of supply voltage: 2.2V to 5.5V
   - Compatible with TTL interface at 4.5V to 5.5V
● Low current consumption
   - Can run from a battery power supply (100 μA max. at 5 V)
   - Standby input enables standby operation at lower current consumption (5 uA max. on 5V)
● Internal power supply circuit for liquid crystal display driver (HD61602)
   - Internal power supply circuit for liquid crystal display driver facilitates the connection to a microprocessor system

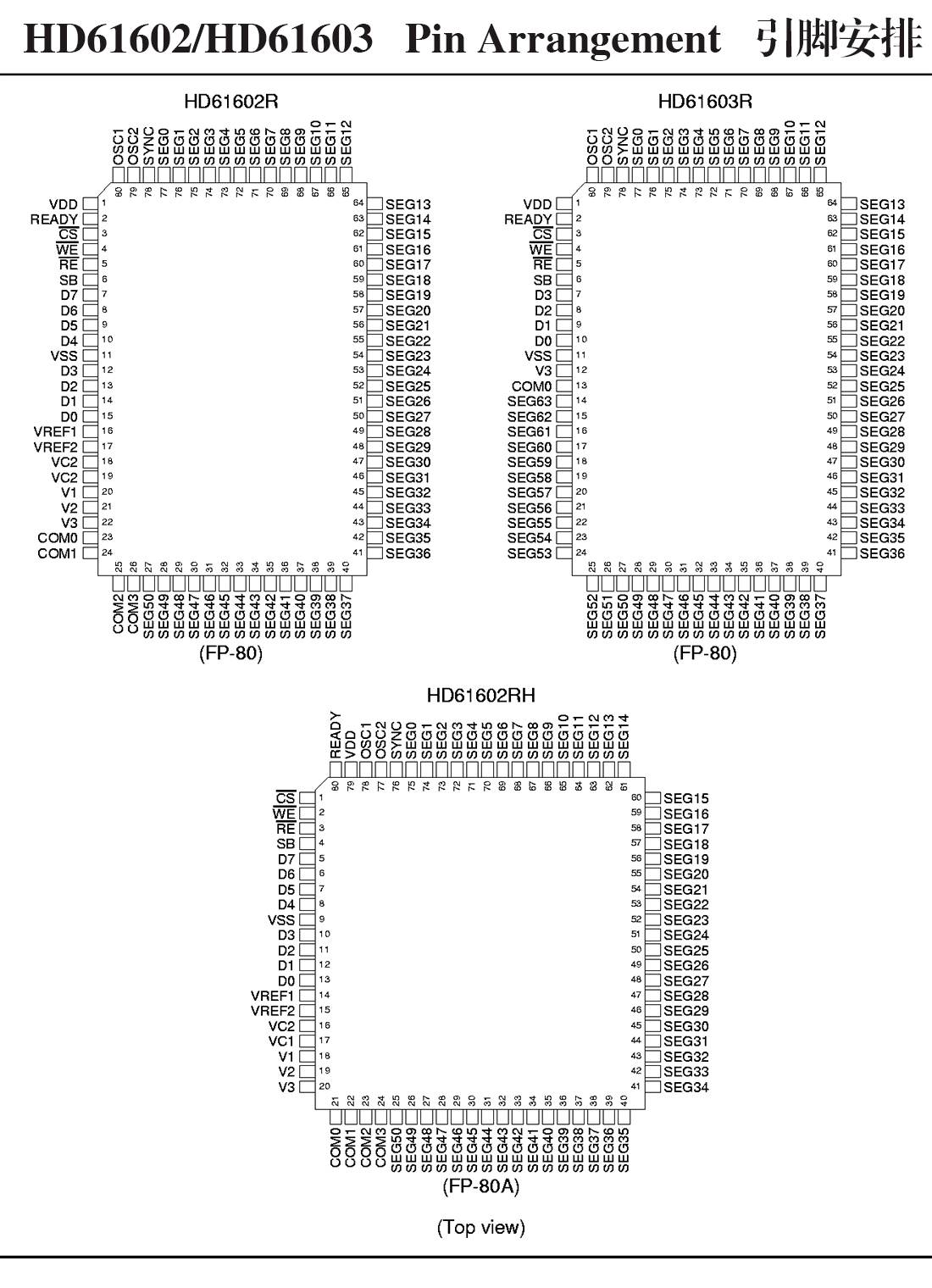

Package Type
Part No.   /     Package
HD61602R      80-pin plastic QFP (FP-80)
HD61602RH   80-pin plastic QFP (FP-80A)
HD61603R      80-pin plastic QFP (FP-80)

1 tray 50pcs, 1pack 500pcs


段式LCD驱动器
描述
HD61602和HD61603是液晶显示驱动大规模集成电路(LSI),具有TTL和CMOS兼容接口。每个LSI都可以连接到各种微处理器。
HD61602包含液晶显示驱动电源电路。采用软件控制的液晶驱动方式,可根据应用场合将多种类型的液晶进行连接
HD61603是一款静态驱动的液晶显示驱动LSI,有64段输出,每个芯片显示8位。

特性
●宽范围工作电压。
   - 工作在广泛的供电电压范围:2.2V至5.5V
   - 兼容4.5V至5.5V TTL接口
●小电流消耗]
   - 可在电池供电下运行(最大100 μA)。在5 V)
   - 待机输入可使待机操作以更低的电流消耗(最大5 μA)。在5 v)
●应用于液晶显示驱动器的内部供电电路(HD61602)]
   - 用于液晶显示驱动器的内部电源电路,便于与微处理器系统的连接

封装类型
型号  /        封装
HD61602R      80pin塑料QFP (FP-80)
HD61602RH   80pin塑料QFP (FP-80A)
HD61603R      80pin塑料QFP (FP-80)

1托盘50个,1包500个
