新到MT9D111,Mi2010,QM20MMS-4T28CPT30(PLCC28),Altus0046-A(CLCC44),QP9D111-P430
2021-07-25 03:22:00

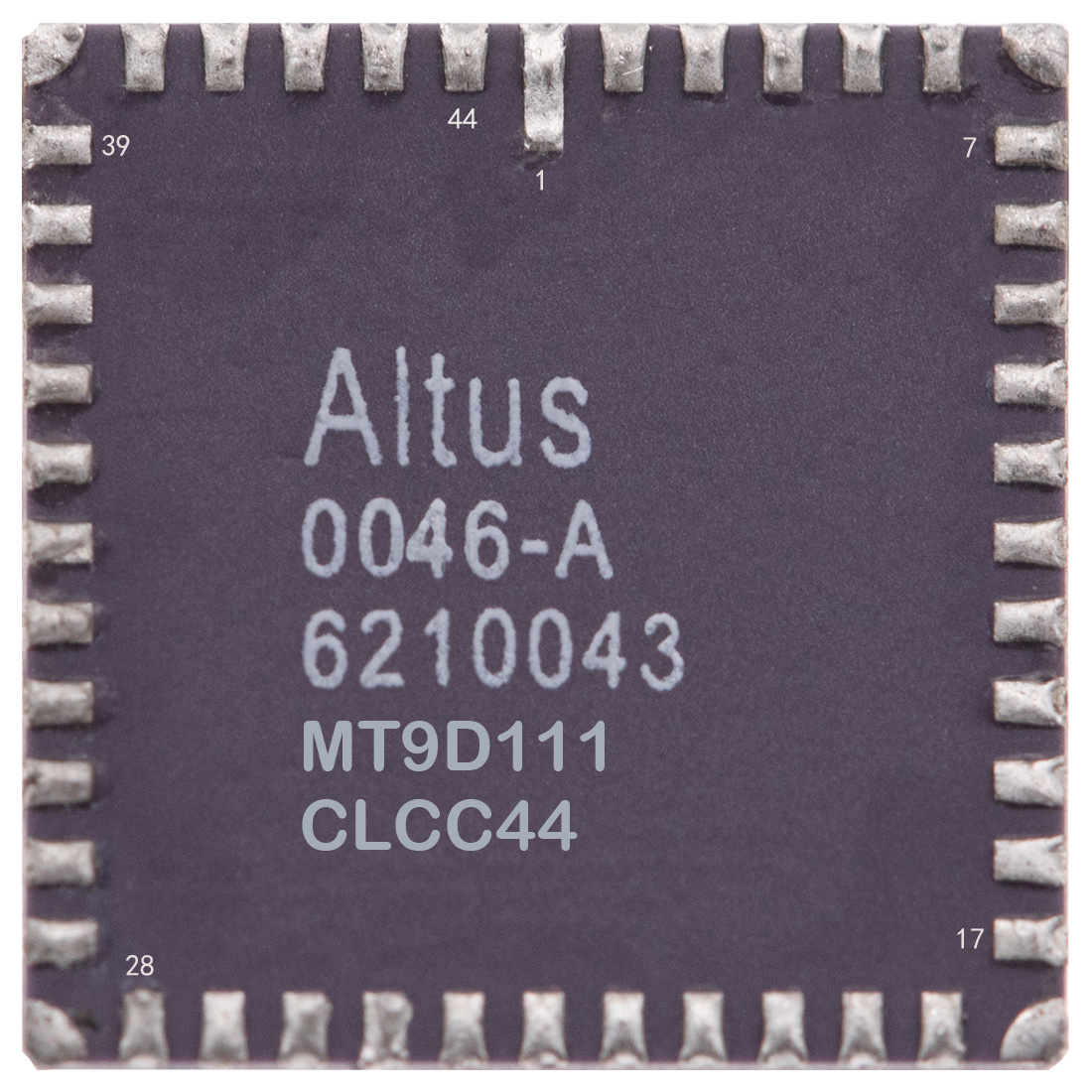

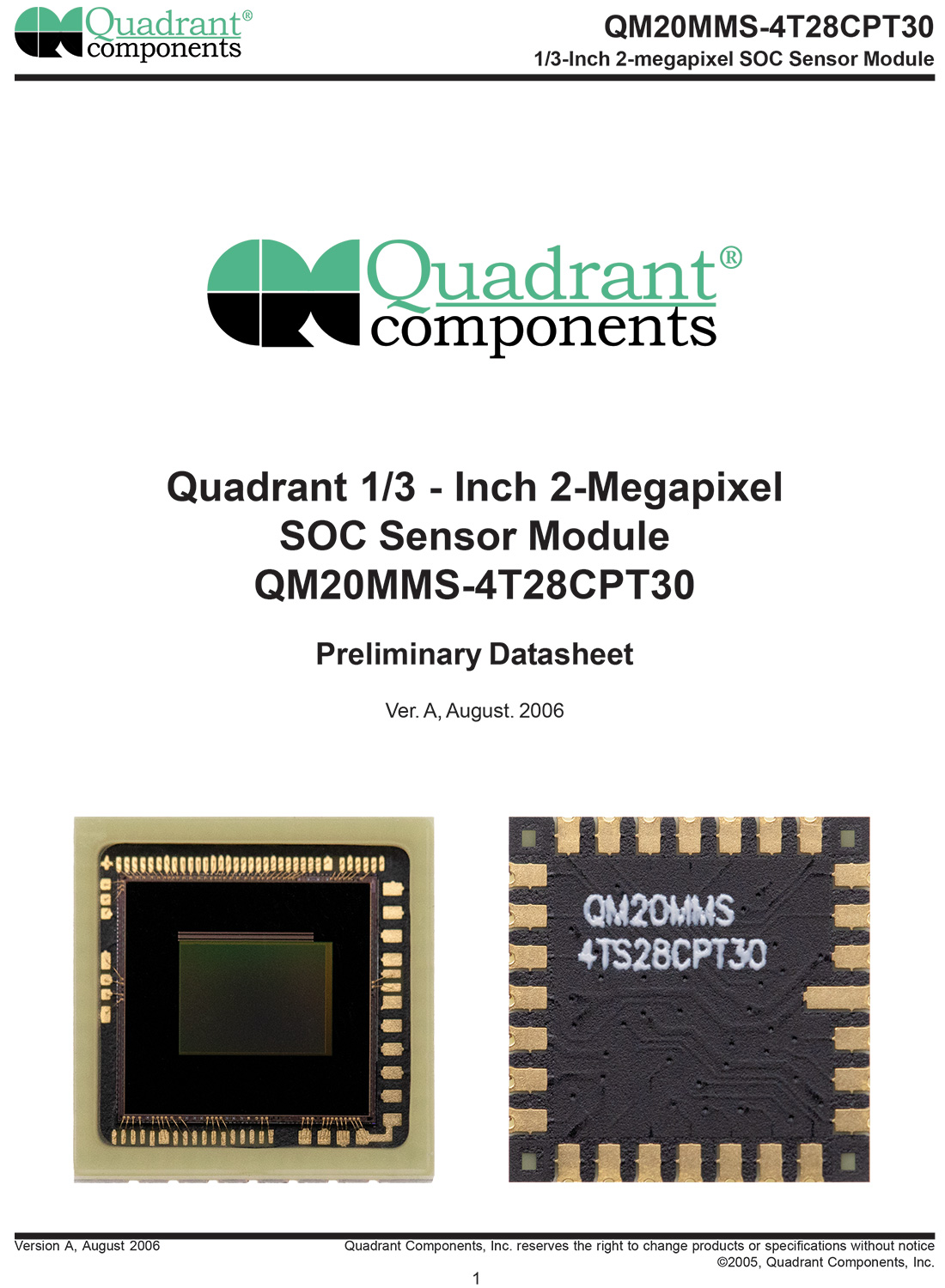

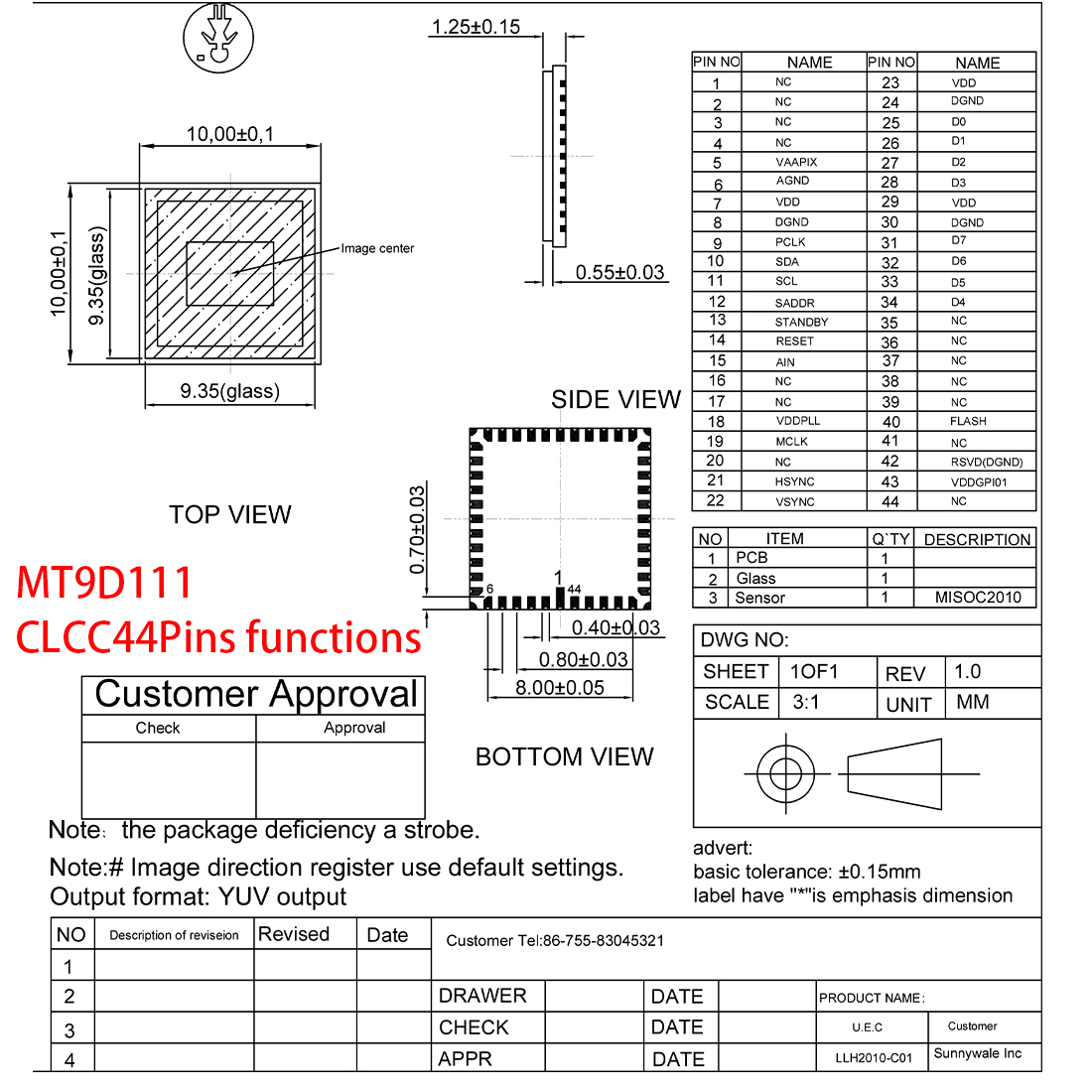

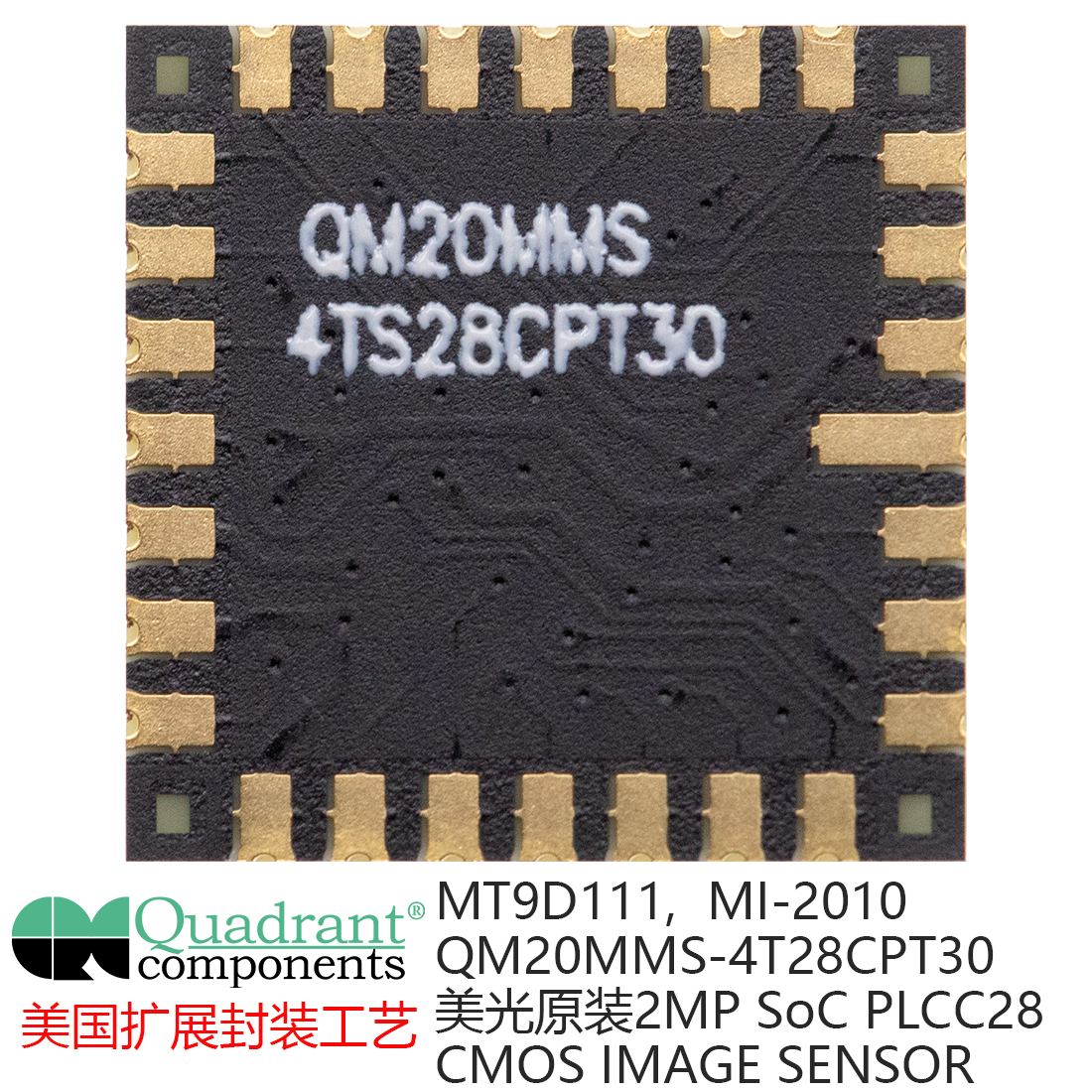

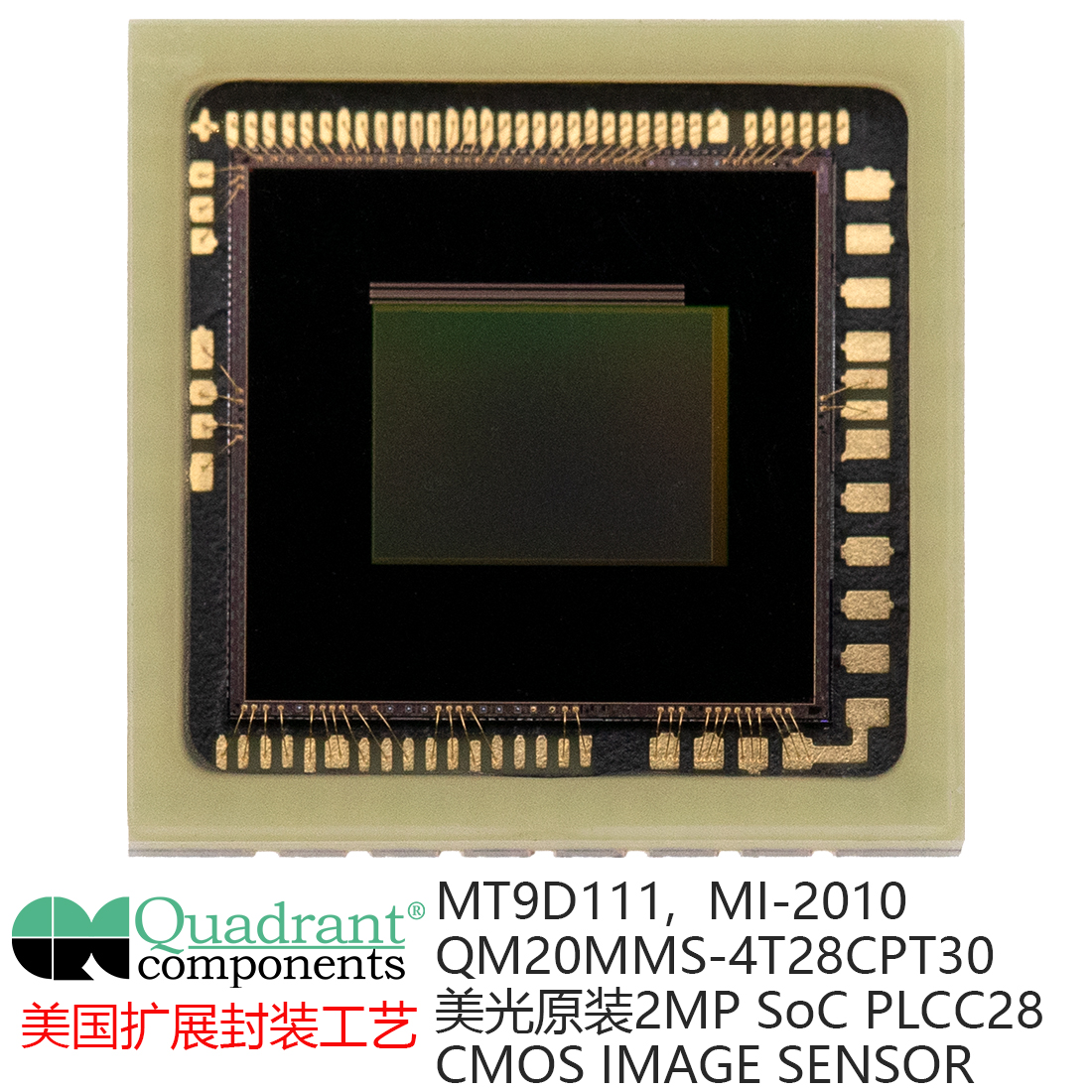

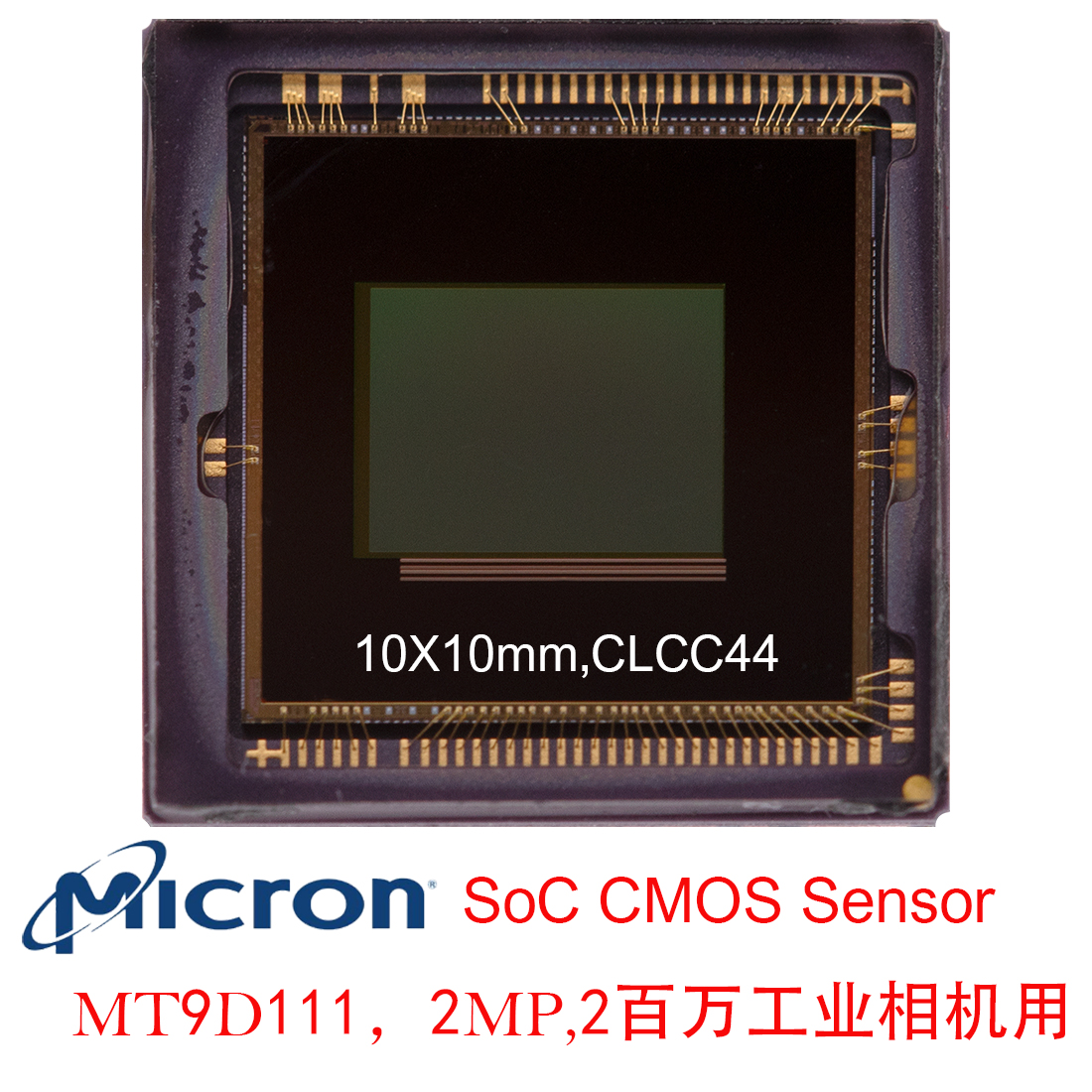

新到MT9D111,Mi-2010,QM20MMS-4T28CPT30(PLCC28),Altus0046-A(CLCC44),QP9D111-P430(PLCC32),有PLCC28/PLCC32/CLCC44等封装。

象限成像QP9D111-P430是一款SXGA格式的单芯片相机,带有1 / 3英寸CMOS有源像素数字图像传感器。该设备结合了QM13MMS图像传感器核心与成像的第四代数字图像流处理器技术。它捕捉高质量的彩色图像在SXGA分辨率。
这一百万像素CMOS图像传感器具有DigitalClarity -是一种象限突破低噪声CMOS成像技术。该技术在保持CMOS固有尺寸、成本和集成优势的同时,实现了CCD图像质量(基于信噪比和低光敏度)。

传感器是一个完整的芯片上的摄像头解决方案,专为满足低功率,低成本的电池供电产品,如手机,PDA和玩具的需求。它在芯片上集成了复杂的相机功能,并通过简单的两线串行接口进行编程。
QP9D111-P430执行复杂的处理功能,包括色彩恢复,色彩校正,锐化,可编程伽马校正,自动黑参考校正,自动曝光(AE),自动50Hz/60Hz闪烁避免,镜头遮光校正,自动白平衡(AWB),以及实时缺陷识别和校正。

General Description
The Quadrant Imaging QP9D111-P430 is an SXGA-format single-chip camera with a one-third-inch CMOS activepixel digital image sensor . This device combines the QM13MMS image sensor core with fourth-generation digital-imageflow processor technology from Imaging. It captures high quality color images at SXGA resolution.

This megapixel CMOS image sensor features DigitalClarity—a Quadrant breakthrough—low-noise CMOS imaging technology. This technology achieves CCD image quality (based on signal-to-noise ratio and lowlight sensitivity) while maintaining the inherent size, cost, and integration advantages of CMOS.

The sensor is a complete camera-on-a-chip solution designed specifically to meet the low-power, lowcost demands of battery-powered products such as cellular phones , PDA s, and toys. It incorporates sophisticated camera functions onchip and is programmable through a simple two-wire serial interface.

The QP9D111-P430 performs sophisticated processing functions including color recovery, color correction, sharpening, programmable gamma correction, auto black reference claming, auto exposure (AE), automatic 50Hz/60Hz flicker avoidance, lens-shading correction, auto white balance (AWB), and on-the-fly defect identification and correction.

=====================================================================================================



=====================================================================================================




更多详情,请看这里
