IMX136LQJ-C模组SONY索尼2.38MP238万像素监控安防摄像机工业相机image CMOS Sensor图像传感器模组
2021-04-26 20:19:38

产品详情:
IMX136 是一个高分辨率数码相机模块。它集成了索尼 1/2.8 英寸 2.38MP CMOS 数字图像传感器 iMX136,主动成像像素阵列为 1944H x 1224V。LICAM-IMX136 相机模块可生成非常清晰、清晰的数字图像,并且能够同时捕获连续视频和单帧,使其成为监控行业的完美选择。

摄像机 Imx136 相机模组功能:
※  1/2.8 英寸 238 万像素 CMOS 高清数字成像仪
※  主动成像像素:1944H x 1224V
※  像素大小: 2.8μm x 2.8μm
※  支持 1080p @ 60fps
※  1.8V I/O 接口
※  简单的 SPI 串行界面
※  实现 CCD 图像质量的低噪声 CMOS 成像技术
※  直接接口到 TI IP 摄像机
※  DM385 IPNC上的免费补丁具有标准IPCamera功能,可流式传输H.264视频的高清1080p@60fps

应用:
※  数码摄像机开发
※  高分辨率监控 IP 网络摄像机
※  高分辨率视频会议摄像机

IMX136 is a high-resolution digital camera module. It incorporates an Sony 1/2.8-inch 2.38MP CMOS digital image sensor iMX136, with an active imaging pixel array of 1944H x 1224V. The LICAM-IMX136 Camera Module produces extraordinarily clear, sharp digital pictures, and it is capable of capturing both continuous video and single frame, which makes it the perfect choice for surveillance industry.

 IP Camera Imx136 Camera Modulle Features:
※  1/2.8-Inch 2.38-Megapixel CMOS High Definition Digital Imager
※  Active imaging pixels: 1944H x 1224V
※  Pixel Size: 2.8μm x 2.8μm
※  Support for 1080p @ 60fps
※  1.8V I/O Interface
※  Low noise CMOS imaging technology that achieves CCD image quality
※  Direct interface to TI IP Camera
※  Free Patches on DM385 IPNC have standard IPCamera function to stream high definition 1080p@60fps H.264 video

Application:
※  Digital Video Camera Development
※  High Resolution Surveillance IP Network Cameras
※  High Resolution Video Conference Camera

---------------------------------------------------------------------------------------------
对角线 6.4 mm (Type 1/2.8),2.38MP有效像素彩色和黑白全高清CMOS图像传感器的工业应用实现高帧率和高信噪比。

IMX136LQJ(彩色)和IMX136LLJ(黑白)CMOS图像传感器的发布为索尼的CMOS图像传感器阵容带来了高帧率,高信噪比和全高清工业应用。与IMX122LQJ*(1)、在拍摄120帧/秒的高清1080p视频时,保持同样的高信噪比。
一个多用途的接口意味着传感器可以适应不同的应用。这些新ic的引脚是兼容的HD能力的IMX104LQJ*(2),简化了添加到阵容。
*(1):见CX-NEWS第65卷的新产品部分。
*(2):关于IMX104LQJ的详细信息,请参见本卷的新产品部分。

■高帧率(120帧/秒)
■支持HD 1080p和HD 720p模式
■可切换的I/O接口
■内置10位和12位A/D转换器
■多帧设置输出模式

高帧率和高信噪比特性
随着工业领域对全高清高分辨率的需求不断增长,对60p输出和高帧率的功能需求也在不断增长。组合多个帧。这些新的ic, IMX136LQJ和IMX136LLJ,索尼现在发布,提供120帧/秒的10位A/D转换模式下的HD 1080p格式和60帧/秒的12位A/D转换模式。为了保证高速和高信噪比,对像素读出系统和电路进行了优化,使其信噪比等于IMX122LQJ。

多种操作模式
除了全部2.38 m像素扫描模式和HD 1080p/720p模式外,IMX136LQJ和IMX136LLJ还提供了窗口裁剪模式。它们还支持多帧集输出模式,以更好地利用高速帧率。该模式可预先设置连续4帧或2帧的单独曝光时间和增益,设置连续4帧或2帧的组作为拍摄条件,自动输出连续图像。(见照片1)。该模式可以生成多帧组合而成的动态范围较宽的图像。

通用的接口
输出接口已经扩展,除了现有的CMOS并行输出外,还包括一个高速低压LVDS并行输出。对于高达60帧/秒的HD 1080p输出,提供了低压LVDS串行4通道输出(594 Mbps/通道)。此外,控制接口已经修改,除现有的4线串行接口外,还包括一个通用I2C接口,与输出接口结合,为客户提供适合其操作条件的选项。因为这些新的ic是引脚兼容采用IMX104LQJ,通用设计易于使用。IMX236L还兼容IMX136L。

阵容
这个开发项目增加了IMX136LQJ_LLJ,一种原色滤光片型号,另一种黑白型号。(见照片2)。黑白型号(IMX136LLJ)的灵敏度比彩色信号(IMX136LQJ)高1.5倍。(见表2)。为了更好的抗耀斑特性,像素之间的屏蔽已经得到了改进。两个图像传感器都提供在能够承受高温回流焊(峰值温度:240°C)的封装。

声音
凭借其高帧率和高速特性,IMX136保持了工业应用所需的CMOS图像传感器的图像质量。我们相信,在所有项目成员的共同努力下,已成功开发出两款令人满意的新产品客户的需求。我们强烈建议客户仔细看看IMX136所创造的全高清世界。

Diagonal 6.4 mm (Type 1/2.8) 2.38M-Effective Pixel Color and Black-and-White Full HD CMOS Image Sensor for Industrial Applications Achieves a High Frame Rate and a High S/N Ratio.

The release of the IMX136LQJ (color) and the IMX136LLJ (black and white) CMOS image sensors brings a high frame rate, high signal-to-noise ratio and full HD to Sony's CMOS image sensor lineup for industrial applications. With the same diagonal 2.8 μm square pixels as the IMX122LQJ1*(1), it maintains the same high signal-to-noise ratio while capturing HD 1080p video at 120 frame/s.
A versatile interface means that the sensor can be tailored to different applications. These new ICs are pin compatible with the HD capable IMX104LQJ*(2), which simplifies making additions to the lineup.
*1: See the New Products section in CX-NEWS, Volume 65.
*2: For details on the IMX104LQJ, see the New Products section of this volume.

■ High frame rate (120 frame/s)
■ Supporting HD 1080p and HD 720p modes
■ Switchable I/O interface
■ Built-in 10 and 12-bit A/D converters
■ Multiple frame set output mode

High Frame Rate and High Signalto-Noise Ratio Characteristics
As the demand for the high resolution of full HD grows in the industrial field, there is an increasing demand for 60p output and high frame rates for functions that??compose multiple frames. These new ICs, the IMX136LQJ and the IMX136LLJ, that Sony are now releasing deliver 120 frame/s in 10-bit A/D conversion mode in the HD 1080p format and 60 frame/s in 12-bit A/D conversion mode. To ensure both high speed and high signalto- noise ratio, the pixel readout system and circuits have been optimized to give them a signal-to-noise ratio that equals that of the IMX122LQJ.

A Variety of Operating Modes
In addition to the all 2.38M-pixel scan mode and HD 1080p/720p modes, the IMX136LQJ and the IMX136LLJ also provide a window cropping mode. They also support the multiple frame set output mode to take better advantage of the high-speed frame rate. In this mode, separate exposure time and gain can be set in advance for 4 or 2 consecutive frames and sets of 4 or 2 frames can be set as a shooting condition to automatically output consecutive images. (See photograph 1.) This mode can generate a picture with a wide dynamic range as a result of the combination of multiple frames.

Versatile Interface
The output interface has been expanded to include a high-speed low-voltage LVDS parallel output in addition to the existing CMOS parallel output. For output of HD 1080p at up to 60 frame/s, a low-voltage LVDS serial 4-channel output (594 Mbps/channel) is provided. Also the control interface has been modified to include a general-purpose I2C interface besides the existing 4-wire serial interface, which in combination with the outputinterface provides customers with options to suit their operating conditions. Since these new ICs are pin compatible with
the IMX104LQJ, it is easy to use common designs.

Lineup
This development project adds the IMX136LQJ, a primary color filter model and the IMX136LLJ, a black-and-white model, to the lineup. (See photograph 2.) The sensitivity of the black-and-white model (the IMX136LLJ) is 1.5 times greater than that of the color model (the IMX136LQJ). (See table 2.) For greater anti-flare characteristics, the shielding between pixels has been improved. And both image sensors are provided in packages that can withstand high-temperature reflow soldering (peak temperature: 240°C).

VOICE
With its high frame rate and highspeed features, the IMX136 maintains the picture quality required of a CMOS image sensor for industrial applications. We are convinced the united efforts of all project members have managed to develop two new products that will satisfy customer requirements. Customers are strongly recommended to take a closer look at the full HD world that IMX136 makes possible.


IMX136LQJ-C现货,IMX136LQJ-C价格,IMX136LQJ-C模组,IMX136LQJ-Cdatasheet下载,IMX136LQJ-C pdf文档下载,IMX136LQJ-C原装现货,IMX136LQJ-C库存,IMX136LQJ-C芯片,IMX136LQJ-C图片,IMX136LQJ-C高清大图,IMX136LQJ-C规格书下载,IMX136LQJ-C代理商,IMX136LQJ-C技术支持,产品介绍,IMX136LQJ-C简介,IMX136LQJ-C方案商,IMX136LQJ-C分销商,IMX136L经销商,IMX136L官网,IMX136L生产厂家,IMX136L专卖店,IMX136L高价收购,IMX136L模组,IMX136L模块,IMX136L特价,IMX136L库存,IMX136L生产商,IMX136L性价比,SONY索尼2.0MP cmos,2.38百万像素CMOS,监控安防摄像机CMOSSensor,IMX136L图像传感器模组,238万像素工业相机图像传感器,1080P  IMX136 1/2.8″  USB Camera CMOS sensor ,1080p60fps图像传感器,工业相机常用的图像传感器,ATSAMD20E15A-MU单片机现货,ATSAMD20E15A-MU库存,ATSAMD20E15A-MU单片机图片,ATSAMD20E15A-MU规格书,ATSAMD20E15A-MU模组,ATSAMD20E15A-MU用途,ATSAMD20E15A-MU价格,ATSAMD20E15A-MU性能参数

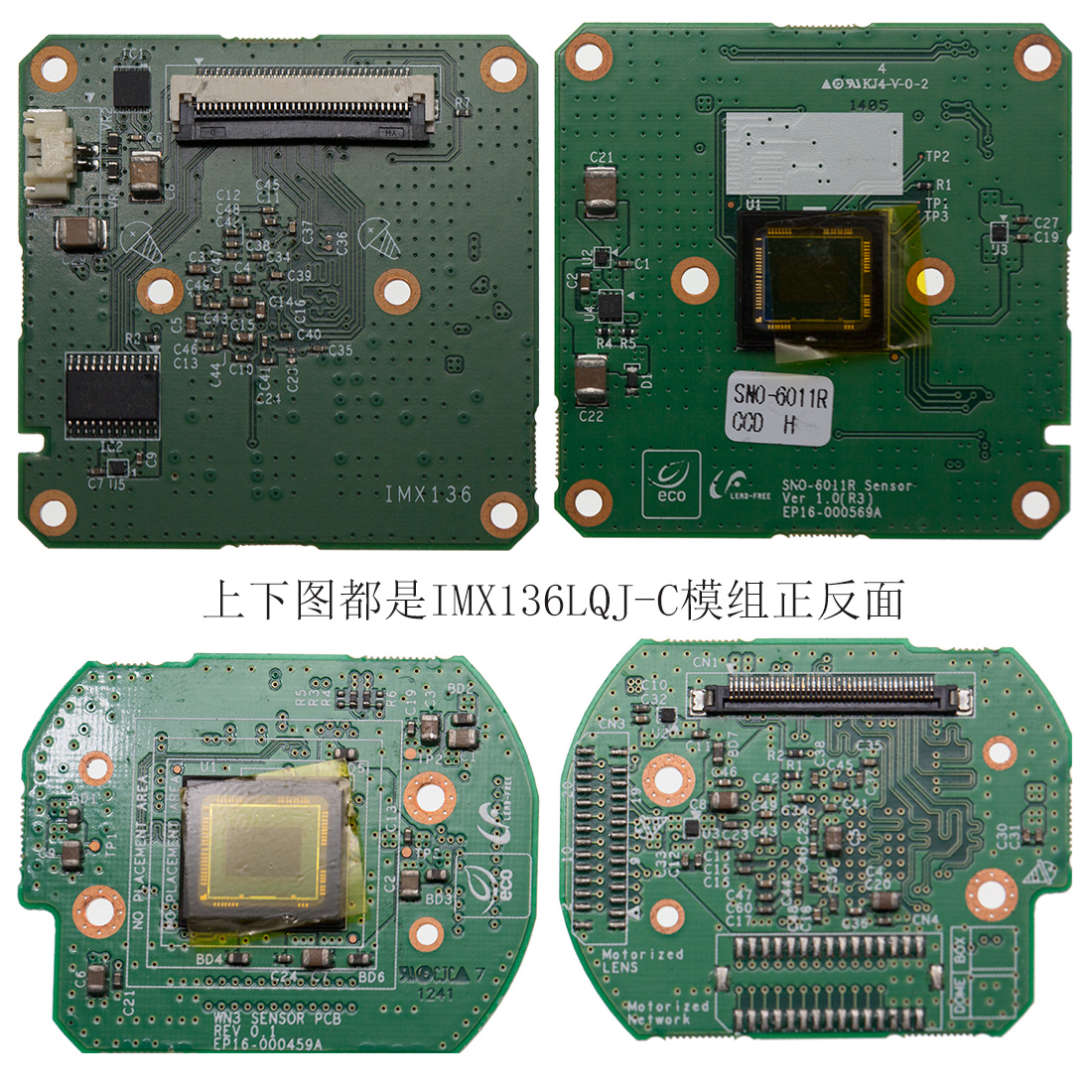

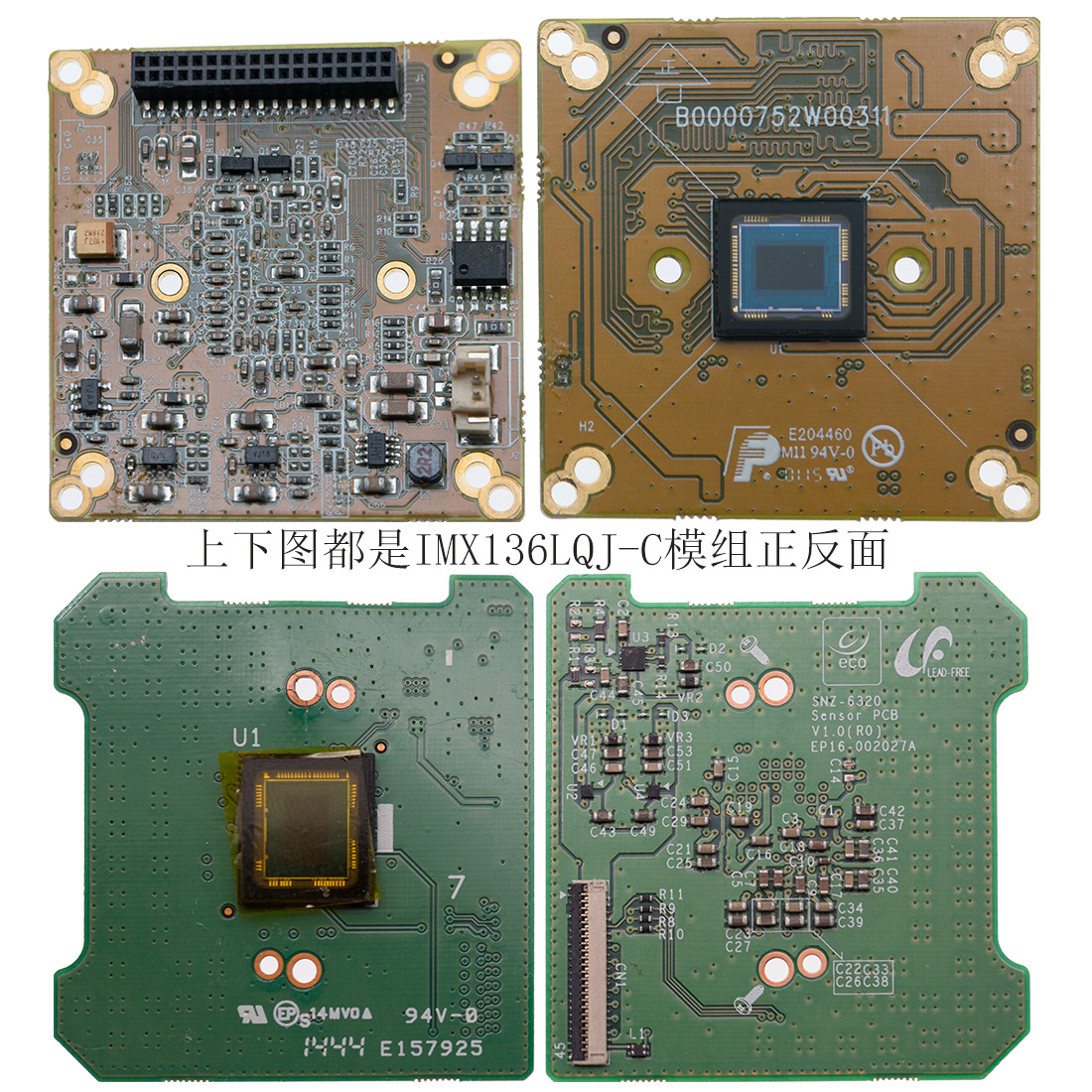

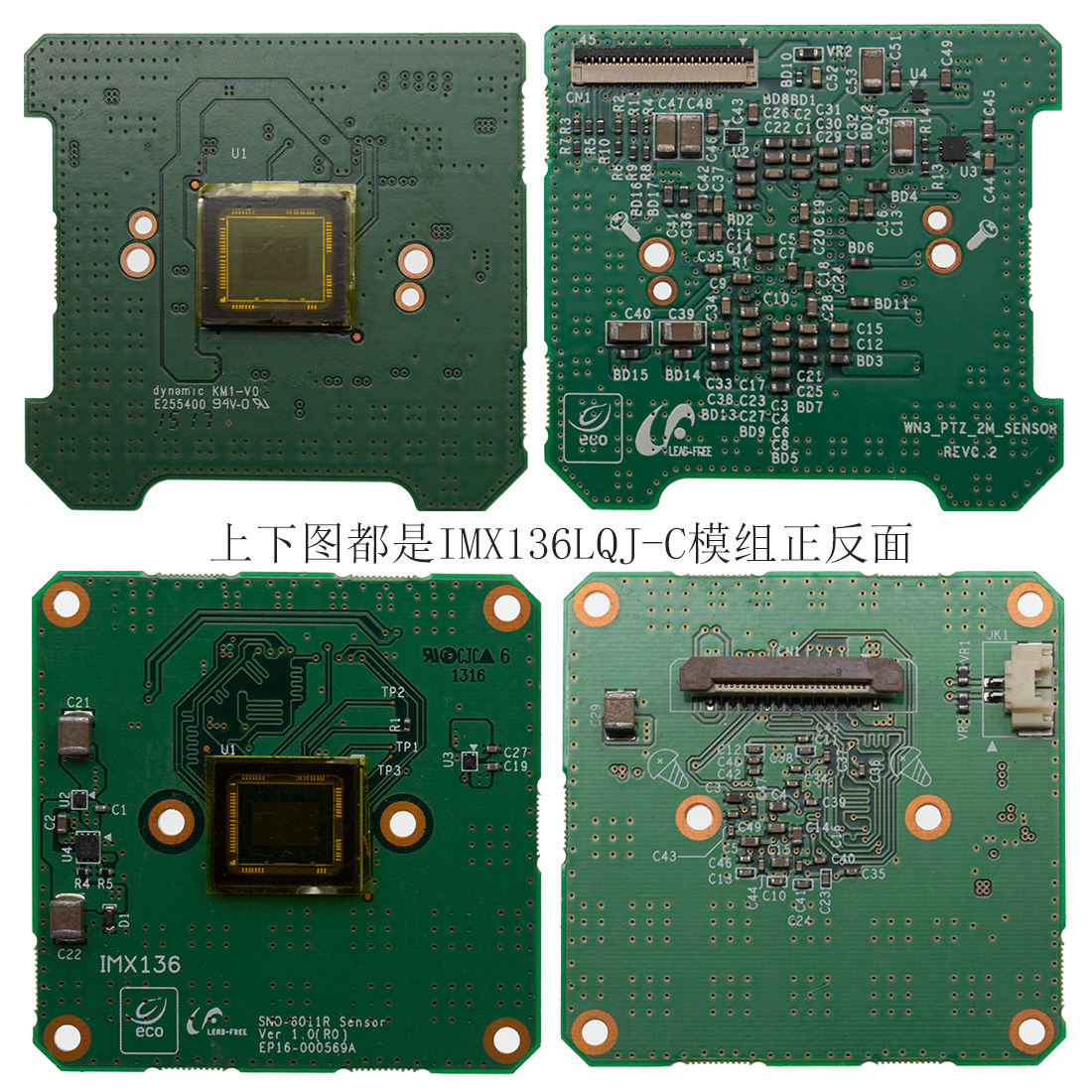

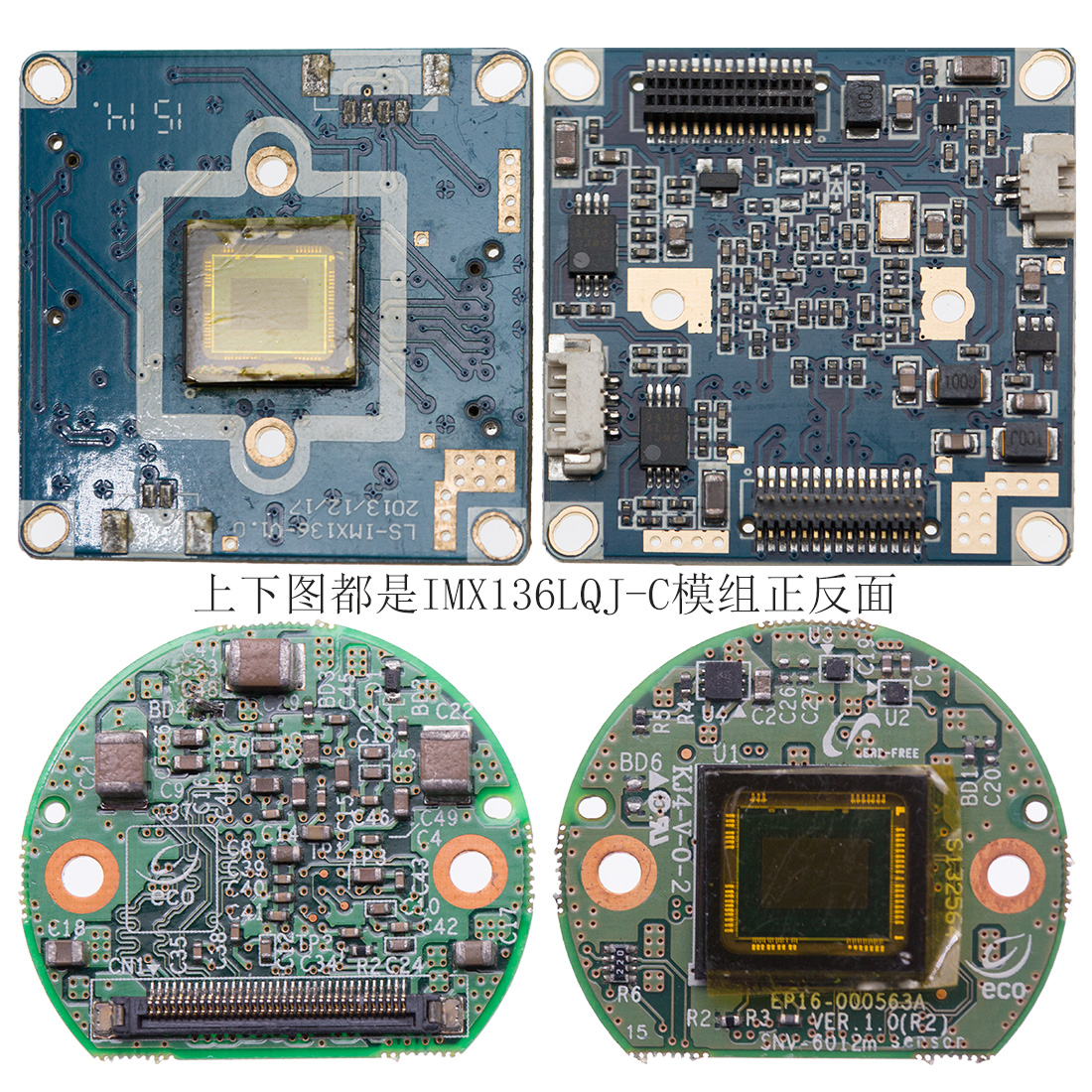

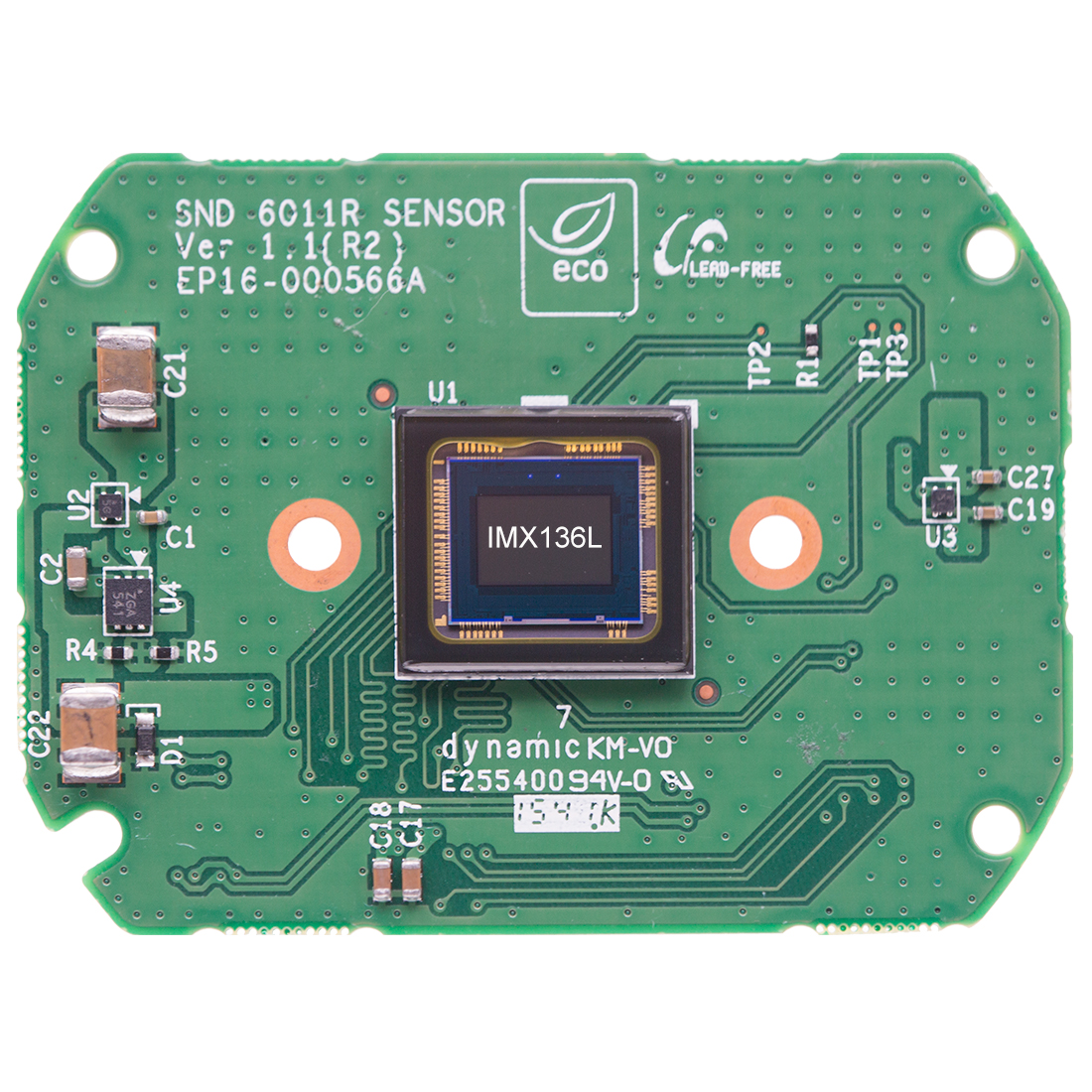

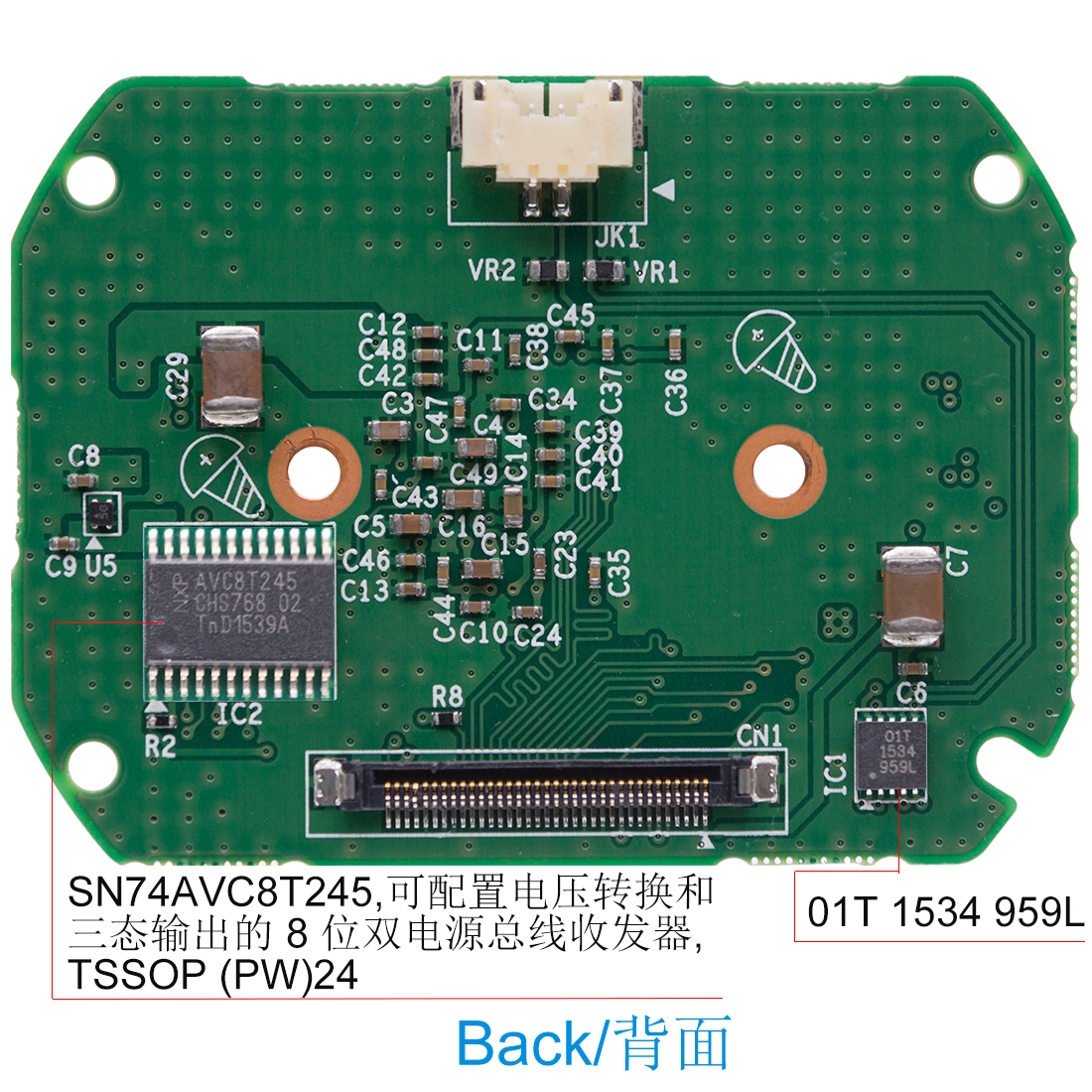

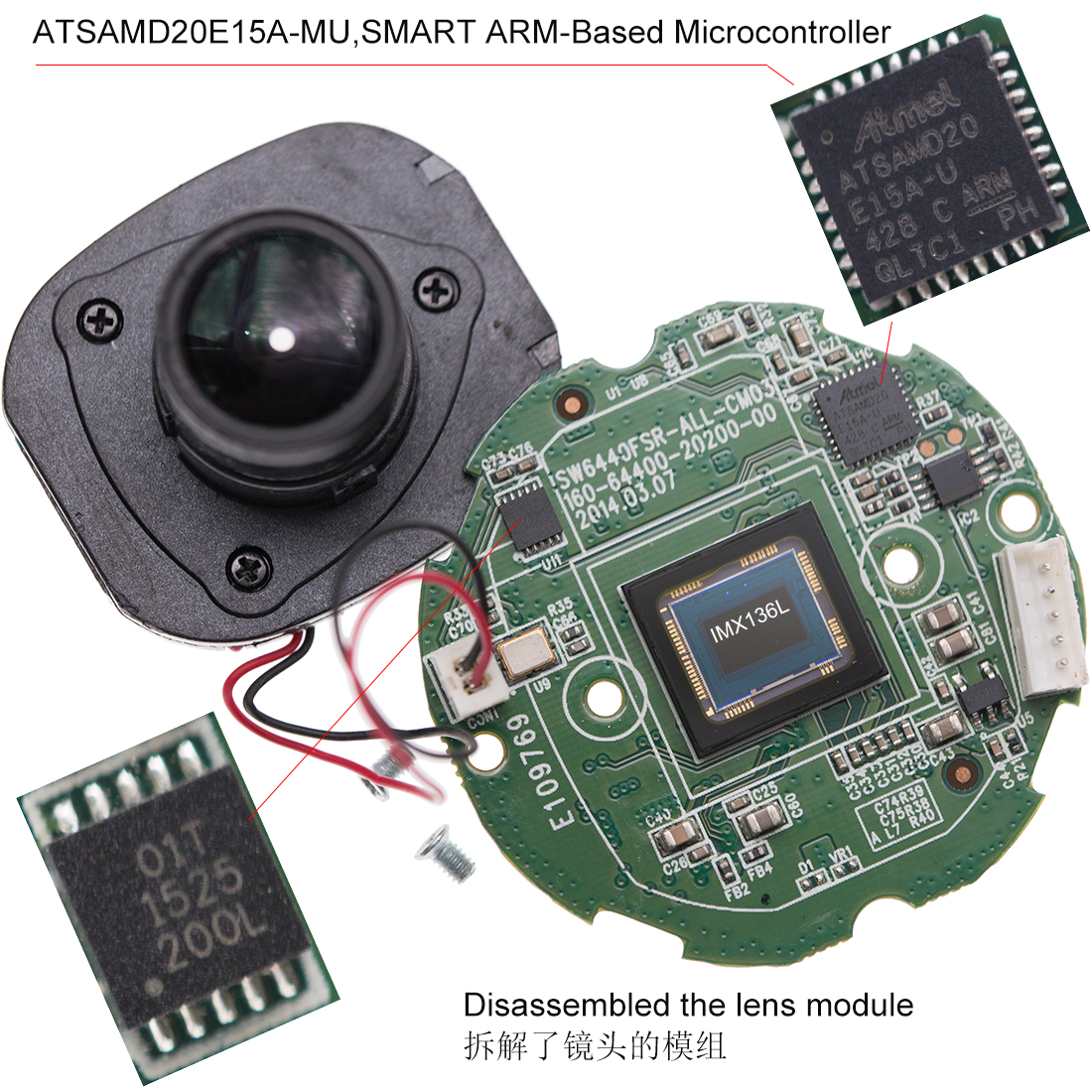

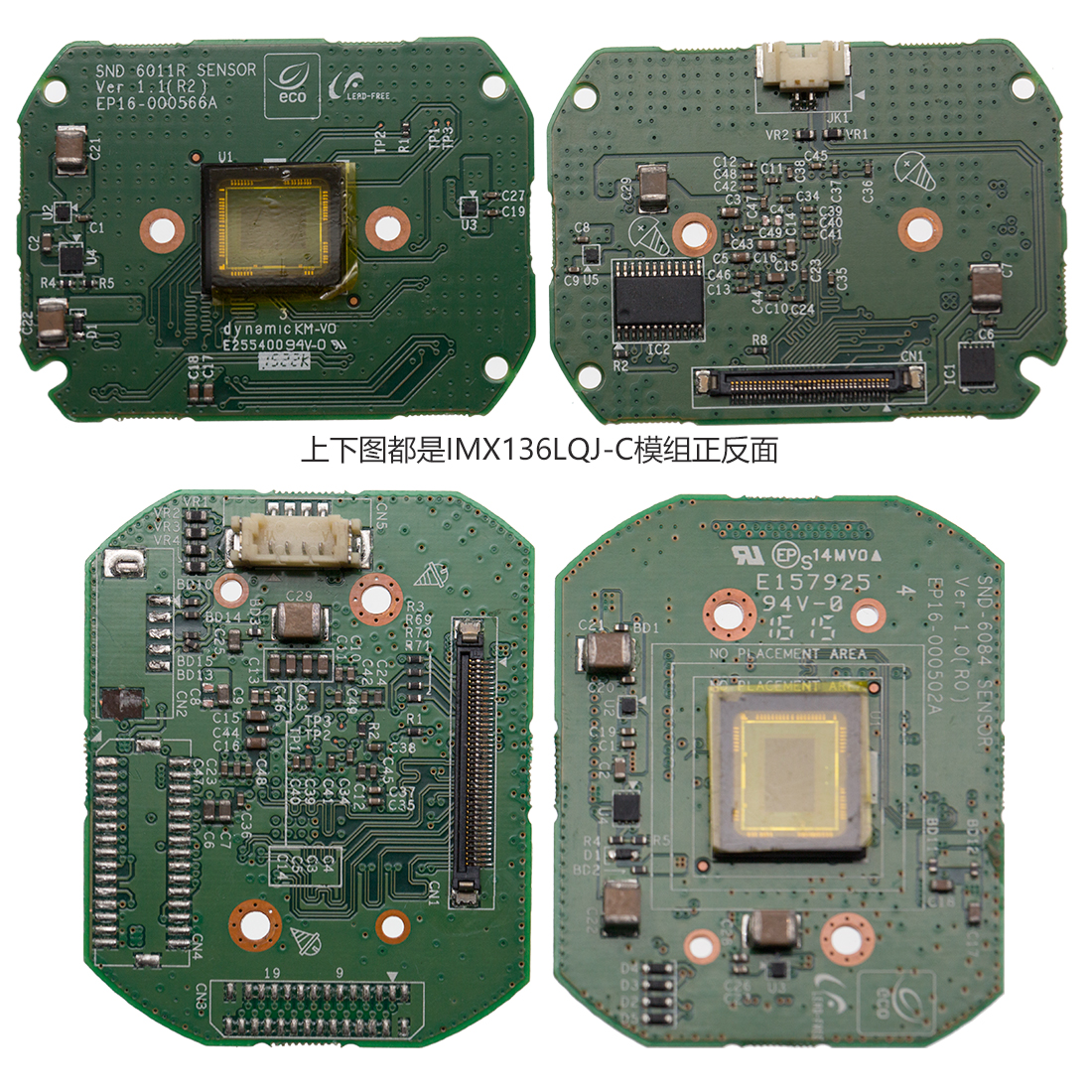

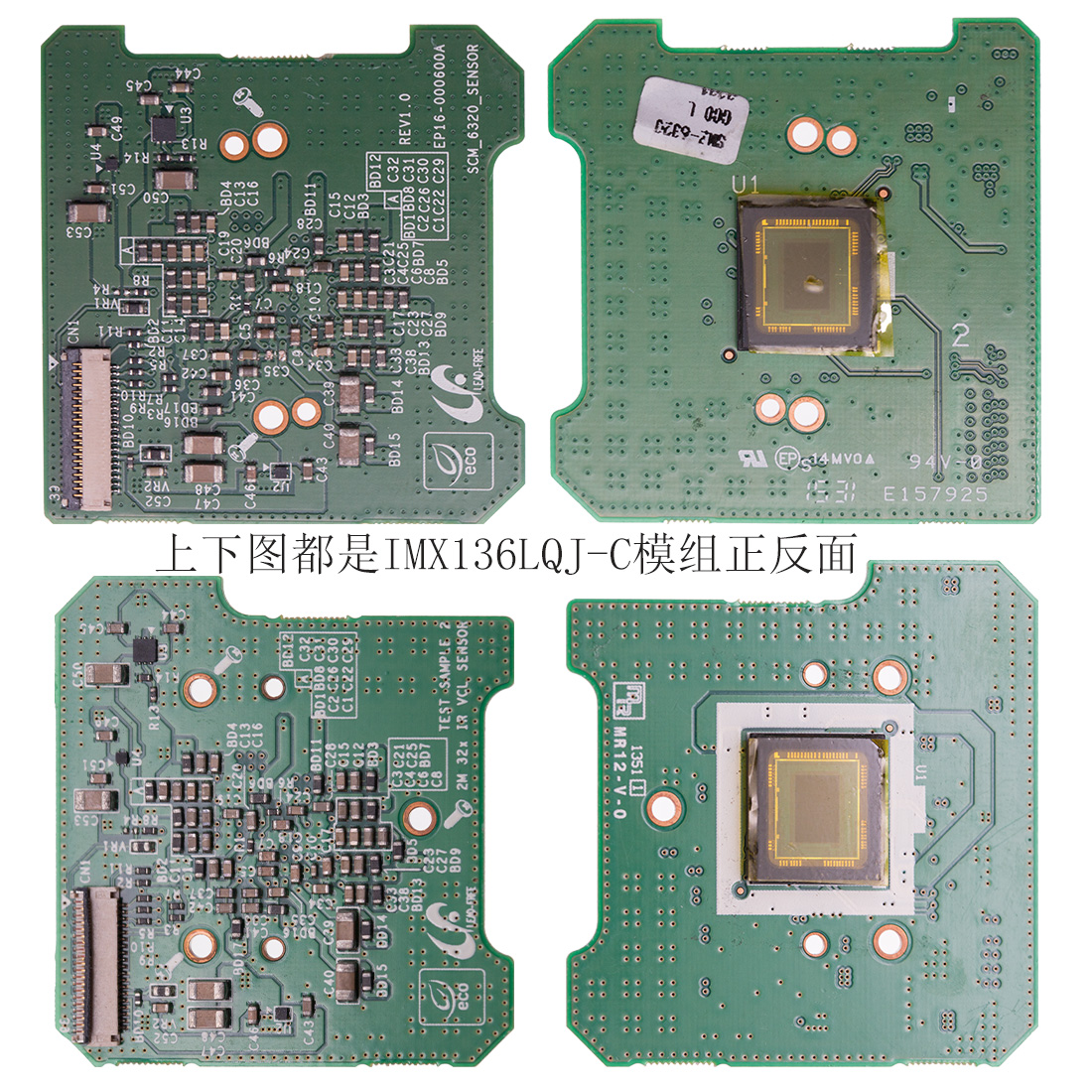

以下图片是可拆卸IMX236LQJ-C再利用的模组,单独一块模组不能直接使用,除非你是直接代替原有同型号模组:
The following are the removable IMX236LQJ-C modules. A single module cannot be used directly unless you are directly replacing the original module of the same model:
IMX136LQJ-C现货,IMX136LQJ-C价格,IMX136LQJ-C模组,IMX136LQJ-Cdatasheet下载,IMX136LQJ-C pdf文档下载,IMX136LQJ-C原装现货,IMX136LQJ-C库存,IMX136LQJ-C芯片,IMX136LQJ-C图片,IMX136LQJ-C高清大图,IMX136LQJ-C规格书下载,IMX136LQJ-C代理商,IMX136LQJ-C技术支持,产品介绍,IMX136LQJ-C简介,IMX136LQJ-C方案商,IMX136LQJ-C分销商,IMX136L经销商,IMX136L官网,IMX136L生产厂家,IMX136L专卖店,IMX136L高价收购,IMX136L模组,IMX136L模块,IMX136L特价,IMX136L库存,IMX136L生产商,IMX136L性价比,SONY索尼2.0MP cmos,2.38百万像素CMOS,监控安防摄像机CMOSSensor,IMX136L图像传感器模组,238万像素工业相机图像传感器,1080P  IMX136 1/2.8″  USB Camera CMOS sensor ,1080p60fps图像传感器,工业相机常用的图像传感器,ATSAMD20E15A-MU单片机现货,ATSAMD20E15A-MU库存,ATSAMD20E15A-MU单片机图片,ATSAMD20E15A-MU规格书,ATSAMD20E15A-MU模组,ATSAMD20E15A-MU用途,ATSAMD20E15A-MU价格,ATSAMD20E15A-MU性能参数
IMX136LQJ-C现货,IMX136LQJ-C价格,IMX136LQJ-C模组,IMX136LQJ-Cdatasheet下载,IMX136LQJ-C pdf文档下载,IMX136LQJ-C原装现货,IMX136LQJ-C库存,IMX136LQJ-C芯片,IMX136LQJ-C图片,IMX136LQJ-C高清大图,IMX136LQJ-C规格书下载,IMX136LQJ-C代理商,IMX136LQJ-C技术支持,产品介绍,IMX136LQJ-C简介,IMX136LQJ-C方案商,IMX136LQJ-C分销商,IMX136L经销商,IMX136L官网,IMX136L生产厂家,IMX136L专卖店,IMX136L高价收购,IMX136L模组,IMX136L模块,IMX136L特价,IMX136L库存,IMX136L生产商,IMX136L性价比,SONY索尼2.0MP cmos,2.38百万像素CMOS,监控安防摄像机CMOSSensor,IMX136L图像传感器模组,238万像素工业相机图像传感器,1080P  IMX136 1/2.8″  USB Camera CMOS sensor ,1080p60fps图像传感器,工业相机常用的图像传感器,ATSAMD20E15A-MU单片机现货,ATSAMD20E15A-MU库存,ATSAMD20E15A-MU单片机图片,ATSAMD20E15A-MU规格书,ATSAMD20E15A-MU模组,ATSAMD20E15A-MU用途,ATSAMD20E15A-MU价格,ATSAMD20E15A-MU性能参数
IMX136LQJ-C现货,IMX136LQJ-C价格,IMX136LQJ-C模组,IMX136LQJ-Cdatasheet下载,IMX136LQJ-C pdf文档下载,IMX136LQJ-C原装现货,IMX136LQJ-C库存,IMX136LQJ-C芯片,IMX136LQJ-C图片,IMX136LQJ-C高清大图,IMX136LQJ-C规格书下载,IMX136LQJ-C代理商,IMX136LQJ-C技术支持,产品介绍,IMX136LQJ-C简介,IMX136LQJ-C方案商,IMX136LQJ-C分销商,IMX136L经销商,IMX136L官网,IMX136L生产厂家,IMX136L专卖店,IMX136L高价收购,IMX136L模组,IMX136L模块,IMX136L特价,IMX136L库存,IMX136L生产商,IMX136L性价比,SONY索尼2.0MP cmos,2.38百万像素CMOS,监控安防摄像机CMOSSensor,IMX136L图像传感器模组,238万像素工业相机图像传感器,1080P  IMX136 1/2.8″  USB Camera CMOS sensor ,1080p60fps图像传感器,工业相机常用的图像传感器,ATSAMD20E15A-MU单片机现货,ATSAMD20E15A-MU库存,ATSAMD20E15A-MU单片机图片,ATSAMD20E15A-MU规格书,ATSAMD20E15A-MU模组,ATSAMD20E15A-MU用途,ATSAMD20E15A-MU价格,ATSAMD20E15A-MU性能参数
IMX136LQJ-C现货,IMX136LQJ-C价格,IMX136LQJ-C模组,IMX136LQJ-Cdatasheet下载,IMX136LQJ-C pdf文档下载,IMX136LQJ-C原装现货,IMX136LQJ-C库存,IMX136LQJ-C芯片,IMX136LQJ-C图片,IMX136LQJ-C高清大图,IMX136LQJ-C规格书下载,IMX136LQJ-C代理商,IMX136LQJ-C技术支持,产品介绍,IMX136LQJ-C简介,IMX136LQJ-C方案商,IMX136LQJ-C分销商,IMX136L经销商,IMX136L官网,IMX136L生产厂家,IMX136L专卖店,IMX136L高价收购,IMX136L模组,IMX136L模块,IMX136L特价,IMX136L库存,IMX136L生产商,IMX136L性价比,SONY索尼2.0MP cmos,2.38百万像素CMOS,监控安防摄像机CMOSSensor,IMX136L图像传感器模组,238万像素工业相机图像传感器,1080P  IMX136 1/2.8″  USB Camera CMOS sensor ,1080p60fps图像传感器,工业相机常用的图像传感器,ATSAMD20E15A-MU单片机现货,ATSAMD20E15A-MU库存,ATSAMD20E15A-MU单片机图片,ATSAMD20E15A-MU规格书,ATSAMD20E15A-MU模组,ATSAMD20E15A-MU用途,ATSAMD20E15A-MU价格,ATSAMD20E15A-MU性能参数
IMX136LQJ-C现货,IMX136LQJ-C价格,IMX136LQJ-C模组,IMX136LQJ-Cdatasheet下载,IMX136LQJ-C pdf文档下载,IMX136LQJ-C原装现货,IMX136LQJ-C库存,IMX136LQJ-C芯片,IMX136LQJ-C图片,IMX136LQJ-C高清大图,IMX136LQJ-C规格书下载,IMX136LQJ-C代理商,IMX136LQJ-C技术支持,产品介绍,IMX136LQJ-C简介,IMX136LQJ-C方案商,IMX136LQJ-C分销商,IMX136L经销商,IMX136L官网,IMX136L生产厂家,IMX136L专卖店,IMX136L高价收购,IMX136L模组,IMX136L模块,IMX136L特价,IMX136L库存,IMX136L生产商,IMX136L性价比,SONY索尼2.0MP cmos,2.38百万像素CMOS,监控安防摄像机CMOSSensor,IMX136L图像传感器模组,238万像素工业相机图像传感器,1080P  IMX136 1/2.8″  USB Camera CMOS sensor ,1080p60fps图像传感器,工业相机常用的图像传感器,ATSAMD20E15A-MU单片机现货,ATSAMD20E15A-MU库存,ATSAMD20E15A-MU单片机图片,ATSAMD20E15A-MU规格书,ATSAMD20E15A-MU模组,ATSAMD20E15A-MU用途,ATSAMD20E15A-MU价格,ATSAMD20E15A-MU性能参数
IMX136LQJ-C现货,IMX136LQJ-C价格,IMX136LQJ-C模组,IMX136LQJ-Cdatasheet下载,IMX136LQJ-C pdf文档下载,IMX136LQJ-C原装现货,IMX136LQJ-C库存,IMX136LQJ-C芯片,IMX136LQJ-C图片,IMX136LQJ-C高清大图,IMX136LQJ-C规格书下载,IMX136LQJ-C代理商,IMX136LQJ-C技术支持,产品介绍,IMX136LQJ-C简介,IMX136LQJ-C方案商,IMX136LQJ-C分销商,IMX136L经销商,IMX136L官网,IMX136L生产厂家,IMX136L专卖店,IMX136L高价收购,IMX136L模组,IMX136L模块,IMX136L特价,IMX136L库存,IMX136L生产商,IMX136L性价比,SONY索尼2.0MP cmos,2.38百万像素CMOS,监控安防摄像机CMOSSensor,IMX136L图像传感器模组,238万像素工业相机图像传感器,1080P  IMX136 1/2.8″  USB Camera CMOS sensor ,1080p60fps图像传感器,工业相机常用的图像传感器,ATSAMD20E15A-MU单片机现货,ATSAMD20E15A-MU库存,ATSAMD20E15A-MU单片机图片,ATSAMD20E15A-MU规格书,ATSAMD20E15A-MU模组,ATSAMD20E15A-MU用途,ATSAMD20E15A-MU价格,ATSAMD20E15A-MU性能参数
IMX136LQJ-C现货,IMX136LQJ-C价格,IMX136LQJ-C模组,IMX136LQJ-Cdatasheet下载,IMX136LQJ-C pdf文档下载,IMX136LQJ-C原装现货,IMX136LQJ-C库存,IMX136LQJ-C芯片,IMX136LQJ-C图片,IMX136LQJ-C高清大图,IMX136LQJ-C规格书下载,IMX136LQJ-C代理商,IMX136LQJ-C技术支持,产品介绍,IMX136LQJ-C简介,IMX136LQJ-C方案商,IMX136LQJ-C分销商,IMX136L经销商,IMX136L官网,IMX136L生产厂家,IMX136L专卖店,IMX136L高价收购,IMX136L模组,IMX136L模块,IMX136L特价,IMX136L库存,IMX136L生产商,IMX136L性价比,SONY索尼2.0MP cmos,2.38百万像素CMOS,监控安防摄像机CMOSSensor,IMX136L图像传感器模组,238万像素工业相机图像传感器,1080P  IMX136 1/2.8″  USB Camera CMOS sensor ,1080p60fps图像传感器,工业相机常用的图像传感器,ATSAMD20E15A-MU单片机现货,ATSAMD20E15A-MU库存,ATSAMD20E15A-MU单片机图片,ATSAMD20E15A-MU规格书,ATSAMD20E15A-MU模组,ATSAMD20E15A-MU用途,ATSAMD20E15A-MU价格,ATSAMD20E15A-MU性能参数
IMX136LQJ-C现货,IMX136LQJ-C价格,IMX136LQJ-C模组,IMX136LQJ-Cdatasheet下载,IMX136LQJ-C pdf文档下载,IMX136LQJ-C原装现货,IMX136LQJ-C库存,IMX136LQJ-C芯片,IMX136LQJ-C图片,IMX136LQJ-C高清大图,IMX136LQJ-C规格书下载,IMX136LQJ-C代理商,IMX136LQJ-C技术支持,产品介绍,IMX136LQJ-C简介,IMX136LQJ-C方案商,IMX136LQJ-C分销商,IMX136L经销商,IMX136L官网,IMX136L生产厂家,IMX136L专卖店,IMX136L高价收购,IMX136L模组,IMX136L模块,IMX136L特价,IMX136L库存,IMX136L生产商,IMX136L性价比,SONY索尼2.0MP cmos,2.38百万像素CMOS,监控安防摄像机CMOSSensor,IMX136L图像传感器模组,238万像素工业相机图像传感器,1080P  IMX136 1/2.8″  USB Camera CMOS sensor ,1080p60fps图像传感器,工业相机常用的图像传感器,ATSAMD20E15A-MU单片机现货,ATSAMD20E15A-MU库存,ATSAMD20E15A-MU单片机图片,ATSAMD20E15A-MU规格书,ATSAMD20E15A-MU模组,ATSAMD20E15A-MU用途,ATSAMD20E15A-MU价格,ATSAMD20E15A-MU性能参数

IMX136LQJ-C现货,IMX136LQJ-C价格,IMX136LQJ-C模组,IMX136LQJ-Cdatasheet下载,IMX136LQJ-C pdf文档下载,IMX136LQJ-C原装现货,IMX136LQJ-C库存,IMX136LQJ-C芯片,IMX136LQJ-C图片,IMX136LQJ-C高清大图,IMX136LQJ-C规格书下载,IMX136LQJ-C代理商,IMX136LQJ-C技术支持,产品介绍,IMX136LQJ-C简介,IMX136LQJ-C方案商,IMX136LQJ-C分销商,IMX136L经销商,IMX136L官网,IMX136L生产厂家,IMX136L专卖店,IMX136L高价收购,IMX136L模组,IMX136L模块,IMX136L特价,IMX136L库存,IMX136L生产商,IMX136L性价比,SONY索尼2.0MP cmos,2.38百万像素CMOS,监控安防摄像机CMOSSensor,IMX136L图像传感器模组,238万像素工业相机图像传感器,1080P  IMX136 1/2.8″  USB Camera CMOS sensor ,1080p60fps图像传感器,工业相机常用的图像传感器,ATSAMD20E15A-MU单片机现货,ATSAMD20E15A-MU库存,ATSAMD20E15A-MU单片机图片,ATSAMD20E15A-MU规格书,ATSAMD20E15A-MU模组,ATSAMD20E15A-MU用途,ATSAMD20E15A-MU价格,ATSAMD20E15A-MU性能参数
IMX136LQJ-C现货,IMX136LQJ-C价格,IMX136LQJ-C模组,IMX136LQJ-Cdatasheet下载,IMX136LQJ-C pdf文档下载,IMX136LQJ-C原装现货,IMX136LQJ-C库存,IMX136LQJ-C芯片,IMX136LQJ-C图片,IMX136LQJ-C高清大图,IMX136LQJ-C规格书下载,IMX136LQJ-C代理商,IMX136LQJ-C技术支持,产品介绍,IMX136LQJ-C简介,IMX136LQJ-C方案商,IMX136LQJ-C分销商,IMX136L经销商,IMX136L官网,IMX136L生产厂家,IMX136L专卖店,IMX136L高价收购,IMX136L模组,IMX136L模块,IMX136L特价,IMX136L库存,IMX136L生产商,IMX136L性价比,SONY索尼2.0MP cmos,2.38百万像素CMOS,监控安防摄像机CMOSSensor,IMX136L图像传感器模组,238万像素工业相机图像传感器,1080P  IMX136 1/2.8″  USB Camera CMOS sensor ,1080p60fps图像传感器,工业相机常用的图像传感器,ATSAMD20E15A-MU单片机现货,ATSAMD20E15A-MU库存,ATSAMD20E15A-MU单片机图片,ATSAMD20E15A-MU规格书,ATSAMD20E15A-MU模组,ATSAMD20E15A-MU用途,ATSAMD20E15A-MU价格,ATSAMD20E15A-MU性能参数
IMX136LQJ-C现货,IMX136LQJ-C价格,IMX136LQJ-C模组,IMX136LQJ-Cdatasheet下载,IMX136LQJ-C pdf文档下载,IMX136LQJ-C原装现货,IMX136LQJ-C库存,IMX136LQJ-C芯片,IMX136LQJ-C图片,IMX136LQJ-C高清大图,IMX136LQJ-C规格书下载,IMX136LQJ-C代理商,IMX136LQJ-C技术支持,产品介绍,IMX136LQJ-C简介,IMX136LQJ-C方案商,IMX136LQJ-C分销商,IMX136L经销商,IMX136L官网,IMX136L生产厂家,IMX136L专卖店,IMX136L高价收购,IMX136L模组,IMX136L模块,IMX136L特价,IMX136L库存,IMX136L生产商,IMX136L性价比,SONY索尼2.0MP cmos,2.38百万像素CMOS,监控安防摄像机CMOSSensor,IMX136L图像传感器模组,238万像素工业相机图像传感器,1080P  IMX136 1/2.8″  USB Camera CMOS sensor ,1080p60fps图像传感器,工业相机常用的图像传感器,ATSAMD20E15A-MU单片机现货,ATSAMD20E15A-MU库存,ATSAMD20E15A-MU单片机图片,ATSAMD20E15A-MU规格书,ATSAMD20E15A-MU模组,ATSAMD20E15A-MU用途,ATSAMD20E15A-MU价格,ATSAMD20E15A-MU性能参数
IMX136LQJ-C现货,IMX136LQJ-C价格,IMX136LQJ-C模组,IMX136LQJ-Cdatasheet下载,IMX136LQJ-C pdf文档下载,IMX136LQJ-C原装现货,IMX136LQJ-C库存,IMX136LQJ-C芯片,IMX136LQJ-C图片,IMX136LQJ-C高清大图,IMX136LQJ-C规格书下载,IMX136LQJ-C代理商,IMX136LQJ-C技术支持,产品介绍,IMX136LQJ-C简介,IMX136LQJ-C方案商,IMX136LQJ-C分销商,IMX136L经销商,IMX136L官网,IMX136L生产厂家,IMX136L专卖店,IMX136L高价收购,IMX136L模组,IMX136L模块,IMX136L特价,IMX136L库存,IMX136L生产商,IMX136L性价比,SONY索尼2.0MP cmos,2.38百万像素CMOS,监控安防摄像机CMOSSensor,IMX136L图像传感器模组,238万像素工业相机图像传感器,1080P  IMX136 1/2.8″  USB Camera CMOS sensor ,1080p60fps图像传感器,工业相机常用的图像传感器,ATSAMD20E15A-MU单片机现货,ATSAMD20E15A-MU库存,ATSAMD20E15A-MU单片机图片,ATSAMD20E15A-MU规格书,ATSAMD20E15A-MU模组,ATSAMD20E15A-MU用途,ATSAMD20E15A-MU价格,ATSAMD20E15A-MU性能参数
IMX136LQJ-C现货,IMX136LQJ-C价格,IMX136LQJ-C模组,IMX136LQJ-Cdatasheet下载,IMX136LQJ-C pdf文档下载,IMX136LQJ-C原装现货,IMX136LQJ-C库存,IMX136LQJ-C芯片,IMX136LQJ-C图片,IMX136LQJ-C高清大图,IMX136LQJ-C规格书下载,IMX136LQJ-C代理商,IMX136LQJ-C技术支持,产品介绍,IMX136LQJ-C简介,IMX136LQJ-C方案商,IMX136LQJ-C分销商,IMX136L经销商,IMX136L官网,IMX136L生产厂家,IMX136L专卖店,IMX136L高价收购,IMX136L模组,IMX136L模块,IMX136L特价,IMX136L库存,IMX136L生产商,IMX136L性价比,SONY索尼2.0MP cmos,2.38百万像素CMOS,监控安防摄像机CMOSSensor,IMX136L图像传感器模组,238万像素工业相机图像传感器,1080P  IMX136 1/2.8″  USB Camera CMOS sensor ,1080p60fps图像传感器,工业相机常用的图像传感器,ATSAMD20E15A-MU单片机现货,ATSAMD20E15A-MU库存,ATSAMD20E15A-MU单片机图片,ATSAMD20E15A-MU规格书,ATSAMD20E15A-MU模组,ATSAMD20E15A-MU用途,ATSAMD20E15A-MU价格,ATSAMD20E15A-MU性能参数

如下链接是IMX136+NVP2421_NVP2420 索尼SONY 2MP(2百万)60FPS韩国进口安防监控网络高清摄像机模组
https://www.sunnywale.com/show-84-24149-1.html

还有IMX236的模组,可兼容代替IMX136,https://www.sunnywale.com/show-75-24152-1.html
