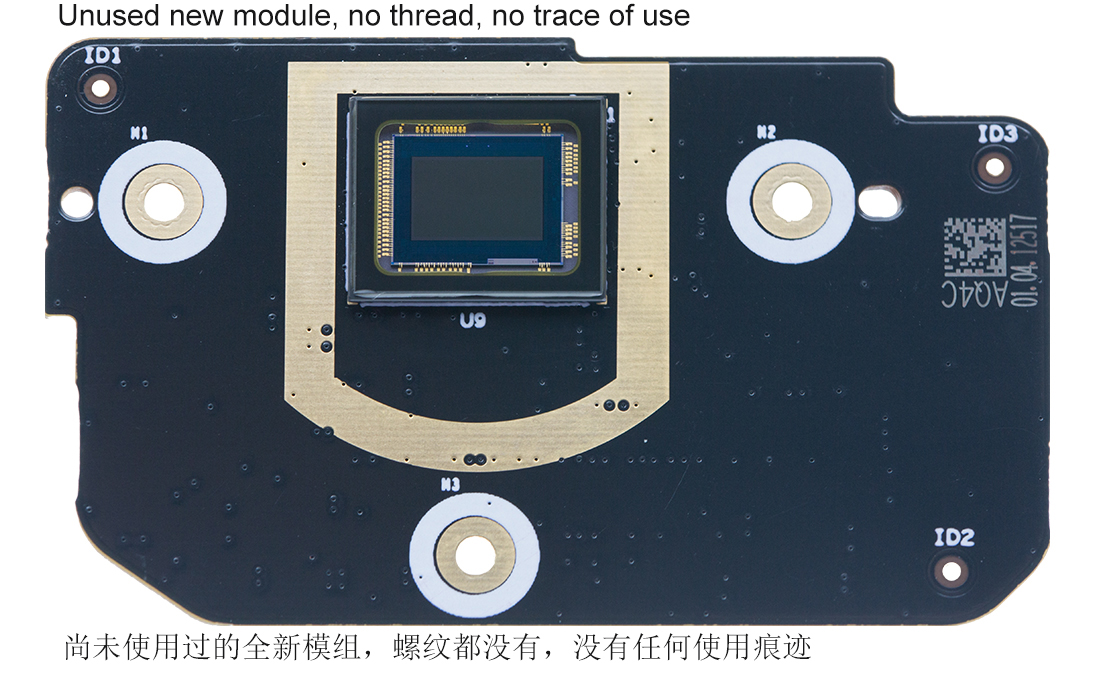

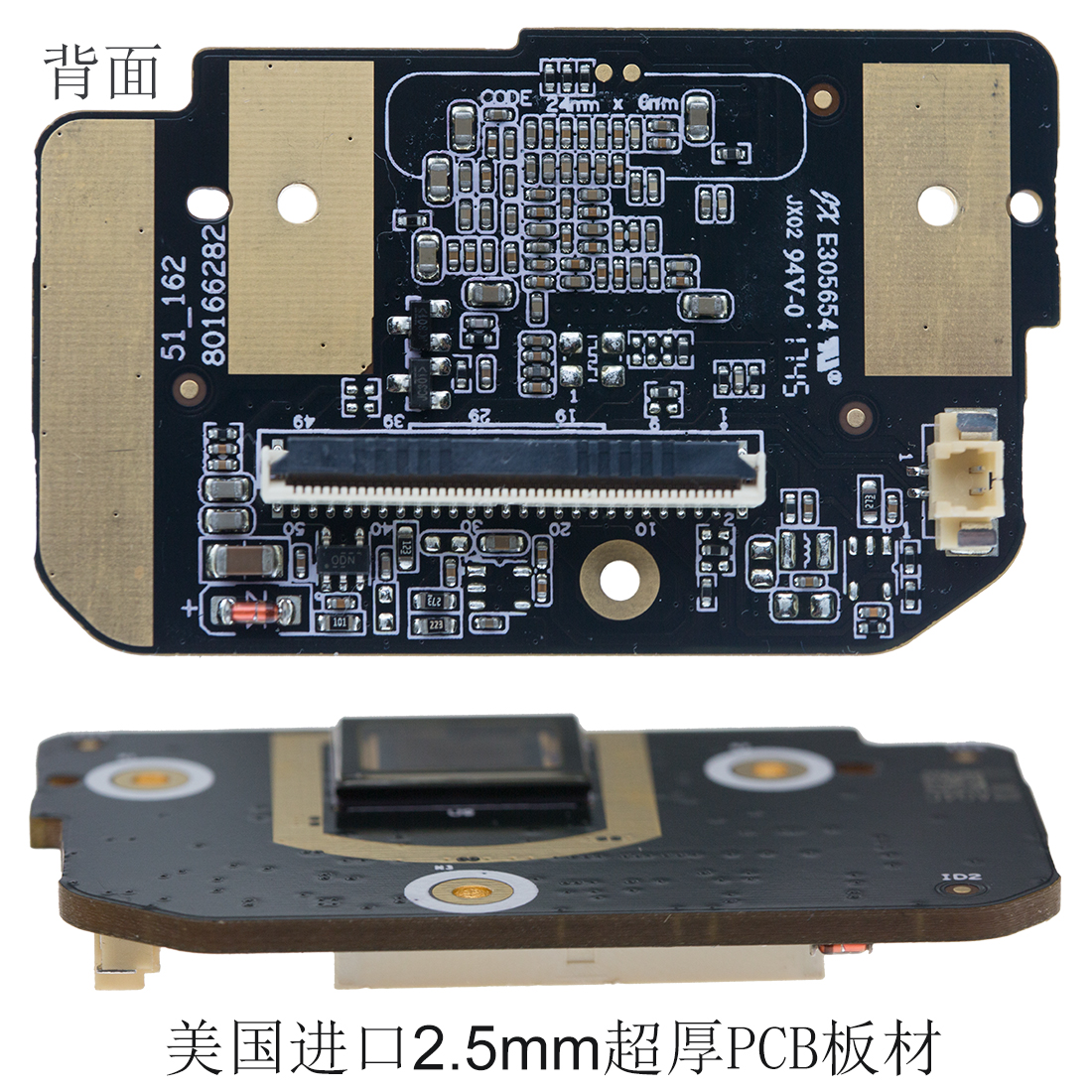

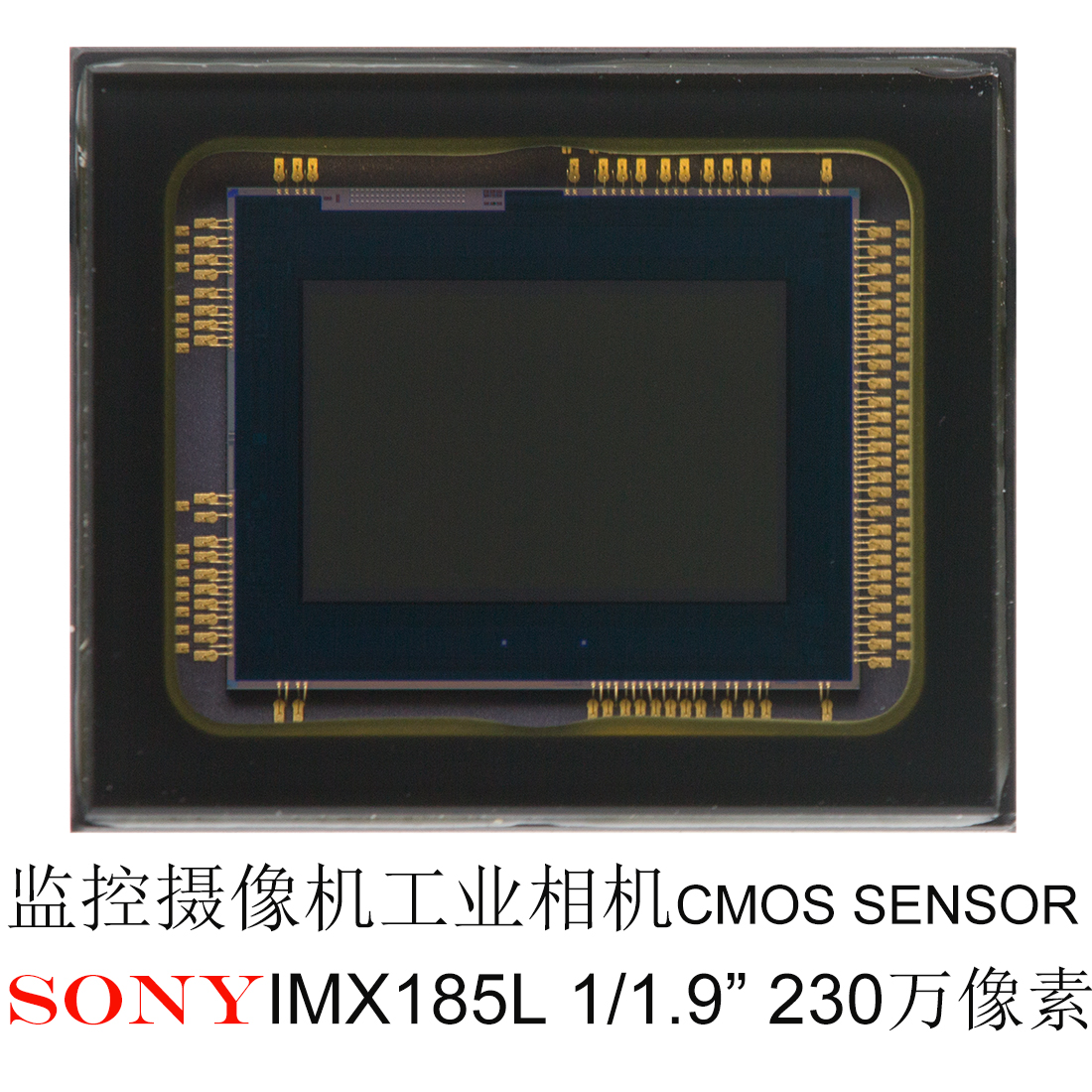

IMX185LQJ-C SONY索尼233万像素IMAGE CMOS SENSOR安防监控摄像机工业相机固态图像传感器模组
2021-04-30 21:33:06
点击购买amazon

IMX185LQJ-C描述

对角线8.58 mm(1/1.9型)CMOS固态图像传感器,方形像素,用于监控安防彩色摄像机,工业相机
IMX185LQJ-C是一种对角线8.58 mm (Type 1/1.9) CMOS有源像素型固态图像传感器,具有方形像素阵列和2.38 M有效像素。该芯片采用模拟3.3 V、数字1.2 V和数字1.8 V三种电源供电,功耗低。采用R、G、B三原色镶嵌滤光片,实现高灵敏度、低暗电流、无涂片。这种芯片具有可变电荷积分时间的电子快门。(应用范围:监控摄像机,FA摄像机,工业摄像机)

IMX185L特性
◆CMOS有源像素型点
◆内置定时调节电路、H/V驱动和串口通信电路
◆输入频率:27 MHz / 54 MHz / 37.125 MHz / 74.25 MHz
◆推荐记录像素数:约1920 (H) × 1200 (V)2.31像素
◆读出模式
   All-pixel扫描模式
   水平/垂直2/2行绑定读出模式
   1080p高清读出模式
   垂直方向正常/反向读出模式
   水平方向正常/反向读出模式
   窗口种植模式
◆读出速率1080p-HD读出模式下的最大帧率:120帧/秒
◆变速快门功能(分辨率1H单位)
◆10/12位A/D转换器
◆CDS/ PGA函数
   0 dB to 24db:模拟增益24db(步距0.3 dB)
   24.3 dB to 48db:模拟增益24db +数字增益0.3 to 24db(步距0.3 dB)
◆支持I/O切换
   低电压LVDS (150 mVp-p)并联DDR输出
   低压LVDS (150 mVp-p)串行(2 ch / 4 ch开关)DDR输出
   CSI-2串行数据输出(2 Lane / 4 Lane, RAW10/RAW12输出)
◆推荐镜头F值:2.8或以上
◆建议出瞳距离:- 30mm到-∞

* Exmor是索尼公司的商标。“Exmor”是索尼高性能CMOS图像传感器的一个版本,采用柱并联a /D转换,具有高速处理、低噪声和低功耗。索尼保留更改产品及规格的权利,恕不另行通知。本信息不传达任何授权以任何暗示或其他任何专利或其他权利。所示的应用电路(如果有的话)是说明该设备运行的典型例子。对于因使用这些电路而产生的任何问题,索尼不承担任何责任

IMX185L设备结构
◆CMOS图像传感器
◆图像尺寸:对角线8.58 mm(1/1.9型)
◆像素总数:1952 (H) × 1241 (V)2.42像素
◆有效像素数:约1945 (H) × 1225 (V)。2.38像素
◆活动像素数233万像素
   1937 (H) × 1217 (V)约。2.36 M像素(WUXGA)对角线8.58毫米
   1937 (H) × 1097 (V)约。2.12 M像素(1080p-HD)对角线8.35毫米
◆推荐记录像素数
   约1920 (H) × 1200 (V)。2.31万像素(WUXGA)
   1920 (H) × 1080 (V)约。207万像素(1080p-HD)
◆芯片尺寸:10.10 mm (H) × 8.05 mm (V)
◆单位细胞大小:3.75μm (H) × 3.75μm (V)
◆光黑色
   水平(H)方向:前4像素,后0像素
   垂直(V)方向:前16像素,后0像素
◆假,虚拟
   水平(H)方向:前0像素,后3像素
   垂直(V)方向:前0像素,后0像素
◆基材
   硅

IMX185LQJ-C Datasheet CMOS Solid-state Image Sensor

Diagonal 8.58 mm (Type 1/1.9) CMOS Solid-state Image Sensor with Square Pixel forColor Cameras

IMX185LQJ-C Description
The IMX185LQJ-C is a diagonal 8.58 mm (Type 1/1.9) CMOS active pixel type solid-state image sensor witha square pixel array and 2.38 M effective pixels. This chip operates with analog 3.3 V, digital 1.2 V, and digital 1.8 Vtriple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achievedthrough the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variablecharge-integration time.(Applications: Surveillance cameras, FA cameras, Industrial cameras)

IMX185L Features
◆ CMOS active pixel type dots
◆ Built-in timing adjustment circuit, H/V driver and serial communication circuit
◆ Input frequency: 27 MHz / 54 MHz / 37.125 MHz / 74.25 MHz
◆ Number of recommended recording pixels: 1920 (H) × 1200 (V) approx. 2.31 M pixels
◆ Readout mode
All-pixel scan mode
   Horizontal / vertical 2/2-line bining readout mode
   1080p-HD readout mode
   Vertical direction normal/inverted readout mode
   Horizontal direction normal/inverted readout mode
Window cropping mode
◆ Readout rateMaximum frame rate in 1080p-HD readout mode: 120 frame/s
◆ Variable-speed shutter function (resolution 1H units)
◆ 10/12-bit A/D converter
◆ CDS/PGA function
   0 dB to 24 dB: Analog Gain 24 dB (step pitch 0.3 dB)
   24.3 dB to 48 dB: Analog Gain 24 dB + Digital Gain 0.3 to 24 dB (step pitch 0.3 dB)
◆ Supports I/O switching
   Low voltage LVDS (150 mVp-p) parallel DDR output
   Low voltage LVDS (150 mVp-p) serial (2 ch / 4 ch switching) DDR output
   CSI-2 serial data output (2 Lane / 4 Lane, RAW10/RAW12 output)
◆ Recommend lens F number: 2.8 or more
◆ Recommended exit pupil distance: –30 mm to –∞

* “Exmor” is a trademark of Sony Corporation. The “Exmor” is a version of Sony's high performance CMOS image sensor withhigh-speed processing, low noise and low power dissipation by using column-parallel A/D conversion.Sony reserves the right to change products and specifications without prior notice.This information does not convey any license by any implication or otherwise under any patents or other right.Application circuits shown, if any, are typical examples illustrating the operation of the devices. Sony cannot assume responsibility forany problems arising out of the use of these circuits.1

IMX185L Device Structure
◆ CMOS image sensor
◆ Image size:Diagonal 8.58 mm (Type 1/1.9)
◆ Total number of pixels:1952 (H) × 1241 (V) approx. 2.42 M pixels
◆ Number of effective pixels:1945 (H) × 1225 (V) approx. 2.38 M pixels
◆ Number of active pixels
   1937 (H) × 1217 (V) approx. 2.36 M pixels (WUXGA) Diagonal 8.58 mm
   1937 (H) × 1097 (V) approx. 2.12 M pixels (1080p-HD) Diagonal 8.35 mm
◆ Number of recommended recording pixels
   1920 (H) × 1200 (V) approx. 2.31 M pixels (WUXGA)
   1920 (H) × 1080 (V) approx. 2.07 M pixels (1080p-HD)
◆ Chip size:10.10 mm (H) × 8.05 mm (V)
◆ Unit cell size:3.75 μm (H) × 3.75 μm (V)
◆ Optical black
   Horizontal (H) direction: Front 4 pixels, rear 0 pixels
   Vertical (V) direction : Front 16 pixels, rear 0 pixels
◆ Dummy
   Horizontal (H) direction: Front 0 pixels, rear 3 pixels
   Vertical (V) direction : Front 0 pixels, rear 0 pixels
◆ Substrate material
   Silicon
