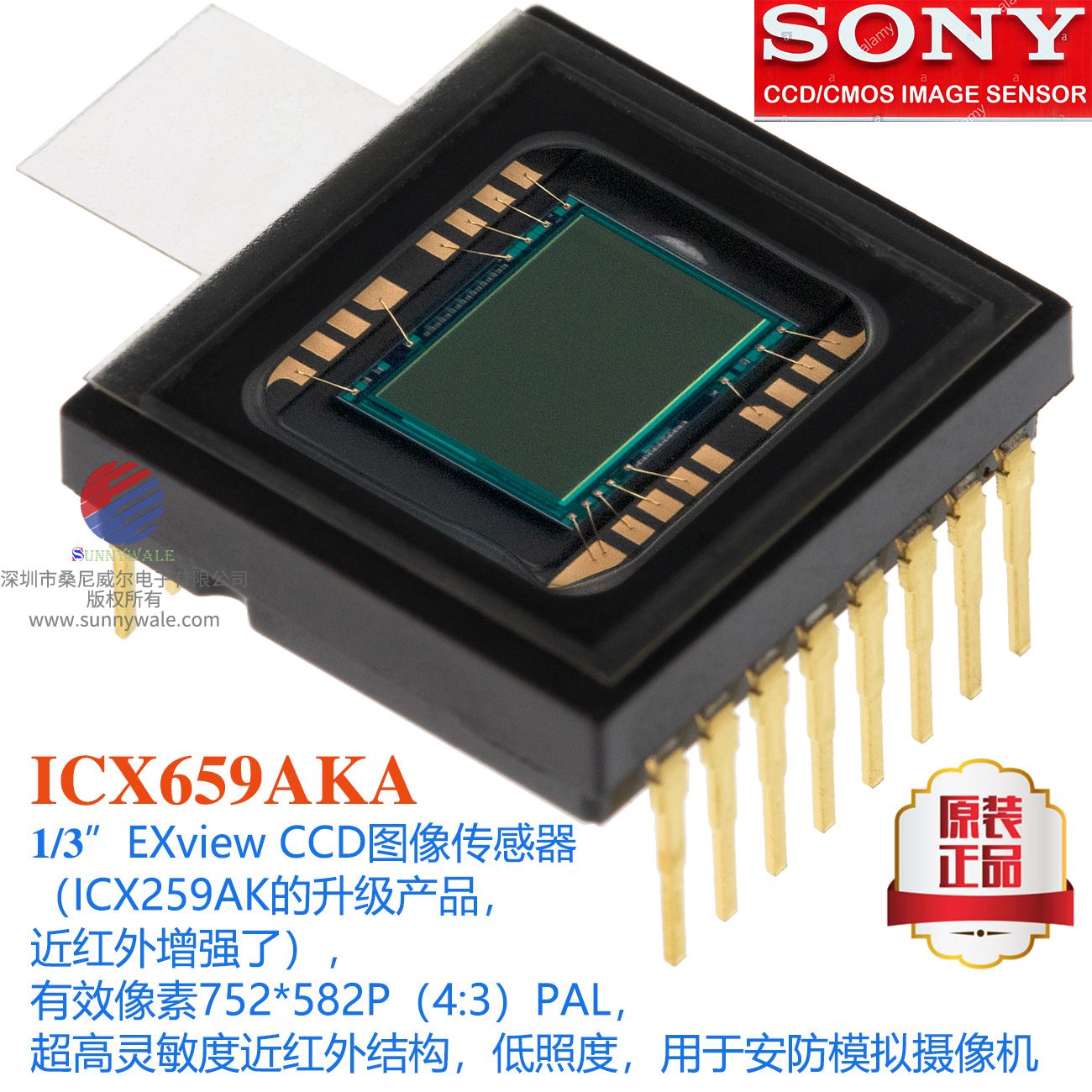

ICX659AKA,Diagonal 6mm (Type 1/3) CCD Image Sensor for PAL Color Video Cameras


Description
The ICX659AKA is an interline CCD solid-state image sensor suitable for PAL color video cameras with a diagonal 6mm (Type 1/3) system. Compared with the current product ICX259AK, near infrared sensitivity is improved drastically by the advance of EXview HAD CCD technology.
This chip features a field period readout system and an electronic shutter with variable charge-storage time.
The ICX659AKA has different spectral characteristics from the current CCD.

Features
※  Near infrared high sensitivity (+4.5dB compared with the ICX259AK,  入= 950nm )
※  High S/N
※  High resolution and low dark current
※  Excellent antiblooming characteristics
※  Ye, Cy, Mg, and G complementary color mosaic filters on chip
※  Continuous variable-speed shutter
※  No voltage adjustment (Reset gate and substrate bias need no adjustment.)
※  Reset gate: 5V drive
※  Horizontal register: 5V drive

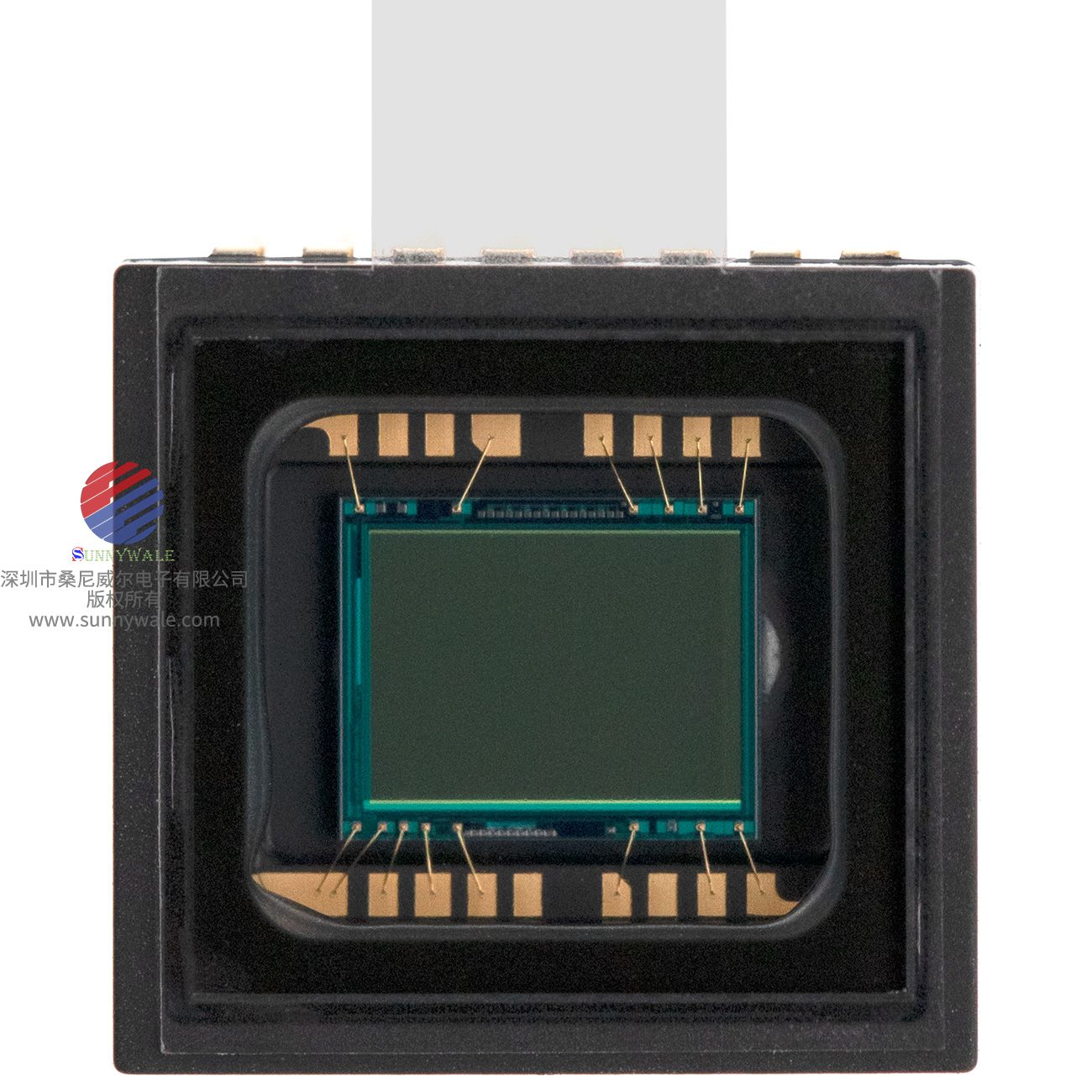

Device Structure

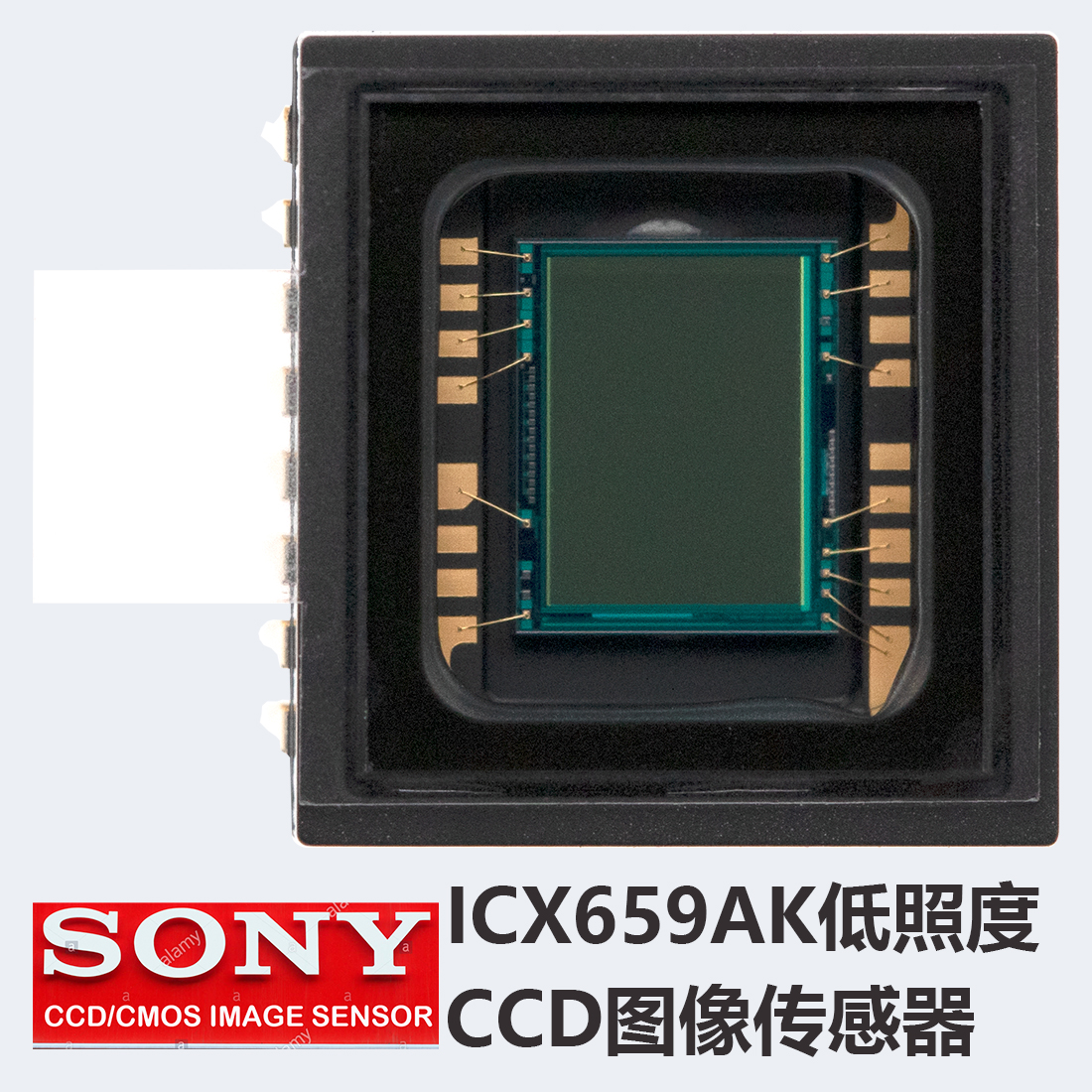

※  Interline CCD image sensor
※  Image size: Diagonal 6mm (Type 1/3)
※  Number of effective pixels: 752 (H) × 582 (V) approx. 440K pixels
※  Total number of pixels: 795 (H) × 596 (V) approx. 470K pixels
※  Chip size: 6.00mm (H) × 4.96mm (V)
※  Unit cell size: 6.50μm (H) × 6.25μm (V)
※  Optical black: Horizontal (H) direction: Front 3 pixels, rear 40 pixels
                         Vertical (V) direction: Front 12 pixels, rear 2 pixels
※  Number of dummy bits: Horizontal 22
※  Substrate material: Silicon

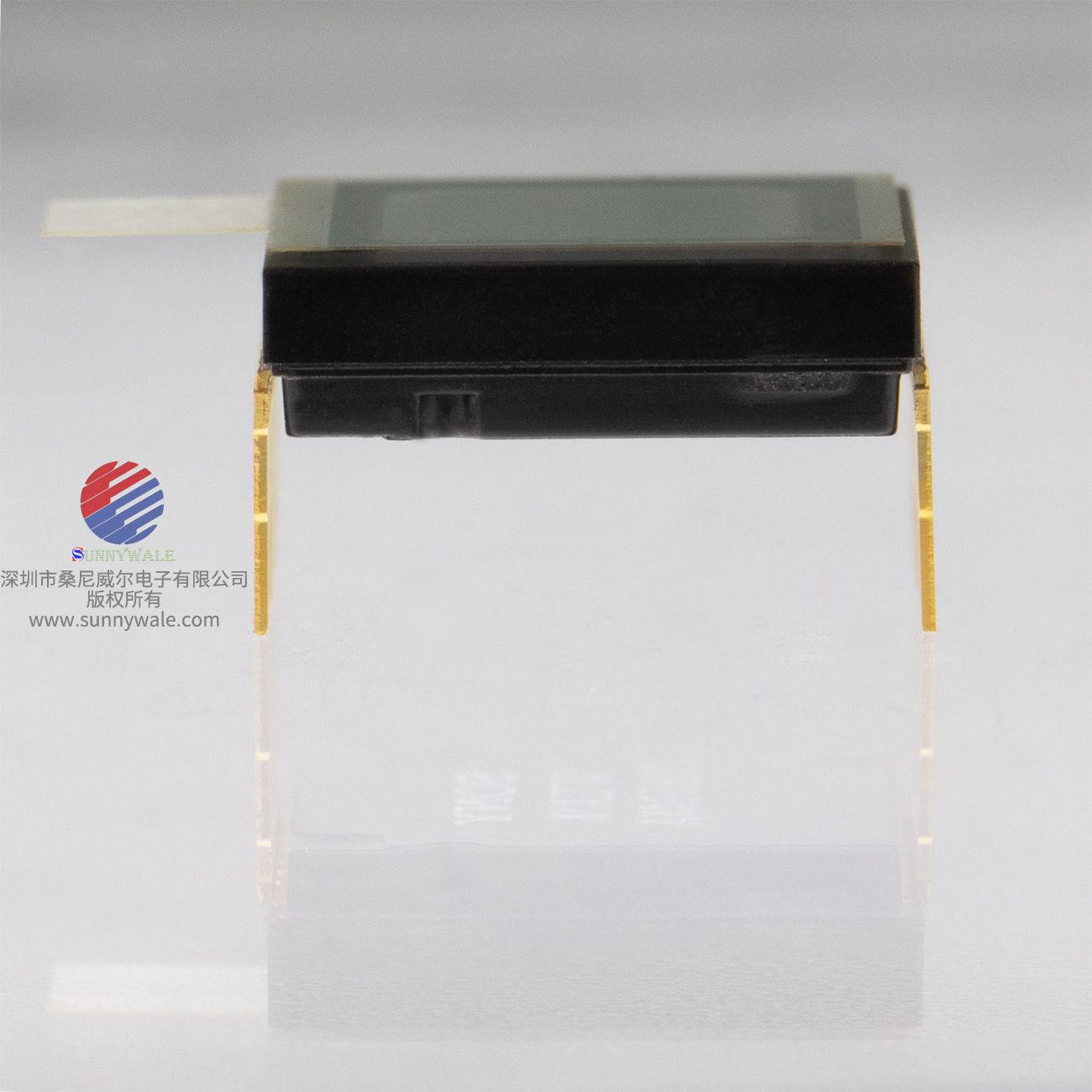

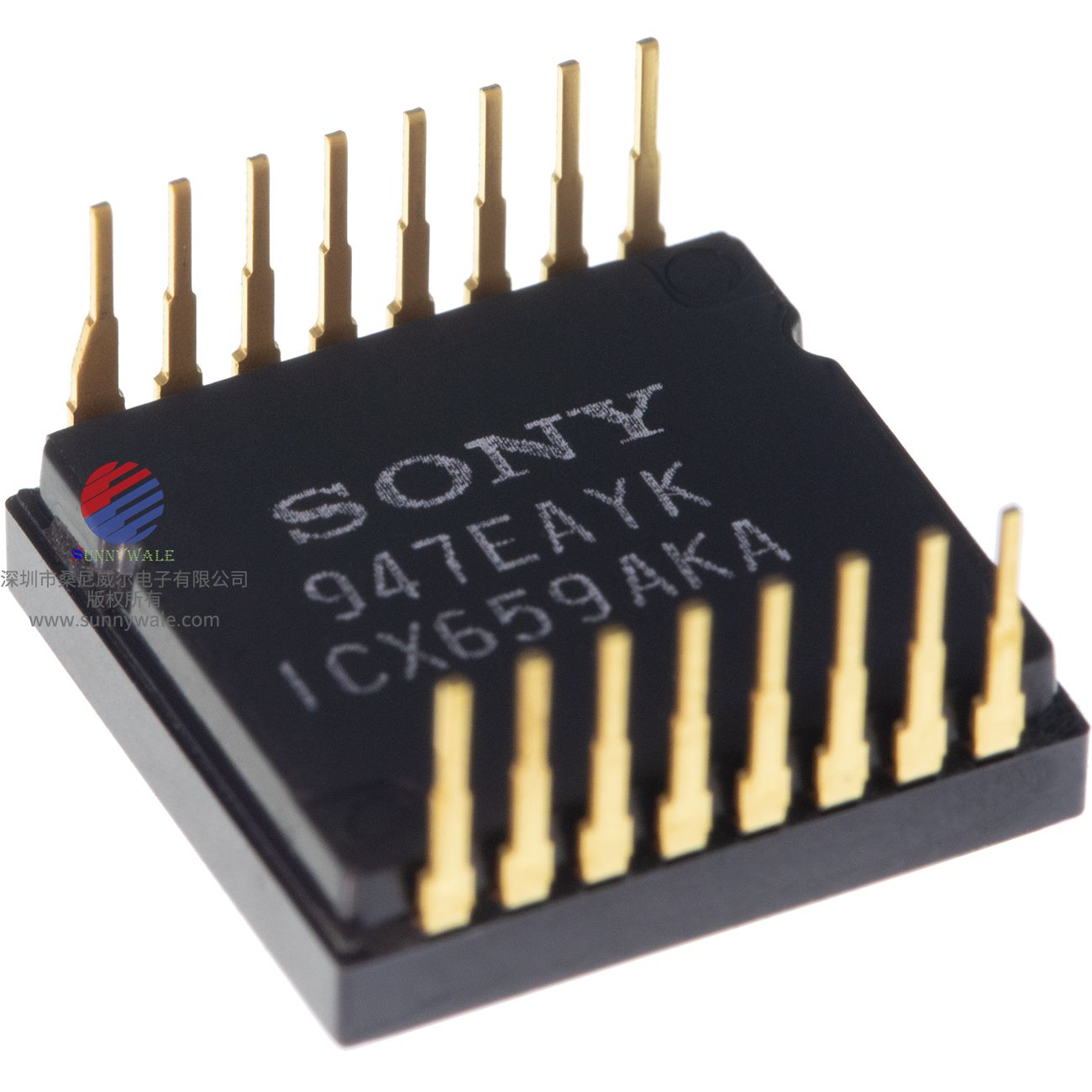

※  Package: DIP16
======================================================
New Generation EXview HAD CCD Ultrahigh-Sensitivity Near Infrared Structure
Diagonal 6 mm (Type 1/3) 380K/440K-Effective Pixel CCD Image Sensors

EXview HAD CCDTM

ICX658AKA(NTSC), ICX658ALA(EIA)
ICX659AKA(PAL), ICX659ALA(CCIR)

※  Higher sensitivity is a never-ending theme, especially in image sensors for surveillance cameras.
Until now, to respond to these needs, Sony has provided a lineup of EXview HAD CCD image sensors that displayed the industry's top
level of sensor sensitivity.
※  Sony has refined this EXview HAD CCD technology even further and has succeeded in developing technologies that improve sensitivity,
especially sensitivity in the near infrared, significantly.
※  Now, Sony has developed the ICX658/659 image sensors that adopt these leading edge Sony technologies as CCD image sensors for surveillance cameras, especially day/night cameras.

※  Diagonal 6 mm (Type 1/3)
※  Near infrared sensitivity: +4.5 dB higher than earlier Sony products at the 950 nm wavelength
※  Excellent compatibility with earlier Sony products

※  The ICX658AKA/659AKA and ICX658ALA/659ALA (ICX658/659) are diagonal 6 mm (Type 1/3) 380K/440Keffective pixel color and B/W CCD
image sensors developed for use in surveillance cameras.
※  The ICX658/659 image sensors were developed with the particular goal of increasing the near infrared sensitivity. It is in day/night cameras that the ICX658/659 can exhibit the true value of their high near infrared sensitivity.
※  Furthermore, these image sensors are appropriate for imaging with LED and other near infrared light sources. See table 2 for a comparison of imaging characteristics.

High Near Infrared Sensitivity
※  In the ICX658/659, Sony improved on the conventional photodiode and developed a structure with an even higher photoelectric conversion efficiency. This structure succeeds in capturing even more of the near infrared region light that escapes to the substrate side in normal CCD image sensors.
※  The result is that the existing EXview HAD CCD technology, which had the industry's top level of high sensitivity for surveillance CCDs has been evolved even further, and these devices feature increased sensitivity not only to visible light, but in the near infrared region as well. Compared to Sony’s conventional ICX258/259 products, the ICX658/659 achieve increased sensitivities of +10% in the visible range, and +4.5 dB in the near infrared (wavelength: 950 nm). (See photograph 1.)
※  We hope the ICX658/659, which can make effective use of the near infrared light invisible to the human eye, will make new applications possible in the image sensing field.

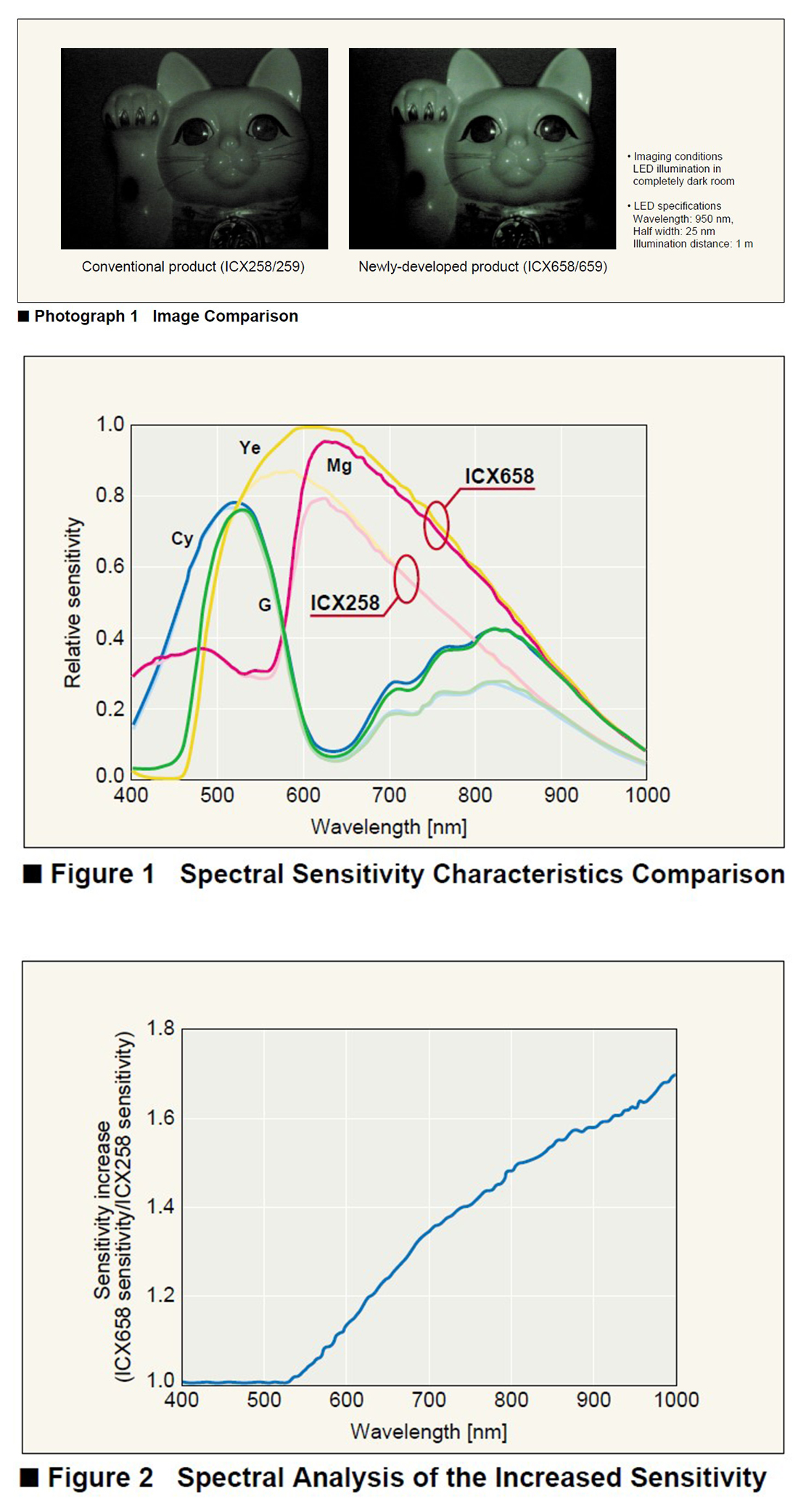

※  Figure 1 presents a comparison of the ICX658/659 spectral sensitivity characteristics and figure 2 shows the spectral characteristics of the increases in sensitivity provided by the ICX658/659 with the ICX258/259.

Excellent Compatibility with Conventional Sony Products
※  The ICX658/659 were designed to minimize as much as possible any difficulties in their use as replacements for the ICX258/259. In particular, the image size, pixel counts, recommended drive timings, pin configuration, and package are all identical. (See table 1.)
※  We strongly recommend that customers currently using the ICX258/259 look into the performance of the new generation EXview HAD CCD ICX658/659 image sensors.

VOICE
The performance of the CCD image sensors used in monitoring applications is directly linked to the performance of these crimeprevention cameras. Thus I found this a rewarding development effort, since it may lead to a social contribution in improved crime prevention. I was just one of the many people involved in this project. I strongly urge that you take advantage of the superb performance of the ICX658/659, which
incorporate the enthusiasm and spirit of many of us here at Sony.

ICX659AKA,对角线6mm(1/3型)CCD图像传感器,用于PAL彩色摄像机

描述
ICX659AKA是一种行间CCD固态图像传感器,适用于PAL彩色摄像机的对角6mm (Type 1/3)系统。 与现有产品ICX259AK相比,EXview HAD CCD技术的进步大大提高了近红外灵敏度。
该芯片具有一个场周期读出系统和一个可变电荷存储时间的电子快门。
ICX659AKA与目前的CCD有不同的光谱特性。

特性
※  近红外、高灵敏度(+ 4.5 db与ICX259AK相比,入= 950nm)
※  高分辨率
※  分辨率高,暗电流小
※  优良的防开花特性
※  Ye, Cy, Mg和G互补色马赛克滤片
※  连续变速快门
※  无电压调整(复位栅极和衬底偏压无需调整)
※  复位门:5V驱动器
※  水平寄存器:5V驱动器

设备结构
※  行间CCD图像传感器
※  图像尺寸:对角线6mm(1/3型)
※  有效像素数:752 (H) × 582 (V) 440 k像素
※  总像素数:795 (H) × 596 (V) 470 k像素
※  芯片尺寸:6.00mm (H) × 4.96mm (V)
※  单元尺寸:6.50μm (H) × 6.25μm (V)
※  光学黑色:水平(H)方向:前3像素,后40像素
                  垂直(V)方向:前12像素,后2像素
※  虚拟位数:水平22
※  衬底材料:硅
※  封装:DIP16
=================================================================
新一代EXview具有CCD超高灵敏度近红外结构
对角线6mm(1/3型)380K/ 440k有效像素CCD图像传感器

EXview HAD CCDTM

ICX658AKA (NTSC) ICX658ALA (EIA)
ICX659AKA (PAL) ICX659ALA (CCIR)

※  更高的灵敏度是一个永不停止的主题,特别是在监控摄像头的图像传感器。
到目前为止,为了满足这些需求,索尼提供了一系列的EXview HAD CCD图像传感器,显示了行业的顶级
传感器灵敏度水平。
※  索尼进一步完善了EXview HAD CCD技术,并成功开发了提高灵敏度的技术,  尤其在近红外灵敏度上显著。
※  现在,索尼已经开发了ICX658/659图像传感器,它采用了索尼的前沿技术,作为监控摄像头的CCD图像传感器,特别是白夜摄像头。

※  对角线6mm (Type 1/3)
※  近红外灵敏度:在950 nm波长下,比以前的索尼产品高+4.5 dB
※  与早期索尼产品的良好兼容性

※  ICX658AKA/659AKA和ICX658ALA/659ALA (ICX658/659)是对角6mm (Type 1/3) 380K/440Keffective像素彩色和黑白CCD,用于监控摄像机的图像传感器。
※  ICX658/659图像传感器是为了提高近红外灵敏度而开发的。 它是在昼/夜照相机,ICX658/659可以展示其高近红外灵敏度的真正价值。
※  此外,这些图像传感器适用于与LED和其他近红外光源成像。 成像特征比较见表2。

高近红外灵敏度
※  在ICX658/659中,索尼改进了传统的光电二极管,开发了一种具有更高光电转换效率的结构。 在普通CCD图像传感器中,该结构能够捕获更多逃逸到衬底侧的近红外区域光。
※  其结果是,现有的EXview HAD CCD技术得到了进一步的发展,不仅提高了对可见光的灵敏度,而且还提高了近红外区域的灵敏度。 与索尼的传统ICX258/259产品相比,ICX658/659实现了在可见光范围+10%的灵敏度,在近红外(波长:950 nm) +4.5 dB。 (见Photograph 1)。
※  我们希望ICX658/659能够有效利用人眼不可见的近红外光,使其在图像传感领域的应用成为可能。
※  图1比较了ICX658/659的光谱灵敏度特性,图2比较了ICX658/659与ICX258/259灵敏度提高的光谱特性。

优秀的兼容性与传统索尼产品
※  ICX658/659被设计成尽可能减少作为ICX258/259替代品使用时的任何困难。 特别是,图像大小、像素计数、推荐的驱动器计时、引脚配置和包都是相同的。 (见Table 1)。
※  我们强烈建议目前使用ICX258/259的客户看看新一代EXview HAD CCD ICX658/659图像传感器的性能。

声音
用于监测应用的CCD图像传感器的性能与这些预防犯罪摄像机的性能直接相关。 因此,我发现这是一项有益的发展努力,因为它可能导致在改善预防犯罪方面的社会贡献。 我只是参与这个项目的许多人中的一个。 我强烈建议您利用ICX658/659的卓越性能,融合了我们在索尼的热情和精神。
