OV788+OV9712 豪威OmniVision Low-Power 720p High Definition IP Camera Solution for Home Security and Surveillance Systems OV00788低功耗720p高清IP摄像头解决方案，家庭安防监控系统
OV788+OV9712, OV00788同时记录/解码3-4个VGA/QVGA视频流，同时记录 OmniVision ,Low-Power 720p High Definition IP Camera Solution, for Home Security , Surveillance Systems, 低功耗720p,高清IP摄像头解决方案，适用于家庭安防和监控系统

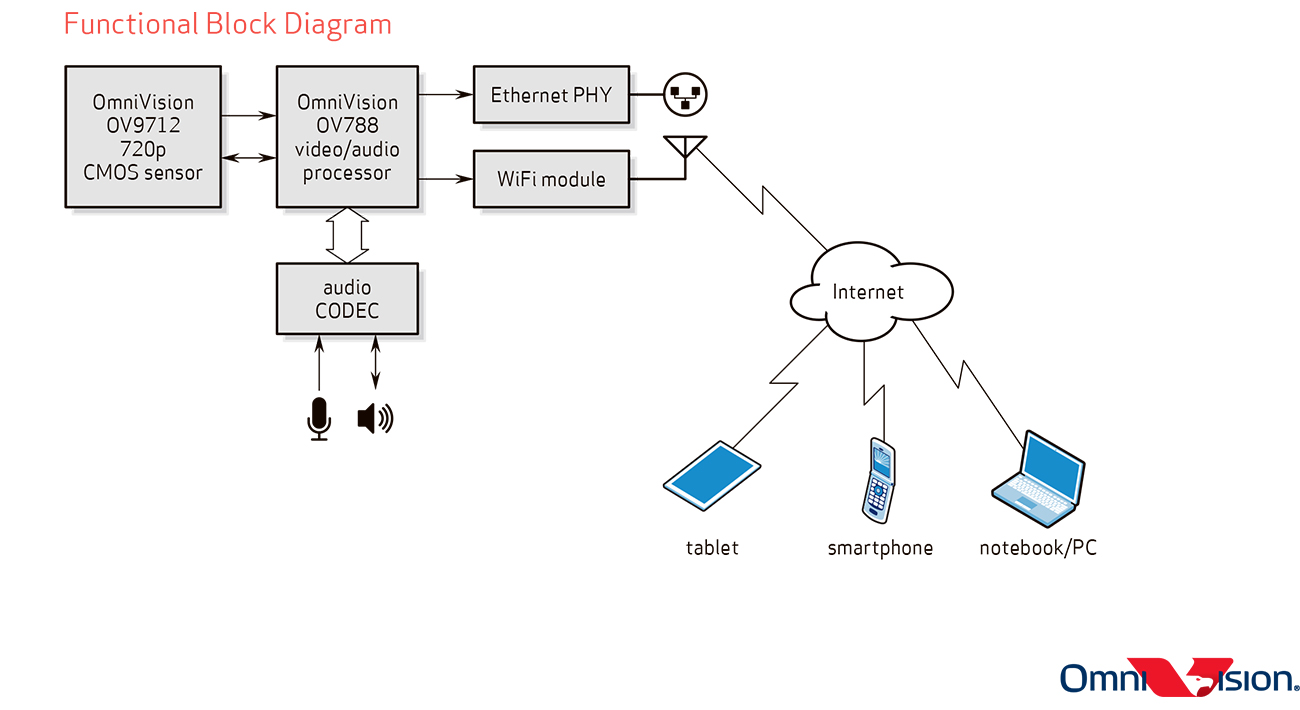

OmniVision's 720p high definition (HD) IP camera platform offers an industry-leading low power and fast boot-up design, ideally suited for consumer-level home security and surveillance applications. The camera platform utilizes WiFi technology and video encoding to transmit the 720p HD video at 30 frames per second (fps) to remote viewing devices with Internet access, such as smartphones, tablets or notebooks.
The IP camera platform leverages OmniVision's OV788, a highly integrated, low power dual core multimedia camera processor, which supports two widely used operating systems. One option is OmniVision's proprietary Real Time Operating System (RTOS), which is lightweight and requires no external memory. The other option is a feature-rich Linux operating system that provides the most compatible platform for networking protocols.
Utilizing an embedded advanced ISP, the OV788 supports 720p high definition RAW image sensors up to 30 fps. In addition to an embedded compression engine, the OV788 supports still image capture up to 16 megapixels at 5 fps.
The OV788 implements an advanced video engine to achieve high performance video recording and decoding. The engine is capable of recording three video streams in full VGA at30 fps, or decoding three video streams in full VGA at 30 fps and four video streams in full QVGA at 90 fps.
OmniVision's 720p HD IP camera Product Development Kit (PDK) provides the total solution, which includes hardware, firmware, and an iOS and Android app.
OV788-IP Product Specifications
▄ Power supply:
- core: 1.2V ±5%
- analog: 3.3V ±10% (USB), 2.5V ±10% (MIPI), 2.8V ±10%
- I/O: 3.3V ±10%
▄ Temperature range: -30°C to 70°C
▄ power requirements:
- recording 720p at 30 fps: 290 mW
- recording VGA at 30 fps: 125 mW
▄ Package dimensions: 11 mm x 11 mm
OV788-IP Product Features
▄ General features
- highly integrated multimedia camera processor provides low system integration cost without external memory required
▄ Camera interfaces
- MIPI two-lane receiver or 10-bit RGB raw or YUV input
- supports up to 16MP image sensor
▄ Image signal processor
- raw to YUV processing
- auto white balance (AWB)
- edge enhancement
- hue and saturation control
- brightness and contrast control
- lens shading
- defective pixel correction
- auto focus
▄ Video engine
- supports video recording up to 720p (1280x720) at 30 fps
- rate control to support various bit rates
- flexible motion detection with programmable zones
- supports video decoding up to 720p (1280x720) at 30 fps
- supports full duplex encoding and recording up to VGA resolution at 30 fps
▄ TV support
- embedded TV encoder and video DAC supports NTSC or PAL
▄ SDRAM controller
- supports external SDRAM at 133 MHz with 16-bit data width up to 128 MB
▄ Storage card/ NAND flash interfaces
▄ USB device controller
- USB2.0 HS/FS
- supports UVC video class for PC camera
- supports mass storage class
▄ USB host controller
- USB2.0 HS/FS
▄ General purpose I/O (GPIO)
- flexible GPIO capability for most of the I/O pins
Ordering Information
▄ OV09712-ECVF-AW1A
OV9712 Product Features
▄ High sensitivity for low-light operation
▄ Ultra low power and low cost
▄ Programmable controls: frame rate, AEC / AGC 16-zone size / position / weight control, mirror, flip and windowing
▄ Output support for raw RGB
▄ Digital video port (DVP) parallel output interface
▄ Embedded one-time programmable (OTP) memory
▄ On-chip phase lock loop (PLL)
▄ Built-in 1.5V regulator for core
OV9712 Product Specifications
▄ Active array size: 1280 x 800
▄ Power supply:
- analog: 3.0 ~ 3.6V
- core: 1.5VDC ?±5% (built-in regulator)
- I/O: 1.7 ~ 3.6V
▄ Power requirements:
- active: 110 mW
- standby: 50 μA
▄ Temperature range:
- operating: -30°C to 70°C
- stable image: 0°C to 50°C
▄ Lens size: 1/4"
▄ Lens chief ray angle: 25° non-linear
▄ Input clock frequency: 6 ~ 27 MHz
▄ Maximum image transfer rate:
- WXGA (1280x800): 30 fps
- 640x400: 60 fps
▄ Sensitivity: 3700 mV/Lux-sec
▄ Max S/N ratio: 40 dB
▄ Dynamic range: 69 dB @ 8x gain
▄ Pixel size: 3 μm x 3 μm
▄ Package dimensions: 5415 μm x 4415 μm
OV788+OV9712低功耗720p高清IP摄像头解决方案，适用于家庭安防和监控系统
OmniVision的720p高清IP摄像头平台提供了行业领先的低功耗和快速启动设计，非常适合消费级家庭安全和监控应用。 该相机平台利用WiFi技术和视频编码，以每秒30帧(fps)的速度将720p高清视频传输到接入互联网的远程观看设备，如智能手机、平板电脑或笔记本电脑。
IP摄像头平台利用了OmniVision的OV788，这是一个高度集成、低功耗的双核多媒体摄像头处理器，支持两种广泛使用的操作系统。 一种选择是OmniVision的专有实时操作系统(RTOS)，它是轻量级的，不需要外部内存。 另一种选择是特性丰富的Linux操作系统，它为网络协议提供最兼容的平台。
利用嵌入式高级ISP, OV788支持720p高清晰度RAW图像传感器，最高帧数为30fps。 除了内置的压缩引擎，OV788还支持高达1600万像素的5帧每秒的静态图像捕获。
OV788实现了一个先进的视频引擎来实现高性能的视频录制和解码。 该引擎能够以30帧/秒的速度记录3个VGA视频流，或者以30帧/秒的速度解码3个VGA视频流，以90帧/秒的速度解码4个QVGA视频流。
OmniVision的720p高清IP摄像头产品开发工具包(PDK)提供了完整的解决方案，包括硬件、固件和一个iOS和Android应用程序。
OV788-IP产品规格
▄ 电源:
-核心:1.2V±5%
-模拟:3.3±10% (USB), 2.5 v±10% (MIPI), 2.8 v±10%
- i / o: 3.3v±10%
温度范围:-30°C至70°C
▄ 能力要求:
-以30fps记录720p: 290mw
-以30fps记录VGA: 125mw
-封装尺寸:11mm x 11mm
OV788-IP产品特性
▄ 一般特征
-高度集成的多媒体摄像处理器，无需外部存储，系统集成成本低
▄ 相机接口
- MIPI双通道接收机或10位RGB raw或YUV输入
-支持多达16MP的图像传感器
▄ 图像信号处理器
-原始到YUV处理
-自动白平衡(AWB)
-边缘增强
-色调和饱和度控制
-亮度和对比度控制
-镜头阴影
-有缺陷的像素校正
-自动对焦
▄ 视频引擎
-支持高达720p (1280x720)的视频录制，30帧/秒
-速率控制，以支持各种比特率
-灵活的运动检测与可编程区域
-支持高达720p (1280x720)的视频解码30帧
-支持全双工编码和记录高达VGA分辨率30帧/秒
▄ 电视支持
-嵌入式电视编码器和视频DAC支持NTSC或PAL
▄ SDRAM控制器
-支持133mhz的外接SDRAM, 16位数据宽度可达128mb
▄ 存储卡/ NAND闪存接口
▄ USB设备控制器
- 0 h / FS
-支持UVC视频类的PC摄像机
-支持海量存储类
▄ USB主机控制器
- 0 h / FS
▄ 通用I/O (GPIO)
-灵活的GPIO能力，大多数I/O引脚
订购信息
▄ OV09712-ECVF-AW1A
OV9712产品特性
▄ 低光操作的高灵敏度
▄ 超低功耗，低成本
▄ 可编程控制:帧速率，AEC / AGC 16区大小/位置/重量控制，镜像，翻转和窗口
▄ 支持原始RGB输出
▄ 数字视频端口(DVP)并行输出接口
▄ 嵌入式一次性可编程(OTP)存储器
▄ 片上锁相环(PLL)
▄ 核心内置1.5V稳压器
OV9712产品规格
阵列大小: 1280 x 800。
▄ 电源:
-模拟:3.0 ~ 3.6V
-铁芯:1.5VDC±5%(内置稳压器)
-i / o: 1.7 ~ 3.6v
▄ 能力要求:
-有源:110mw
-待机电流: 50 μA
▄ 温度范围:
-工作温度:-30°C至70°C
-稳定图像:0°C ~ 50°C
▄ 镜头尺寸:1/4”
▄ 透镜主射线角:25°非线性
▄ 输入时钟频率:6 ~ 27 MHz
▄ 最大图像传输速率:
- WXGA (1280x800): 30帧
- 640x400: 60 FPS
▄ 灵敏度:3700 mV/Lux-sec
▄ 最大信噪比: 40db
▄ 动态范围:69分贝@ 8倍增益
▄ 像素尺寸:3 μm x 3 μm
▄ 封装尺寸:5415 μm x 4415 μm
