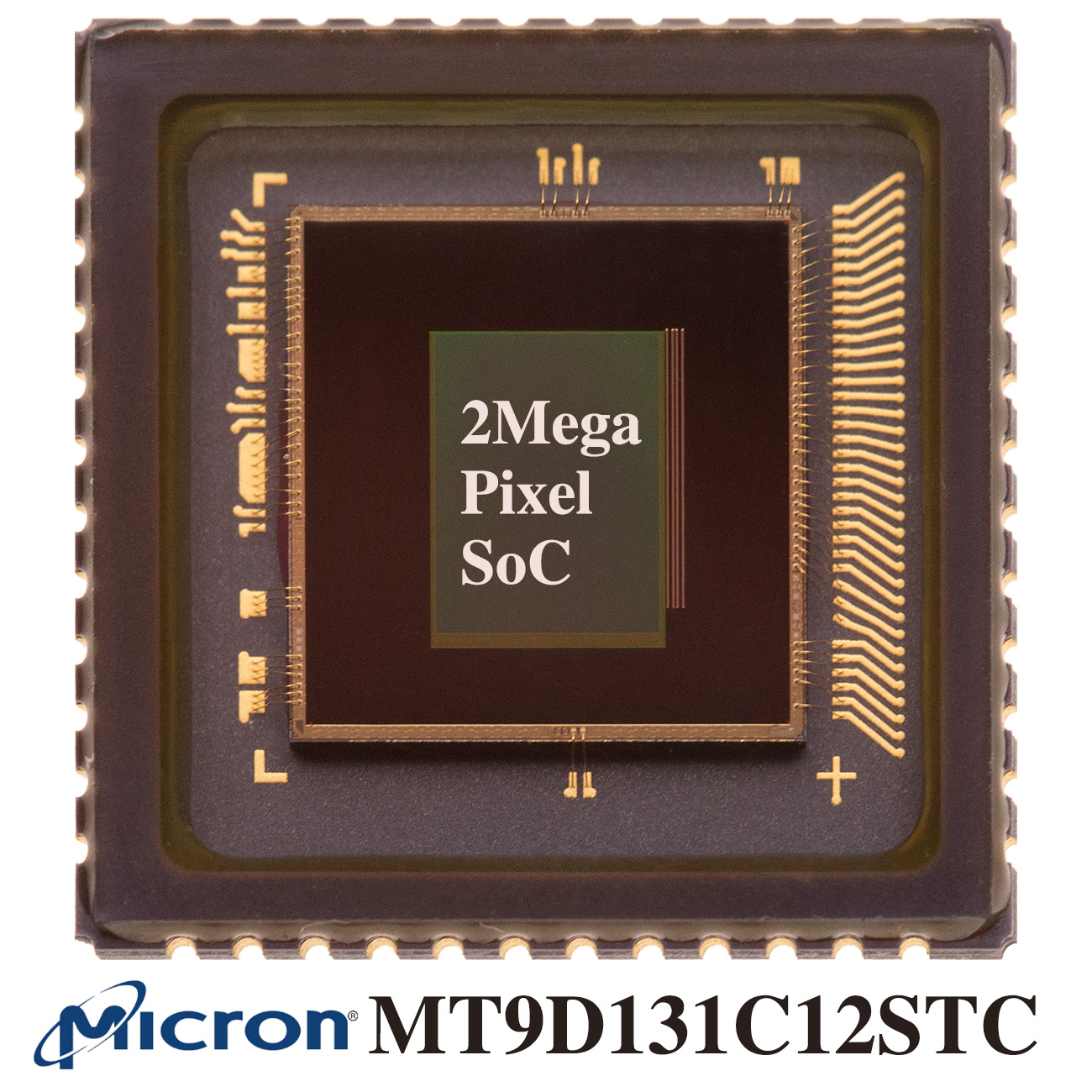

MT9D131C12STC 安森美ONSEMI 1/3.2-Inch 2-Megapixel System-On-Chip (SOC) CMOS Digital Image Sensor,2百万像素图像传感器
2022-05-10 21:28:16

MT9D131 Datasheet, Rev. J,美光图像传感器,镁光sensor,安森美感光芯片,MT9D131C12STC, ONSEMI image sensor,1/3.2-Inch 2-Megapixel,System-On-Chip, SoC CMOS Digital Image Sensor,2百万像素图像传感器,2MP SoC,

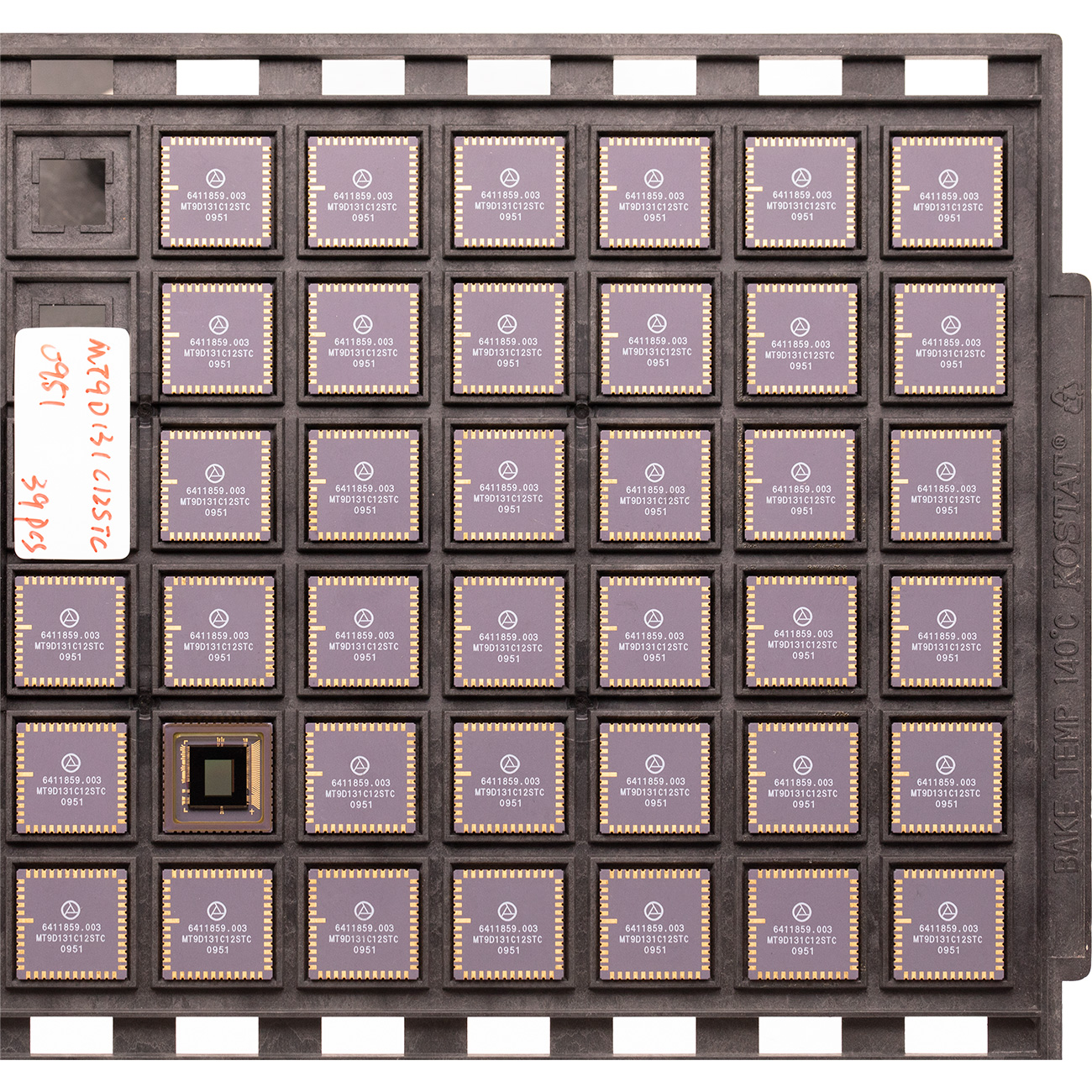

安森美感光芯片MT9D131C12STC
Features
● DigitalClarity? CMOS imaging technology
● Ultra low-power, low-cost, progressive scan
● 2-megapixel resolution (1,600H x 1,200V)
● 1/3.2-inch optical format
● 15 frames per second (fps) at full resolution
● 30 frames per second (fps) at 800x600 or smaller
● Integrated auto focus and optical zoom
● Real-time JPEG encoder
● On-chip image flow processor for single-chip camera module
● Numerous automatic functions for on-the-fly image correction and enhancement
● On-chip, 10-bit analog-to-digital converter
● Superior low-light performance
● Ultra-low-power, cost effective
● Internal master clock generated by on-chip phaselocked loop oscillator (PLL)
● Electronic rolling shutter (ERS), progressive scan
● Integrated image flow processor (IFP) for single-die camera module
● Automatic image correction and enhancement, including lens shading correction
● Arbitrary image decimation with anti-aliasing
● Two-wire serial interface providing access to registers and microcontroller memory
● Selectable output data format: ITU-R BT.601 (YCbCr), 565RGB, 555RGB, 444RGB, JPEG 4:2:2, JPEG 4:2:0, and raw 10-bit
● Output FIFO for data rate equalization
● Programmable I/O slew rate

Specifications
● Pixel Size: 2.8μm x 2.8μm
● Array Format (Active): 1600H x 1200V
● Imaging Area: 4.73mm x 3.52mm
● Color Filter Array: RGB Bayer color filters
● Optical Format: 1/3.2 inch
● Frame Rates: 15 fps (1600 x 1200) and 30 fps (800 x 600)
● Scan Mode: Progressive
● Shutter: Electronic rolling shutter (ERS) with global reset
● Window Size: Programmable to any size equal to or less than 2-megapixel
● Pixel Binning: 2 x 2
● Automatic Exposure, white balance, black Functions: level offset correction, flicker detection and avoidance, color saturation control, defect identification and correction, aperture correction, focus
● Other Exposure, white balance, hori-Controls: zontal blanking, vertical blanking, color, sharpness, contrast, gamma, lens shading correction, left-right and topbottom image reversal, zoom, windowing
● ADC: 10-bit, on-chip
● JPEG: l Sequential DCT (baseline) ISO/IEC 10918-1 JPEG compliant
● YCbCr 4:2:2 and 4:2:0 format compression
● Support for three pairs of quantization tables—two pairs serve as backup for buffer overflow
● Quality: compression ratio control capability
● Auto Focus Snapshot, continuous or video, Support: locked, focus-free, and manual modes
● Responsivity: 1.0 V/lux-sec (550nm)
● Master Clock: 6 MHz–80 MHz (integrated PLL)
● Signal-to-Noise Ratio: >41dB (MAX)
● Supply Digital I/O: 1.7V–3.1V Voltage: Digital Core: 1.7V-1.95VAnalog: 2.5V-3.1V
● Power Consumption: <150mW (@ 30 fps)
● Operating Temp: –30°C to +70°C
● Shipping Options: 48-pin CLCC, Die, iCSP

Applications
● Network Security Cameras
● ePTZ cameras
● Wireless cameras
● Consumer video products
● High resolution security camera

Available Part Numbers
Part Number / Product Description / Orderable Product Attribute Description
MT9D131C12STC-DP, 2.0 MP 1/3" SOC, Dry Pack with Protective Film
MT9D131C12STC-DR, 2.0 MP 1/3" SOC, Dry Pack without Protective Film
MT9D131C12STC-TP, 2.0 MP 1/3" SOC, Tape & Reel with Protective Film
MT9D131D00STCK15LC1-305, 2.0 MP 1/3" SOC, Die Sales, 305μm Thickness


Bringing High-Performance Video to Low-Cost Home Security Systems
Until the introduction of the MT9D131 security camera, designers were forced to sacrifice performance for cost. With Micron's 2-megapixel camera systemon- a-chip, they have an image sensor to design in to consumer security applications. It outputs full-color digital video at greater-than-VGA resolutions and makes scenes and stills clear enough to enable e-mail or remote viewing.

Unparalleled CMOS Image Quality
Micron's exclusive DigitalClarity technology dramatically reduces noise levels in our CMOS sensors. While some security cameras generate shots that look like abstract paintings, your MT9D131-equipped camera will deliver sharp, crystal-clear images. Our sensor provides best-in-class image quality-whether capturing continuous video or single frames-even in extremely low light.

Sophisticated On-Board Image Processing
Our new CMOS image sensor is a complete, innovative camera system-on-a-chip (SOC). With the MT9D131, designers can simply plug 'n' play-for basic operation, it requires only a power supply, lens, and clock source. Its on-chip image flow processor performs a host of image correcting and enhancing functions you’d normally need another part for, such as color recovery and correction; sharpening; gamma correction; and automatic black level offset correction, exposure, white balance, lens shading, and flicker avoidance.

Digital Control
The MT9D131, with its 1/3.2-inch optical format and high resolution, enables electronic tilt and pan remote viewing. The entire field of view of the sensor can be scanned to display any one portion at a time-without using a motor or any moving parts. Additionally, because it is fully interpolated, the zoom moves smoothly instead of jumping from 2X to 4X as most digital zoom functions do. Until now, this type of functionality has been out of the reach of regular home owners.

A Complete System
The camera system features a microcontroller (MCU) and a sophisticated image flow processor (IFP) with a real-time JPEG encoder. The microcontroller manages all components of the camera system and sets key operation parameters for the sensor core to optimize the quality of raw image data entering the IFP. The sensor core consists of an active pixel array of 1668 x 1248 pixels; programmable timing; control circuitry, including a PLL and analog signal chain with automatic offset correction and programmable gain; and two 10-bit A/D converters (ADCs).

Contact Micron's sales
Micron's MT9D131 incorporates a number of features and functions to streamline your designs and improve your customer's imaging experiences. To order, call us at +86 755-83045321 or visit us on the Web at www.sunnywale.com

key operation parameters for the sensor core to optimize the quality of raw image data entering the IFP(Intermediate-Frequency Preamplifier). The sensor core consists of an active pixel array of 1668 x 1248 pixels; programmable timing; control circuitry, including a PLL and analog signal chain with automatic offset correction and programmable gain; and two 10-bit A/D converters (ADCs).

General Description
The ON Semiconductor MT9D131 is a 1/3.2 inch, 2 Mp CMOS image sensor with an integrated advanced camera system. The camera system features a microcontroller (MCU) and a sophisticated image flow processor (IFP) with a real-time JPEG encoder.

The microcontroller manages all components of the camera system and sets key operation parameters for the sensor core to optimize the quality of raw image data entering the IFP. The sensor core consists of an active pixel array of 1668 x 1248 pixels, programmable timing and control circuitry including a PLL, analog signal chain with automatic offset correction and programmable gain, and two 10-bit A/D converters (ADC). The entire system-on-a-chip (SOC) has ultra-low power requirements and superior low-light performance that is particularly suitable for surveillance applications.

The excellent low-light performance of MT9D131 is one of the hallmarks of ON Semiconductor's breakthrough low-noise CMOS imaging technology that achieves CCD image quality (based on signal-to-noise ratio and low-light sensitivity) while maintaining the inherent size, cost, power consumption, and integration advantages of CMOS.

Feature Overview
The MT9D131 is a color image sensor with a Bayer color filter arrangement. Its basic characteristics are described in Table 1 on page 1 of datasheet page1

The MT9D131 has an embedded phase-locked loop oscillator (PLL) that can be used with the common wireless system clock. When in use, the PLL adjusts the incoming clock frequency, allowing the MT9D131 to run at almost any desired resolution and frame rate. To reduce power consumption, the PLL can be bypassed and powered down.

Low power consumption is a very important requirement for all components of wireless devices. The MT9D131 has numerous power conserving features, including an ultra lowpower standby mode and the ability to individually shut down unused digital blocks.

Another important consideration for wireless devices is their electromagnetic emission or interference (EMI). The MT9D131 has a programmable I/O slew rate to minimize its EMI and an output FIFO to eliminate output data bursts.

The advanced IFP and flexible programmability of the MT9D131 provide a variety of ways to enhance and optimize the image sensor performance. Built-in optimization algorithms enable the MT9D131 to operate at factory settings as a fully automatic, highly adaptable camera. However, most of its settings are user-programmable.
MT9D131 Datasheet
--------------------------------------------------------
特性
● DigitalClarity? CMOS成像技术
● 超低功耗,低成本,渐进式扫描
● 200万像素分辨率(1600h x 1200v)
● 1/3.2英寸光学格式
● 全分辨率下每秒15帧
● 在800x600或更小的情况下,每秒30帧
● 集成自动对焦和光学变焦
● 实时JPEG编码器
● 用于单片相机模块的片上图像流处理器
● 众多自动功能,用于实时图像校正和增强
● 片上10位模数转换器
● 优越的弱光性能
● 超低功耗,性价比高
● 内部主时钟由片上锁相环振荡器(PLL)产生
● 电子卷帘(ERS),渐进式扫描
● 单模相机模块集成图像流处理器(IFP)
● 自动图像校正和增强,包括镜头遮光校正
● 任意图像抽取与抗锯齿
● 两线串行接口,提供对寄存器和微控制器存储器的访问
● 可选择的输出数据格式:ITU-R BT.601 (YCbCr)、565RGB、555RGB、444RGB、JPEG 4:2:2、JPEG 4:2:0、RAW 10位

规范
● 像素尺寸:2.8μm x 2.8μm
● 阵列格式(Active): 1600H x 1200V
● 成像面积:4.73mm x 3.52mm
● 滤色镜阵列:RGB拜耳滤色镜
● 光学格式:1/3.2英寸
● 帧率:15帧(1600 x 1200)和30帧(800 x 600)
● 扫描模式:渐进式
● 快门:具有全局复位功能的电子卷帘门(ERS)
● 窗口大小:可编程到任何大小等于或小于200万像素
● 像素分块:2 x 2
● 功能:电平偏移校正、闪烁检测与避免、色彩饱和度控制、缺陷识别与校正、光圈校正、对焦
● 其他曝光,白平衡,水平控制:水平下隐,垂直下隐,颜色,锐度,对比度,伽马,镜头阴影校正,左右和上下图像反转,缩放,窗口
● ADC: 10位,片上
● 顺序DCT(基线)符合ISO/IEC 10918-1 JPEG标准
● YCbCr 4:2:2和4:2:0格式压缩
● 支持三对量化表-两对作为缓冲溢出备份
● 质量:压缩比控制能力强
● 自动对焦快照,连续或视频,支持锁定、无对焦、手动模式
● 响应度:1.0 V/lux-sec (550nm)
● 主时钟:6mhz - 80mhz(集成锁相环)
● 信噪比:>41dB (MAX)
● 电源数字I/O: 1.7V-3.1V电压:数字核心:1.7 v -1.95 v模拟量:2.5V-3.1V
● 功耗:150mW (@ 30 fps)
● 工作温度:-30℃~ +70℃
● 运输选项:48引脚CLCC,die,iCSP

应用
● 网络安全摄像头
● ePTZ相机
● 无线摄像头
● 消费视频产品
● 高分辨率安防摄像头

可用的零件编号
部件编号                                   产品描述                      可订购产品属性描述
MT9D131C12STC-DP,               2.0 MP 1/3" SOC ,   带保护膜的干封装
MT9D131C12STC-DR,              2.0 MP 1/3" SOC,      无保护膜干封装
MT9D131C12STC-TP,               2.0 MP 1/3" SOC,      带保护膜的卷带和卷轴
MT9D131D00STCK15LC1-305,  2.0 MP 1/3" SOC,    Die销售,厚度305μm

为低成本的家庭安全系统带来高性能的视频
在MT9D131安全摄像机问世之前,设计师们被迫牺牲性能来换取成本。有了美光公司的200万像素的摄像系统芯片,他们有了一个图像传感器来设计消费者安全应用。它能以高于vga的分辨率输出全彩数字视频,画面和照片足够清晰,可以通过电子邮件或远程观看。

无与伦比的CMOS图像质量
美光独家的DigitalClarity?技术大大降低了我们CMOS传感器中的噪音水平。虽然一些安全摄像头拍摄的照片看起来像抽象画,但您配备mt9d131的摄像头将提供清晰、清晰的图像。我们的传感器提供一流的图像质量——无论是捕捉连续视频还是单帧——即使在极低的光线下。

复杂的机载图像处理
我们新的CMOS图像传感器是一种完整的、创新的相机片上系统(SOC)。有了MT9D131,设计人员可以简单地插上“n”键进行基本操作,它只需要一个电源、镜头和时钟源。它的片上图像流处理器执行大量通常需要其他部件才能完成的图像校正和增强功能,比如色彩恢复和校正;锐化;伽马校正;以及自动黑电平偏移校正、曝光、白平衡、镜头遮光和闪光避免。

数字控制
MT9D131具有1/3.2英寸的光学格式和高分辨率,可以实现电子倾斜和平移遥视。传感器的整个视场可以被扫描,每次显示任何一个部分,而无需使用电机或任何运动部件。此外,因为它是完全插值,变焦移动顺畅,而不是从2倍到4倍的大多数数字变焦功能。到目前为止,普通房主还无法实现这种功能。

一个完整的系统
该摄像系统具有一个微控制器(MCU)和一个具有实时JPEG编码器的复杂图像流处理器(IFP)。微控制器管理相机系统的所有组件,并设置传感器核心的关键操作参数,以优化输入IFP的原始图像数据的质量。该传感器核心包括一个1668 x 1248像素的有源像素阵列;可编程定时;控制电路,包括锁相环和具有自动偏置校正和可编程增益的模拟信号链;和两个10位A/D转换器。

美光的销售联系
美光的MT9D131集成了许多功能和功能,以简化您的设计,并改善您的客户的成像体验。如需订购,请致电+86 755-8304 5321或访问我们的网站www.sunnywale.com
