MT9M413C36STM/C美国安东ANDON插座MT9M413插座575-19-25-281-01M-R29-L14 17 33, MAX4168EBU美信高输出驱动高精度低功耗单电源轨对轨I/O运放与关断,74HC04D PHILIPUS六角倒相
2025-04-20 00:32:24
点击购买amazon

MT9M413C36STM/C datasheet,MT9M413C36STM/C插座座子,575-19-25-281-01M-R29-L14 17 33,MAX4168EBU美信I/O运放与关断,74HC04D PHILIPUS六角倒相器
MT9M413C36STM/C datasheet


MT9M413C36STM/C datasheet
https://www.sunnywale.com/uploadfile/2025/0420/MT9M413C36STM_Awin_watermark_encode.pdf, datasheet download'
点击或者复制上面链接到浏览器打开,MT9M413C36STM datasheet PDF file可免费下载(如有加密,联系站长微信:9308762)

MT9M413C36STM/C插座座子


575-19-25-281-01M-R29-L14 17 33


MT9M413插座575-19-25-281-01M-R29-L14 17 33

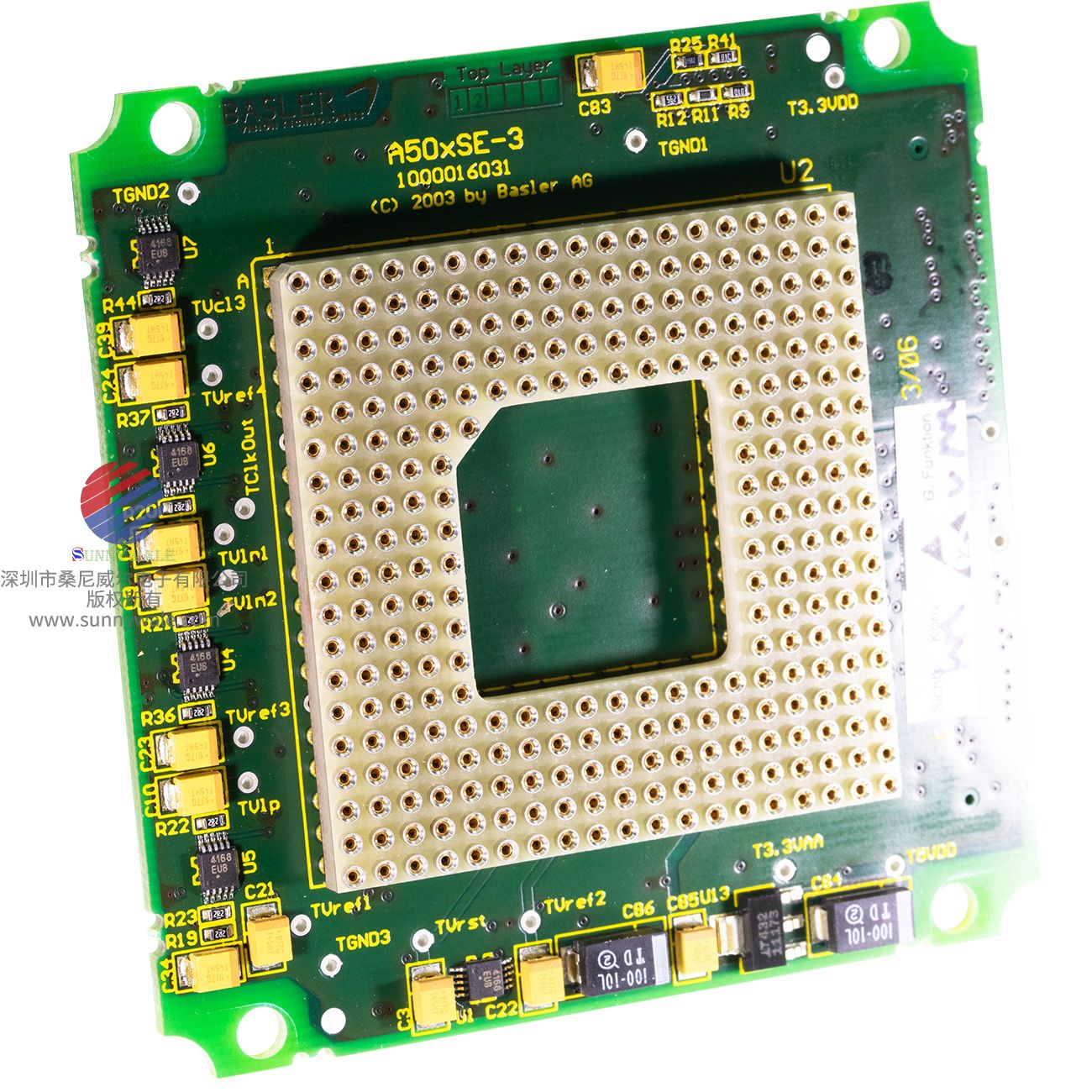

板子上的零件有MAX4168EUB和74HC04D,要哪个拆哪个,10个起

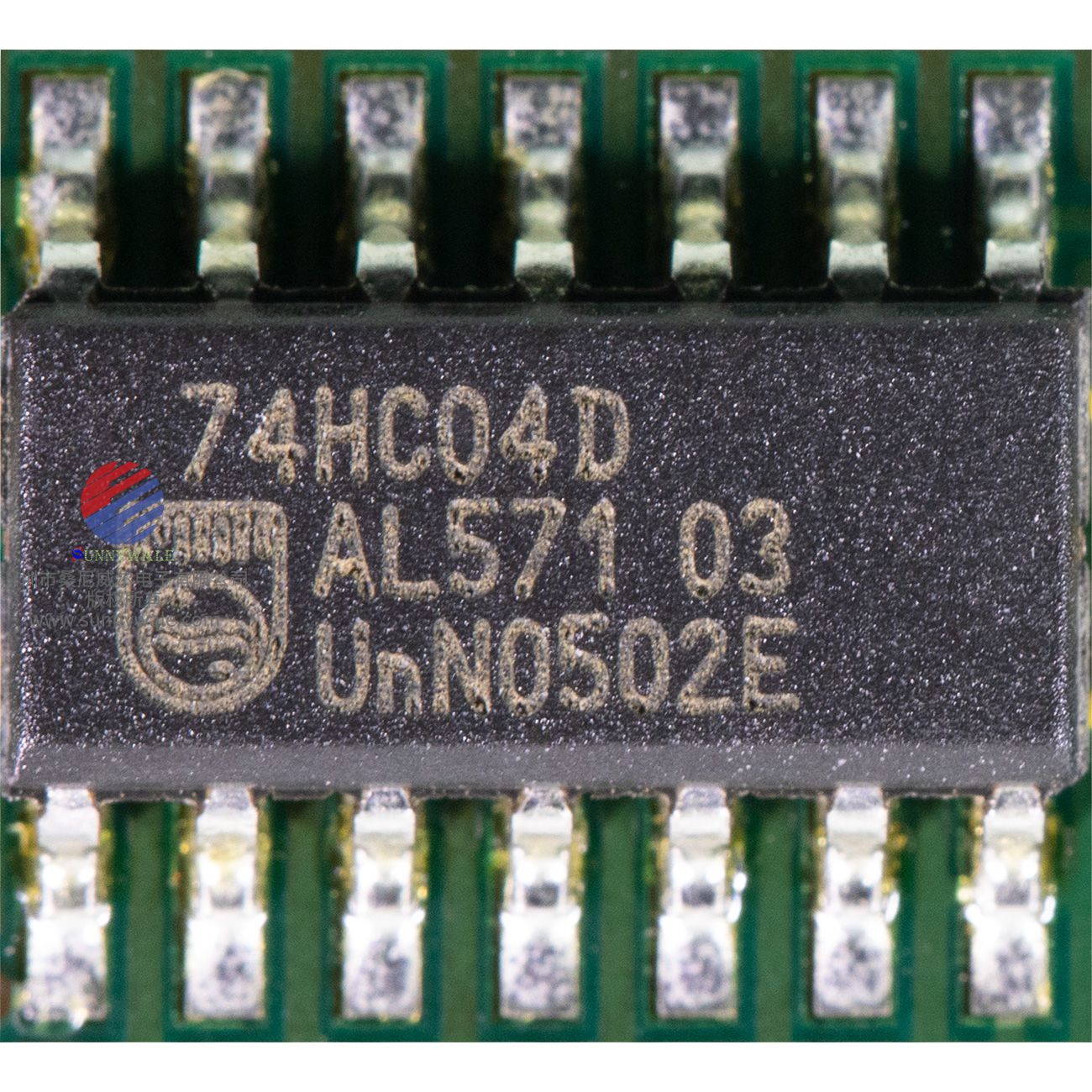

74HC04D PHILIPUS六角倒相器

=====================================================================
板载IC:
MAX4168EBU美信I/O运放与关断

MAX4168EBU MAXIM High-Output-Drive, Precision, Low-Power, SingleSupply, Rail-to-Rail I/O Op Amps with Shutdown

MAX4168EBU General Description
The MAX4165-MAX4169 family of operational amplifiers combines excellent DC accuracy with high output current drive, single-supply operation, and rail-to-rail inputs and outputs. These devices operate from a single +2.7V to +6.5V supply, or from dual ±1.35V to ±3.25V supplies. They typically draw 1.2mA supply current, and are guaranteed to deliver 80mA output current.
The MAX4166/MAX4168 have a shutdown mode that reduces supply current to 38μA per amplifier and
places the outputs into a high-impedance state. The MAX4165-MAX4169's precision performance combined with high output current, wide input/output dynamic range, single-supply operation, and low power consumption makes them ideal for portable audio applications and other low-voltage, battery-powered systems. The MAX4165 is available in the space-saving 5-pin SOT23 package and the MAX4166 is available in a tiny 2mm x 2mm x 0.8mm μDFN package.

MAX4168EBU Features
 ● 80mA (min) Output Drive Capability
 ● Rail-to-Rail Input Common-Mode Voltage Range
 ● Rail-to-Rail Output Voltage Swing
 ● 1.2mA Supply Current per Amplifier
 ● +2.7V to +6.5V Single-Supply Operation
 ● 5MHz Gain-Bandwidth Product
 ● 250μV Offset Voltage
 ● 120dB Voltage Gain (RL = 100kΩ)
 ● 88dB Power-Supply Rejection Ratio
 ● No Phase Reversal for Overdriven Inputs
 ● Unity-Gain Stable for Capacitive Loads to 250pF
 ● Low-Power Shutdown Mode:
    ⊕ Reduces Supply Current to 38μA Places
    ⊕ Outputs in High-Impedance State
 ● Available in 5-Pin SOT23 Package (MAX4165) or 2mm x 2mm x 0.8mm μDFN (MAX4166)

MAX4168EBU Applications
 ● Portable/Battery-Powered Audio Applications
 ● Portable Headphone Speaker Drivers
 ● Laptop/Notebook Computers
 ● Sound Ports/Cards
 ● Set-Top Boxes
 ● Cell Phones
 ● Hands-Free Car Phones (kits)
 ● Signal Conditioning
 ● Digital-to-Analog Converter Buffers
 ● Transformer/Line Drivers
 ● Motor Drivers

MAX4168EBU ABSOLUTE MAXIMUM RATINGS
Supply Voltage (VCC to VEE)....................................................7V
IN_+, IN_-, SHDN_............................(VEE - 0.3V) + (VCC + 0.3V)
OUT_ (shutdown mode) ...................(VEE - 0.3V) + (VCC + 0.3V)
Output Short-Circuit Duration to VCC or VEE (Note 1) .....Continuous
Continuous Power Dissipation (TA = +70°C)
5-Pin SOT23 (derate 7.10mW/°C above +70°C)..........571mW
8-Pin Plastic DIP (derate 9.09mW/°C above +70°C) ...727mW
8-Pin SO (derate 5.88mW/°C above +70°C)................471mW
8-Pin μMAX (derate 4.10mW/°C above +70°C) ...........330mW
8-Pin μDFN (derate 4.8mW/°C above +70°C) .............380mW
10-Pin μMAX (derate 5.60mW/°C above +70°C) ..........444mW
14-Pin Plastic DIP (derate 10.00mW/°C above +70°C) 800mW
14-Pin SO (derate 8.33mW/°C above +70°C)...............667mW
Operating Temperature Range ...........................-40°C to +85°C
Junction Temperature......................................................+150°C
Storage Temperature Range .............................-65°C to +150°C
Lead Temperature (soldering, 10s) .................................+300°C

https://www.sunnywale.com/uploadfile/2025/0420/MAX4168EUB.pdf
============================================================
74HC04D PHILIPUS Hex inverter

74HC04D PHILIPUS六角倒相器
74HC04D FEATURES
 ● Complies with JEDEC standard no. 8-1A
 ● ESD protection:
    ⊕ HBM EIA/JESD22-A114-A exceeds 2000 V
    ⊕ MM EIA/JESD22-A115-A exceeds 200 V.
 ● Specified from -40 to +85 °C and -40 to +125 °C.

74HC04D DESCRIPTION
The 74HC/HCT04 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDECstandard no. 7A. The 74HC/HCT04 provide six inverting buffers.

https://www.sunnywale.com/uploadfile/2025/0420/74HC04D-datasheet-philips.pdf

以上所有图片均为实物拍摄后抠图后即上线展示,所见即所得。

有关MT9M413C36STM以及它的插座的价格,datasheet download免费下载,简介,PDF文档下载,电路图,原理图,框架图,文档下载,原装现货,现货库存,芯片,图片,规格书下载,代理商,技术支持,产品介绍,参数,方案,分销,经销,可咨询本公司

或者直接访问本公司官网:sunnywale.com,搜索关键词"MT9M413",即可查看。

如果想要了解此同类产品MT9M413C36STC(彩色),或请点击相关链接,或访问本公司官网:sunnywale.com,搜索关键词“MT9M413C36STC”,即可展现更多详情。

更多详情,请点击English version

马上购买 MT9M413C36STM以及插座(满1件全国包邮)

马上购买MT9M413的插座
