路西玛科技提供定制的图像传感器设计以及针对特定客户需求的成像解决方案，这些方案适用于高速图像传感器市场中的细分应用领域以及高性能数码相机质量的图像传感器市场。领先业界的创新设计技术所生产的传感器被应用于多种应用领域，例如超高速和高速机器视觉、高分辨率广播摄像机、运动分析和生物医学成像等。
路西玛科技还开发了通用型的标准高速 CMOS 图像传感器，以满足高速机器视觉市场更广泛的应用需求。

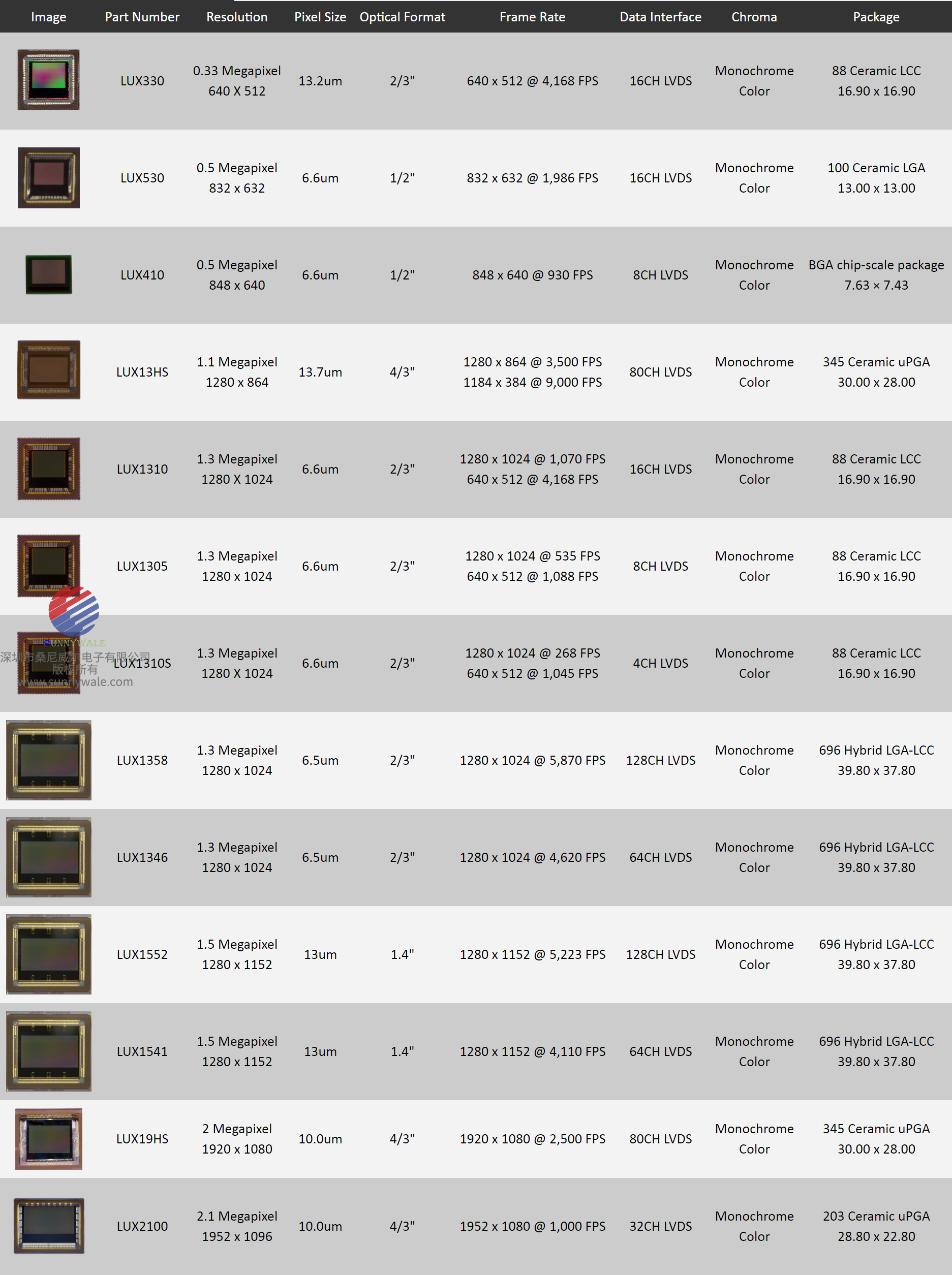

Part Number / Resolution / Pixel Size / Optical Format / Frame Rate / Data Interface / Chroma / Package
(像素从低到高排列)
LUX330 0.33 Megapixel
640 X 512 13.2um 2/3" 640 x 512 @ 4,168 FPS 16CH LVDS Monochrome
Color 88 Ceramic LCC 16.90 x 16.90
LUX530 0.5 Megapixel
832 x 632 6.6um 1/2" 832 x 632 @ 1,986 FPS 16CH LVDS Monochrome
Color 100 Ceramic LGA13.00 x 13.00
LUX410 0.5 Megapixel
848 x 640 6.6um 1/2" 848 x 640 @ 930 FPS 8CH LVDS Monochrome/Color
BGA chip-scale package 7.63 × 7.43
LUX13HS 1.1 Megapixel
1280 x 864 13.7um 4/3" 1280 x 864 @ 3,500 FPS
1184 x 384 @ 9,000 FPS 80CH LVDS Monochrome/Color 345 Ceramic uPGA 30.00 x 28.00
LUX1310 1.3 Megapixel
1280 X 1024 6.6um 2/3" 1280 x 1024 @ 1,070 FPS
640 x 512 @ 4,168 FPS 16CH LVDS Monochrome Color 88 Ceramic LCC 16.90 x 16.90
LUX1305 1.3 Megapixel
1280 x 1024 6.6um 2/3" 1280 x 1024 @ 535 FPS 640 x 512 @ 1,088 FPS 8CH LVDS
Monochrome Color 88 Ceramic LCC 16.90 x 16.90
LUX1310S 1.3 Megapixel
1280 X 1024 6.6um 2/3"
1280 x 1024 @ 268 FPS
640 x 512 @ 1,045 FPS 4CH LVDS Monochrome/Color 88 Ceramic LCC 16.90 x 16.90
LUX1358 1.3 Megapixel
1280 x 1024 6.5um 2/3" 1280 x 1024 @ 5,870 FPS 128CH LVDS Monochrome
Color 696 Hybrid LGA-LCC 39.80 x 37.80
LUX1346 1.3 Megapixel
1280 x 1024 6.5um 2/3" 1280 x 1024 @ 4,620 FPS 64CH LVDS Monochrome
Color 696 Hybrid LGA-LCC 39.80 x 37.80
LUX1552 1.5 Megapixel
1280 x 1152 13um 1.4" 1280 x 1152 @ 5,223 FPS 128CH LVDS Monochrome
Color 696 Hybrid LGA-LCC 39.80 x 37.80
LUX1541 1.5 Megapixel
1280 x 1152 13um 1.4" 1280 x 1152 @ 4,110 FPS 64CH LVDS Monochrome
Color 696 Hybrid LGA-LCC 39.80 x 37.80
LUX19HS 2 Megapixel
1920 x 1080 10.0um 4/3" 1920 x 1080 @ 2,500 FPS 80CH LVDS Monochrome
Color 345 Ceramic uPGA 30.00 x 28.00
LUX2100 2.1 Megapixel
1952 x 1096 10.0um 4/3" 1952 x 1080 @ 1,000 FPS 32CH LVDS Monochrome
Color 203 Ceramic uPGA 28.80 x 22.80

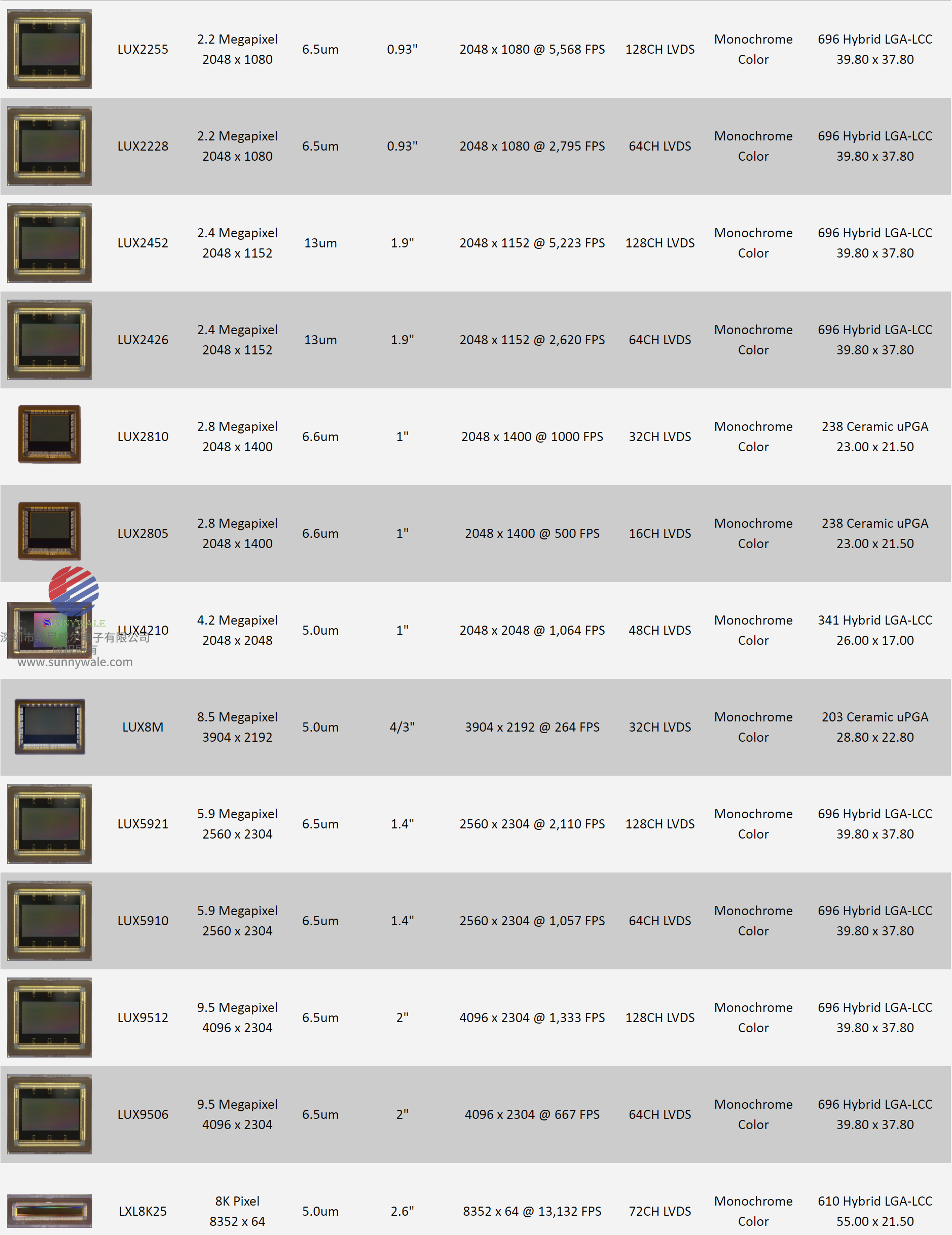

LUX2255 2.2 Megapixel
2048 x 1080 6.5um 0.93" 2048 x 1080 @ 5,568 FPS 128CH LVDS Monochrome
Color 696 Hybrid LGA-LCC 39.80 x 37.80
LUX2228 2.2 Megapixel
2048 x 1080 6.5um 0.93" 2048 x 1080 @ 2,795 FPS 64CH LVDS Monochrome
Color 696 Hybrid LGA-LCC 39.80 x 37.80
LUX2452 2.4 Megapixel
2048 x 1152 13um 1.9" 2048 x 1152 @ 5,223 FPS 128CH LVDS Monochrome
Color 696 Hybrid LGA-LCC 39.80 x 37.80
LUX2426 2.4 Megapixel
2048 x 1152 13um 1.9" 2048 x 1152 @ 2,620 FPS 64CH LVDS Monochrome
Color 696 Hybrid LGA-LCC 39.80 x 37.80
LUX2810 2.8 Megapixel
2048 x 1400 6.6um 1" 2048 x 1400 @ 1000 FPS 32CH LVDS Monochrome
Color 238 Ceramic uPGA 23.00 x 21.50
LUX2805 2.8 Megapixel
2048 x 1400 6.6um 1" 2048 x 1400 @ 500 FPS 16CH LVDS Monochrome
Color 238 Ceramic uPGA 23.00 x 21.50
LUX4210 4.2 Megapixel
2048 x 2048 5.0um 1" 2048 x 2048 @ 1,064 FPS 48CH LVDS Monochrome
Color 341 Hybrid LGA-LCC 26.00 x 17.00
LUX8M 8.5 Megapixel
3904 x 2192 5.0um 4/3" 3904 x 2192 @ 264 FPS 32CH LVDS Monochrome
Color 203 Ceramic uPGA 28.80 x 22.80
LUX5921 5.9 Megapixel
2560 x 2304 6.5um 1.4" 2560 x 2304 @ 2,110 FPS 128CH LVDS Monochrome
Color 696 Hybrid LGA-LCC 39.80 x 37.80
LUX5910 5.9 Megapixel
2560 x 2304 6.5um 1.4" 2560 x 2304 @ 1,057 FPS 64CH LVDS Monochrome
Color 696 Hybrid LGA-LCC 39.80 x 37.80
LUX9512 9.5 Megapixel
4096 x 2304 6.5um 2" 4096 x 2304 @ 1,333 FPS 128CH LVDS Monochrome
Color 696 Hybrid LGA-LCC 39.80 x 37.80
LUX9506 9.5 Megapixel
4096 x 2304 6.5um 2" 4096 x 2304 @ 667 FPS 64CH LVDS Monochrome
Color 696 Hybrid LGA-LCC 39.80 x 37.80
LXL8K25 8K Pixel
8352 x 64 5.0um 2.6" 8352 x 64 @ 13,132 FPS 72CH LVDS Monochrome
Color 610 Hybrid LGA-LCC 55.00 x 21.50
