MT9P001I12STC+ViMicro VC0337TLNCA 500万像素高拍仪模组,银行证券营业厅柜台证件文档扫描仪
2020-07-05 00:34:03
点击购买amazon

银行、证券、电信、柜台营业厅用高拍仪、扫描仪的模组,APTINA MT9P001I12STC 500万像素CMOS图像传感器,+ViMicro VC0337TLNCA图像处理器,实现高速扫描拍照证件或者文档,扫描图片转快捷转换文本文字

VC0337 USB 2.0摄像头处理器介绍:
VC0337是一个高性能USB 2.0摄像头处理器,针对高质量的标准单独电脑摄像头。它配备了高质量的图像信号处理(ISP)单元和MJPEG压缩引擎。其灵活的传感器接口可以支持最常见的CMOS图像传感器在市场上。它也完全符合UVC标准。

关键特性
标准
内置在USB2.0 H S & F S收发器支持ISO在管道视频流兼容USB视频类1.1

单片机
内置8051微控制器
内置在64KB OTP ROM的程序代码
内置6KB RAM用于程序数据
支持EEPROM设置和编码

传感器接口
支持CMOS图像传感器
支持RAW / YUV输出传感器
支持10位对接口
可编程传感器时钟输出
支持I2C的传感器配置

ISP / IPP
支持10位ISP
支持AE / AWB /房颤
伽马/亮度调节
对比度/锐度调整
边缘增强
背光补偿
镜头阴影补偿
推进DPD&DPC
噪声管理

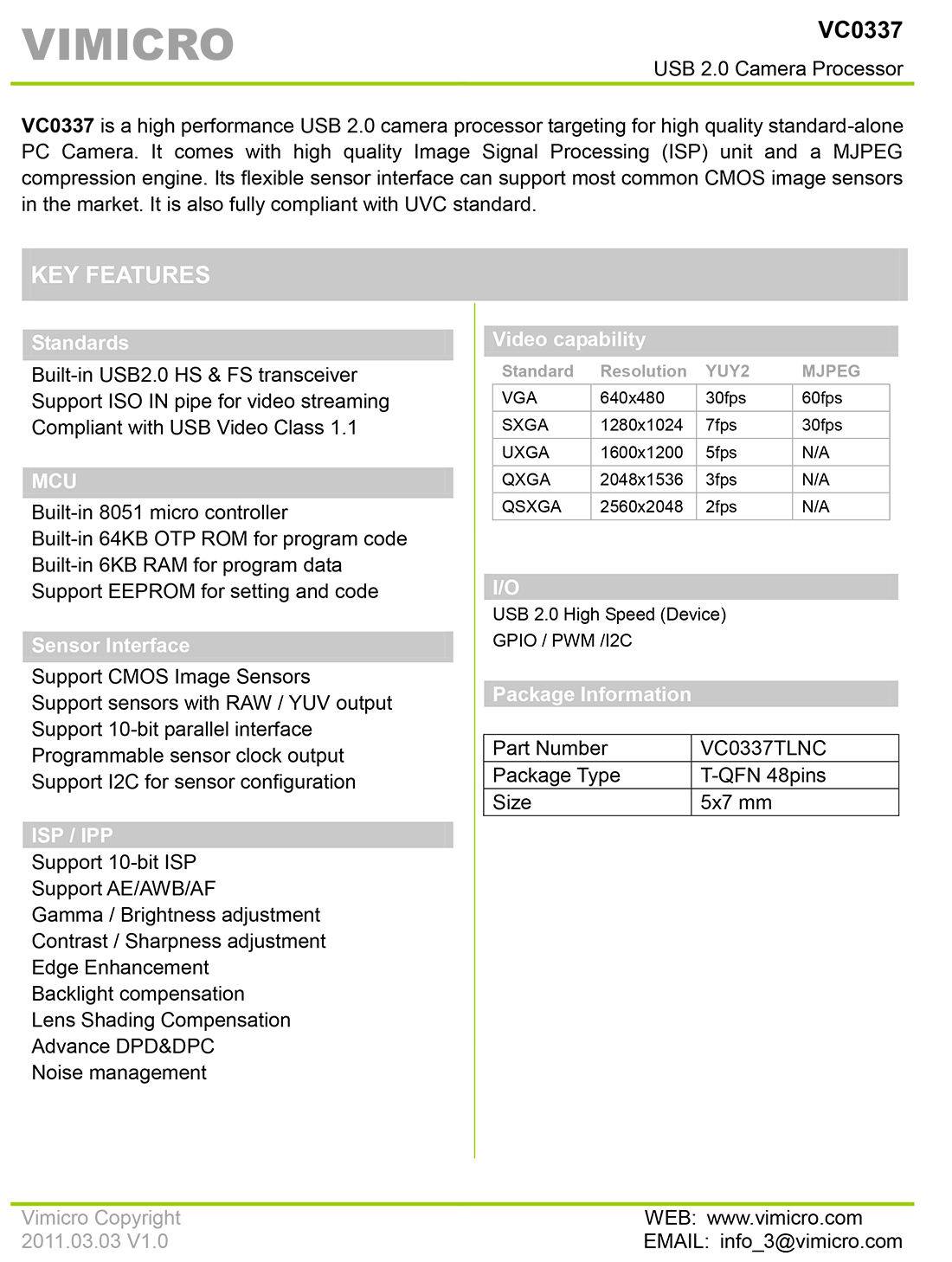

VIMICRO VC0337 USB 2.0 Camera Processor
VC0337 is a high performance USB 2.0 camera processor targeting for high quality standard alone PC Camera. It comes with high quality Image Signal Processing (ISP) unit and a MJPEG compression engine. Its flexible sensor interface can support most common CMOS image sensors in the market. It is also fully compliant with UVC standard.

KEY FEATURES
Standards
Built in USB2.0 H S & F S transceiver Support ISO IN pipe for video streaming Compliant with USB Video Class 1.1

MCU
Built in 80 51 micro controller
Built in 64KB OTP ROM for program code
Built in 6KB RAM for program data
Support EEPROM for setting and code

Sensor Interface
Support CMOS Image Sensors
Support sensors with RAW / YUV output
Support 10 bit para llel interface
Programmable sensor clock output
Support I2C for sensor configuration

ISP / IPP
Support 10 bit ISP
Support AE/AWB/AF
Gamma / Brightness adjustment
Contrast / Sharpness adjustment
Edge Enhancement
Backlight compensation
Lens Shading Compensation
Advance DPD&DPC
Noise management

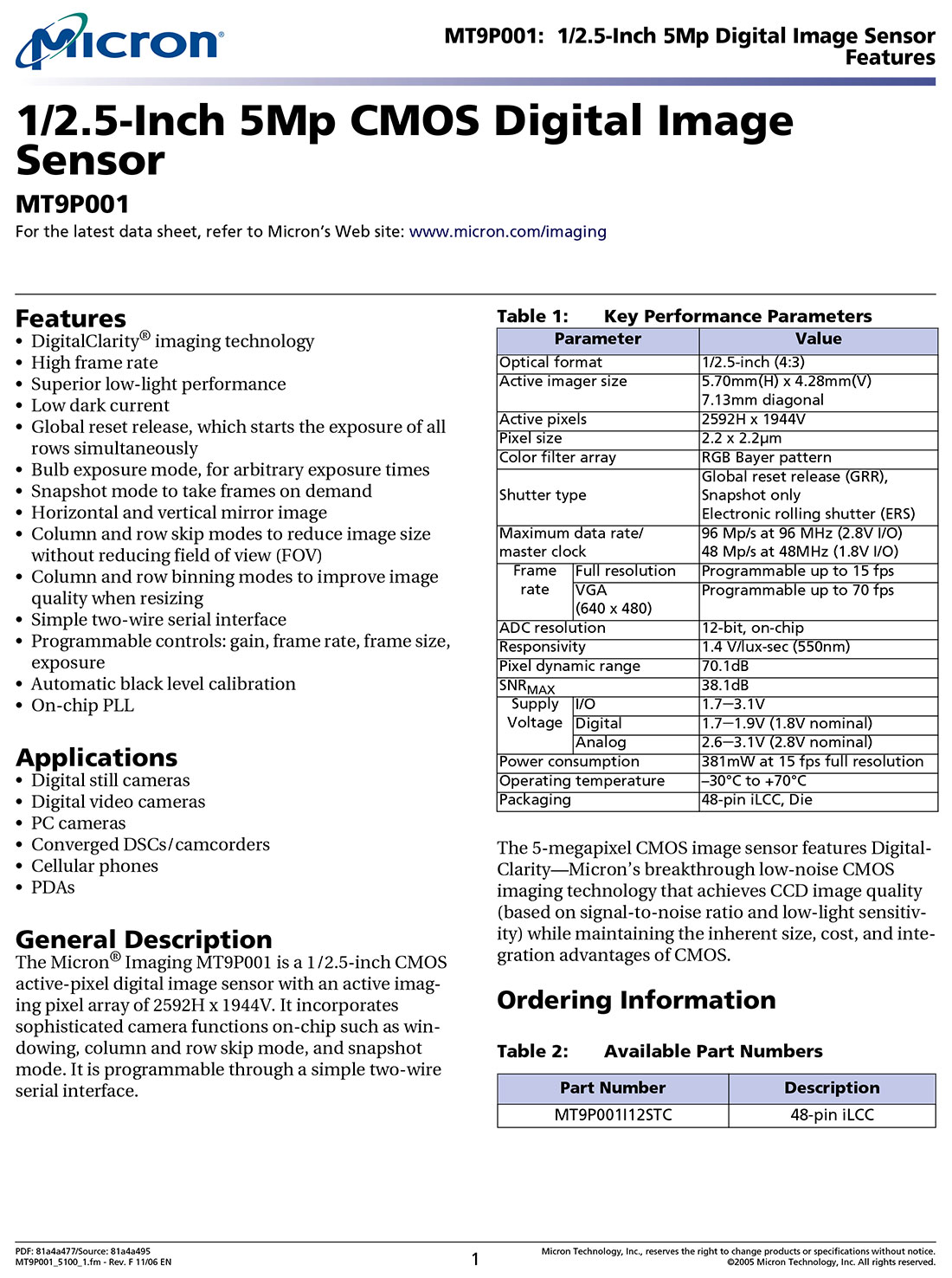

APTINA MT9P001I12STC 500万像素CMOS图像传感器,+ViMicro VC0337TLNCA图像处理器

500万像素高拍仪模组,500万像素高拍仪,VC0337TLNCA方案,VC0337TLNCA高拍仪方案,5MP高拍仪模组,5MP High shot instrument module,Professional Document Scanner,High-Speed Document Camera,Smart Document Scanner,Document Camera & Scanner,High Definition Portable Scanner,银行柜台证件扫描仪模组,银行营业厅扫描仪模组,银行高拍仪模组,MI5100 scanner module,MT9P001 scanner module,MT9P001+VC0337高拍仪模组,MT9P001+VC0337 Document Camera & Scanner module,5MP Document Camera & Scanner MODULE,APTINA MT9P001I12STC+ViMicro VC0337TLNCA SCANNER MODULE,EE-PC-337510C-05-QS
500万像素高拍仪模组,500万像素高拍仪,VC0337TLNCA方案,VC0337TLNCA高拍仪方案,5MP高拍仪模组,5MP High shot instrument module,Professional Document Scanner,High-Speed Document Camera,Smart Document Scanner,Document Camera & Scanner,High Definition Portable Scanner,银行柜台证件扫描仪模组,银行营业厅扫描仪模组,银行高拍仪模组,MI5100 scanner module,MT9P001 scanner module,MT9P001+VC0337高拍仪模组,MT9P001+VC0337 Document Camera & Scanner module,5MP Document Camera & Scanner MODULE,APTINA MT9P001I12STC+ViMicro VC0337TLNCA SCANNER MODULE,EE-PC-337510C-05-QS

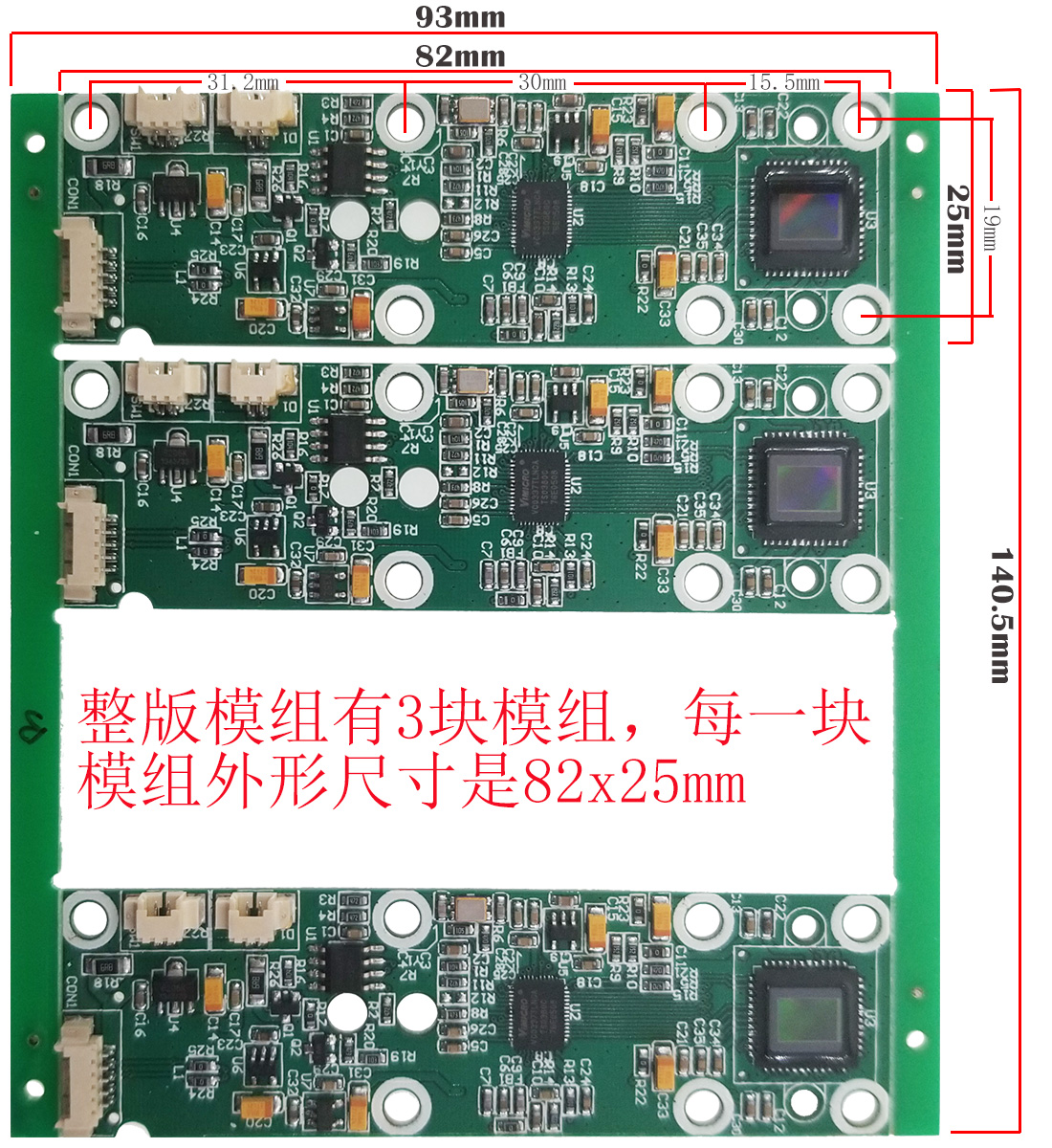

全新整版未用过的500万像素高拍仪模组,ONSEMI 500万像素图像传感器MT9P001I12STC+ViMicro VC0337TLNCA,模组型号EE-PC-337510C-05-QS
