斑马Zebra摩托罗拉Motorola 讯宝Symbol扫描仪的激光镭射扫描引擎 (SE4500)
2022-07-12 02:58:58

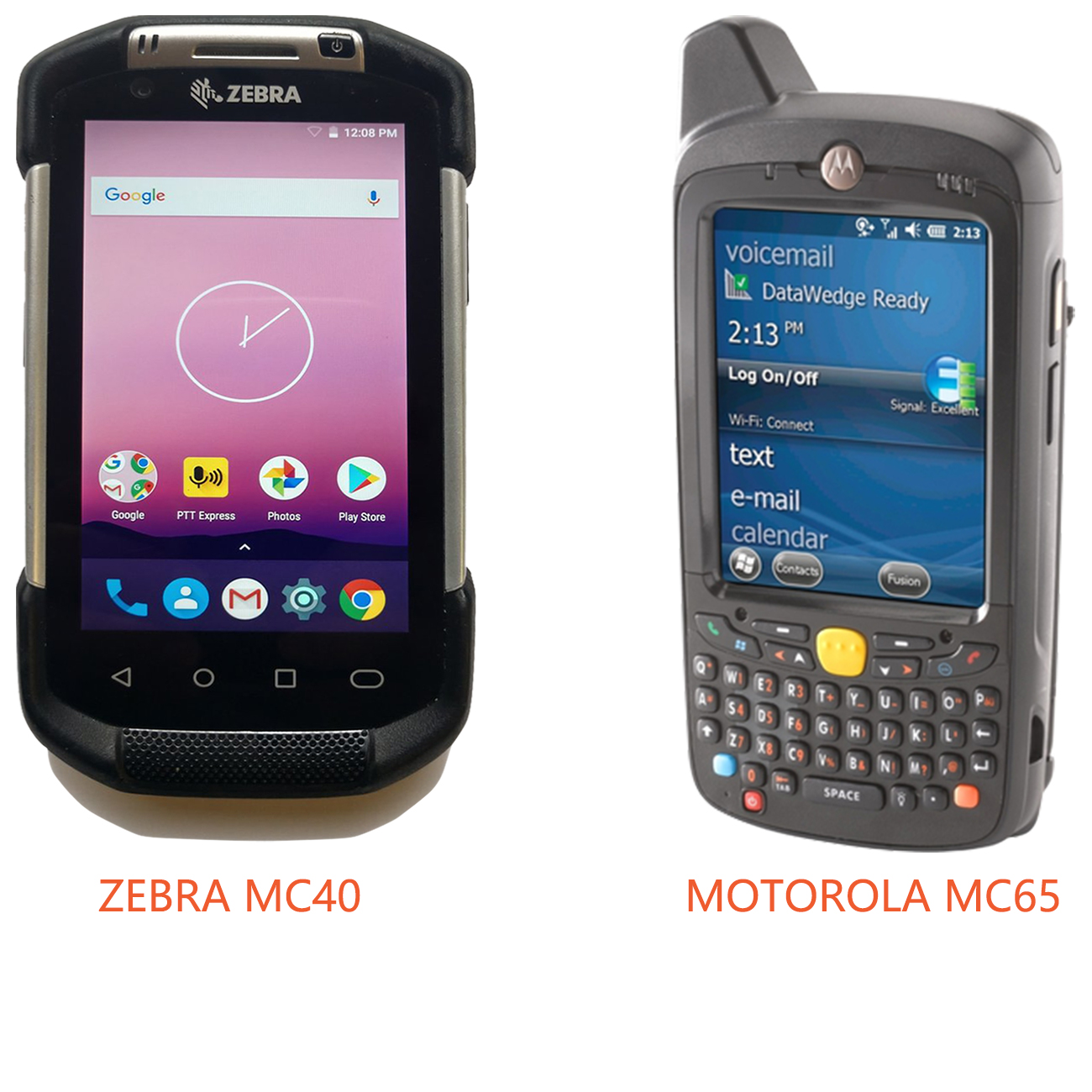

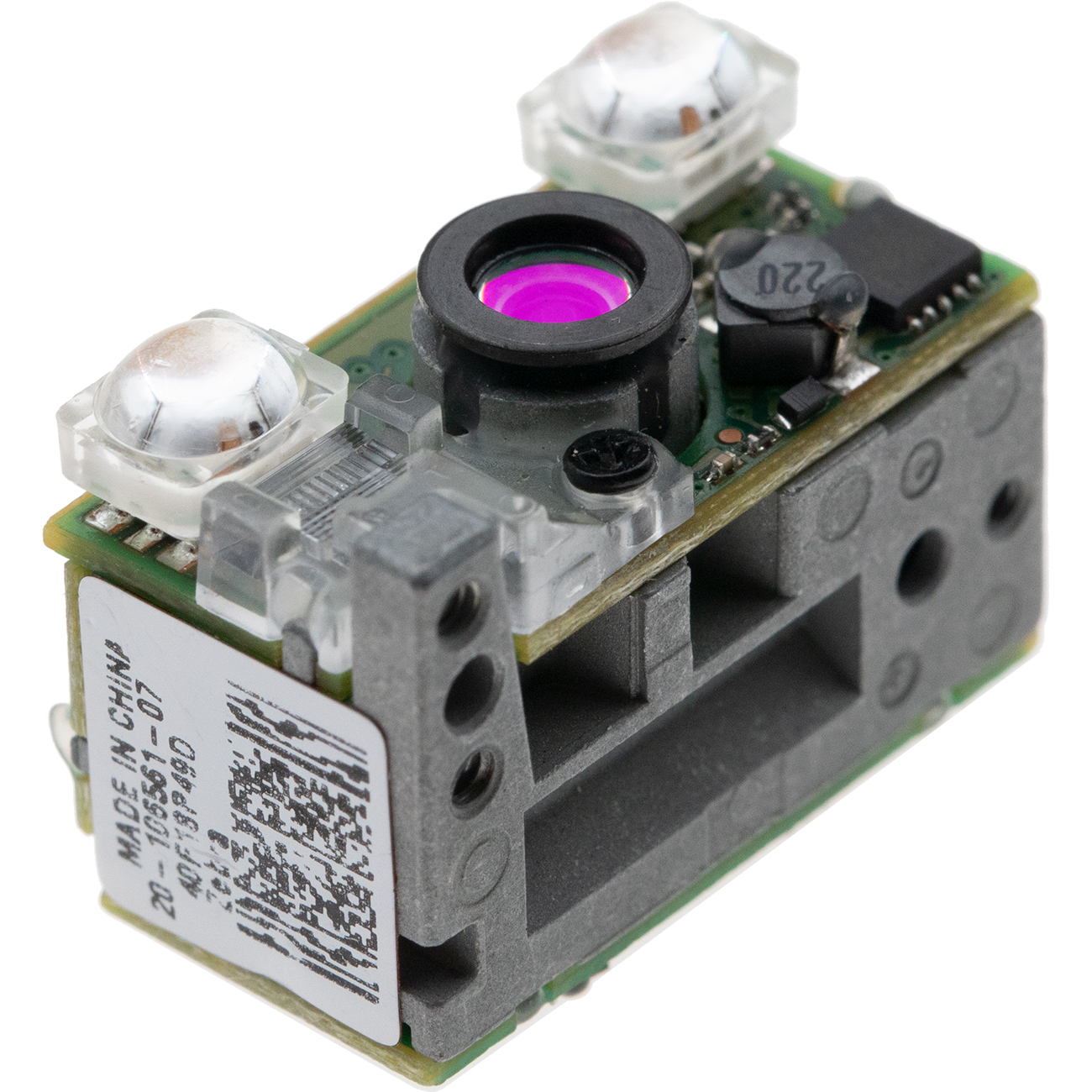

斑马Zebra摩托罗拉Motorola 讯宝Symbol扫描仪的扫描引擎 (SE4500) 2D Scan Engine for  MC65、MC659B,MC9190G, MC67N0, MC40, MC40N0,  MC5590, MC75,MC3190,MC9190,MC9500-K,MC9590-K,MK3900 的二维码、条形码激光镭射扫描仪引擎 (20-106561-xx),


斑马Zebra,摩托罗拉Motorola, 讯宝Symbols,扫描仪的扫描引擎, SE4500 scan engine, 2D QR coder Scan Engine,  MC65、MC659B,MC9190G, MC67N0, MC40, MC40N0,  MC5590, MC75,MC3190,MC9190,MC9500-K,MC9590-K,MK3900 sacn engine, 二维码、条形码扫描仪模组,激光扫描仪引擎 (20-106561-xx),镭射扫描头组件

New Original For Motorola Symbol SE4500 SE-4500HD-I000R SE4500HD 2D Image Scan Engine
斑马Zebra,摩托罗拉Motorola, 讯宝Symbols,扫描仪的扫描引擎, SE4500 scan engine, 2D QR coder Scan Engine,  MC65、MC659B,MC9190G, MC67N0, MC40, MC40N0,  MC5590, MC75,MC3190,MC9190,MC9500-K,MC9590-K,MK3900 sacn engine, 二维码、条形码扫描仪模组,激光扫描仪引擎 (20-106561-xx),镭射扫描头组件

零件编号:20-106561-07
● MC659B-PB0BAA00100
● MC659B-PB0BAA00100
● MC659B-PB0BAA00100-KIT
● MC659B-PB0BAB00100
● MC659B-PB0BAB00100-KIT
● MC659B-PB0BFD00100
● MC659B-PB0BGC00100
● MC659B-PD0BAA00100
● MC659B-PD0BAA00100-KIT
● MC659B-PD0BAB00100
● MC659B-PD0BAB00100-KIT
● MC659B-PD0BFD00100
● MC659B-PD0BGC00100

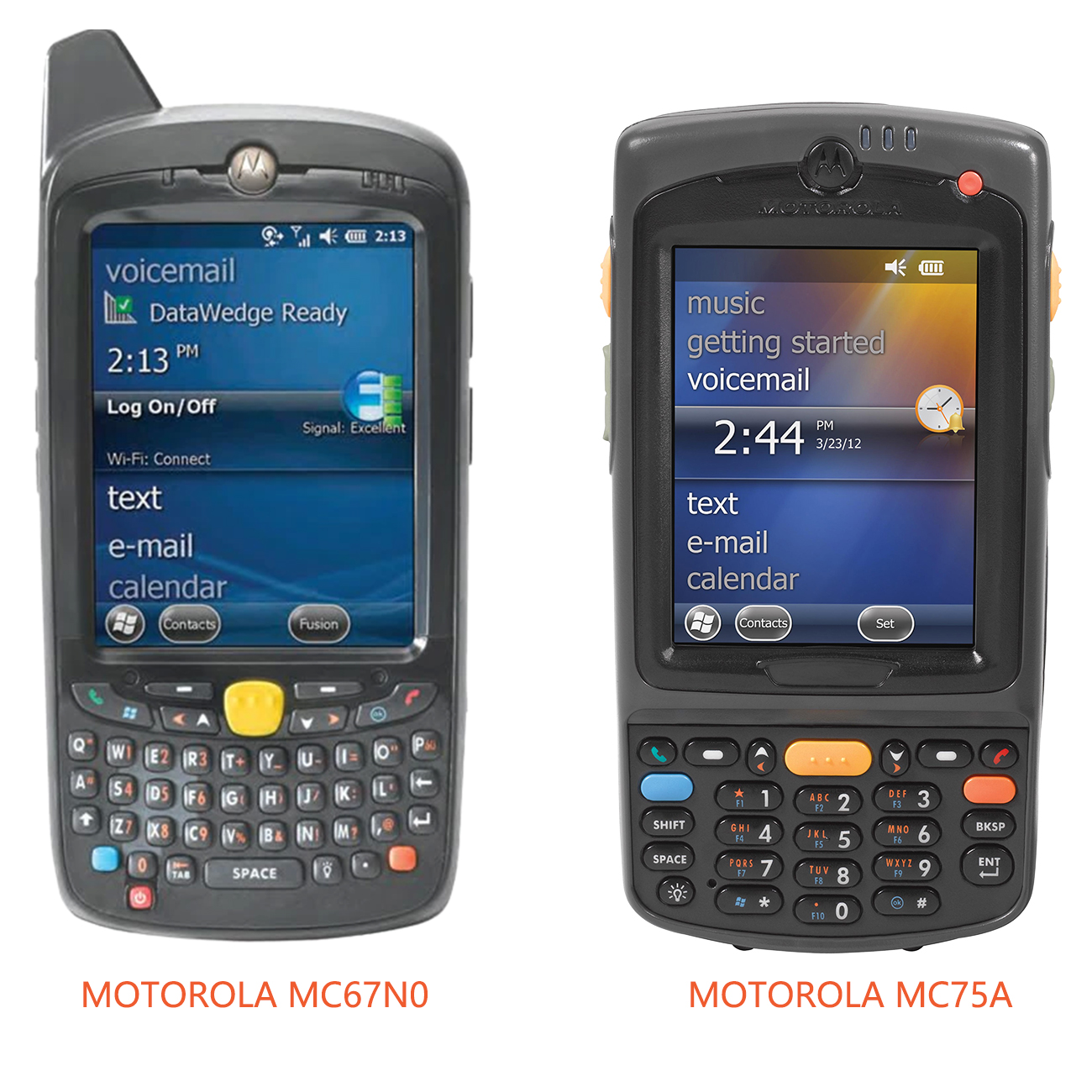

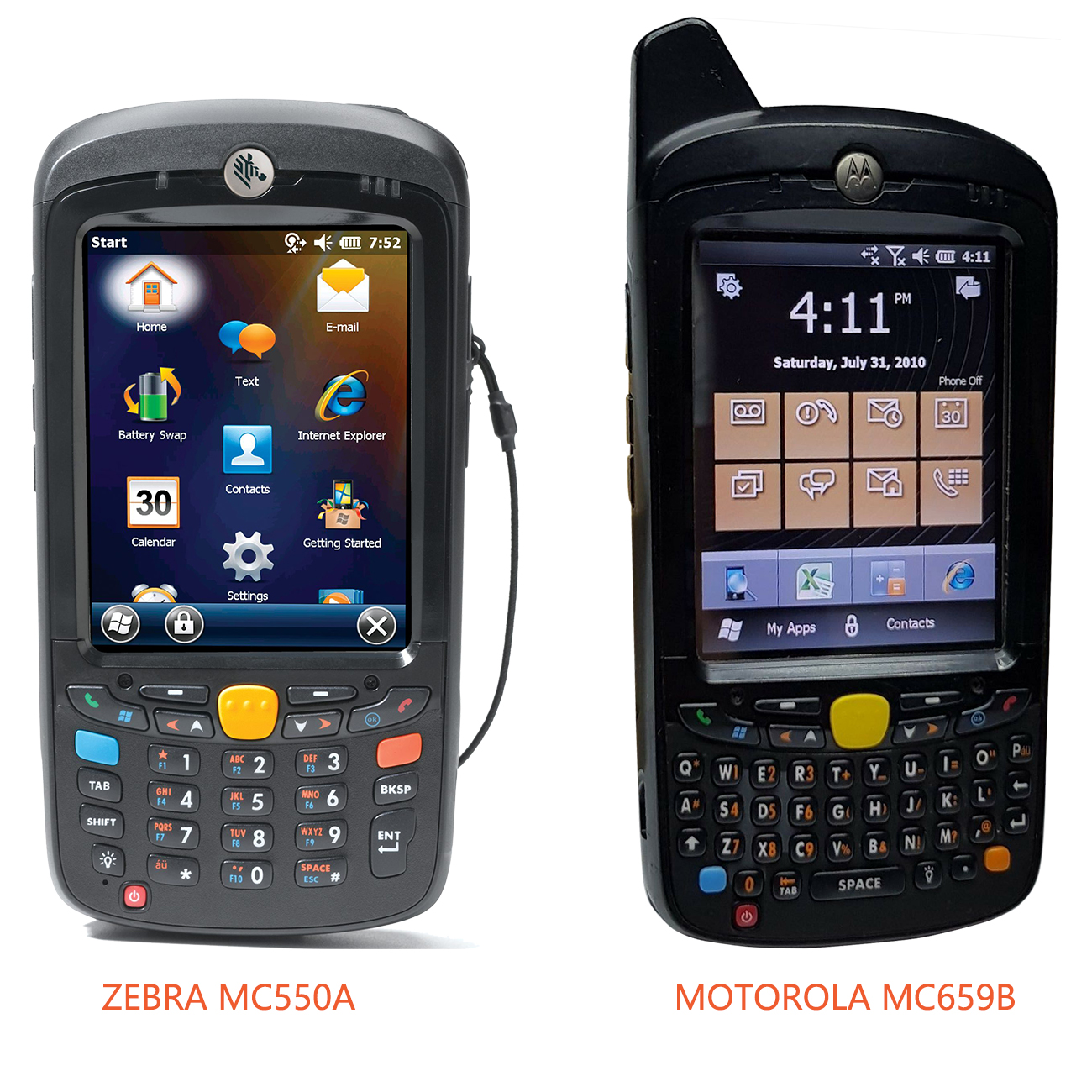

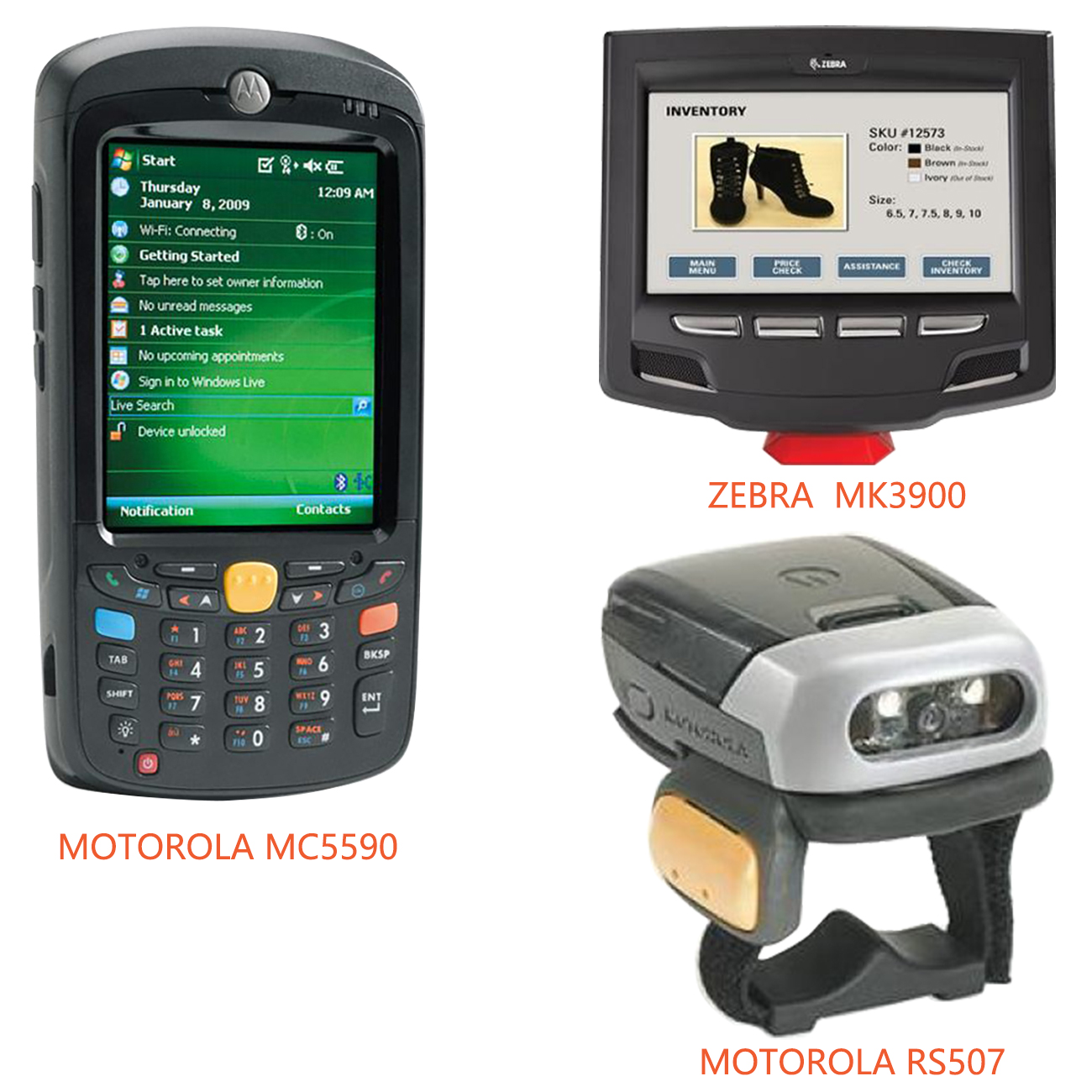

Replacement For OEM Symbol MC5590, MC75, MC3190, MC9190, MC9500-K, MC9590-K, MK3900 Two-dimensional Laser Scan Engine (SE4500)
斑马Zebra,摩托罗拉Motorola, 讯宝Symbols,扫描仪的扫描引擎, SE4500 scan engine, 2D QR coder Scan Engine,  MC65、MC659B,MC9190G, MC67N0, MC40, MC40N0,  MC5590, MC75,MC3190,MC9190,MC9500-K,MC9590-K,MK3900 sacn engine, 二维码、条形码扫描仪模组,激光扫描仪引擎 (20-106561-xx),镭射扫描头组件
斑马Zebra,摩托罗拉Motorola, 讯宝Symbols,扫描仪的扫描引擎, SE4500 scan engine, 2D QR coder Scan Engine,  MC65、MC659B,MC9190G, MC67N0, MC40, MC40N0,  MC5590, MC75,MC3190,MC9190,MC9500-K,MC9590-K,MK3900 sacn engine, 二维码、条形码扫描仪模组,激光扫描仪引擎 (20-106561-xx),镭射扫描头组件
斑马Zebra,摩托罗拉Motorola, 讯宝Symbols,扫描仪的扫描引擎, SE4500 scan engine, 2D QR coder Scan Engine,  MC65、MC659B,MC9190G, MC67N0, MC40, MC40N0,  MC5590, MC75,MC3190,MC9190,MC9500-K,MC9590-K,MK3900 sacn engine, 二维码、条形码扫描仪模组,激光扫描仪引擎 (20-106561-xx),镭射扫描头组件
斑马Zebra,摩托罗拉Motorola, 讯宝Symbols,扫描仪的扫描引擎, SE4500 scan engine, 2D QR coder Scan Engine,  MC65、MC659B,MC9190G, MC67N0, MC40, MC40N0,  MC5590, MC75,MC3190,MC9190,MC9500-K,MC9590-K,MK3900 sacn engine, 二维码、条形码扫描仪模组,激光扫描仪引擎 (20-106561-xx),镭射扫描头组件
斑马Zebra,摩托罗拉Motorola, 讯宝Symbols,扫描仪的扫描引擎, SE4500 scan engine, 2D QR coder Scan Engine,  MC65、MC659B,MC9190G, MC67N0, MC40, MC40N0,  MC5590, MC75,MC3190,MC9190,MC9500-K,MC9590-K,MK3900 sacn engine, 二维码、条形码扫描仪模组,激光扫描仪引擎 (20-106561-xx),镭射扫描头组件
斑马Zebra,摩托罗拉Motorola, 讯宝Symbols,扫描仪的扫描引擎, SE4500 scan engine, 2D QR coder Scan Engine,  MC65、MC659B,MC9190G, MC67N0, MC40, MC40N0,  MC5590, MC75,MC3190,MC9190,MC9500-K,MC9590-K,MK3900 sacn engine, 二维码、条形码扫描仪模组,激光扫描仪引擎 (20-106561-xx),镭射扫描头组件
Compatibility & Description
SE4500 Two-dimensional Laser Scan Engine delivers excellent performance on both 1D and 2D barcodes and can capture still images and video. Its unique fast pulse illumination and fast sensor shutters deliver up to 60 frames per second, provides outstanding mobile fault tolerance. The extraordinary scanning speed of the SE4500 2D Laser Scan Engine enhances productivity in many industries – from retail, healthcare to transportation, logistics and public safety.

Features
● Can capture almost all 1D and 2D barcodes as well as still images and videos;
Provides the flexibility needed for many applications, supports the devices that offer multiple data acquisitions, enables standardization on a single engine to optimize product development and reduce development costs;
● Powerful 624MHz processor, fast sensor shutter speed;
● Excellent performance when acquiring 1D and 2D barcodes, increasing productivity in a variety of applications;
● Superior motion tolerance
● Achieve amazing scanning speeds for 1D and 2D barcodes, increasing throughput and productivity;
● Unique aiming mode
The bright central spot helps ensure fast, accurate scanning – even in bright daylight;
Small and lightweight shape
● Weighing less than 0.3 ounces, the smallest weight increase for maximum data acquisition; small sizes are easy to assemble into most space-constrained designs;
● Low power consumption
● Ideal for battery-powered and other mobile devices; helps expand battery capacity for full shift use;
● Three engine models for a wide range of operating and applications
   SR (standard range) for 1D-intensive applications with medium to large barcodes;
   DL (driver optimization) is especially suitable for small to medium barcodes and 2D intensive applications, including US driver's license ID verification;
  HD (high density) for very small barcodes and DPM functions;
● Compatible with SSI and SNAPI command interfaces
● Extend application flexibility with fast, simple communication between the imager and the host and advanced features supported.

Physical parameter
● Size:0.46 inches H x 0.85 inches W x 0.64 inches D(11.8mm H x 21.5mm W x 16.3mm D)
● Wight:0.29oz/8.22g
● Interface:Camera Port on 21 pin ZIF connector

Performance parameter
● Sensor Resolution:752 x 480 pixels
● Field of View:Horizontal:40°,Vertical:25°
● Focal Distance from Front of Engine:SR:8 inches;DL:5.3 inches;HD:2.9 inches
VLD:655nm Laser

Use environment
● Ambient Light:Max 96,900lux (direct sunlight)
● Operating Temperature:-22℉ to 131℉(-30℃ to 55℃)
● Storage Temperature:-40℉ to 158℉(-40℃ to 70℃)
● Humidity:Operating:95% RH,non-condensing at 55℃;Storage:85% RH,non-condensing at 70℃
● Shock Rating:2000 G±5%,any mounting surface, at -30 and 55℃ for 0.85±0.05ms; 2500G±5%, any mounting surface, at 23℃ for 0.85±0.05ms
● Power: Operational input voltage: Engine: 3.3V±10%; Current draw with illumination and aiming: 250mA; Current draw, low power mode: 500uA

Decode Ranges:
● SR Focus: 5mil Code 39(Near: 2.1in./5.3cm, Far: 7.5in./19.1cm); 100% UPC/EAN (Near: 1.6in./4.1cm, Far: 15.5in./39.4cm); 6.7mil PDF417 (Near:3.4in./8.6cm, Far: 7.1in./18.0cm)
● DI focus: 5mil Code 39(Near: 1.4in./8.6cm, Far: 7.3in./18.5cm); 100% UPC (Near: 1.6in./4.1cm, Far: 12in./30.5cm); 5mil PDF417 (Near: 2.8in./7.1cm, Far: 4.5in./11.4cm)
● HD Focus: 3mil Code 39(Near: 1.6in./4.1cm, Far: 3.8in./9.7cm); 4mil PDF417 (Near: 1.8in./4.6cm, Far: 3.5in./8.9cm)

Regulation
● Laser Classification: Intended for use in CDRH Class II/IEC 85 Class 2 devices
● Electrical Safety: UL, VDE and CU recognized laser component
● Environmental: RoHS Compliant

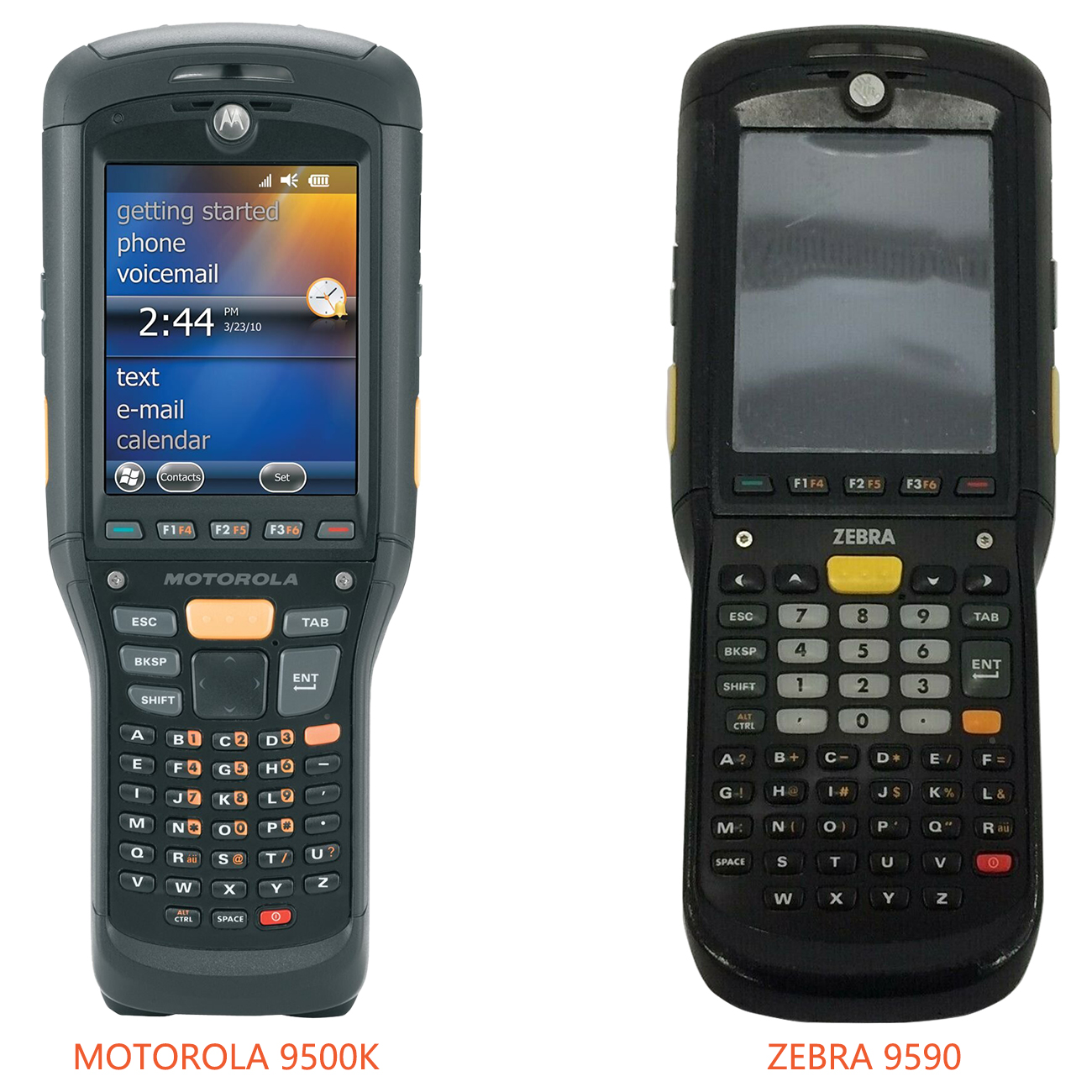

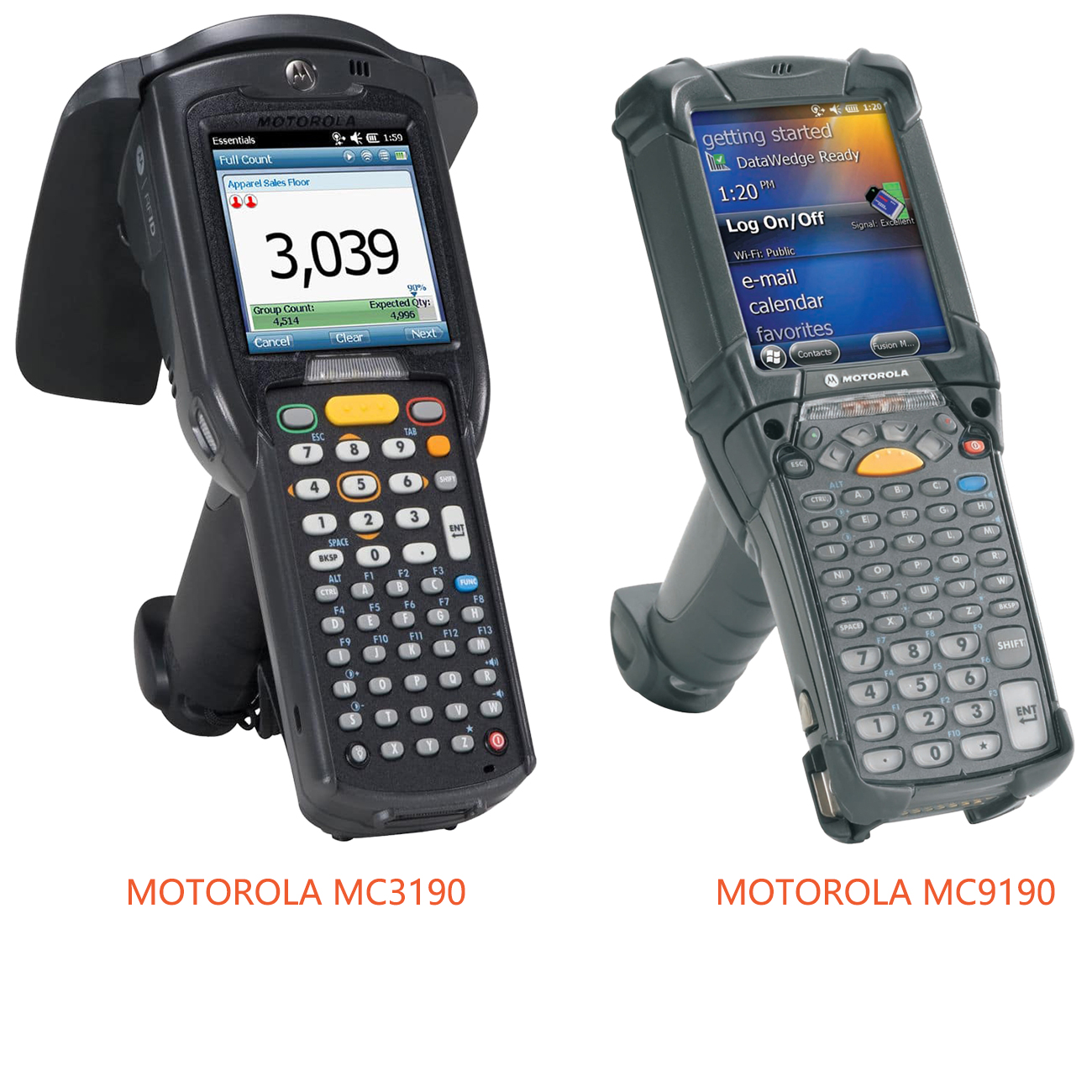

替换 OEM Symbol MC5590、MC75、MC3190、MC9190、MC9500-K、MC9590-K、MK3900 二维激光扫描引擎 (SE4500)
斑马Zebra,摩托罗拉Motorola, 讯宝Symbols,扫描仪的扫描引擎, SE4500 scan engine, 2D QR coder Scan Engine,  MC65、MC659B,MC9190G, MC67N0, MC40, MC40N0,  MC5590, MC75,MC3190,MC9190,MC9500-K,MC9590-K,MK3900 sacn engine, 二维码、条形码扫描仪模组,激光扫描仪引擎 (20-106561-xx),镭射扫描头组件
斑马Zebra,摩托罗拉Motorola, 讯宝Symbols,扫描仪的扫描引擎, SE4500 scan engine, 2D QR coder Scan Engine,  MC65、MC659B,MC9190G, MC67N0, MC40, MC40N0,  MC5590, MC75,MC3190,MC9190,MC9500-K,MC9590-K,MK3900 sacn engine, 二维码、条形码扫描仪模组,激光扫描仪引擎 (20-106561-xx),镭射扫描头组件
斑马Zebra,摩托罗拉Motorola, 讯宝Symbols,扫描仪的扫描引擎, SE4500 scan engine, 2D QR coder Scan Engine,  MC65、MC659B,MC9190G, MC67N0, MC40, MC40N0,  MC5590, MC75,MC3190,MC9190,MC9500-K,MC9590-K,MK3900 sacn engine, 二维码、条形码扫描仪模组,激光扫描仪引擎 (20-106561-xx),镭射扫描头组件
兼容性说明:
SE4500 二维激光扫描引擎在一维和二维条码上均具有出色的性能,并且可以捕获静止图像和视频。其独特的快速脉冲照明和快速传感器快门可提供高达每秒 60 帧的速度,提供出色的移动容错能力。SE4500 2D 激光扫描引擎的非凡扫描速度提高了许多行业的生产力——从零售、医疗保健到运输、物流和公共安全。

特征
● 可以采集几乎所有的一维和二维条码以及静止图像和视频;
● 提供许多应用所需的灵活性,支持提供多种数据采集的设备,在单个引擎上实现标准化以优化产品开发并降低开发成本;
● 强大的 624MHz 处理器,快速的传感器快门速度;
获取一维和二维条码时的卓越性能,提高各种应用的生产力;
● 卓越的运动容差
● 实现惊人的一维和二维条码扫描速度,提高吞吐量和生产力;
● 独特的瞄准模式
● 明亮的中心点有助于确保快速、准确的扫描——即使在明亮的日光下;
● 小巧轻便的外形
● 重量不到 0.3 盎司,最小的重量增加,最大的数据采集;小尺寸易于组装到大多数空间受限的设计中;
● 低功耗
● 非常适合电池供电和其他移动设备;有助于扩大电池容量以供全班使用;
● 三种发动机型号,适用于广泛的操作和应用
  SR(标准范围)适用于大中型条码的一维密集型应用;
  DL(驱动程序优化)特别适用于中小型条码和2D密集型应用,包括美国驾照ID验证;
  HD(高密度)适用于非常小的条码和 DPM 功能;
● 兼容 SSI 和 SNAPI 命令接口
通过成像仪和主机之间快速、简单的通信以及支持的高级功能扩展应用程序的灵活性。

物理参数
● 尺寸:0.46 英寸 H x 0.85 英寸 W x 0.64 英寸 D(11.8mm H x 21.5mm W x 16.3mm D)
● 重量:0.29oz/8.22g
● 接口:Cam??era Port on 21 pin ZIF connector

性能参数
● Sensor Resolution:752 x 480 像素
● 视野:水平:40°,垂直:25°
● 距引擎前端焦距:SR:8 英寸;DL:5.3 英寸;HD:2.9 英寸
● VLD:655nm 激光

使用环境
● 环境光:Max 96,900lux (阳光直射)
● 工作温度:-22℉ 至 131℉(-30℃ 至 55℃)
● 储存温度:-40℉ 至 158℉(-40℃ 至 70℃)
● 湿度:工作:95% RH,55 下无冷凝℃;储存:85% RH,70℃不凝结
● 冲击等级:2000 G±5%,任意安装面,-30 和 55℃ 0.85±0.05ms;2500G±5%,任意安装面,23℃ 0.85±0.05ms
● 电源:工作输入电压:发动机:3.3V±10%;带照明和瞄准的电流消耗:250mA;电流消耗,低功耗模式:500uA

解码范围
● SR 焦点:5mil Code 39(近:2.1in./5.3cm,远:7.5in./19.1cm);
100% UPC/EAN(近:1.6 英寸/4.1 厘米,远:15.5 英寸/39.4 厘米);6.7 万 PDF417(近:3.4 英寸/8.6 厘米,远:7.1 英寸/18.0 厘米)
● DI 聚焦:5 百万代码 39(近:1.4 英寸/8.6 厘米,远:7.3 英寸/18.5 厘米);100% UPC(近:1.6 英寸/4.1 厘米,远:12 英寸/30.5 厘米);5mil PDF417(近:2.8in./7.1cm,远:4.5in./11.4cm)
● 高清焦点:3mil Code 39(近:1.6in./4.1cm,远:3.8in./9.7cm);4mil PDF417(近:1.8in./4.6cm,远:3.5in./8.9cm)

规定
● 激光分类:旨在用于 CDRH II 类/IEC 85 2 类设备
● 电气安全:UL、VDE 和 CU 认可的激光组件
● 环境:符合 RoHS 标准
------------------------------------------------------

SE4500 ARRAY IMAGER
SETS THE BAR FOR 1D AND 2D SCANNING PERFORMANCE
(Download PDF Version)
Until today, businesses were required to choose between a high performance laser engine for 1D bar code scanning or a 2D imager that offered expanded functionality — but reduced performance. The revolutionary SE4500 from Zebra eliminates this disparity, offering a comprehensive feature set that completely re-defines imaging technology. Stunning performance on 1D and 2D bar codes combines with the ability to capture still images and video, allowing businesses to deploy a world of new applications. The patent pending fast-pulse illumination and fast sensor shutter speed enable image capture at a full 60 frames per second, delivering outstanding motion tolerance. The result is the extraordinary scanning speed required to boost productivity in many industries — from retail and healthcare to transportation and logistics and public safety.

DECODE OPTIONS PROVIDE MAXIMUM INTEGRATION FLEXIBILITY
Hardware and software decode options allow you to choose the decoder strategy that best fits your product designs. Our PL hardware decoder family allows you to choose the features and form factor you need. Choose the data capture capabilities and performance level your applications require. You can also choose the form factor that best meets the needs of your product designs — a standalone circuit board that connects to your board or a microchip that is soldered to the main circuit board. In addition, we offer a purely software decode option — no hardware required — that allows you to lower your component costs, conserve battery power and improve product margins.

EASY INTEGRATION INTO A WIDE VARIETY OF PRODUCTS
Designed for easy integration, the SE4500 reduces development time and cost, paving the way for highly cost-effective mobility solutions. Low power requirements help preserve ample battery power for a full shift. At less than three tenths of an ounce and approximately a quarter cubic inch, this small, lightweight device can be easily integrated into even the most space-constrained products, including mobile computers, handheld scanners, self-service kiosks, medical and diagnostic instruments, lottery terminals and more.

FEATURES
Provides flexibility for many applications; enables design of devices that offer multiple types of data capture; enables standardization on a single engine to streamline and reduce the cost of product development. Superior performance on 1D and 2D bar codes, improving productivity in a wide variety of applications.

Exceptional motion tolerance
Enables extraordinary scanning speed for all bar codes , increasing throughput and productivity — regardless of application

Unique aiming pattern
Bright central dot ensures quick, accurate scanning — even in bright sunlight

Miniature, lightweight form factor
Less than three tenths of an ounce, adds minimal weight and maximum data capture functionality; tiny size fits easily in the most space-constrained designs

Low power consumption
Ideal for battery powered and other mobile devices

Three engine models to meet wide variety of working ranges and applications
SR (Standard Range) designed for 1D intensive applications with medium to large bar codes; DL (Driver’s License optimized) ideal for small to medium bar codes and 2D intensive applications, including U.S. driver’s license ID verification; HD (High Density) for very small bar codes

Easy to use
When your products are powered by the SE4500, users will enjoy an unparalleled ease of use. Full omnidirectional scanning eliminates the need to precisely align bar code and imager. A unique aiming pattern with a bright central dot ensures quick, accurate scanning — even in bright sunlight. The result is a highly intuitive scanning function that increases worker productivity, virtually eliminating the need and cost associated with training.

Proven technology you can count on
When you choose the SE4500, you get the peace of mind that comes from choosing superior, well-tested technology. Every day, all around the world, our OEM products power millions of devices in thousands of applications across industries.

SE4500 SPECIFICATIONS
PHYSICAL CHARACTERISTICS
● Dimensions:0.46 in. H x 0.85 in. W x 0.64 in. D11.8 mm H x 21.5 mm W x 16.3 mm D
● Weight:0.29 oz./8.22 grams
● Interface:Camera Port on 21 pin ZIF connector

PERFORMANCE CHARACTERISTICS
● Sensor Resolution:752 x 480 pixels
● Field of View:Horizontal: 40°, Vertical: 25°
● Skew, Pitch & Roll:
    Skew Tolerance:+/- 60°
    Pitch Tolerance: +/- 60°
    Roll Tolerance: 360°
● Focal Distance from Front of Engine:SR: 8 in. DL: 5.3 in. HD: 2.9 in.
● Aiming LED (VLD):655nm Laser
● Illumination Element:2x 625nm LEDs

USER ENVIRONMENT
● Ambient Light:Max 96,900 lux (direct sunlight)
● Operating Temp:-22° F to 131° F/ -30° C to 55° C
● Storage Temp:-40° F to 158° F/-40° C to 70° C
● Humidity:
    Operating: 95% RH, non-condensing at 55° C
    Storage: 85% RH, non-condensing at 70° C
● Shock Rating:
    2000 G ±5%, any mounting surface, at -30 and 55° C for 0.85 ±0.05 ms
    2500 G ±5%, any mounting surface, at 23° C for 0.85 ±0.05 ms
● Power:
    Operational input voltage: Engine: 3.3V ±10%
    Current draw with illumination and aiming: 250 mA
    Current draw, low power mode: 500 μA

DECODE RANGES
● SR Focus
● 5 mil Code 39
    Near: 2.1 in./5.3 cm
    Far: 7.5 in./19.1 cm
● 100% UPC/EAN
    Near: 1.6 in./4.1 cm
    Far: 15.5 in./39.4 cm
● 6.7 mil PDF417
    Near: 3.4 in./8.6 cm
    Far: 7.1 in./18.0 cm
● Dl focus
● 5 mil Code 39
    Near: 1.4 in./3.6 cm
    Far: 7.3 in./18.5 cm
● 100% UPC
    Near: 1.6 in./4.1 cm
    Far: 12 in./30.5 cm
● 5 mil PDF417
    Near: 2.8 in./7.1 cm
    Far: 4.5 in./11.4 cm
● HD Focus
● 3 mil Code 39
    Near: 1.6 in./4.1 cm
    Far: 3.8 in./9.7 cm
● 4 mil PDF417
    Near: 1.8 in./4.6 cm
    Far: 3.5 in./8.9 cm

REGULATORY
● Electrical Safety:UL, VDE and CU recognized laser component
● Laser Classification:Intended for use in CDRH Class II/IEC 825 Class 2 devices
● Environmental:RoHS Compliant

WARRANTY
Subject to the terms of Zebra's hardware warranty statement, the SE4500 is warranted against defects in workmanship and materials for a period of 15 months from the date of shipment. For the complete Zebra hardware product warranty statement, go to: www.zebra.com/warranty


SE4500 Zebra阵列成像仪
设定一维和二维扫描性能的标准
(下载PDF版本)
直到今天,企业都需要在用于一维条码扫描的高性能激光引擎或提供扩展功能但性能降低的二维成像仪之间进行选择。Zebra 革命性的 SE4500 消除了这种差异,提供全面的功能集,彻底重新定义了成像技术。一维和二维条码的惊人性能与捕获静止图像和视频的能力相结合,使企业能够部署新应用程序的世界。正在申请专利的快速脉冲照明和快速传感器快门速度能够以每秒 60 帧的速度捕捉图像,提供出色的运动容差。结果是提高许多行业(从零售和医疗保健到运输和物流以及公共安全)的生产力所需的非凡扫描速度。

SE4500解码选项提供最大的集成灵活性
硬件和软件解码选项允许您选择最适合您的产品设计的解码器策略。我们的 PL 硬件解码器系列允许您选择所需的功能和外形尺寸。选择您的应用程序所需的数据捕获功能和性能级别。您还可以选择最能满足您的产品设计需求的外形尺寸——连接到您的电路板的独立电路板或焊接到主电路板的微芯片。此外,我们提供纯软件解码选项 — 无需硬件 — 可让您降低组件成本、节省电池电量并提高产品利润。

轻松集成到各种产品中
SE4500 专为轻松集成而设计,减少了开发时间和成本,为实现高成本效益的移动解决方案铺平了道路。低功率要求有助于为整个班次保持充足的电池电量。这款小巧轻便的设备重量不到十分之三盎司,大约四分之一立方英寸,可以轻松集成到空间受限的产品中,包括移动计算机、手持扫描仪、自助服务亭、医疗和诊断仪器、彩票终端等。

特征
为许多应用程序提供灵活性;支持设计提供多种类型数据捕获的设备;实现单一引擎的标准化,以简化和降低产品开发成本。一维和二维条码的卓越性能,提高各种应用的生产力。

出色的运动容差
为所有条码提供非凡的扫描速度,提高吞吐量和生产力——无论应用如何

独特的瞄准模式
明亮的中心点确保快速、准确的扫描——即使在明亮的阳光下

微型、轻便的外形
不到十分之三盎司,增加了最小的重量和最大的数据采集功能;小巧的尺寸很容易适应最受空间限制的设计

低功耗
适用于电池供电和其他移动设备

三种引擎型号,可满足各种工作范围和应用
  SR(标准范围)设计用于大中型条码的一维密集型应用;
  DL(驾驶执照优化)非常适合中小型条码和 2D 密集型应用,包括美国驾驶执照 ID 验证;
  HD(高密度)适用于非常小的条码

便于使用
当您的产品由 SE4500 供电时,用户将享受无与伦比的易用性。全向扫描消除了对条码和成像器进行精确对齐的需要。带有明亮中心点的独特瞄准模式可确保快速、准确的扫描——即使在明亮的阳光下也是如此。结果是一个高度直观的扫描功能,提高了工人的工作效率,几乎消除了与培训相关的需求和成本。

值得信赖的成熟技术
当您选择 SE4500 时,您会因为选择经过充分测试的卓越技术而高枕无忧。每天,在世界各地,我们的 OEM 产品为各行各业数千种应用中的数百万台设备提供动力。

SE4500 规格
物理特性
● 外观大小:0.46 英寸高 x 0.85 英寸宽 x 0.64 英寸深, 11.8 毫米高 x 21.5 毫米宽 x 16.3 毫米深
● 重量:0.29 盎司/8.22 克
● 界面:21 针 ZIF 连接器上的摄像头端口

性能特点
● 传感器分辨率:752 x 480 像素
● 视野:水平40°,垂直:25°
● 倾斜、俯仰和滚动: 倾斜公差:+/- 60°,俯仰公差:+/- 60°,滚动公差:360°

● 距本模组前部的焦距: SR:8 英寸 ,DL:5.3 英寸, HD:2.9 英寸
● 瞄准 LED (VLD):655nm激光
● 照明元件:2x 625nm LED

用户环境
● 环境光:最大 96,900 勒克斯(阳光直射)
● 工作温度:-22° F 至 131° F/ -30° C 至 55° C
● 储存温度:-40° F 至 158° F/-40° C 至 70° C
● 湿度:运行时,95% RH,在 55°C 时无冷凝;存储时:85% RH,在 70°C 时无冷凝

● 抗冲击等级:2000 G ±5%,任何安装表面,在 -30 和 55°C 下 0.85 ±0.05 ms
                     2500 G ±5%,任何安装表面,在 23°C 下 0.85 ±0.05 ms
● 功率:
  工作输入电压: 引擎:3.3V ±10%,
  带照明和瞄准的电流消耗:250 mA,
  电流消耗,低功耗模式:500 μA

解码范围
● SR 焦点
● 5 百万代码 39
    近处:2.1 英寸/5.3 厘米
    远处:7.5 英寸/19.1 厘米

● 100% UPC/EAN
    近处:1.6 英寸/4.1 厘米
    远处:15.5 英寸/39.4 厘米

● 670 万份 PDF417
    近处: 3.4 英寸./8.6 厘米
    远处:7.1 英寸/18.0 厘米

● 深度聚焦

● 5 百万代码 39
    近处:1.4 英寸/3.6 厘米
    远处:7.3 英寸/18.5 厘米

● 100% 统一定价
    近处:1.6 英寸/4.1 厘米
    远处:12 英寸/30.5 厘米

● 5 百万 PDF417
    近处:2.8 英寸/7.1 厘米
    远处:4.5 英寸/11.4 厘米

● 高清焦点

● 3 百万代码 39
    近处:1.6 英寸/4.1 厘米
    远处:3.8 英寸/9.7 厘米

● 4 百万 PDF417
    近处:1.8 英寸/4.6 厘米
    远处:3.5 英寸/8.9 厘米

监管
● 电气安全:UL、VDE 和 CU 认可的激光组件
● 激光分类:旨在用于 CDRH Class II/IEC 825 Class 2 设备
● 环保的    :符合 RoHS 标准

保修单
根据 Zebra 硬件保修声明的条款,SE4500 的工艺和材料缺陷保修期为自发货之日起 15 个月。
如需完整的 Zebra 硬件产品保修声明,请访问:www.sunnywale.com
斑马Zebra,摩托罗拉Motorola, 讯宝Symbols,扫描仪的扫描引擎, SE4500 scan engine, 2D QR coder Scan Engine,  MC65、MC659B,MC9190G, MC67N0, MC40, MC40N0,  MC5590, MC75,MC3190,MC9190,MC9500-K,MC9590-K,MK3900 sacn engine, 二维码、条形码扫描仪模组,激光扫描仪引擎 (20-106561-xx),镭射扫描头组件

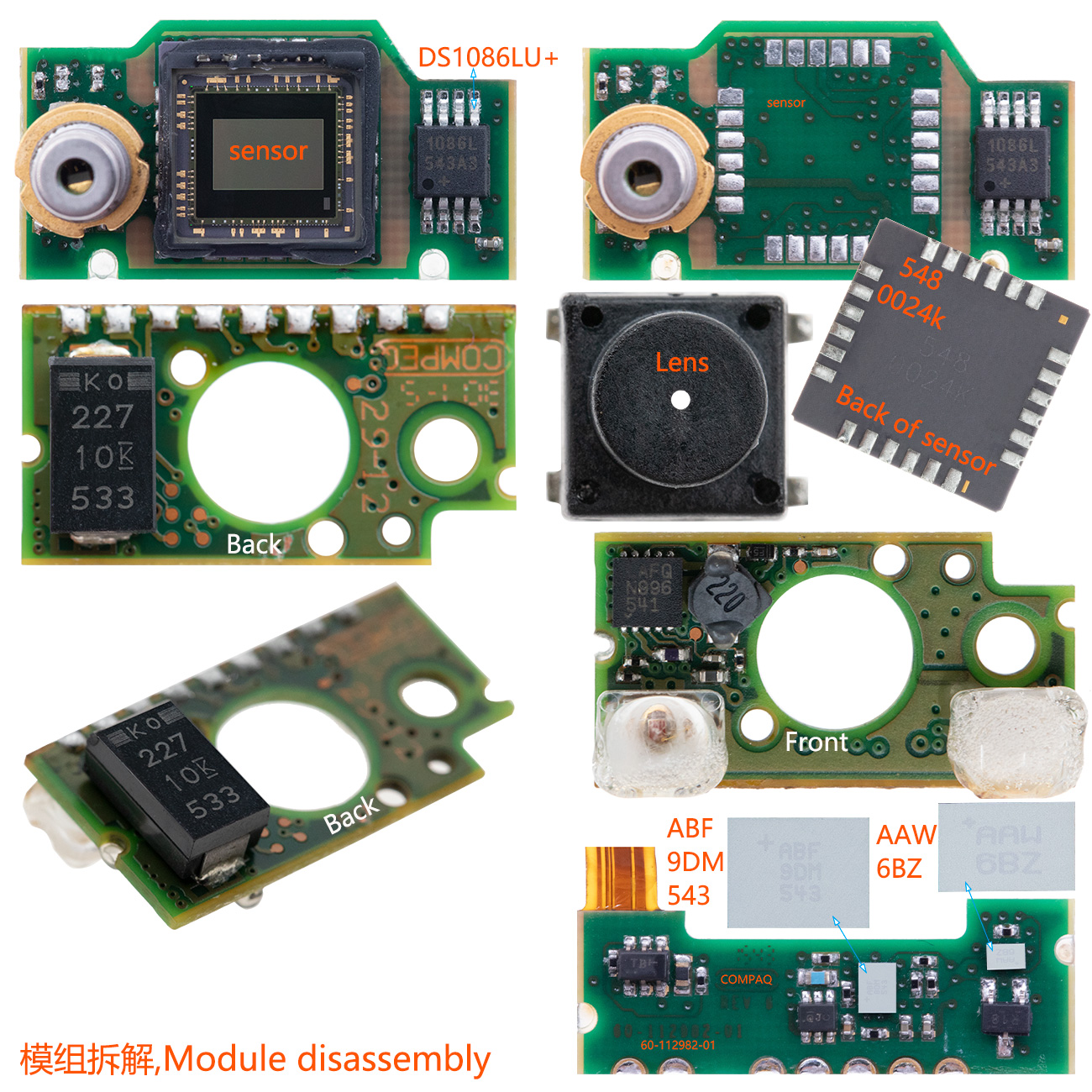

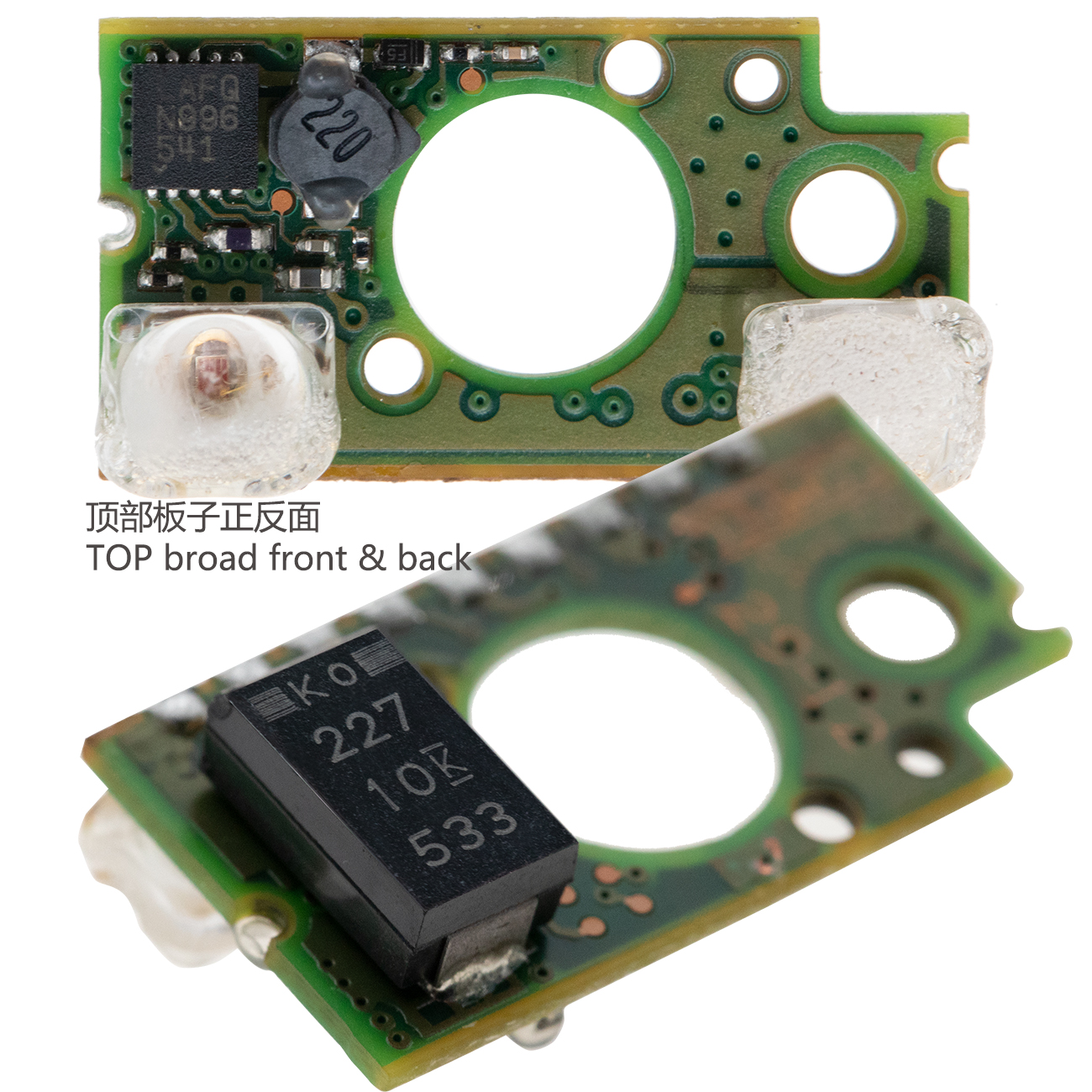

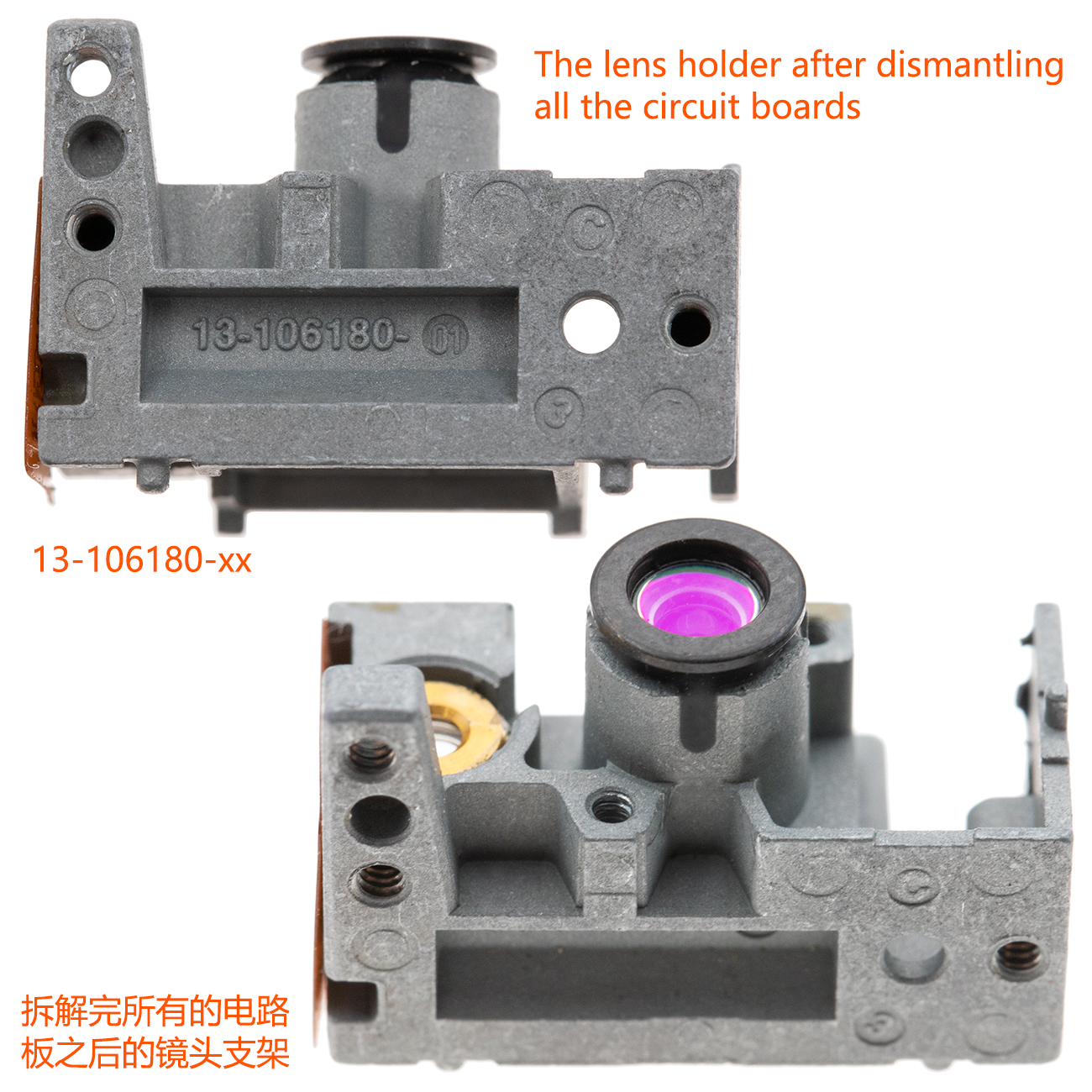

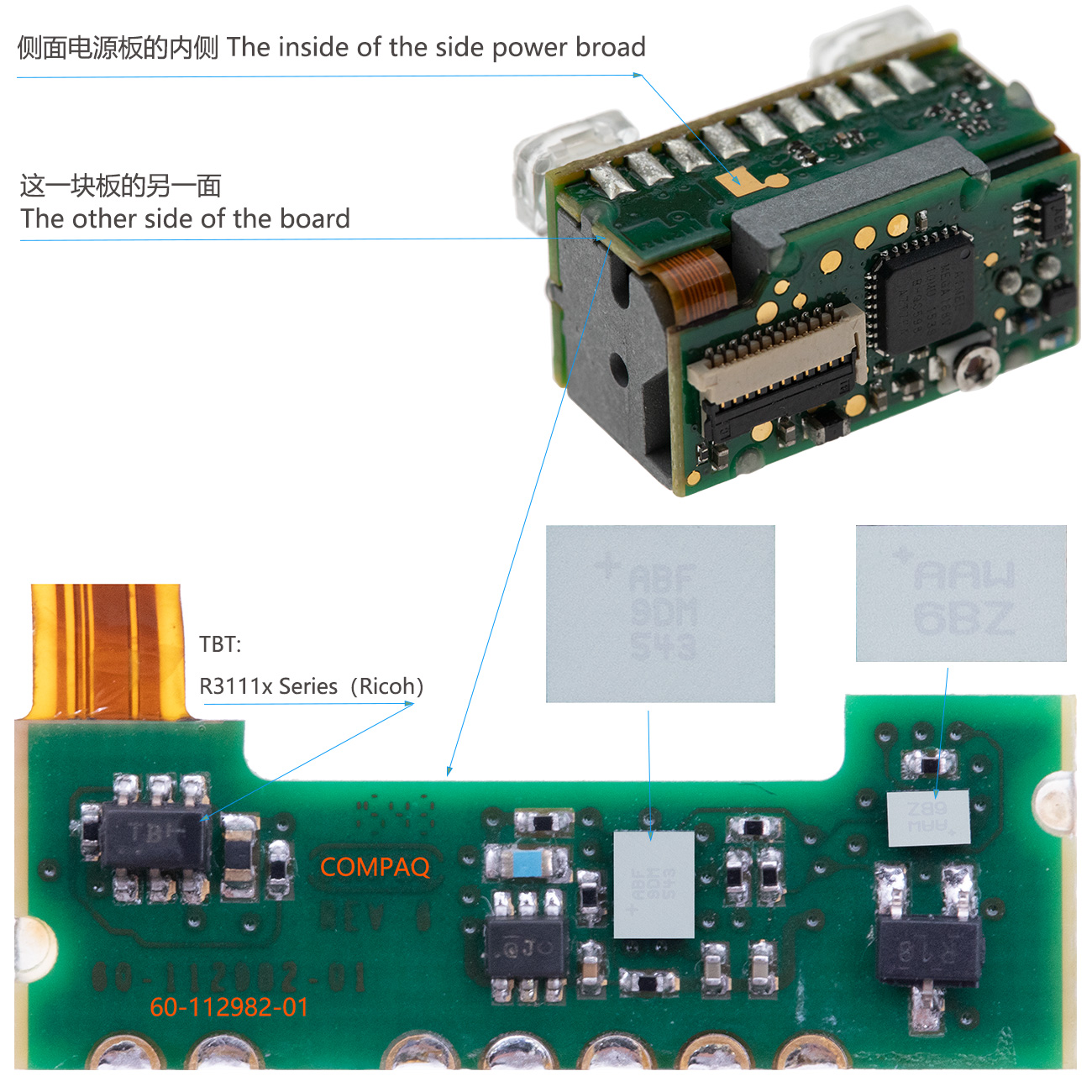

板载IC列表:

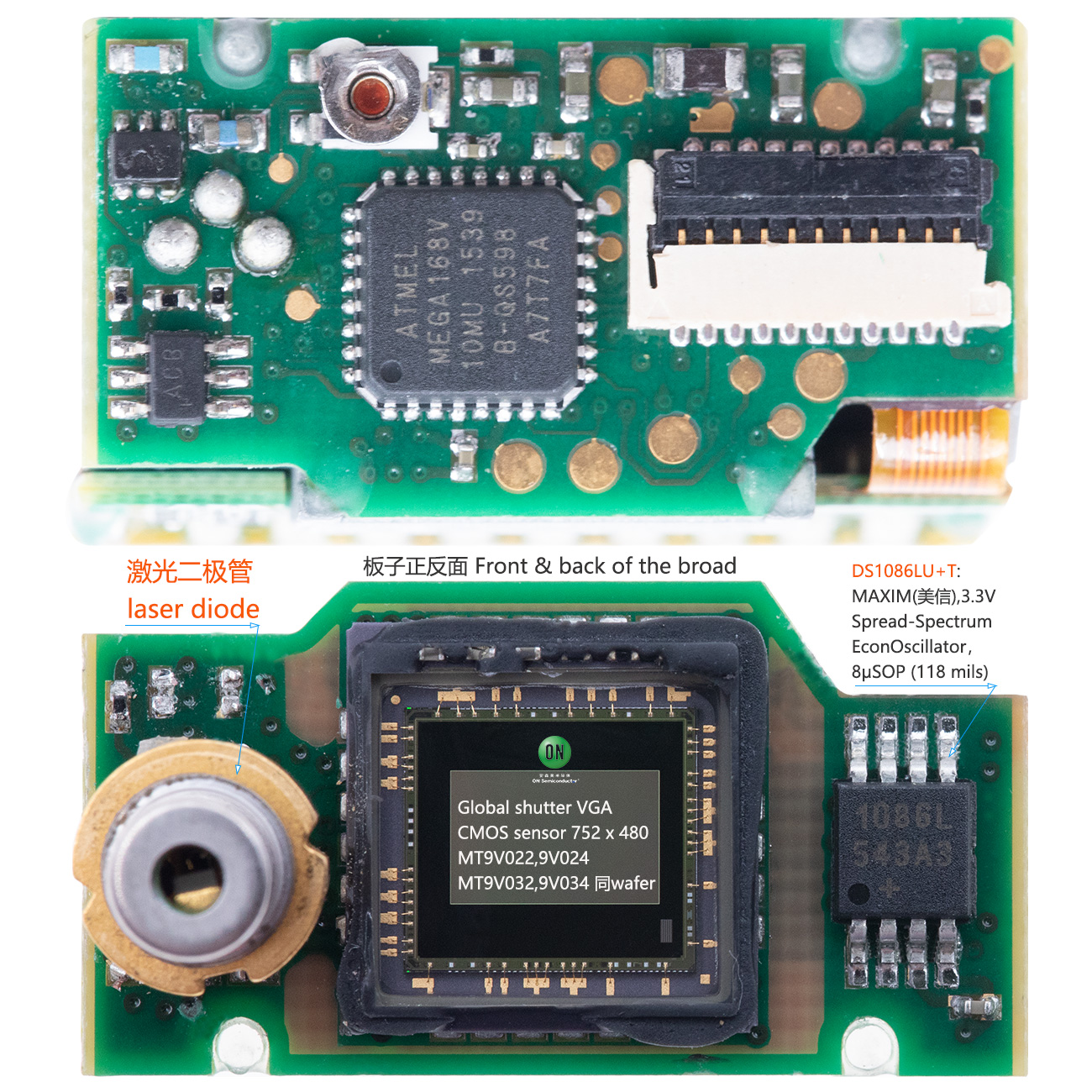

ATmega168V-10MU:ATMEL;Power Supply :1.8V - 5.5V;Speed:10MHZ;Operational Range:Industrial(-40°C to 85°C);Package Type:32M1-A 32-pad, 5 x 5 x 1.0 body, Lead Pitch 0.50mm Quad Flat No-Lead/Micro Lead Frame Package (QFN/MLF)

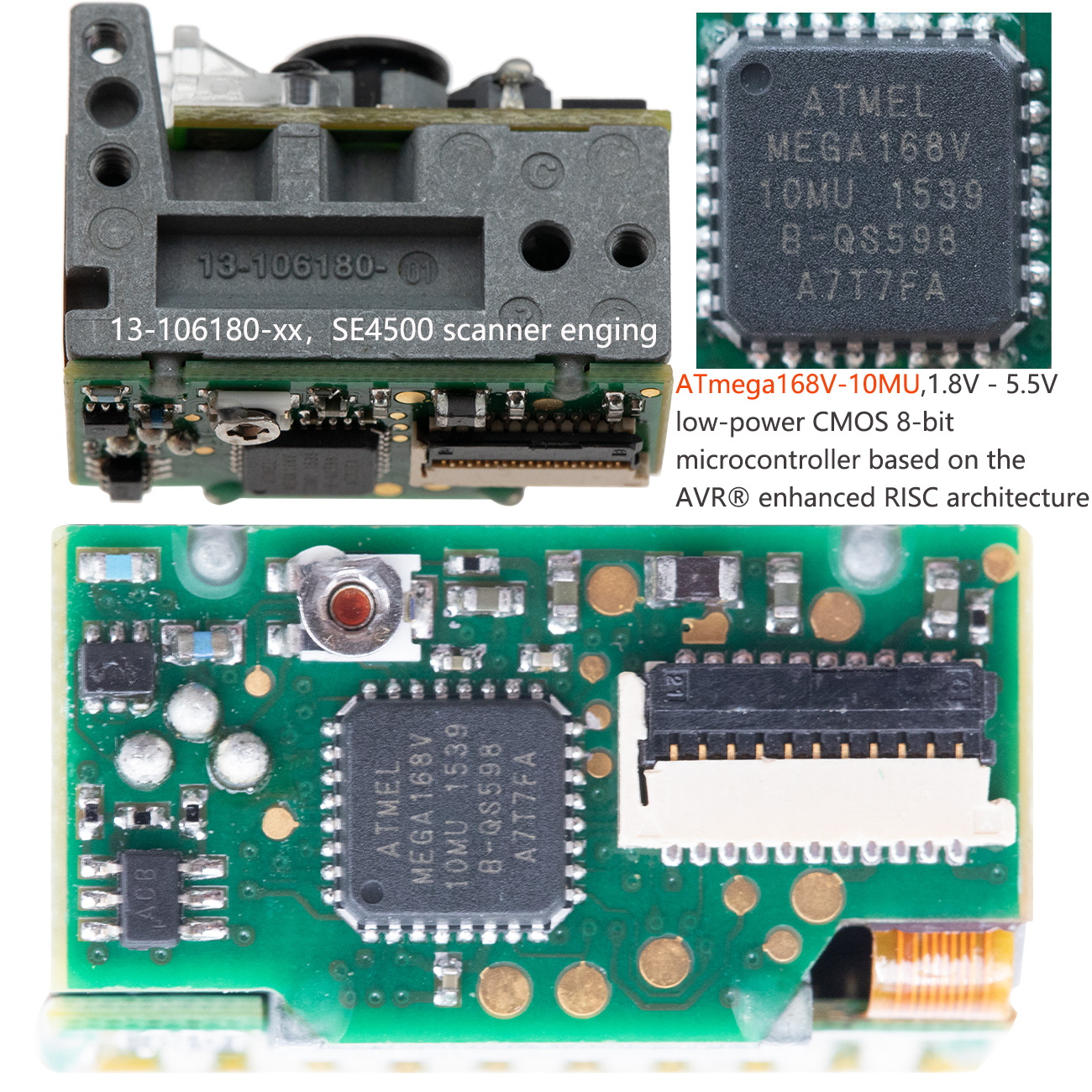

The Atmel? ATmega168V is a low-power CMOS 8-bit microcontroller based on the AVR? enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega48/V/ 88/V /168/V achieves throughputs close to 1MIPS per MHz. This empowers system designer to optimize the device for power consumption versus processing speed.(新的市值RMB50.00-130.00)
https://www.sunnywale.com/uploadfile/2022/0712/ATmega168V-10MU_Awin.pdf
斑马Zebra,摩托罗拉Motorola, 讯宝Symbols,扫描仪的扫描引擎, SE4500 scan engine, 2D QR coder Scan Engine,  MC65、MC659B,MC9190G, MC67N0, MC40, MC40N0,  MC5590, MC75,MC3190,MC9190,MC9500-K,MC9590-K,MK3900 sacn engine, 二维码、条形码扫描仪模组,激光扫描仪引擎 (20-106561-xx),镭射扫描头组件



DS1086LU+T : MAXIM(美信),3.3V Spread-Spectrum EconOscillator, 8μSOP (118 mils)(新的市值RMB8.00-20.00)
TUT,TBT,Ricoh理光,R3111x ,SON1612-6(SOT-23-6),500mW,40 to 85 °C ,The R3111x series are CMOS-based voltage detector ICs with high detector threshold accuracy and ultra-low supply current, which can be operated at an extremely low voltage and is used for system reset as an example.
https://www.sunnywale.com/uploadfile/2022/0712/R3111x(TUT,TBT)_Awin.pdf
斑马Zebra,摩托罗拉Motorola, 讯宝Symbols,扫描仪的扫描引擎, SE4500 scan engine, 2D QR coder Scan Engine,  MC65、MC659B,MC9190G, MC67N0, MC40, MC40N0,  MC5590, MC75,MC3190,MC9190,MC9500-K,MC9590-K,MK3900 sacn engine, 二维码、条形码扫描仪模组,激光扫描仪引擎 (20-106561-xx),镭射扫描头组件

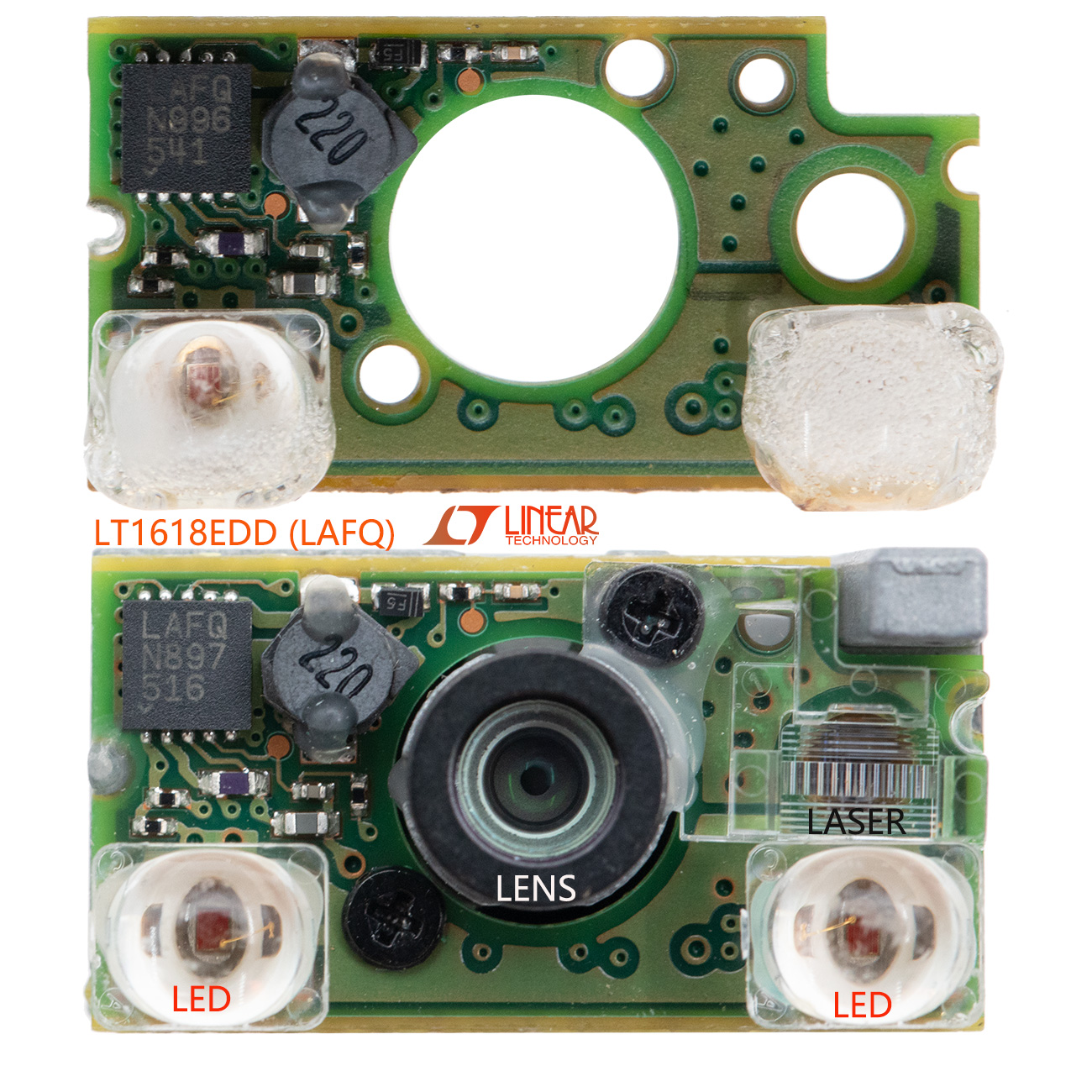

LT1618EDD(LAFQ): LINEAR , Constant Current/Constant-Voltage 1.4MHzStep-Up DC/DC Converter,DD Package10-Lead Plastic DFN (3mm × 3mm),
https://www.sunnywale.com/uploadfile/2022/0712/LT1618EDD_Awin.pdf
斑马Zebra,摩托罗拉Motorola, 讯宝Symbols,扫描仪的扫描引擎, SE4500 scan engine, 2D QR coder Scan Engine,  MC65、MC659B,MC9190G, MC67N0, MC40, MC40N0,  MC5590, MC75,MC3190,MC9190,MC9500-K,MC9590-K,MK3900 sacn engine, 二维码、条形码扫描仪模组,激光扫描仪引擎 (20-106561-xx),镭射扫描头组件
斑马Zebra,摩托罗拉Motorola, 讯宝Symbols,扫描仪的扫描引擎, SE4500 scan engine, 2D QR coder Scan Engine,  MC65、MC659B,MC9190G, MC67N0, MC40, MC40N0,  MC5590, MC75,MC3190,MC9190,MC9500-K,MC9590-K,MK3900 sacn engine, 二维码、条形码扫描仪模组,激光扫描仪引擎 (20-106561-xx),镭射扫描头组件

上一篇:安霸Ambarella S3L开发板中的竖板IMX274 sensor板development board sensor board LVDS/MIPI interface
下一篇:A7LS35-B1-RH行车记录仪主板,板子型号:0016AD220L-B01
