BF2507CS BYD比亚迪5MP500万像素CMOS SENSOR手机平板电脑cellphone,PDA,MID便携式移动终端摄像头图像传感器4.8x4.4mm
2021-06-15 20:51:35
点击购买/BUYamazon

1,一般描述

BF2507CS是一款高度集成、高性能、1/4英寸500万像素CMOS图像传感器(CIS),具有数字视频并行DVP和MIPI CSI-2(移动工业处理器接口相机串行接口2)兼容的接口。采用世界上zui先进的CMOS图像传感器工艺制作,实现超低暗噪声、高灵敏度、超低功耗的成像系统。
该CMOS传感器采用1/4英寸光学格式的2608×1952有源像素阵列。它集成了噪声抵消CDS(相关双采样)电路、可编程模拟全局增益和分离的R/G/B增益控制器、自动黑电平补偿和片上10位ADC。
BF2507能够在96MHz主时钟OSXGA模式下以每秒15帧的速度运行,用户可以完全控制图像质量和数据格式。BF2507集成了复杂的片上图像处理功能,包括镜面和翻转,窗口和子样本,测试模式,自动闪烁消除,自动黑电平校正(BLC),镜头阴影校正(LSC),自动曝光,自动白平衡(AWB),伽马校正,自动聚焦,缺陷像素校正(DPC),去噪,黑太阳抵消,图像降尺度,等等。
BF2507支持数字视频并口和串行MIPI接口。MIPI和ISP接口可用于第二个摄像头传感器,而不需要双串口摄像系统。此外,BF2507有两个可控制的设备地址。

BF2507CS适用于的手机平台:
MTK MT6582/MT6571/MT6580, MT6735/MT6752/MT6732/MT6737/MT6750MT/MT6755系列;
展讯SC7731/SC9832/SC9838/SC9850/SC9860系列;
高通骁龙200、400、600、800系列;
BF2507CS适用的平板电脑平台:MT8321/MT8127/MT8163/MT8173/MT8735系列;

2,功能
1/4英寸的标准光学格式。
高温下超低暗噪声
非易失性存储器:用于额外信息存储的128位电子保险丝
LED频闪模式支持
快照模式支持
输出格式:DVP并行接口和MIPI CSI2(双通道)
电源:1.7-3.1V用于1/0,2.7-3.1V用于模拟,1.7-3.1V用于数字(可选)。水平/垂直镜:50/60Hz的闪烁消除。
可编程I/O驱动能力。
支持黑太阳黑子取消。
自动黑电平控制。
自动曝光模式。
视频分辨率:OSXGA, SXGA,720P,任何分辨率缩小小于2592x1944
片上测试模式生成多种类型,包括客户可编程

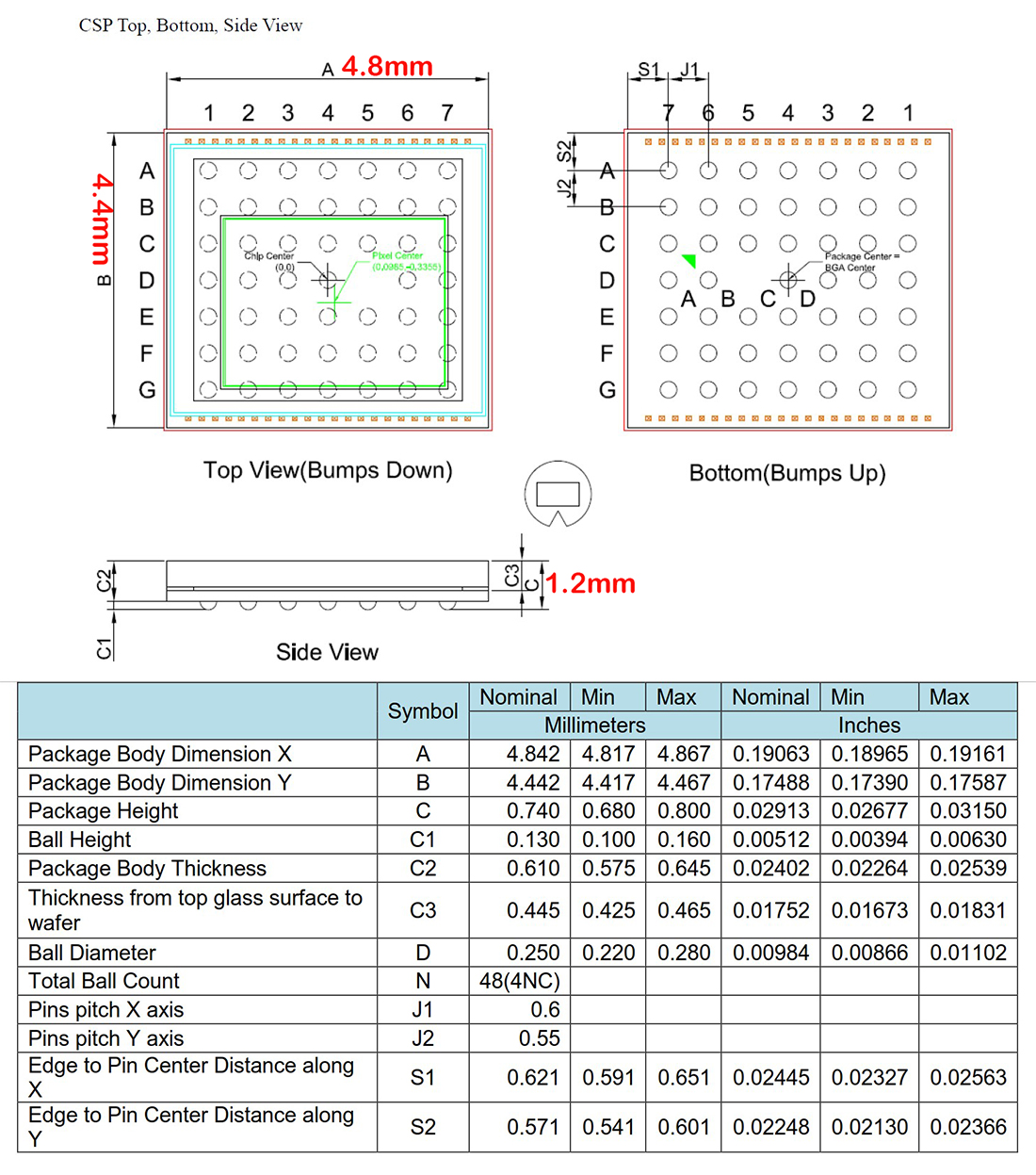

封装:CSP48

3,应用
手机相机,MID(Mobile Internet Device)
笔记本电脑和台式电脑摄像头
PDA(Personal Digital Assistant)
数码相机和摄像机
视频电话和会议设备
安防系统

4,关键规格
有源像素阵列:2608 hx1952v
像素大小:1.4 umx1.4um
Sensitivity:590 mV / lux-sec
暗电流:<5 mV/sec @ 45℃
功耗:Active 60mAStandby电流:30uA
S / N Ratio:35 db
动态范围:62分贝
工作温度:-20℃~ 70℃
最佳镜头主光线角度:250
输出格式:RAW数据输出

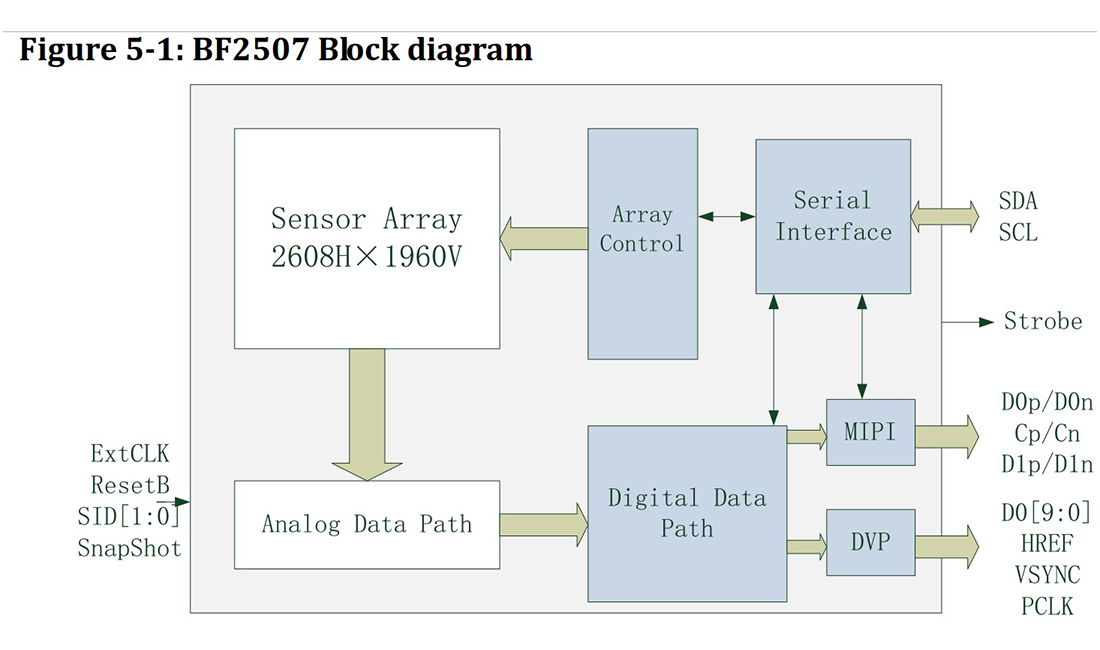

5,系统级描述
5.1. 概述BF2507支持数字视频并口和MIPI串口。MIPI和ISP接口可以用于第二个摄像头传感器,而不需要双串口摄像头系统。
此外。BF2507有两个可控制的设备地址。

6,块级别描述
6.1,光电Sensor6.1.1。BF2507传感器有一个2608列1960行(2612×1966= 5143056像素)的图像阵列。图像传感器阵列横截面如图3-1所示
滤色器按拜耳模式排列。原色BG/GR阵列以行交替方式排列。BF2507有一个2608列x1952行(2608x1952= 5090,816像素)的图像活动数组。其他像素用于黑色电平校准和虚拟像素。

1,General Description
The BF2507 is a highly integrated, high performance, 1/4-inch 5 Megapixel CMOS Image Sensor (CIS) with digital video parallel and MIPI CSI-2(Mobile Industry Processor Interface Camera Serial Interface 2) compliant interfaces. It is fabricated with the world's most advanced CMOS image sensor process to realize ultra-low dark noise, high sensitivity and very low power imaging system
The CMOS sensor consists of 2608 × 1952 active pixel array in 1/4 inch optical format. It has integrated noise canceling CDS (Correlated Double Sampling) circuits, Programmable analogue global gain and separated R/G/B gain controller, auto black level compensation and on-chip 10-bit ADC
The BF2507 is capable of operating at up to 15 frames per second at 96MHz master clock in OSXGA mode, with complete user control over image quality and data formatting. BF2507 incorporates sophisticated on-chip image processing functions, including Mirror and Flip, windowing and subsample, Test Patterns, Auto Flickers Cancellation, Auto Black Level Calibration (BLC), Lens Shading Correction (LSC), Auto Exposure, Auto White Balance (AWB), Gamma Correction, Auto Focus, Defect Pixel Correction (DPC), De noising, Black Sun Cancellation, Image Downscaling, and so on.
The BF2507 supports both a digital video parallel port and serial MIPI port. The MIPI and ISP interface can be used for a second camera sensor without requiring a dual serial port camera systemIn addition, BF2507 have two device addresses which is controllable.

BF2507CSFor mobile platforms:
MTK MT6582 / MT6571 / MT6580 MT6735 / MT6752 / MT6732 / MT6737 / MT6750MT / MT6755 series;
Spreadtrum SC7731 SC9832 / SC9838 SC9850 / SC9860 series;
Qualcomm Snapdragon 200, 400, 600, 800 series;

BF2507CS Tablet computer application platform: MT8321/MT8127/MT8163/MT8173/MT8735 series;

2, Features
Standard optical format of 1/4 inch.
Ultra-low dark noise at high temperature
Non-volatile memory:128-bit E-fuse for extra information storage
LED strobe mode support
Snap-shot mode support
Output format: DVP parallel interface,MIPI CSI2(dual lane)
Power supply:1.7-3.1V for 1/0, 2.7-3.1V for Analog, 1.7-3.1V for digital (optional).Horizontal /Vertical mirror: 50/60Hz flicker cancellation.
Programmable I/O drive capability.
Support for black sun spot cancellation.
Automatic black level control.
Auto exposure.
Video resolution: OSXGA, SXGA,720P, any resolution scaling down less than 2592x1944
On-chip test pattern generation of many types including customer programmable
Package: CSP48

3, Applications
Cellular Phone Cameras,MID(Mobile Internet Device)
Notebook and desktop PC cameras
PDA(Personal Digital Assistant)
Digital still cameras and camcorders
Video telephony and conferencing equipments
Security systems

4 Key Specifications
Active pixel array:2608Hx1952V
Pixel size:1.4umx1.4um
Sensitivity590 mV/lux-sec
Dark current:<5 mV/sec @ 45 ℃
Power consumption:Active 60mAStandby current:30uA
S/N Ratio35 db
Dynamic range:62 db
Operating temperature:-20℃ to 70 ℃
Optimal lens chief ray angle:250
Output format: RAW data output

5, System Level Descriptions
5.1. OverviewThe BF2507 supports both a digital video parallel port and serial MIPI port. The MIPI and ISP interface can be used for a second camera sensor without requiring a dual serial port camera system.

In addition. BF2507 have two device addresses which is controllable.

6, Block Level Descriptions
6.1. Photoelectric Sensor6.1.1. Pixel Array StructureThe BF2507 sensor has an image array of 2608columns by 1960 rows (2612x1966=5,143,056 pixels). Figure 3-1 shows a cross-section of the image sensor array
The color filters are arranged in a Bayer pattern. The primary color BG/GR array is arranged in line-alternating fashion. BF2507 has an image active array of 2608columns by 1952 rows (2608x1952=5,090,816 pixels). The other pixels are used for Black Level Calibration and Dummy Pixels.
