首页 > 优势&现货 > 通用IC >
MAX96706GTJ/V+T，MAX96715GTG/V+T，XA7Z010-1CLG400I，XC7Z020-1CLG484I，R5F113LKCLFB
2023-03-09 20:21:02

MAX96706GTJ/V+T（规格书72页型号命名），卷带TQFN32 2021+ 30K；美信，主要用在视频传输的SERDES功能。
https://www.sunnywale.com/uploadfile/2023/0310/MAX96706GTJ.pdf
14-Bit GMSL Deserializer with Coax or STP Cable Input
MAX96706GTJ/V+T Analog Devices Inc./Maxim Integrated
General Description
The MAX96706 is a compact deserializer especially suited for automotive camera applications. Features include adaptive equalization and an output crosspoint switch. An
embedded control channel operates at 9.6kbps to 1Mbps in UART, I2C, and mixed UART/I2C modes, allowing programming of serializer, deserializer (SerDes), and camera registers, independent of video timing.
The deserializer can track data from a spreadspectrum serial input. The serial input meets ISO 10605 and IEC 61000-4-2 ESD standards. The core supply range is 1.7V to 1.9V and the I/O supply range is 1.7V to 3.6V. The device is available in a 32-pin (5mm x 5mm) TQFN and SWTQFN package with 0.5mm lead pitch and operates over -40°C to +115°C temperature range.

Applications
●● Automotive Camera Applications

Benefits and Features
●● Ideal for Safety Camera Applications
   • Works with Low-Cost 50Ω Coax (100Ω STP) Cable
   • Error Detection of Video/Control Data
   • High-Immunity Mode for Robust Control-Channel EMC Tolerance
   • Retransmission of Control Data Upon Error
   • Best-in-Class Supply Current: 190mA (max)
   • Adaptive Equalization for 15m Cable at Full Speed
   • 32-Pin (5mm x 5mm) TQFN/SWTQFN Package
   • Horizontal- and Vertical-Sync Encoding and Tracking
●● High-Speed Deserialization for Megapixel Cameras
   • Up to 1.74Gbps Serial-Bit Rate
   • 6.25MHz to 87MHz x 12-Bit + H/V Data
   • 36.66MHz to 116MHz x 12-Bit + H/V Data (through Internal Encoding)
●● Multiple Modes for System Flexibility
   • 9.6kbps to 1Mbps Control Channel in UART, I2C (with Clock Stretch), or UART-to-I2C Modes
   • 2:1 Input Mux for Camera Selection
   • 15 Hardware-Selectable I2C-Device Addresses
   • Pairs with Any Maxim GMSL Serializer
   • Crosspoint Switch Maps Data to any Output
●● Reduces EMI and Shielding Requirements
   • Spread-Spectrum Serial-Input Tracking and Transfer to the Parallel Output
   • 1.7V to 1.9V Core and 1.7V to 3.6V I/O Supply
●● Peripheral Features for System Verification
   • Built-In PRBS Receiver for BER Testing
   • Eye-Width Monitor Allows In-System Test of High-Speed Serial Link
   • Dedicated “Up/Down” GPI for Camera Frame Sync Trigger and Other Uses
●● Meets AEC-Q100 Automotive Specification
   • -40°C to +115°C Operating Temperature Range
   • ±8kV Contact and ±15kV Air IEC 61000-4-2 and ISO 10605 ESD Protection
================================================================
MAX96715GTG/V+T  2021+ 7.5K；美信，主要用在视频传输的SERDES功能。
https://www.sunnywale.com/uploadfile/2023/0310/MAX96700.PDF
MAX96715GTG/V+T Analog Devices Inc./Maxim Integrated


XA7Z010-1CLG400I  （规格书第27页型号命名），BGA400PIN，工业级-40℃ to100℃，2021+ 15K；Xilinx，汽车和工业使用的FPGA处理器,用于计算和控制。
https://www.sunnywale.com/uploadfile/2023/0310/XA-7000 series.pdf
Xilinx Zynq 7 Blockchain Monero Xilinx Board Chip Fpga Xc7z010-1clg400c - Buy Fpga,Zynq,Xc7z010-1clg400c sunnywale inc
AX7Z010 FPGA 开发板用户手册，sunnywale inc

XC7Z020-1CLG484I  （规格书第27页型号命名），BGA484PIN，工业级-40℃ to100℃，2022+ 5K；Xilinx，汽车和工业使用的FPGA处理器，用于计算和控制。
XA7Z020-1CLG484I電子分配器XA Zynq-7000 SoC First Generation Architecture The XA Zynq™-7000 Automotive family is based on the Xilinx® SoC architecture. These products integrate a feature-rich dual-core ARM® Cortex™-A9 based processing system (PS) and 28 nm Xilinx programmable logic (PL) in a single device. The ARM Cortex-A9 CPUs are the heart of the PS and also include on-chip memory, external memory interfaces, and a rich set of peripheral connectivity interfaces. This highly integrated, flexible, and power-optimized solution is ideal for high computationally intensive and performance demanding applications. The automotive family focuses on automotive applications and consists of the Z-7010, Z-7020, and Z-7030 devices.

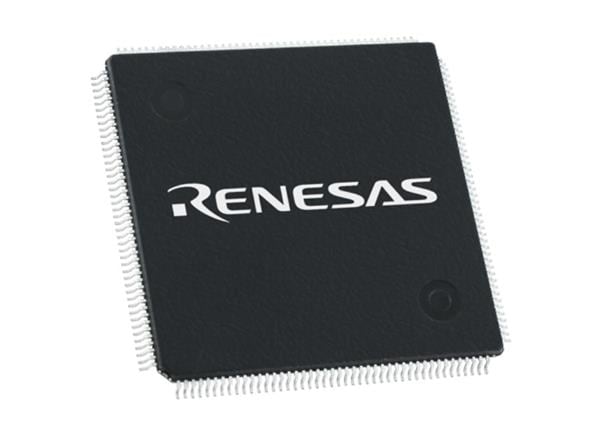

R5F113LKCLFB        2021+ & 2022+ 5K，瑞萨的MCU，广泛用于汽车和工业。Factory Pack Quantity 1280
datasheet: https://www.sunnywale.com/uploadfile/2023/0310/R5F113LKCLFB=RL78_F15.pdf
R5F113PLCKFB#15 Renesas Electronics

R5F113LKCLFB#55 Overview

Features

CPU: RL78 core, Max. 32MHz

  • Voltage: 2.7V to 5.5V

  • Package: 48-pin HVQFN, 48 to 144-pin LFQFP

  • Memory: SRAM Max. 32KB, Program Flash Max. 512KB

  • PWM: PWM Output x 24, 3-phase PWM Output Function

  • Analog function: 10-bit A/D Converter (ch) x 31, 8-bit D/A Converter (ch) x 1

  • On-chip Oscillator Freq. (MHz): 64M, 48M, 32M, 24M, 16M, 12M, 8M, 4M, 1M Low-speed Oscillator 15kHz

  • Others: PLL, RTC, Power-On Reset, Low Voltage Detection


Applications

  • Car Audio
  • Body
  • Chassis & Safety
  • HEV/EV
  • Motor Control


Product Parameters

  • Pkg. Name:PLQP0064KF-A

  • JEITA Standard:P-LFQFP64-10x10-0.50

  • Lead Count:64

  • Width:10 mm

  • Pb (Lead) Free:Yes

  • Pkg. Type:LQFP

  • Pkg. Class:IC

  • Pkg. Previous Code:P64GB-50-UEU-2(RL78)

  • Pkg. Code:pkg_11822

  • Length:10 mm

  • Thickness:1.6 mm

  • Carrier Type:Tray/Embossed tape

  • Moisture Sensitivity Level (MSL):3

  • RoHS Info:(PDF)English Japanese


以上型号全部原装现货，其它待续...
