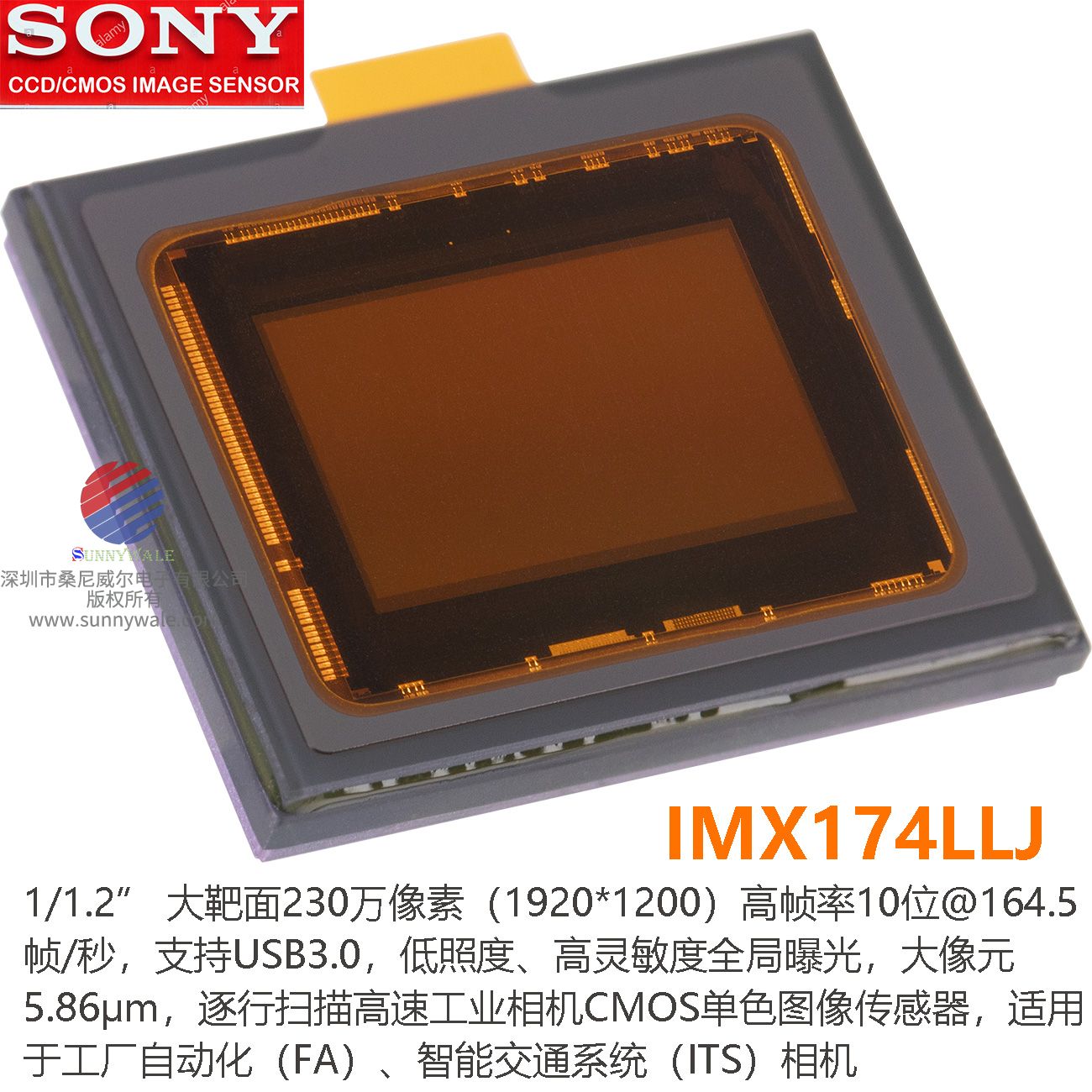

IMX174索尼SONY高性能芯片1/1.2英寸230万像素80帧弱光低照度高灵敏度高帧率高速CMOS IMAGE SENSOR全局快门global shutter图像传感器曝光大像素5.86um大靶面逐行扫
2020-08-15 18:21:59

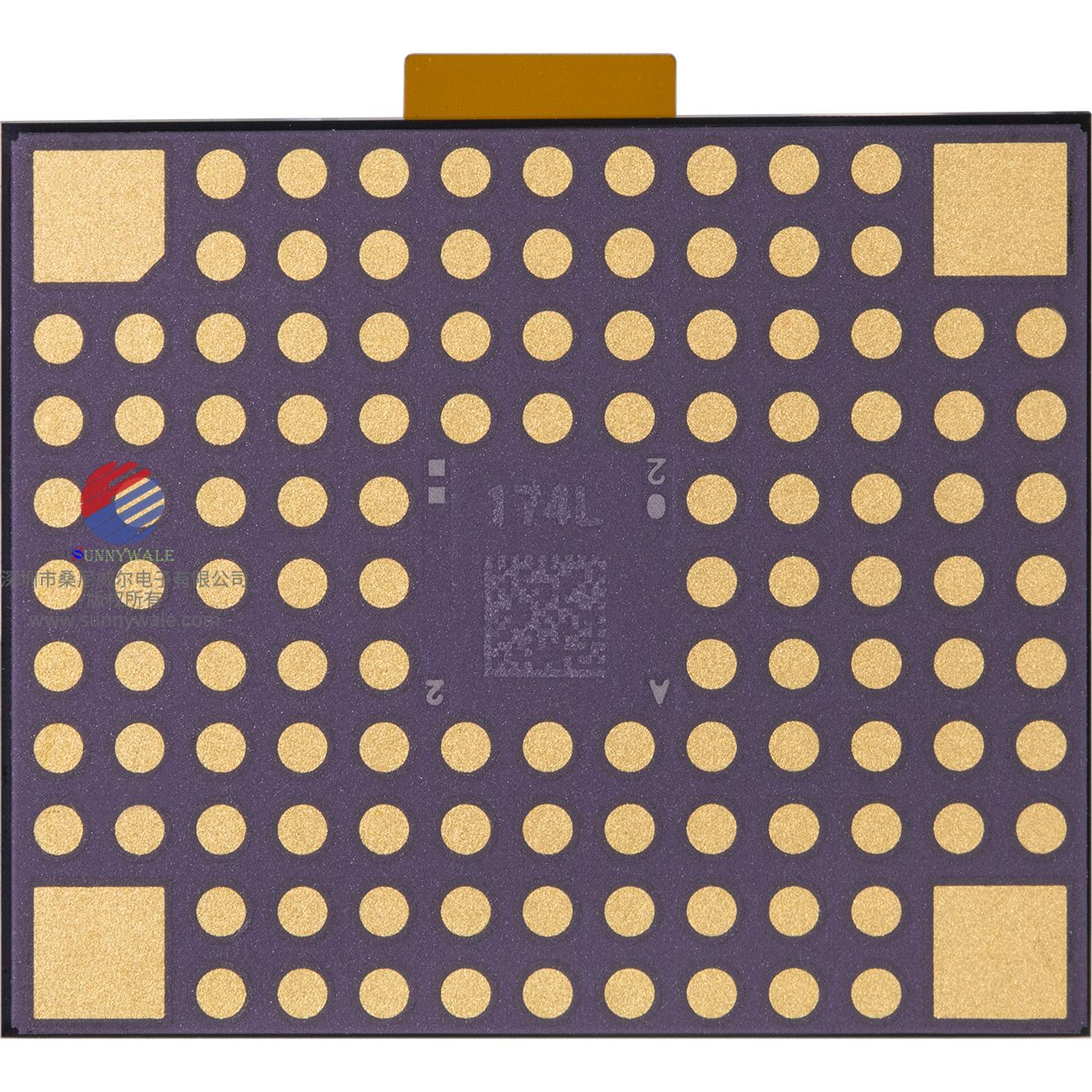

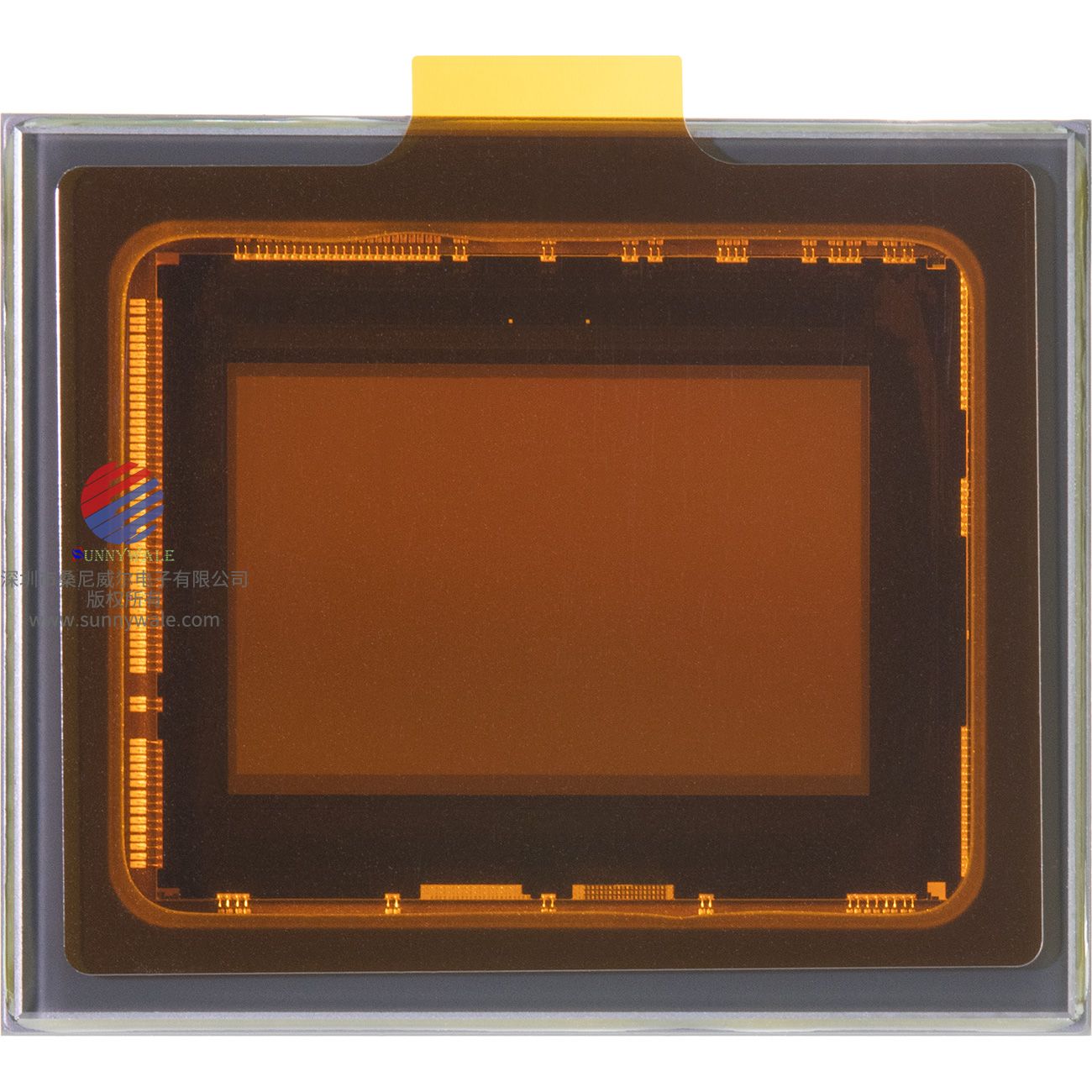

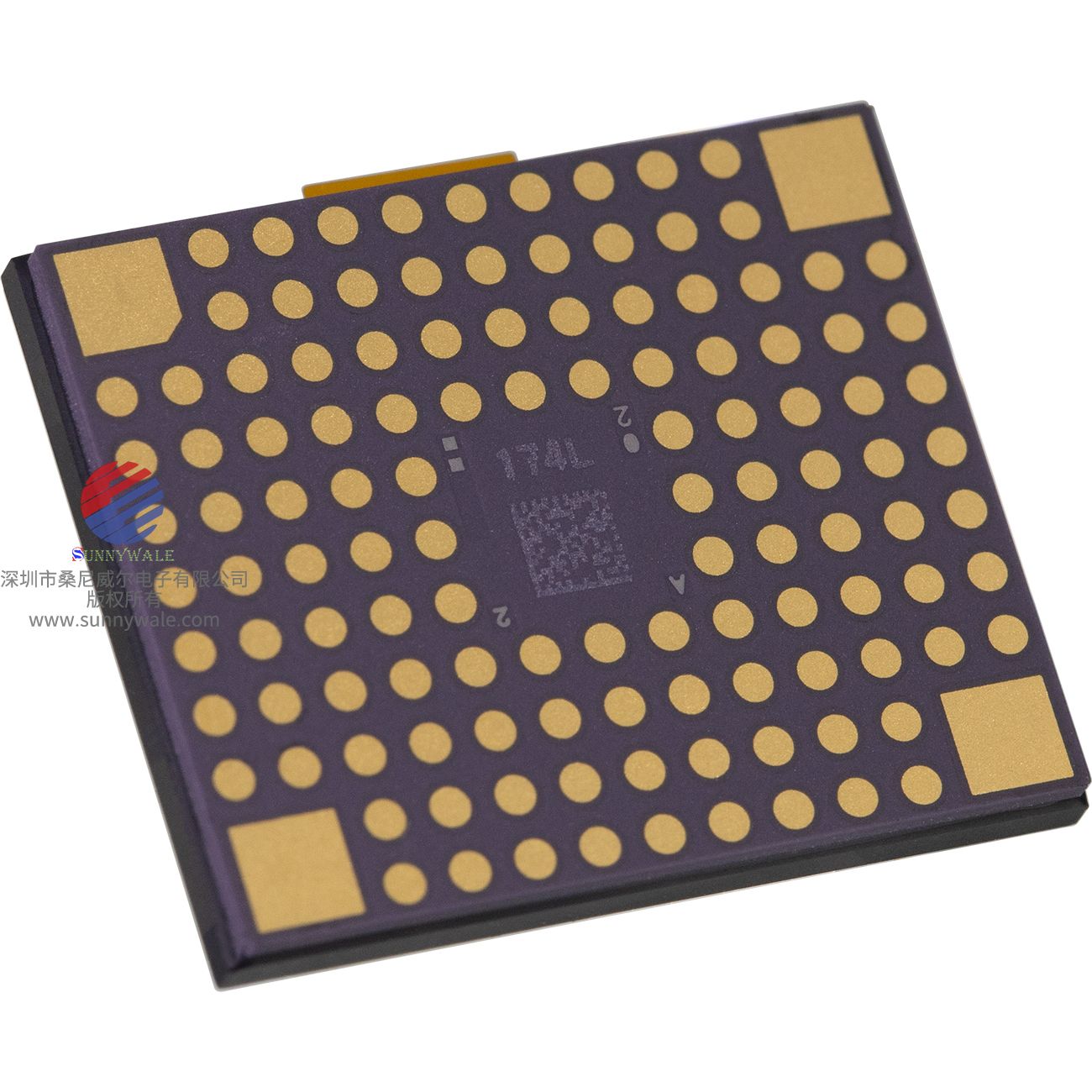

IMX174索尼SONY高性能芯片
描述
IMX174LLJ-C黑白CMOS图像传感器,IMX174LQJ-C彩色CMOS图像传感器,是一款对角线13.4 mm (Type 1/1.2) CMOS有源像素型固态图像传感器,具有正方形像素阵列和2.35 M有效像素。该芯片具有可变充电集成时间的全局快门功能。该芯片采用模拟3.3 V、数字1.2 V、接口1.8 V三电平供电,功耗低。实现了高灵敏度、低暗电流和低PLS特性。
(应用:FA相机、ITS相机)

特性
◆CMOS有源像素型点
◆内置定时调节电路,H/V驱动,串口通信电路
◆输入频率:37.125 MHz / 74.25 MHz
◆推荐记录像素数:1920 (H)×1200 (V)左右。2.30像素
◆读出模式
    WUXGA全像素扫描模式UXGA读出模式
    1080p-全高清读出模式ROI模式
    垂直/水平‐正常/反向读出模式
◆读出速率:WUXGA全像素扫描模式下的最大帧速率:10位164.5帧/秒,12位128.2帧/秒,10位/ 12位A/D转换器
◆CDS / PGA功能
    0 dB到24 dB:模拟增益(0.1 dB步长)
    24.1 dB到48 dB:模拟增益:24 dB +数字增益:0.1 dB到24 dB (0.1 dB步长)
◆I/O接口:低压LVDS (150 mVp-p)串行(2ch / 4ch / 8ch开关)DDR输出
◆建议镜头F值:2.8及以上(近侧)
◆建议出瞳距离:- 100mm到-∞

Exmor是索尼公司的商标。Exmor是索尼高性能CMOS图像传感器的一个版本,采用并行列A/D转换,具有高速处理、低噪声和低功耗。

设备结构
◆CMOS图像传感器
◆图像大小:
    对角线13.4毫米(类型1/1.2)约2.35M像素WUXGA
    对角线11.9毫米(类型1/1.35)约1.97M像素UXGA
    对角线13.0毫米(类型1/1.23)约2.12M像素1080p-全高清
◆总像素:1936 (H)×1226 (V),约2.37M像素
◆有效像素数:1936 (H)×1216 (V),约2.35 M像素
◆活动像素数:1936 (H)×1216 (V),约2.35 M像素
◆推荐记录像素数:
    1920 (H)×1200 (V)约2.30 M像素
    1600 (H)×1200 (V)约1.92 M像素UXGA
    1920 (H)×1080 (V)约2.07 M像素1080p-全高清
◆单位细胞大小:5.86 (H)×5.86 (V)
◆光黑色
    水平(H)方向:前0像素,后0像素
    垂直方向:前10像素,   后0像素
◆衬底材料:硅

绝对最大额定参数
项目                             符号           评级                     单位    备注
电源电压(模拟3.3 V)      AVDD       -0.3 + 4.0            V
电源电压(接口1.8 V)      OVDD       -0.3 ~ +3.3         V
电源电压(数字1.2 V)      DVDD       -0.3 + 2.0            V
输入电压                       VI              -0.3 ~OVDD+0.3 V       不超过3.3 V
输出电压                       VO            -0.3 ~OVDD+ 0.3 V      不超过3.3 V
操作温度                       Topr          TBD ~TBD           ?C
存储温度测试                 Tstg          -40 + 85               ?C
性能保证温度                 Tspec        -10 - +60             ?C

推荐的操作条件
项目                          符号      最低   典型   最大   单位
电源电压(模拟3.3 V)   AVDD 3.15   3.30   3.45   V
电源电压(接口1.8 V)   OVDD 1.70   1.80   1.90   V
电源电压(数字1.2 V)   DVDD 1.10   1.20   1.30   V
--------------------------------------------------------------------------------------------------------------------------------------------------------------
Diagonal 13.4 mm (Type 1/1.2) CMOS solid-state Image Sensor with Square Pixel for  B/W Cameras
Preliminary  IMX174LLJ-C Rev 0.2

Description
The IMX174LLJ-C is a diagonal 13.4 mm (Type 1/1.2) CMOS active pixel type solid-state image sensor with a square  pixel array and 2.35 M effective pixels. This chip features a global shutter with variable charge-integration time. This  chip operates with analog 3.3 V, digital 1.2 V, and interface 1.8 V triple power supply, and has low power consumption.  High sensitivity, low dark current and low PLS characteristics are achieved.
(Applications: FA cameras, ITS cameras)

Features
◆CMOS active pixel type dots
◆Built-in timing adjustment circuit, H/V driver and serial communication circuit ◆Global shutter function
◆Input frequency:37.125 MHz / 74.25 MHz
◆Number of recommended recording pixels: 1920 (H) × 1200 (V) approx. 2.30 M pixels
◆Readout mode
    WUXGA All-pixel scan mode UXGA readout mode
    1080p-Full HD readout mode ROI mode
    Vertical / Horizontal‐Normal / Inverted readout mode
◆Readout rate:Maximum frame rate in WUXGA All-pixel scan mode: 10 bit 164.5 frame/s, 12 bit 128.2 frame/s
◆Variable-speed shutter function (resolution 1 H units) ◆10-bit / 12-bit A/D converter
◆CDS / PGA function
    0 dB to 24 dB: Analog Gain (0.1 dB step)
    24.1 dB to 48 dB: Analog Gain: 24 dB + Digital Gain: 0.1 dB to 24 dB (0.1 dB step)
◆I/O interface:Low voltage LVDS (150 mVp-p) serial (2 ch / 4 ch / 8 ch switching) DDR output
◆Recommended lens F number: 2.8 or more (Close side)
◆Recommended exit pupil distance: –100 mm to –∞


“Exmor” is a trademark of Sony Corporation. The “Exmor” is a version of Sony's high performance CMOS image sensor with  high-speed processing, low noise and low power dissipation by using column-parallel A/D conversion.



Device Structure
◆CMOS image sensor
◆Image size:
    Diagonal 13.4 mm (Type 1/1.2) Approx. 2.35 M pixels WUXGA
    Diagonal 11.9 mm (Type 1/1.35) Approx. 1.97 M pixels UXGA
    Diagonal 13.0 mm (Type 1/1.23) Approx. 2.12 M pixels 1080p-Full HD

◆Total number of pixels:1936 (H) × 1226 (V) ,Approx. 2.37 M pixels
◆Number of effective pixels:1936 (H) × 1216 (V) Approx. 2.35 M pixels
◆Number of active pixels:1936 (H) × 1216 (V) Approx. 2.35 M pixels

◆Number of recommended recording pixels:
    1920 (H) × 1200 (V) Approx. 2.30 M pixels WUXGA
    1600 (H) × 1200 (V) Approx. 1.92 M pixels UXGA
    1920 (H) × 1080 (V) Approx. 2.07 M pixels 1080p-Full HD
◆Unit cell size:5.86 μm (H) × 5.86 μm (V)
◆Optical black
    Horizontal (H) direction: Front 0 pixels, rear 0 pixels
    Vertical (V) direction: Front 10 pixels, rear 0 pixels
◆Substrate material:Silicon


Absolute Maximum Ratings
    Item                                              Symbol                   Rating                    Unit        Remarks
Supply voltage (Analog 3.3 V)        AVDD                      –0.3 to +4.0            V
Supply voltage (Interface 1.8 V)      OVDD                     –0.3 to +3.3            V
Supply voltage (Digital 1.2 V)         DVDD                     –0.3 to +2.0            V
Input voltage                                   VI                            –0.3 to OVDD +0.3 V            Not exceed 3.3 V
Output voltage                                VO                          -0.3 to OVDD +0.3  V            Not exceed 3.3 V
Operating temperature                   Topr                        TBD to TBD            ?C
Storage temperature                      Tstg                         -40 to +85              ?C
Performance guarantee temperature Tspec                   –10 to +60              ?C

Recommended Operating Conditions
Item                                                  Symbol             Min.          Typ.            Max.         Unit
Supply voltage (Analog 3.3 V)         AVDD                 3.15          3.30           3.45           V
Supply voltage (Interface 1.8 V)      OVDD                 1.70          1.80           1.90           V
Supply voltage (Digital 1.2 V)         DVDD                 1.10          1.20           1.30           V

有关IMX174LLJ-C的价格,datasheet,简介,文档下载,原装现货,现货库存,芯片,图片,规格书,代理商,技术支持,产品介绍,参数,方案商,分销商,经销商,官网,生产厂家,专卖店,高价收购,模组,模块,特价,库存,生产商,哪里买,性价比,用途,封装厂,均可咨询本公司

 弱光低照度工业相机

有关IMX174的价格,datasheet免费下载,简介,电路图,原理图,框架图,文档下载,原装现货,现货库存,芯片,图片,规格书,代理商,技术支持,产品介绍,参数,方案商,分销商,经销商,官网,生产厂家,专卖店,高价收购,模组,模块,特价,库存,生产商,哪里买,性价比,用途,封装厂,晶圆厂,代工厂,可咨询本公司

https://www.sunnywale.com/uploadfile/2021/1227/IMX174LLJ-C-Awin.pdf点击或者复制上面链接到浏览器打开,可下载datasheet PDF,Click or copy the link to download the datasheet PDF

更多详情和高清大图,请复制如下链接到浏览器打开,查看本公司官网:
For more details and HD images, please copy the following link to open in your browser to view our official website:

满2件全国包邮,如果你有货,可以卖给我,当我求购IMX174,你需要IMX174,可以找我买。
Freight is free when you buy 2 pieces in China, if you have IMX174 inventory, you can sell to me, if you need IMX174, you can ask me to buy.
