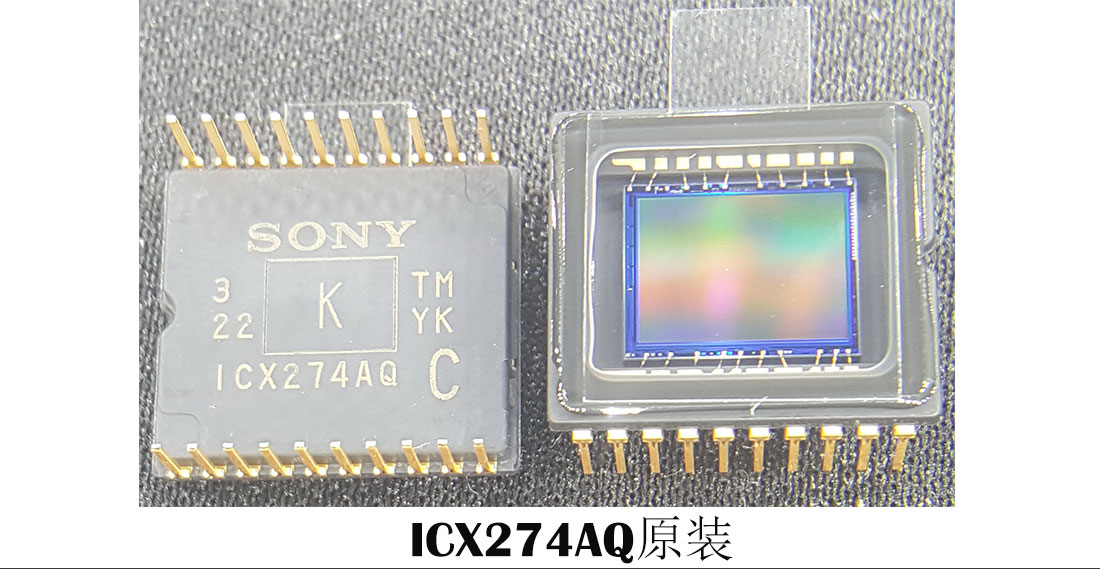

ICX274AQ索尼高速工业相机线阵CCD 1/1.8" 2.0MP(200万像素)方形阵列像素固态图像传感器
2019-02-25 07:51:19

对角式8.923毫米(1/1.8型)渐进式扫描CCD图像传感器,彩色相机用正方形像素


描述
ICX274AQ是一款对角线8.923毫米(1/1.8型)的中线CCD固态图像传感器,采用正方形像素阵列和2.01M有效像素。渐进扫描允许所有像素的信号在大约1/15秒内独立输出,也可以使用各种加法和脉冲消除方法输出。该芯片的特点是电子快门与可变电荷存储时间,使实现全帧静止图像不需要机械快门。高分辨率和高彩色再生产
采用R、G、B原色马赛克滤镜作为色彩滤镜。此外,通过采用Super HAD CCD技术实现了高灵敏度和低暗电流。该芯片适用于工业相机、电子静止相机、PC输入相机等应用。

特性
•高水平和垂直分辨率
•支持以下模式
     渐进扫描模式(带/不带机械快门)
     2/8-line读出模式
     2/4-line读出模式
     2行添加模式
     中心扫描方式(1)、(2)、(3)
     对焦模式(1)和(2)
•方形像素
•水平驱动频率:28.6364MHz (typ.)、36.0MHz (max.)
•重置门偏压没有调整
•芯片上的R, G, B原色马赛克滤镜
•灵敏度高,暗电流小
•连续变速快门功能
•卓越的抗开花特性
•20针高精度塑料包装

设备结构
•线间CCD图像传感器
•图像尺寸:对角线8.923毫米(1/1.8型)
•总像素数:1688 (H)×1248 (V)约2.11MP像素
•有效像素数:1628 (H)×1236 (V)约2.01MP像素
•活动像素数:1620 (H)×1220 (V)约1.98MP像素
•推荐的记录像素数:1600 (H)×1200 (V)左右。1.92MP像素
•芯片尺寸:8.50mm (H)×6.80mm (V)
•单元格尺寸:4.40风m (H)×4.40风m (V)
•光学黑:水平(H)方向:前12像素,后48像素
垂直方向:前10像素,后2像素
•虚拟位的数量:水平28垂直1
•基材:硅
===============================================================================
Diagonal 8.923mm (Type 1/1.8) Progressive Scan CCD Image Sensor with Square Pixel for Color Cameras

Description
The ICX274AQ is a diagonal 8.923mm (Type 1/1.8) interline CCD solid-state image sensor with a square pixel array and 2.01M effective pixels. Progressive scan allows all pixels' signals to be output independently within approximately 1/15 second, and output is also possible using various addition and pulse elimination methods. This chip features an electronic shutter with variable charge-storage time which makes it possible to realize full-frame still images without a mechanical shutter. High resolution and high color reproductivity are achieved through
the use of R, G, B primary color mosaic filters as the color filters. Further, high sensitivity and low dark current are achieved through the adoption of Super HAD CCD technology. This chip is suitable for applications such as
industrial camera,electronic still cameras, PC input cameras, etc.

Features
• High horizontal and vertical resolution
• Supports the following modes
     Progressive scan mode (with/without mechanical shutter)
     2/8-line readout mode
     2/4-line readout mode
     2-line addition mode
     Center scan modes (1), (2) and (3)
     AF modes (1) and (2)
• Square pixel
• Horizontal drive frequency: 28.6364MHz (typ.), 36.0MHz (max.)
• Reset gate bias are not adjusted
• R, G, B primary color mosaic filters on chip
• High sensitivity, low dark current
• Continuous variable-speed shutter function
• Excellent anti-blooming characteristics
• 20-pin high-precision plastic package

Device Structure
• Interline CCD image sensor
• Image size: Diagonal 8.923mm (Type 1/1.8)
• Total number of pixels: 1688 (H) × 1248 (V) approx. 2.11M pixels
• Number of effective pixels: 1628 (H) × 1236 (V) approx. 2.01M pixels
• Number of active pixels: 1620 (H) × 1220 (V) approx. 1.98M pixels
• Recommended number of recording pixels: 1600 (H) × 1200 (V) approx. 1.92M pixels
• Chip size: 8.50mm (H) × 6.80mm (V)
• Unit cell size: 4.40μm (H) × 4.40μm (V)
• Optical black: Horizontal (H) direction: Front 12 pixels, rear 48 pixels
                          Vertical (V) direction:      Front 10 pixels, rear 2 pixels
• Number of dummy bits: Horizontal 28 Vertical 1
• Substrate material: Silicon
