IMX236LQJ-C模组SONY索尼2.38MP238万像素监控安防摄像机工业相机image CMOS Sensor图像传感器模组
2021-04-26 00:34:13

产品详情

索尼公司的IMX236LQJ是CMOS图像传感器,具有2.38MP的像素,1.2至2.7 V的电源电压,60至120 fps的帧频,灵敏度510 mV,时钟频率27至74.25 MHz。
号:IMX236LQJ
制造商:索尼公司

描述:用于工业应用的CMOS图像传感器可提高近红外灵敏度

一般参数
解析度:1944 x 1104
百万像素:2.38MP
电源电压:1.2至2.7 V
光学格式:1 / 2.8英寸
封装类型:LGA 94pins
色度:红绿蓝
影格速率:60至120 fps
ADC分辨率:10至12位
像素大小:2.8μm x 2.8μm
像素总数:2.38MP
有源阵列:1944(横)x1104(竖)
灵敏度:510毫伏
时钟频率:27至74.25 MHz

连接与接口
界面:LVDS

应用领域
应用:监视摄像机,安防摄像机,工业相机

物理性质
封装:94引脚LGA

The IMX236LQJ from Sony Corporation is a CMOS Image Sensor with Mega Pixels 2.38 MP, Supply Voltage 1.2 to 2.7 V, Frame Rate 60 to 120 fps, Sensitivity 510 mV, Clock Frequency 27 to74.25 MHz. More details for IMX236LQJ can be seen below.

Product Specifications

Product Details
Part Number:IMX236LQJ
Manufacturer:Sony Corporation

Description
CMOS Image Sensors for Industrial Applications, Improves Near Infrared Sensitivity

General Parameters
Resolution:1944 x 1104
Mega Pixels:2.38 MP
Supply Voltage:1.2 to 2.7 V
Optical Format:1/2.8 Inch
Package Type:LGA
Chroma:RGB
Frame Rate:60 to 120 fps
ADC Resolution:10 to 12 bit
Pixel Size:2.8μm x 2.8 µm
Pixel total:2.38 MP
Active Array:1944(H)x1104(V
Sensitivity:510 mV
Clock Frequency:27 to74.25 MHz

Connections & Interface
Interface:LVDS

Applications
Application:Surveillance

Physical Properties
Package:94-pin LGA
------------------------------------------------------------------------------
IMX222LQJ、IMX236LQJ、IMX238LQJ用于工业应用的CMOS图像传感器提高了近红外灵敏度

高清/全高清CMOS高灵敏度图像传感器工业应用
为了提高工业应用在近红外光区域的灵敏度,索尼研发了CMOS图像传感器“IMX222LQJ”、“IMX236LQJ”和“IMX238LQJ”,在低照度下获得高画质,大大超过了现有产品。新开发的工艺和像素技术使其在近红外光区域的灵敏度比现有产品“IMX122LQJ”*1、“IMX136LQJ”*2、“MX138LQJ”提高了2倍。对于近年来需求量很大的白天和夜间摄像头来说,更好的可视性可以提高监控性能,更少的LED部件可以降低功耗和成本。
*1:参见CX-NEWS第65卷的新产品部分。
*2:参见CX-NEWS第68卷的新产品部分。

IMX222LQJ: 对角线(Type 1/2.8),约2.43M有效像素,帧率:40帧/秒,像素大小:2.8 微米单位像素
IMX236LQJ: 对角线(Type 1/2.8),约2.38M有效像素,帧率:120帧/秒,像素大小:2.8 微米单位像素
IMX238LQJ: 对角线(Type 1/3),   约1.37M有效像素,帧速率:60帧/秒,像素大小:3.75 微米单位像素

高灵敏度在近红外光区域
工业应用相机对低照度下的高画质要求很高。为了满足这一需求,索尼开发了CMOS图像传感器,提高了近红外光区域的灵敏度,而不仅仅是可见光范围。CMOS图像传感器采用了EXview HAD CCDTM的技术,在近红外光区域的灵敏度比现有产品提高了2倍。这样可以清楚地识别物体。即使是在夜间拍摄也够了。(照片1)
*: EXview HAD CCD是索尼公司的商标。

实现高灵敏度和高分辨率
利用索尼的原始技术,IMX222LQJ、IMX236LQJ和IMX238LQJ的开发,实现了在近红外光区灵敏度特性的显著改善,以及现有产品的高分辨率和低串扰。

与现有索尼产品的兼容性
IMX222LQJ、IMX236LQJ和IMX238LQJ具有与当前索尼产品相同的图像大小、像素数、封装和引脚配置:IMX122LQJ。IMX136LQJ和IMX138LQJ。使用现有产品的客户可以很容易地替换新产品。请不要错过尝试IMX222LQJ、IMX236LQJ和IMX238LQJ性能兼容的机会。


IMX222LQJ. IMX236LQJ. IMX238LQJ CMOS Image Sensors for Industrial Applications Improves Near Infrared Sensitivity

HD/Full HD CMOS High Sensitivity Image Sensors for Industrial Applications
To improve sensitivity in the near infrared light region for industrial applications, Sony developed CMOS image sensors "IMX222LQJ", "IMX236LQJ", and "IMX238LQJ" for high picture quality at the low illumination, greatly exceeding the existing products. Newly developed process and pixel technologies pushed up the sensitivity in the near infrared light region, up to 2 times compared with the existing products "IMX122LQJ"*1,"IMX136LQJ"*2, and "MX138LQJ".For Day/Night cameras, which are also strongly demanded in recent years, better visibility improves surveillance performance, and fewer number of LED parts reduce the power consumption and cost.
*1: See the New Products section in CX-NEWS, Volume 65.
*2: See the New Products section in CX-NEWS. Volume 68

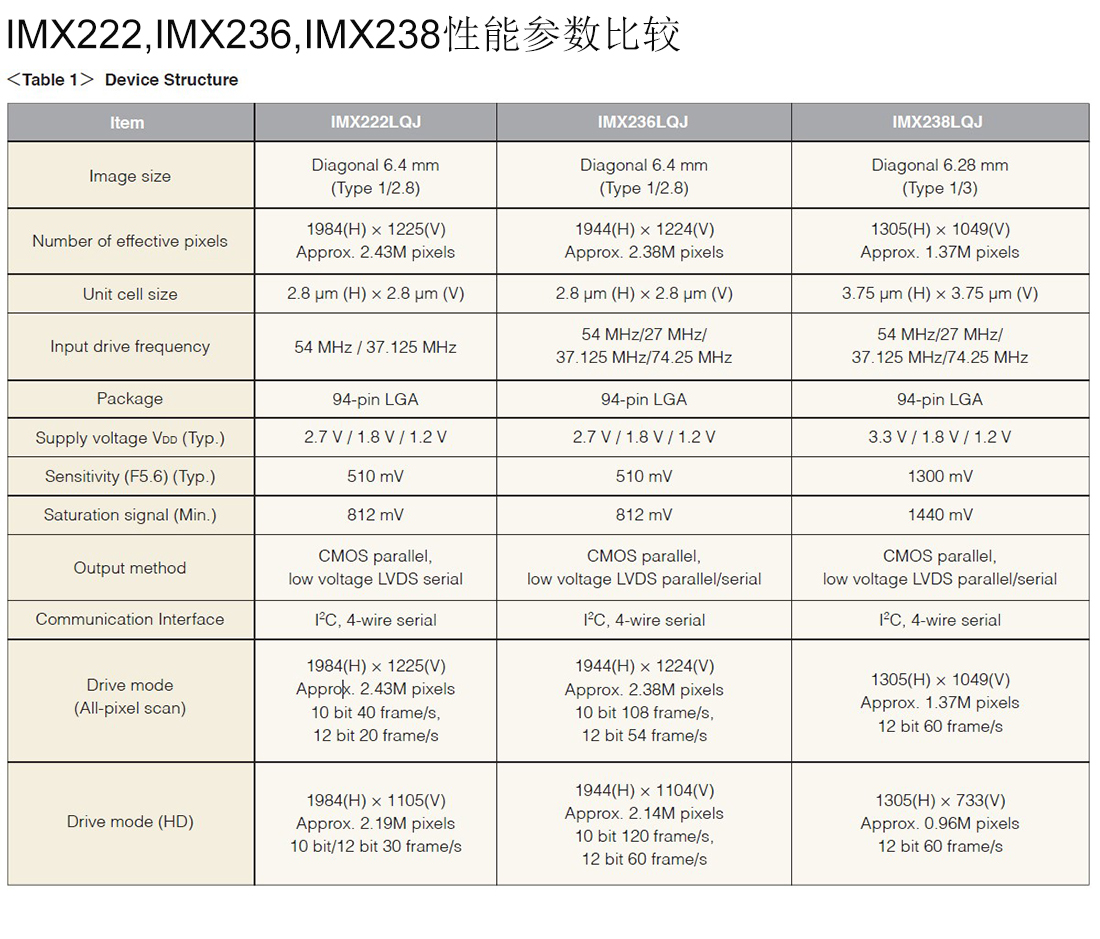

IMX222LQJ: Diagonal (Type 1/2.8), Approx 2.43M effective pixels, Frame rate: 40 frame/s,   Pixel size: 2.8 μm unit pixel
IMX236LQJ: Diagonal (Type 1/2.8), Approx 2.38M effective pixels, Frame rate: 120 frame/s, Pixel size: 2.8 μm unit pixel
IMX238LQJ: Diagonal (Type 1/3),    Approx 1.37M effective pixels, Frame rate:  60 frame/s , Pixel size: 3.75 μm unit pixel

Higher Sensitivity in the Near Infrared Light Regionl
High picture quality at the low illumination is strongly requested for industrial application cameras. Responding to this demand, Sony developed CMOS image sensors ano improved sensitivity in the near infrared light region, not only in the visible light range. The CMOS image sensors used the technology from the EXview HAD CCDTM, and the sensitivity in the near infrared light region improved up to 2 times compared to the current products. This enables to identify objects clearly.enough even in the night-time shooting. (Photograph 1)
*: EXview HAD CCD is a trademark of Sony Corporation.

Achieves Both High Sensitivity and High Resolution
Utilizing the Sony's original technology, The IMX222LQJ,IMX236LQJ and IMX238LQJ were developed and achieved significant improvements in the sensitivity characteristics in the near infrared light region, as well as the high resolution and low crosstalk of the existing products.

Compatibility with Existing Sony Products
The IMX222LQJ IMX236LQJ and IMX238LQJ have the same image size, number of pixels, package, and pin configuration of the current Sony products: the IMX122LQJ. IMX136LQJ and IMX138LQJ. Customers using the current products are easily able to replace with the new products. Please do not miss the chance to try the performance of the IMX222LQJ, IMX236LQJ and IMX238LQJ.

IMX236LQJ-C现货,IMX236LQJ-C价格,IMX236LQJ-C模组,IMX236LQJ-Cdatasheet下载,IMX236LQJ-C pdf文档下载,IMX236LQJ-C原装现货,IMX236LQJ-C库存,IMX236LQJ-C芯片,IMX236LQJ-C图片,IMX236LQJ-C高清大图,IMX236LQJ-C规格书下载,IMX236LQJ-C代理商,IMX236LQJ-C技术支持,产品介绍,IMX236LQJ-C简介,IMX236LQJ-C方案商,IMX236LQJ-C分销商,IMX236L经销商,IMX236L官网,IMX236L生产厂家,IMX236L专卖店,IMX236L高价收购,IMX236L模组,IMX236L模块,IMX236L特价,IMX236L库存,IMX236L生产商,IMX236L性价比,SONY索尼2.0MP cmos,2.3百万像素CMOS,监控安防摄像机CMOSSensor,IMX236L图像传感器模组,230万像素工业相机图像传感器,1080P  IMX236 1/2.8″  USB Camera CMOS sensor ,1080p60fps图像传感器,工业相机常用的图像传感器

IMX236LQJ-C现货,IMX236LQJ-C价格,IMX236LQJ-C模组,IMX236LQJ-Cdatasheet下载,IMX236LQJ-C pdf文档下载,IMX236LQJ-C原装现货,IMX236LQJ-C库存,IMX236LQJ-C芯片,IMX236LQJ-C图片,IMX236LQJ-C高清大图,IMX236LQJ-C规格书下载,IMX236LQJ-C代理商,IMX236LQJ-C技术支持,产品介绍,IMX236LQJ-C简介,IMX236LQJ-C方案商,IMX236LQJ-C分销商,IMX236L经销商,IMX236L官网,IMX236L生产厂家,IMX236L专卖店,IMX236L高价收购,IMX236L模组,IMX236L模块,IMX236L特价,IMX236L库存,IMX236L生产商,IMX236L性价比,SONY索尼2.0MP cmos,2.3百万像素CMOS,监控安防摄像机CMOSSensor,IMX236L图像传感器模组,230万像素工业相机图像传感器,1080P  IMX236 1/2.8″  USB Camera CMOS sensor ,1080p60fps图像传感器,工业相机常用的图像传感器

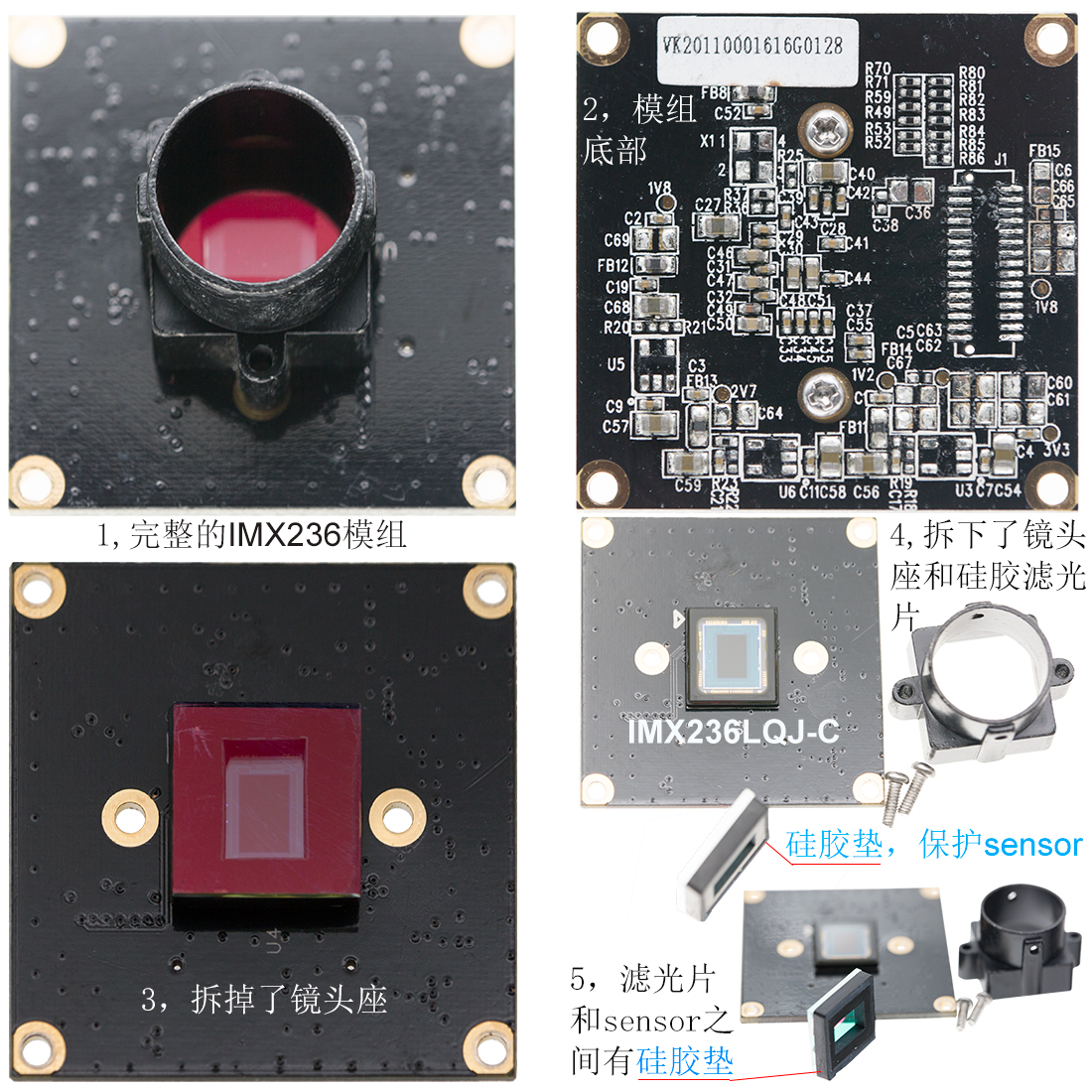

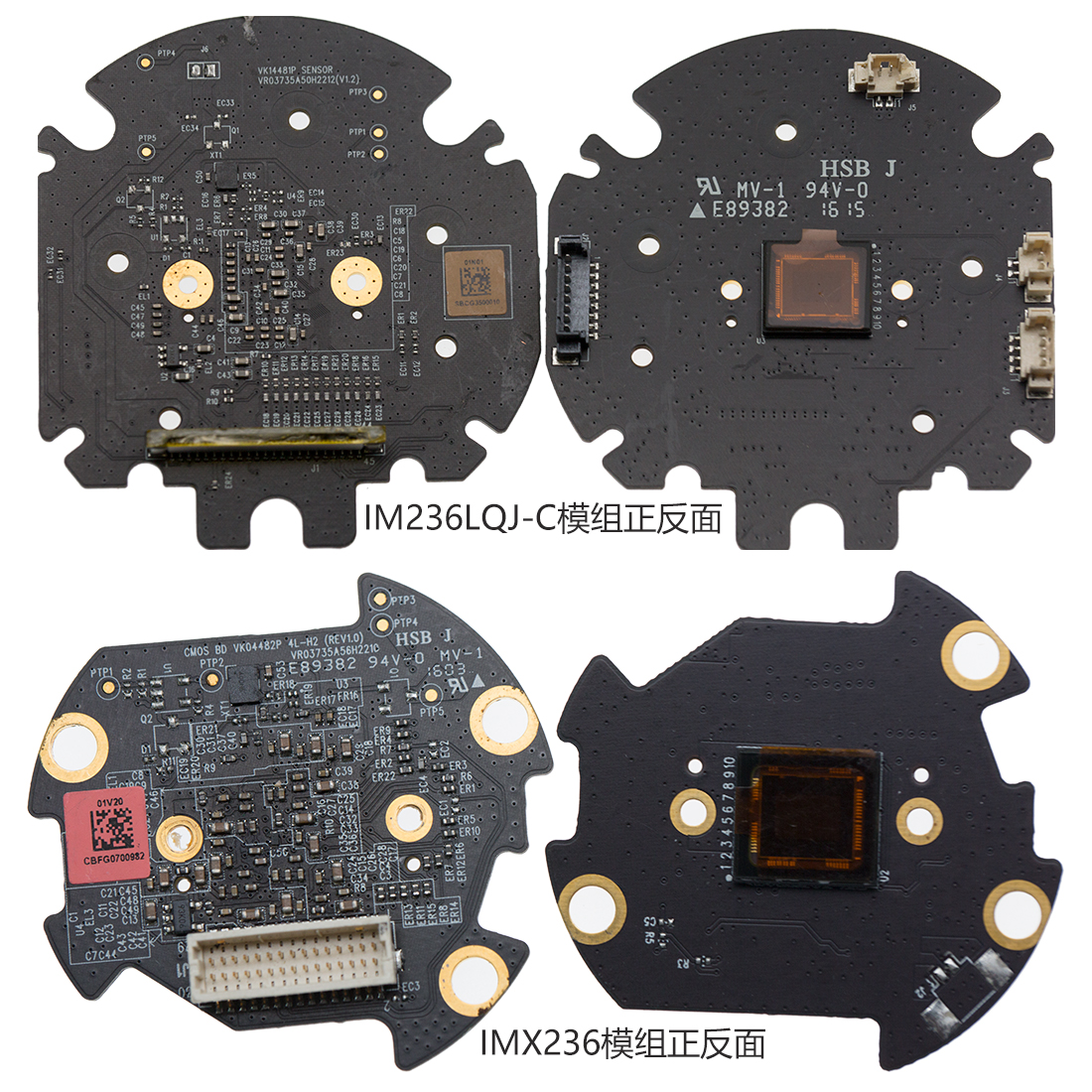

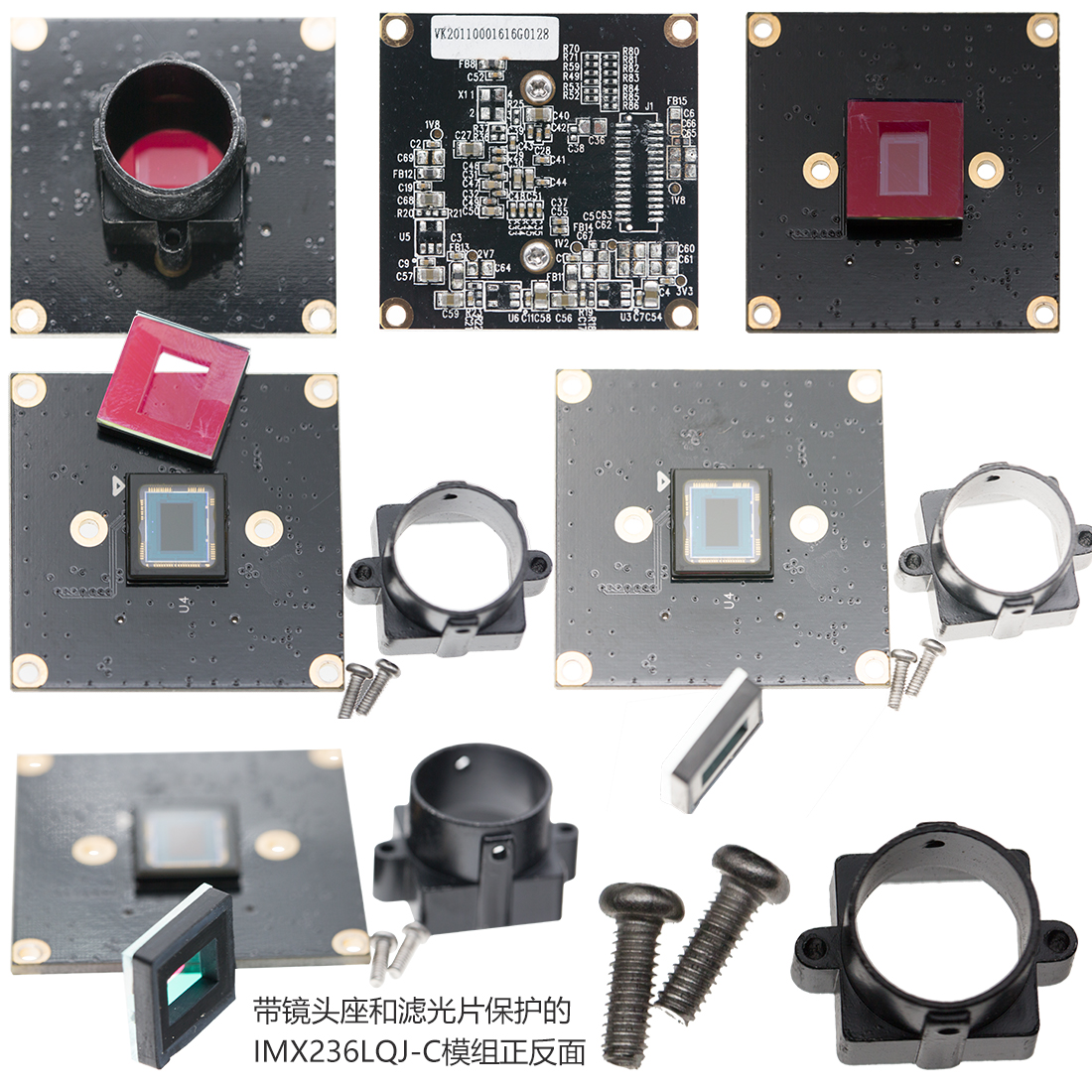

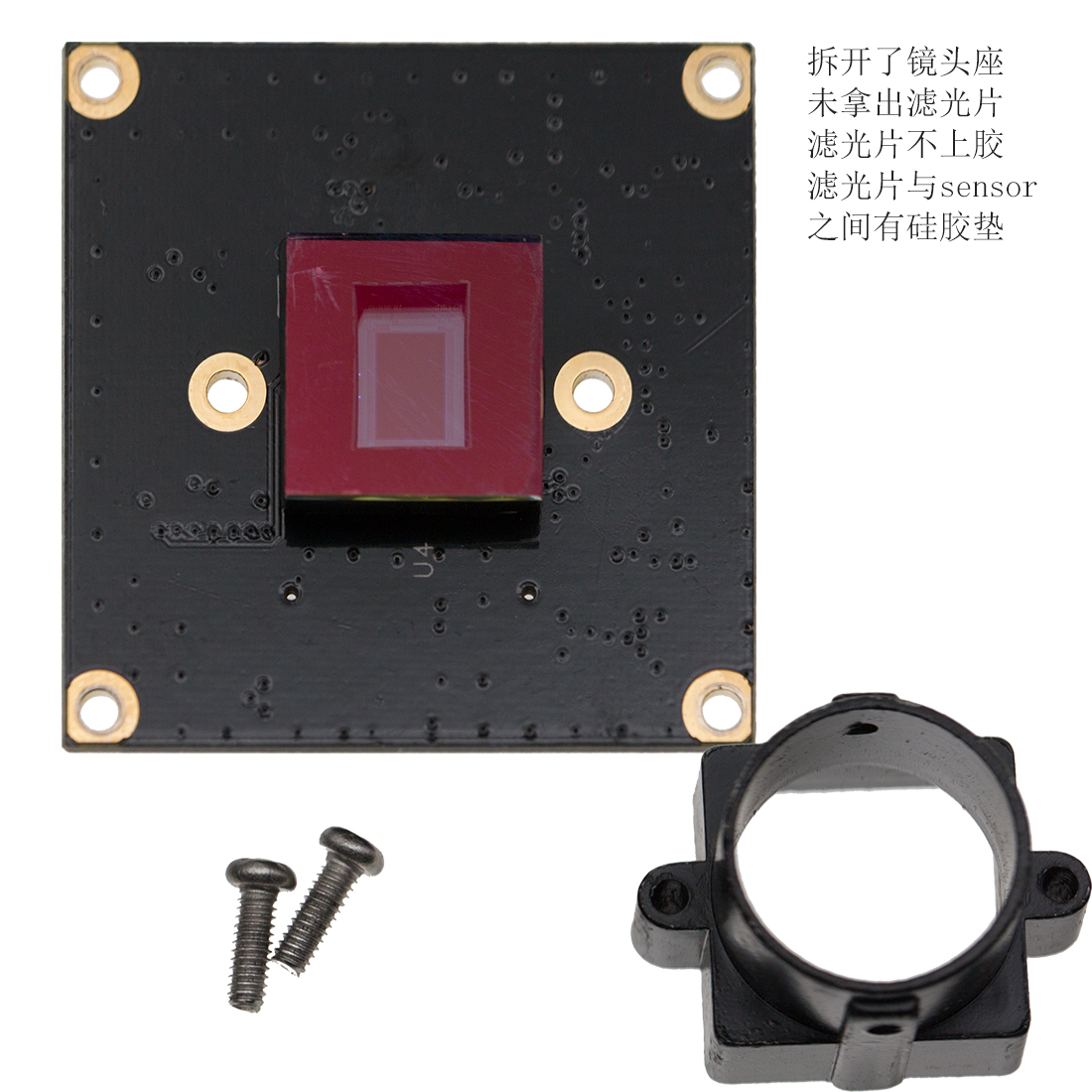

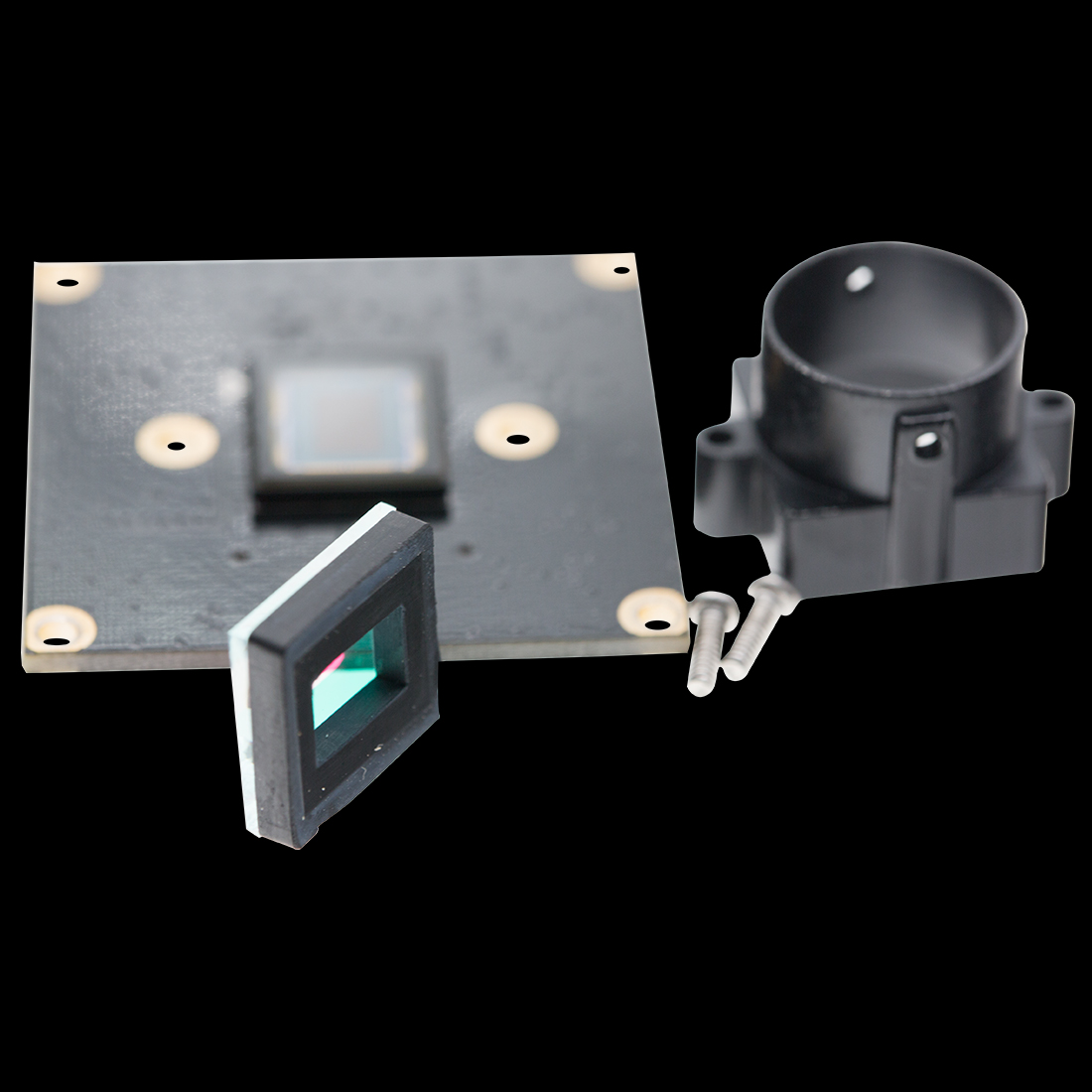

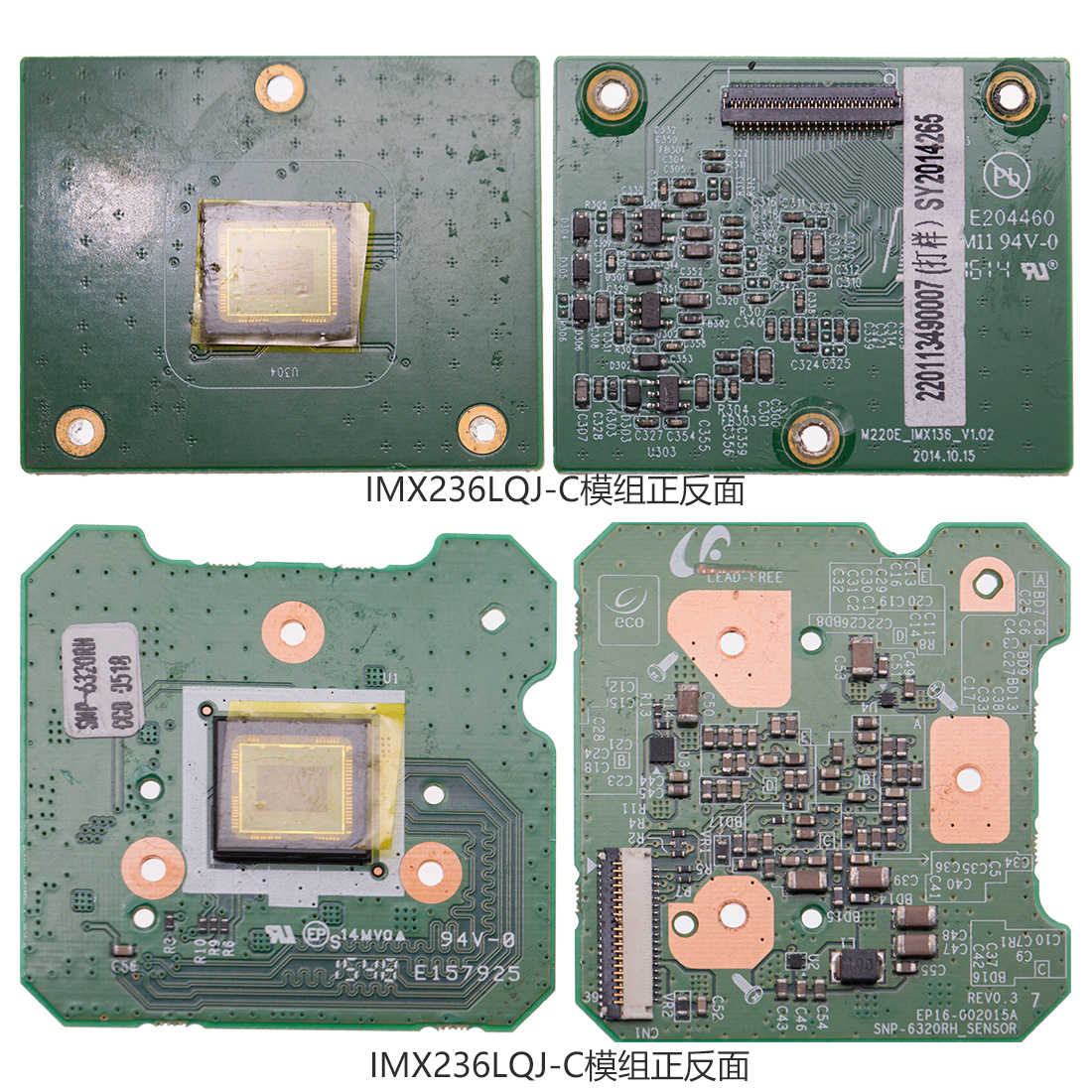

以下是可拆卸IMX236LQJ-C再利用的模组,单独一块模组不能直接使用,除非你是直接代替原有同型号模组:
The following are the removable IMX236LQJ-C modules. A single module cannot be used directly unless you are directly replacing the original module of the same model:
