AR1335HSSC11SMAA0安森美ONSEMI美光Aptina用于GoPro2(狗2)运动相机、无人机、动作相机1300万像素高速图像传感器,13MP(4:3)全像素4K@30fps和1080P@90fps
2022-04-26 02:39:58
点击购买amazon

AR1335HSSC11SMAA0,ONSEMI 13MP cmos sensor,GoPro2(狗2)运动相机CMOS传感器、无人机、动作相机图像传感器,1300万像素高速图像传感器,13MP(4:3)全像素4K@30fps sensor,1080P@90fps,高清90帧感光芯片,安森美AR1335HS,aptina 13M sensor,镁光运动相机芯片,美光传感器,1/3.2英寸BSI(背面照明式)CMOS,1/3.2-inch BSI (back side illuminated) CMOS,Sports Action Camera cmos,ON Semiconductor 13M SENOSR,美光镁光CMOS图像传感器,Aptina CMOS

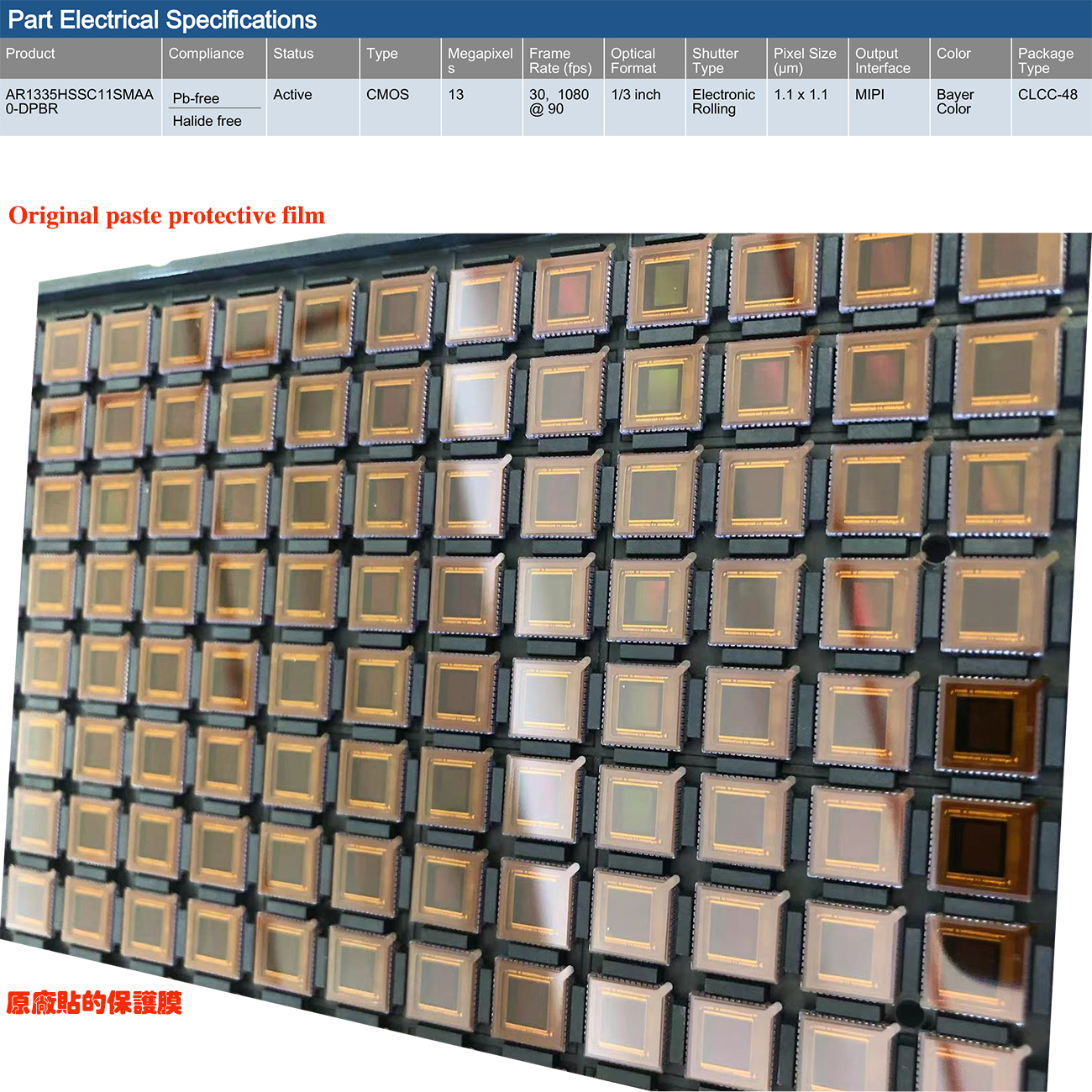

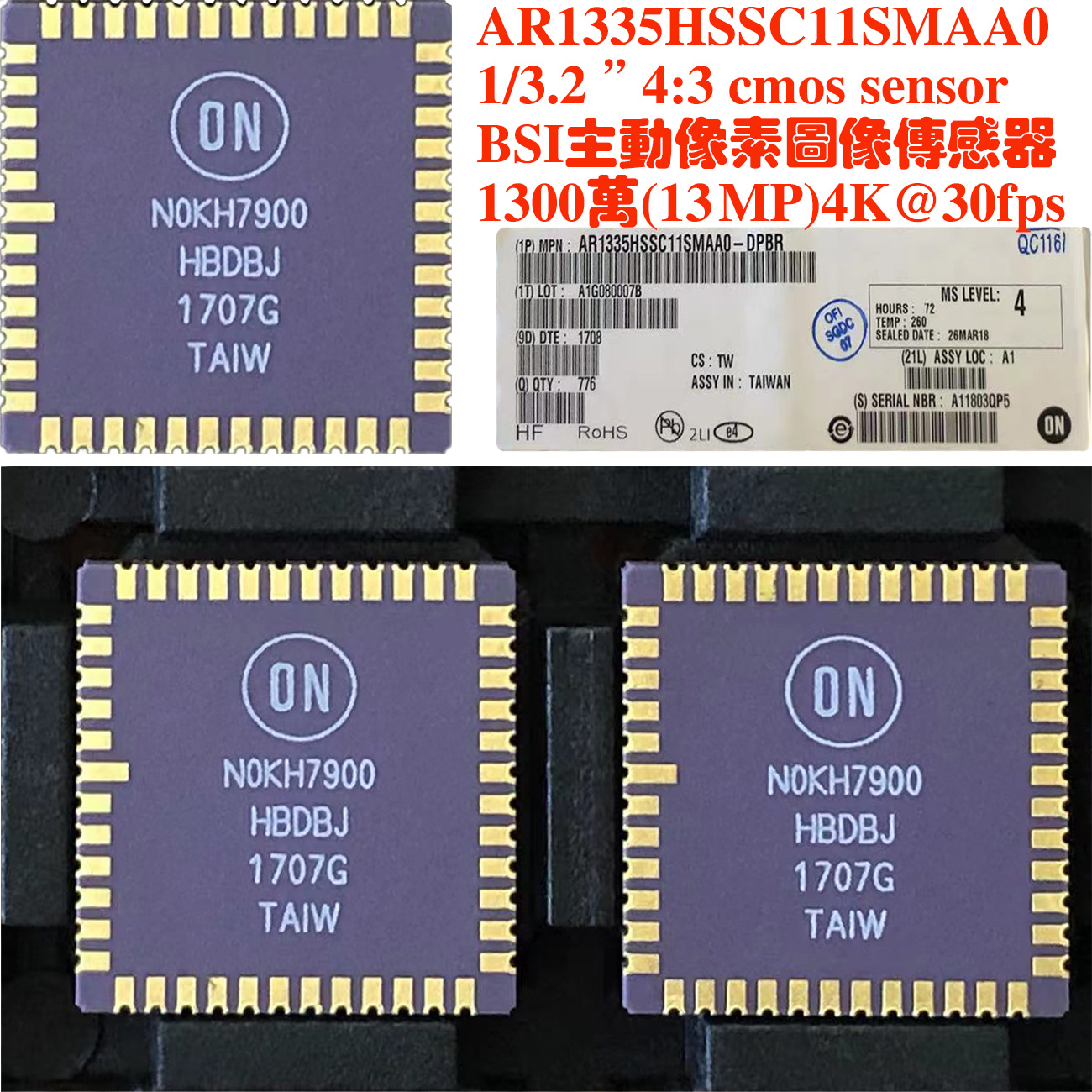

AR1335HSSC11SMAA0
Product Overview

AR1335HS: High speed sensor supporting 13MP(4:3) at 30fps and 1080P up to 90fps

The ON Semiconductor AR1335HS is a 1/3.2-inch BSI (back side illuminated) CMOS active-pixel digital image sensor with a pixel array of 4208Hx3120V (4224Hx3136V including border pixels). It incorporates sophisticated on-chip camera functions such as mirroring, column and row skip modes, and snapshot mode. It is programmable through a simple two-wire serial interface and has very low power consumption.
The AR1335HS digital image sensor features ON Semiconductor's breakthrough low noise CMOS imaging technology that achieves near-CCD image quality (based on signal-to-noise ratio and low-light sensitivity) while maintaining the inherent size, cost, and integration advantages of CMOS.
The AR1335HS sensor can generate full resolution image at up to 30 frames per second (fps) and 1080P up 90fps. An on-chip analog-to-digital converter (ADC) generates a 10-bit value for each pixel.

Features
• High Speed 1080P at 90fps
• High quantum efficiency and sensitivity with low read noise
• Special Anti-reflection coating

Applications
• Advanced CMOS camera module

Benefits
• Great video experience and slow mode capability
• Exceptional low light performance
• Limits reflections and flare in extreme lighting situations

End Products
• Sports Action Camera
• Drone
• Consumer Products

产品概述
AR1335HS:高速传感器,支持13MP(4:3)在30fps和1080P到90fps
ON Semiconductor AR1335HS是一种1/3.2英寸BSI(背面照明)CMOS主动像素数字图像传感器,具有4208Hx3120V(4224Hx3136V包括边界像素)的像素阵列。它集成了复杂的片上相机功能,如镜像、列和行跳过模式和快照模式。它是通过一个简单的两线串行接口可编程的,功耗极低。
AR1335HS数字图像传感器采用了ON Semiconductor的突破性低噪声CMOS成像技术,实现了接近CCD的图像质量(基于信噪比和低光敏度),同时保持了CMOS固有的尺寸、成本和集成优势。
AR1335HS传感器可以生成全分辨率图像,最高可达每秒30帧,最高可达每秒90帧,最高可达1080P。片上模数转换器(ADC)为每个像素生成10位值。

特性
 •高速1080P,每秒90帧
• 高量子效率和灵敏度,低读取噪声
• 特殊的防反射涂层

应用
• 先进的CMOS相机模块

好处
• 出色的视频体验和慢模式能力
• 特殊的微光性能
• 在极端照明的情况下限制反射和耀斑

终端产品
• GoPro2(狗2)1300万像素运动相机,动作相机
• 无人机
• 消费者产品


ONSEMI 13MP cmos senso
GoPro2(狗2)运动相机CMOS传感器
动作相机图像传感器
有关AR1335HS的价格,datasheet download免费下载,简介,PDF文档下载,电路图,原理图,框架图,文档下载,原装现货,现货库存,芯片,图片,规格书下载,代理商,技术支持,产品介绍,参数,方案,分销,经销,官网,生产厂家,批量采购,模组,模块,特价,库存,哪里买,性价比,用途,封装厂,晶圆,代工,可咨询本公司

https://www.sunnywale.com/uploadfile/2022/0426/AR1335HSSC11SMAA0简介_Awin.pdf点击或者复制上面链接到浏览器打开,AR1335HS datasheet PDF file可免费下载,Click or copy the link to free download the datasheet PDF file.

拆机的满2件全国包邮,如果你有货,可以卖给我,当我求购AR1335HS,你需要购买AR1335HS,可以找我买。
Freight is free when you buy 2 pieces in China, if you have AR1335HS inventory, you can sell to me, if you need buy AR1335HS, you can ask me to buy.

立即购买AR1335HS
Buy now
