AR0134CSSC00SPCA0 ONSEMI安森美全局快门车规图像传感器1/3-inch 彩色1.2 MP(1280x960)54fps 3.75μm 0° 10x10mm iLCC48 带保护膜CMOS Digital Image Sensor with Global Shutter HiSPi输
2022-08-06 02:38:49
点击购买amazon

AR0134CSSC00SPCA0,AR0134彩色, ONSEMI安森美车规芯片,全局快门车规图像传感器,安森美扫描仪专用图像传感器芯片,120万像素(1.2MP)高清扫描仪用cmos, Scanner dedicated image sensor, 1/3-inch 彩色1.2 MP(1280x960),高帧率54fps ,3.75μm晶像元, 0°汽车图像传感器, 10x10mm, iLCC48 带保护膜CMOS, Digital Image Sensor, with Global Shutter sensor,HiSPi输出,

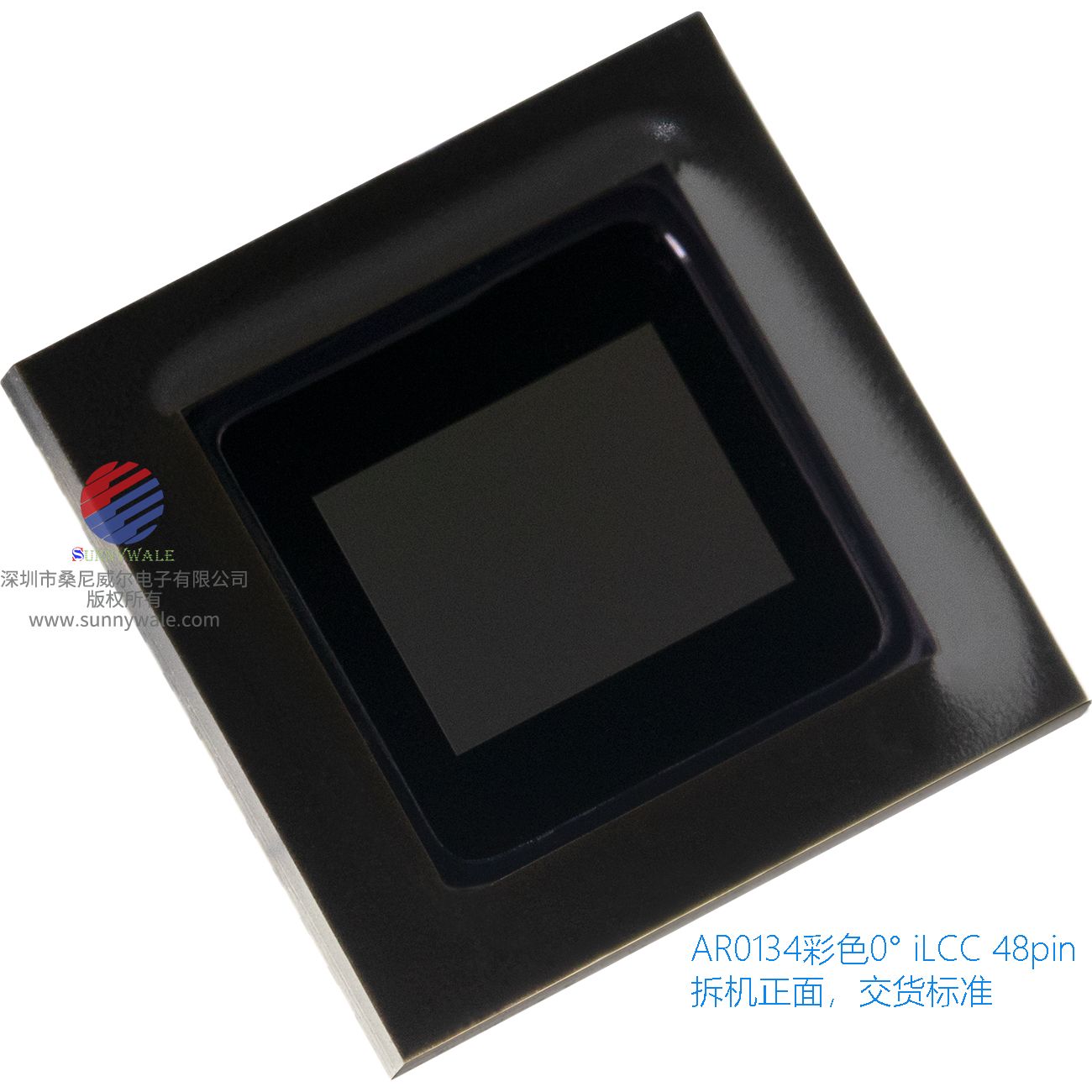

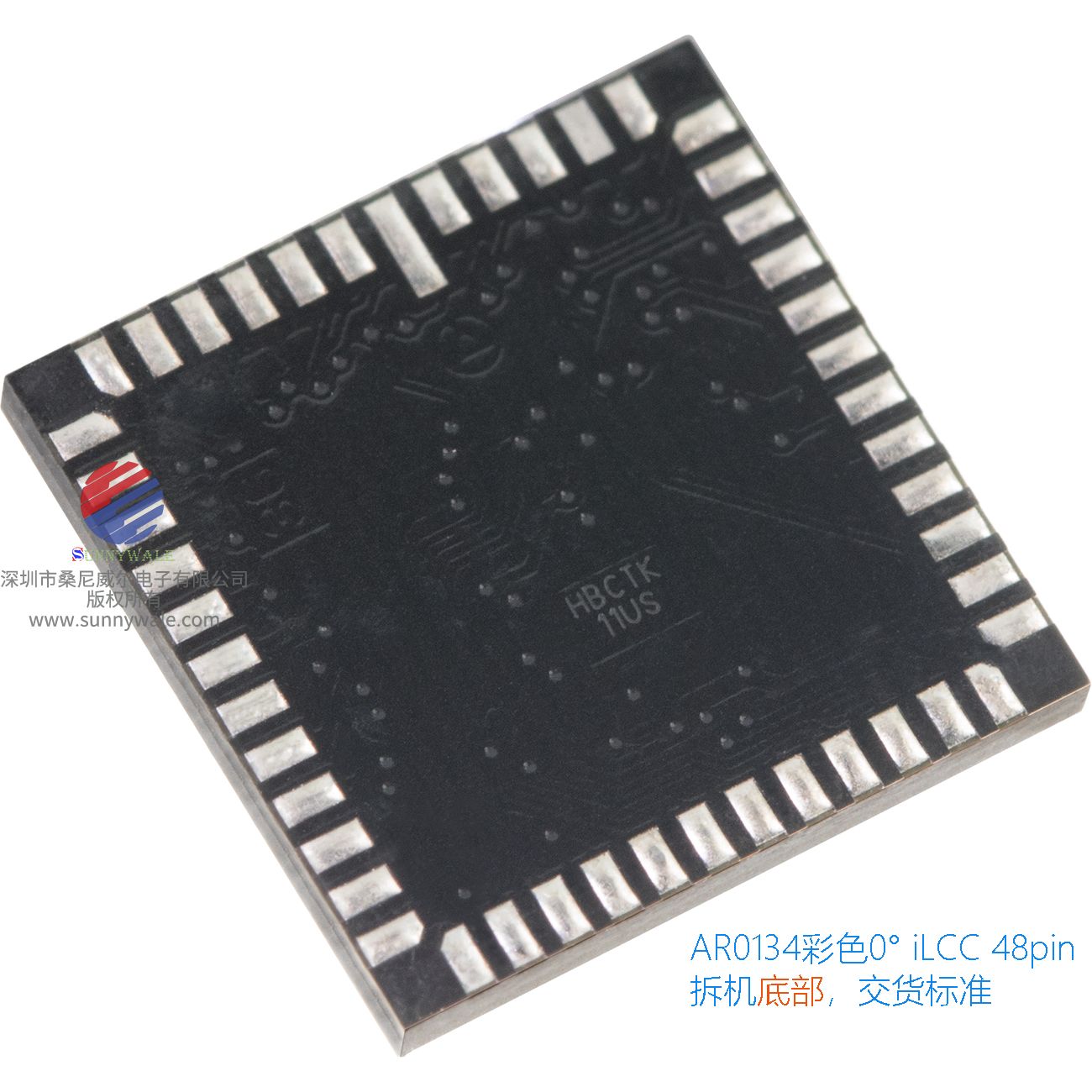

AR0134CSSC00SPCA0

AR0134CS
Description
The AR0134CS from ON Semiconductor is a 1/3−inch 1.2 Mp CMOS digital image sensor with an active-pixel array of 1280 (H) x 960 (V). It is designed for low light performance and features a global shutter for accurate capture of moving scenes. It includes sophisticated
camera functions such as auto exposure control, windowing, scaling, row skip mode, and both video and single frame modes. It is programmable through a simple two-wire serial interface. The AR0134CS produces extraordinarily clear, sharp digital pictures, and its ability to capture both continuous video and single frames makes it the perfect choice for a wide range of applications, including scanning and industrial inspection.

Features
• ON Semiconductor's 3rd Generation Global Shutter Technology
• Superior Low-light Performance
• HD Video (720p60)
• Video/Single Frame Mode
• Flexible Row-skip Modes
• On-chip AE and Statistics Engine
• Parallel and Serial Output
• Support for External LED or Flash
• Auto Black Level Calibration
• Context Switching
AR0134CSSC00SPCA0,AR0134彩色, ONSEMI安森美车规芯片,全局快门车规图像传感器,安森美扫描仪专用图像传感器芯片,120万像素(1.2MP)高清扫描仪用cmos, Scanner dedicated image sensor, 1/3-inch 彩色1.2 MP(1280x960),高帧率54fps ,3.75μm晶像元, 0°汽车图像传感器, 10x10mm, iLCC48 带保护膜CMOS, Digital Image Sensor, with Global Shutter sensor,HiSPi输出,
Applications
• Scene Processing
• Scanning and Machine Vision
• 720p60 Video Applications

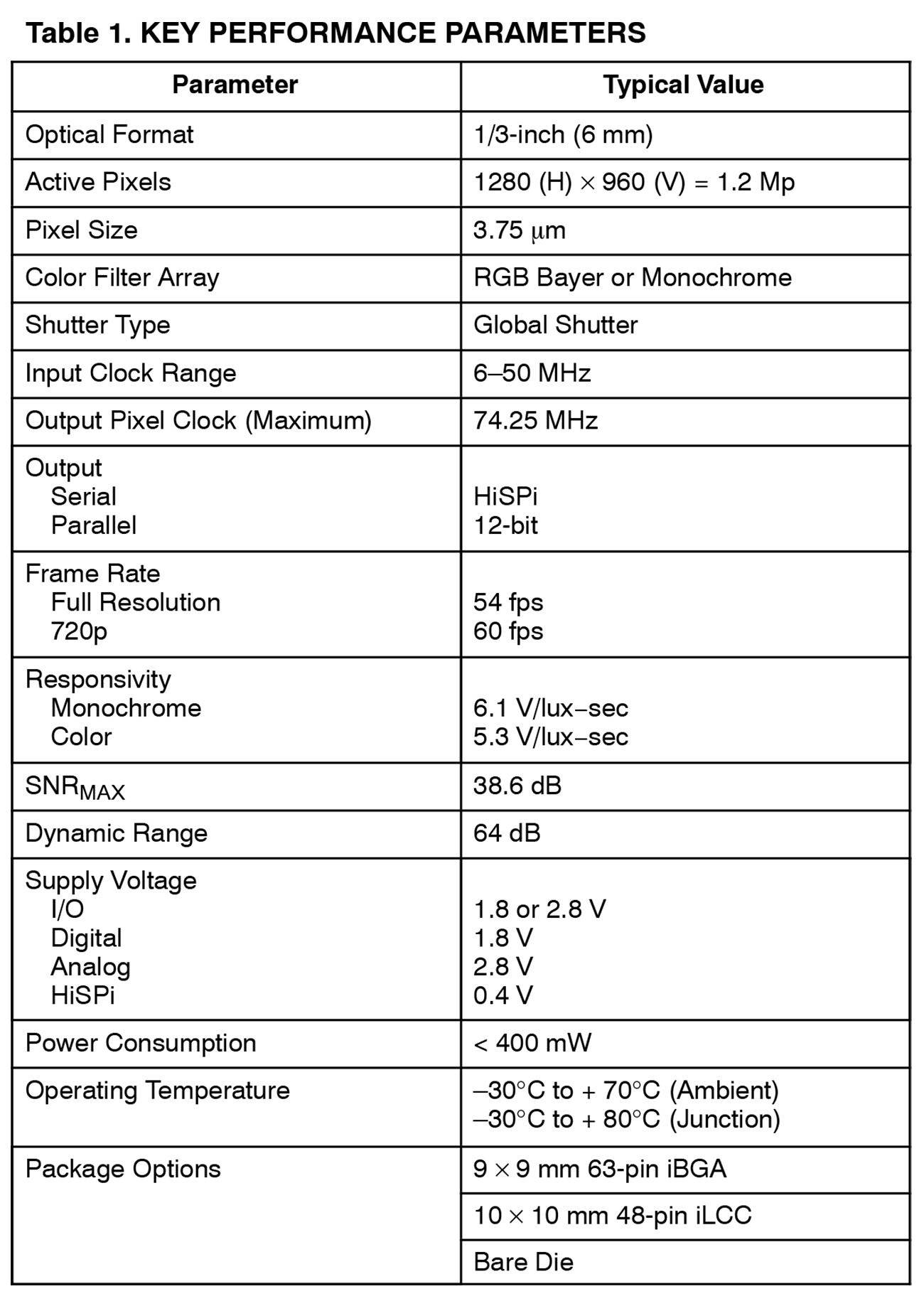

GENERAL DESCRIPTION
The ON Semiconductor AR0134CS can be operated in its default mode or programmed for frame size, exposure, gain, and other parameters. The default mode output is a full-resolution image at 54 frames per second (fps). It outputs 12-bit raw data, using either the parallel or serial (HiSPi) output ports. The device may be operated in video (master) mode or in frame trigger mode.
FRAME_VALID and LINE_VALID signals are output on dedicated pins, along with a synchronized pixel clock. A dedicated FLASH pin can be programmed to control external LED or flash exposure illumination.
The AR0134CS includes additional features to allow application-specific tuning: windowing, adjustable auto-exposure control, auto black level correction, on-board temperature sensor, and row skip and digital binning modes.
The sensor is designed to operate in a wide temperature range (-30°C to +70°C).

FUNCTIONAL OVERVIEW
The AR0134CS is a progressive-scan sensor that generates a stream of pixel data at a constant frame rate. It uses an on-chip, phase-locked loop (PLL) that can be optionally enabled to generate all internal clocks from a single master input clock running between 6 and 50 MHz.
The maximum output pixel rate is 74.25 Mp/s, corresponding to a clock rate of 74.25 MHz. Figure 1(datasheet) shows a block diagram of the sensor.
AR0134CSSC00SPCA0,AR0134彩色, ONSEMI安森美车规芯片,全局快门车规图像传感器,安森美扫描仪专用图像传感器芯片,120万像素(1.2MP)高清扫描仪用cmos, Scanner dedicated image sensor, 1/3-inch 彩色1.2 MP(1280x960),高帧率54fps ,3.75μm晶像元, 0°汽车图像传感器, 10x10mm, iLCC48 带保护膜CMOS, Digital Image Sensor, with Global Shutter sensor,HiSPi输出,
User interaction with the sensor is through the two-wire serial bus, which communicates with the array control, analog signal chain, and digital signal chain. The core of the sensor is a 1.2 Mp Active-Pixel Sensor array. The AR0134CS features global shutter technology for accurate
capture of moving images. The exposure of the entire array is controlled by programming the integration time by register setting. All rows simultaneously integrate light prior to readout. Once a row has been read, the data from the columns is sequenced through an analog signal chain (providing offset correction and gain), and then through an analog-to-digital converter (ADC). The output from the ADC is a 12-bit value for each pixel in the array. The ADC output passes through a digital processing signal chain (which provides further data path corrections and applies digital gain). The pixel data are output at a rate of up to 74.25 Mp/s, in parallel to frame and line synchronization signals.

FEATURES OVERVIEW
The AR0134CS Global Sensor shutter has a wide array of eatures to enhance functionality and to increase versatility. A summary of features follows. Please refer to the AR0134CS Developer Guide for detailed feature descriptions, register settings, and tuning guidelines and recommendations.
• Operating Modes
The AR0134CS works in master (video), trigger (single frame), or Auto Trigger modes. In master mode, the sensor generates the integration and readout timing. In trigger mode, it accepts an external trigger to start exposure, then generates the exposure and readouttiming. The exposure time is programmed through the two-wire serial interface for both modes. Trigger mode is not compatible with the HiSPi interface.
• Window Control
Configurable window size and blanking times allow a wide range of resolutions and frame rates. Digital binning and skipping modes are supported, as are vertical and horizontal mirror operations.
• Context Switching
Context switching may be used to rapidly switch between two sets of register values. Refer to the AR0134CS Developer Guide for a complete set of context switchable registers.
• Gain
The AR0134CS Global Shutter sensor can be configured for analog gain of up to 8x, and digital gain of up to 8x.
• Automatic Exposure Control
The integrated automatic exposure control may be used to ensure optimal settings of exposure and gain are computed and updated every other frame. Refer to the AR0134CS Developer Guide for more details.
• HiSPi
The AR0134CS Global Shutter image sensor supports two or three lanes of Streaming-SP or Packetized-SP protocols of ON Semiconductor's High-Speed Serial Pixel Interface.
• PLL
An on chip PLL provides reference clock flexibility and supports spread spectrum sources for improved EMI performance.
• Reset
The AR0134CS may be reset by a register write, or by a dedicated input pin.
• Output Enable
The AR0134CS output pins may be tri-stated using a dedicated output enable pin.
• Temperature Sensor
The temperature sensor is only guaranteed to be functional when the AR0134CS is initially powered-up or is reset at temperatures at or above 0°C.
• Black Level Correction
• Row Noise Correction
• Column Correction
• Test Patterns
Several test patterns may be enabled for debug purposes. These include a solid color, color bar, fade to grey, and a walking 1s test pattern.

PIXEL DATA FORMAT
Pixel Array Structure
The AR0134CS pixel array is configured as 1412 columns by 1028 rows, (see Figure 2). The dark pixels are optically black and are used internally to monitor black level. Of the right 108 columns, 64 are dark pixels used for row noise correction. Of the top 24 rows of pixels, 12 of the dark rows are used for black level correction. There are 1296 columns by 976 rows of optically active pixels. While the sensor's format is 1280 × 960, the additional active columns and active rows are included for use when horizontal or vertical mirrored readout is enabled, to allow readout to start on the same pixel. The pixel adjustment is always performed for
monochrome or color versions. The active area is surrounded with optically transparent dummy pixels to improve image uniformity within the active area. Not all dummy pixels or barrier pixels can be read out.AR0134CSSC00SPCA0,AR0134彩色, ONSEMI安森美车规芯片,全局快门车规图像传感器,安森美扫描仪专用图像传感器芯片,120万像素(1.2MP)高清扫描仪用cmos, Scanner dedicated image sensor, 1/3-inch 彩色1.2 MP(1280x960),高帧率54fps ,3.75μm晶像元, 0°汽车图像传感器, 10x10mm, iLCC48 带保护膜CMOS, Digital Image Sensor, with Global Shutter sensor,HiSPi输出,

AR0134CSSC00SPCA0 ONSEMI安森美全局快门车规图像传感器1/3英寸彩色1.2 MP(1280x960)54帧3.75μm 0°10x10mm iLCC48带保护膜CMOS数字图像传感器与全球快门HiSPi输出,
AR0134彩色 ONSEMI安森美车规芯片

AR0134CS
描述
ON Semiconductor的AR0134CS是一款1/3英寸120万像素CMOS数字图像传感器,具有1280 (H) x 960 (V)的有源像素阵列。它专为微光性能设计,具有全球快门,用于准确捕捉移动场景。它包括复杂的相机功能,如自动曝光控制,窗口,缩放,行跳过模式,视频和单帧模式。它是通过一个简单的两线串行接口可编程。AR0134CS产生非常清晰、清晰的数字图像,其捕捉连续视频和单帧的能力使其成为广泛应用的完美选择,包括扫描和工业检查。

特性
•ON Semiconductor第三代全球快门技术
•卓越的低光性能
•高清视频(720p60)
•视频/单帧模式
•灵活的行跳过模式
•片上AE和统计引擎
•并行和串行输出
•支持外接LED或Flash
•自动黑电平校准
•上下文切换

应用
•现场处理
•扫描和机器视觉,工业相机
•720p60视频应用

一般的描述
ON Semiconductor AR0134CS可以在其默认模式下操作或编程帧大小,曝光,增益和其他参数。默认模式输出是每秒54帧(fps)的全分辨率图像。它输出12位原始数据,使用并行或串行(HiSPi)输出端口。设备可以在视频(主)模式或帧触发模式下操作。

FRAME_VALID和LINE_VALID信号输出在专用引脚上,以及同步的像素时钟。一个专门的FLASH引脚可以编程控制外部LED或闪光曝光照明。

AR0134CS包括额外的功能,允许应用特定的调整:窗口,可调的自动曝光控制,自动黑电平校正,板上温度传感器,行跳跃和数字收纳模式。
该传感器的工作温度范围很宽(-30°C到+70°C)。

功能概述
AR0134CS是一种渐进扫描传感器,以恒定的帧速率生成像素数据流。它使用了片上锁相环(PLL),可以选择启用从运行在6到50 MHz之间的单个主输入时钟生成所有内部时钟。
最大输出像素率为74.25 Mp/s,对应的时钟率为74.25 MHz。图1(数据表)显示了传感器的框图。

用户与传感器的交互是通过两线串行总线,与阵列控制、模拟信号链、数字信号链进行通信。该传感器的核心是一个1.2 Mp有源像素传感器阵列。AR0134CS采用全球快门技术,精确捕捉动态图像。整个阵列的曝光通过寄存器设置对集成时间进行编程来控制。所有行同时集成灯之前的读数。一旦读取一行,列中的数据通过模拟信号链(提供偏移校正和增益)进行排序,然后通过模数转换器(ADC)。ADC的输出是数组中每个像素的12位值。ADC输出通过数字处理信号链(提供进一步的数据路径修正并应用数字增益)。像素数据输出速率高达74.25 Mp/s,与帧和线同步信号并行。

功能概述
AR0134CS全球传感器快门具有广泛的特性,以增强功能和增加通用性。以下是特性的总结。请参考AR0134CS开发人员指南,以获得详细的特性描述、注册设置和调优指南和建议。

•操作模式
AR0134CS工作在主(视频),触发(单帧),或自动触发模式。在主模式下,传感器产生集成和读取定时。在触发模式下,它接受一个外部触发器来启动曝光,然后生成曝光和读数计时。曝光时间通过两种模式的两线串行接口编程。触发模式与HiSPi接口不兼容。

•控制窗口
可配置的窗口大小和空白时间允许广泛的分辨率和帧率。支持数字收纳和跳绳模式,以及垂直和水平镜像操作。

•上下文切换
上下文切换可用于在两组寄存器值之间快速切换。参考AR0134CS开发人员指南获得一套完整的上下文可切换寄存器。

•获得
AR0134CS全球快门传感器可以配置高达8x的模拟增益和高达8x的数字增益。

•自动曝光控制
综合自动曝光控制可用于确保每隔一帧计算和更新曝光和增益的最佳设置。更多细节请参考AR0134CS开发人员指南。

•HiSPi
AR0134CS全球快门图像传感器支持ON半导体高速串行像素接口的两或三路流媒体sp或分组sp协议。

•锁相环
片内锁相环提供了参考时钟的灵活性,并支持扩频源,以改善EMI性能。

•重置
AR0134CS可以通过寄存器写入或专用输入引脚复位。

•允许输出
AR0134CS输出引脚可以使用专用的输出使能引脚进行三状态。

•温度传感器
只有在AR0134CS首次通电或在0℃或以上温度复位时,温度传感器才能保证正常工作。

•黑电平校正

•行噪声校正

•列校正

•测试模式
为了调试目的,可以启用几种测试模式。这些包括一个纯色,颜色条,淡出到灰色,和一个行走的1s测试图案。

像素数据格式
像素阵列结构
AR0134CS像素阵列配置为1412列× 1028行(参见图2)。深色像素在光学上是黑色的,用于内部监控黑色水平。在右边的108列中,有64列是用于行噪声校正的暗像素。在最上面的24行像素中,有12行是用于黑色电平校正的。有1296列,976行光学活性像素。传感器的格式为1280 × 960,当启用水平或垂直镜像读出时,额外的活动列和活动行包括在内,以允许读出从相同的像素开始。像素调整始终为
单色或彩色版本。该有源区域被光学透明的虚拟像素包围,以改善有源区域内的图像均匀性。并不是所有的虚拟像素或屏障像素都可以读出。


有关AR0134CSSC00SPCA0的价格,datasheet download免费下载,简介,PDF文档下载,电路图,原理图,框架图,文档下载,原装现货,现货库存,芯片,图片,规格书下载,代理商,技术支持,产品介绍,参数,方案,分销,经销,官网,生产厂家,批量采购,模组,模块,特价,库存,哪里买,性价比,用途,封装厂,晶圆,代工,可咨询本公司
点击或者复制上面链接到浏览器打开,AR0134CS datasheet PDF file可免费下载,Click or copy the link to free download the datasheet PDF file.

满2件全国包邮,如果你有货,可以卖给我,当我求购AR0134CS,你需要购买AR0134CS,可以找我买。
Freight is free when you buy 2 pieces in China, if you have AR0134CS inventory, you can sell to me, if you need buy AR0134CS, you can ask me to buy.

如果想要了解其它规格的AR0134 或 AR0135,或请点击下面链接,或访问本公司官网:sunnywale.com,搜索关键词“AR0134 or AR0135”,即可展现更多详情。
If you want to know about similar products AR0134 or AR0135, or click here,or Visit The official website: sunnywale.com,Search the keywods“AR0134 or AR0135”,it can show more details.

如果想要了解此同类产品MT9V022IA7ATMMT9P001I12STMMT9P031I12STMMT9V032MT9V034,或查看AR0134的直接替代型号MT9M021MT9M031,请点击相关链接,或访问本公司官网:sunnywale.com,搜索关键词 “全局快门、MT9V022,MT9P001,MT9P031,MT9V032,MT9V034,MT9M021,MT9M031”,即可展现更多详情。

马上购买Buy now ***(链接)

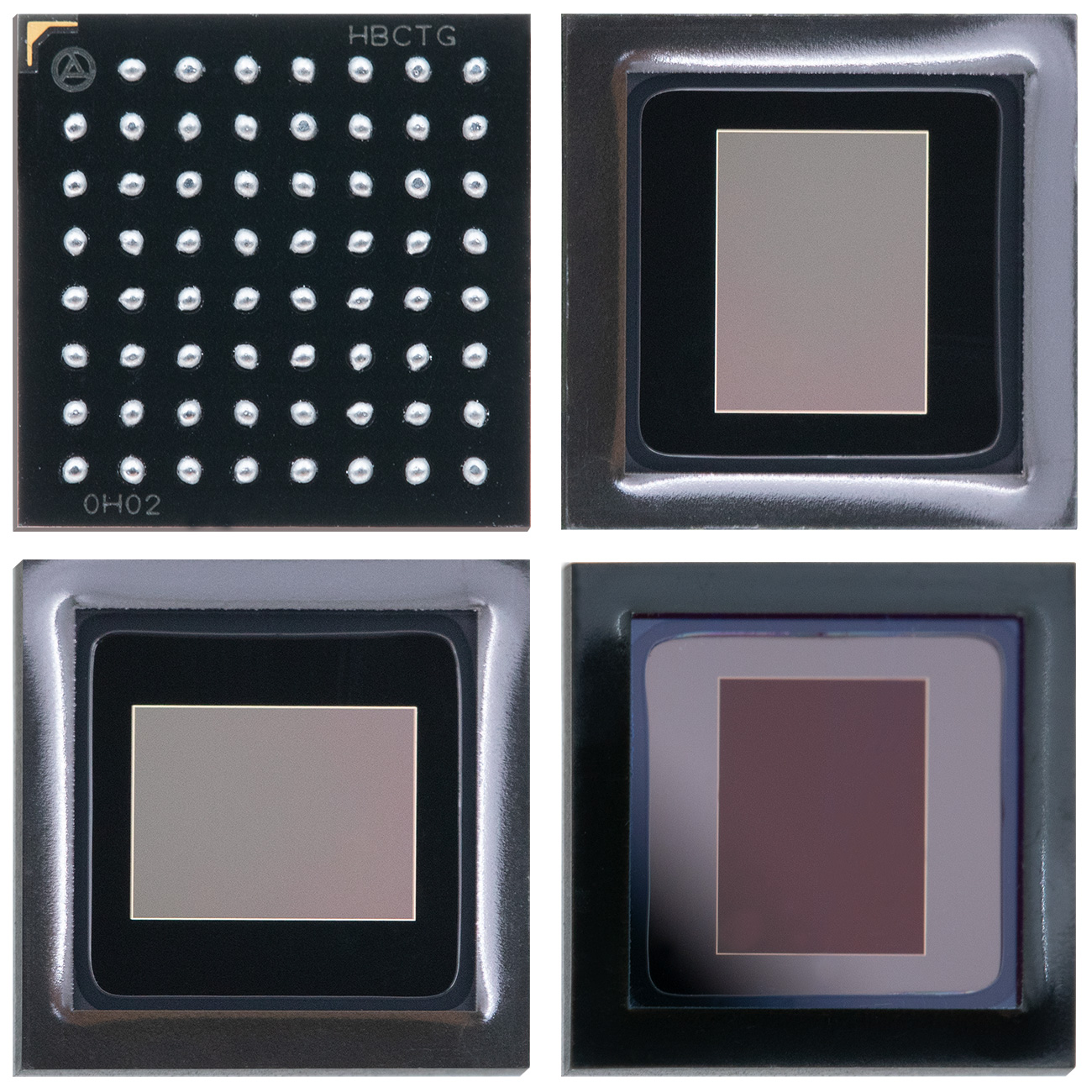

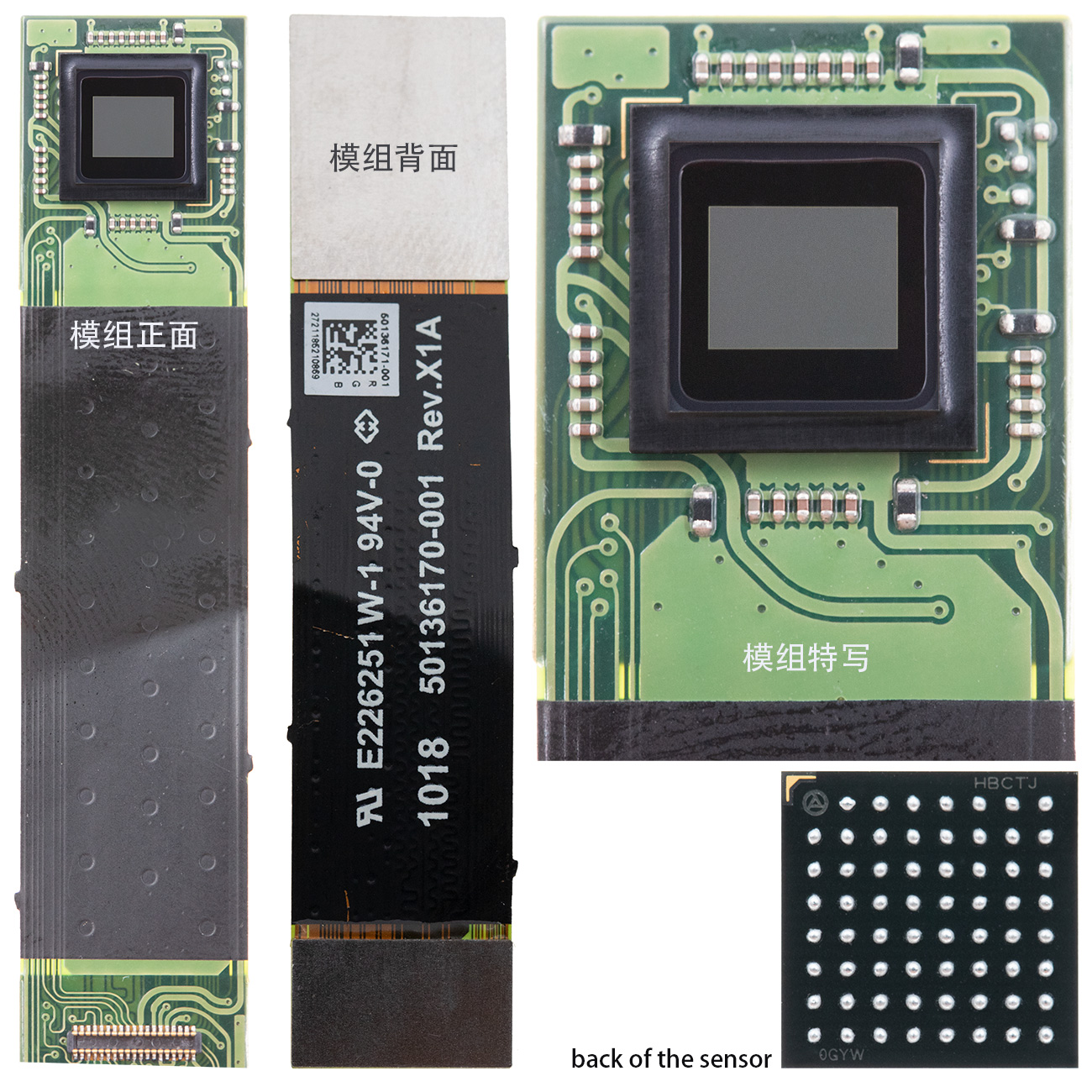

也有iBGA封装的彩色(color)或者黑白(单色Monochrome)的AR0134,
见下面三个图:
黑白(单色Monochrome)
  • The following 3 pictures are shown in monochrome:

全局快门车规图像传感器
安森美扫描仪专用图像传感器芯片
120万像素(1.2MP)高清扫描仪用cmos

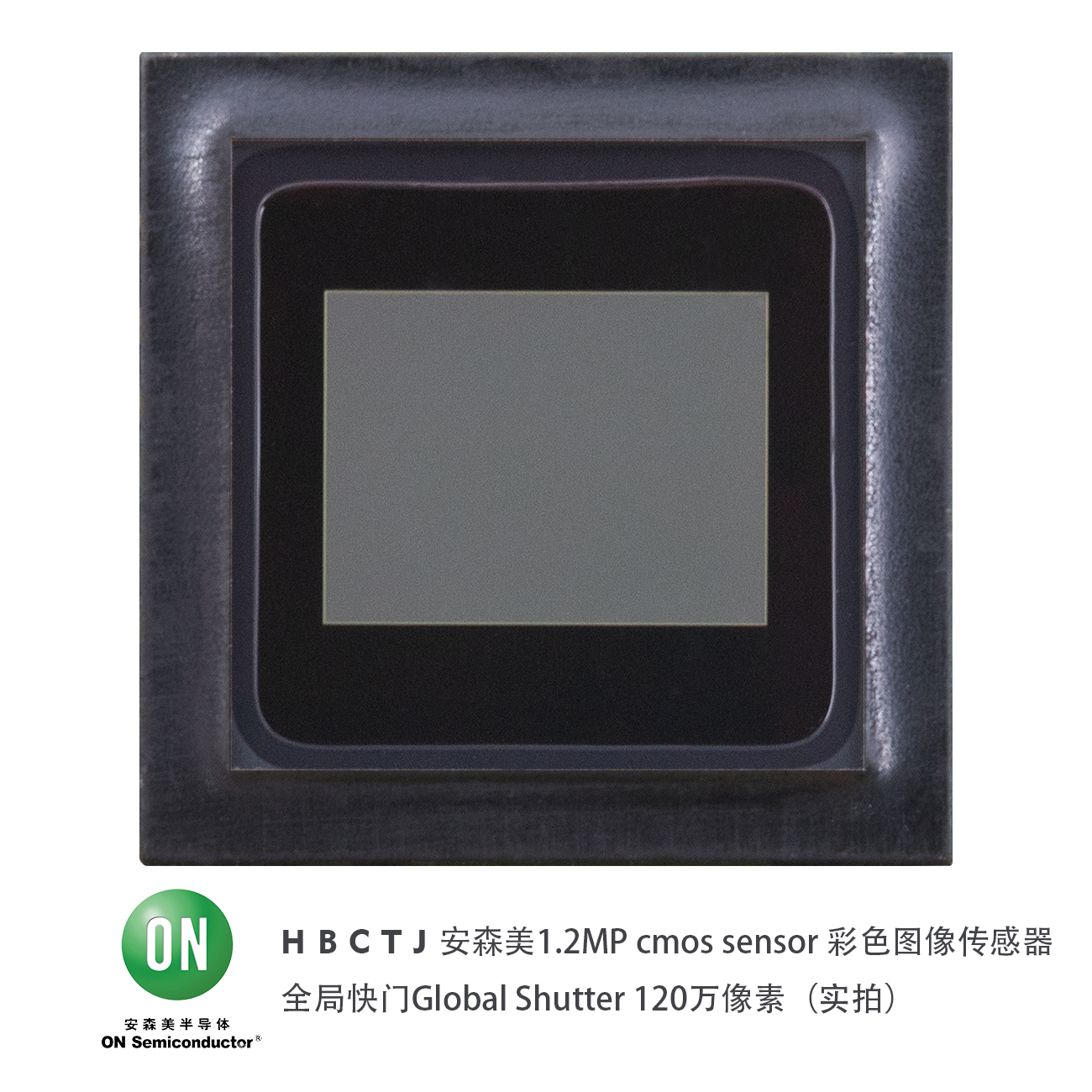

见下面三个图:彩色(COLOR,RGB):
  • The following 3 pictures are shown in color :

 Scanner dedicated image sensor
0°汽车图像传感器
高帧率54fps
