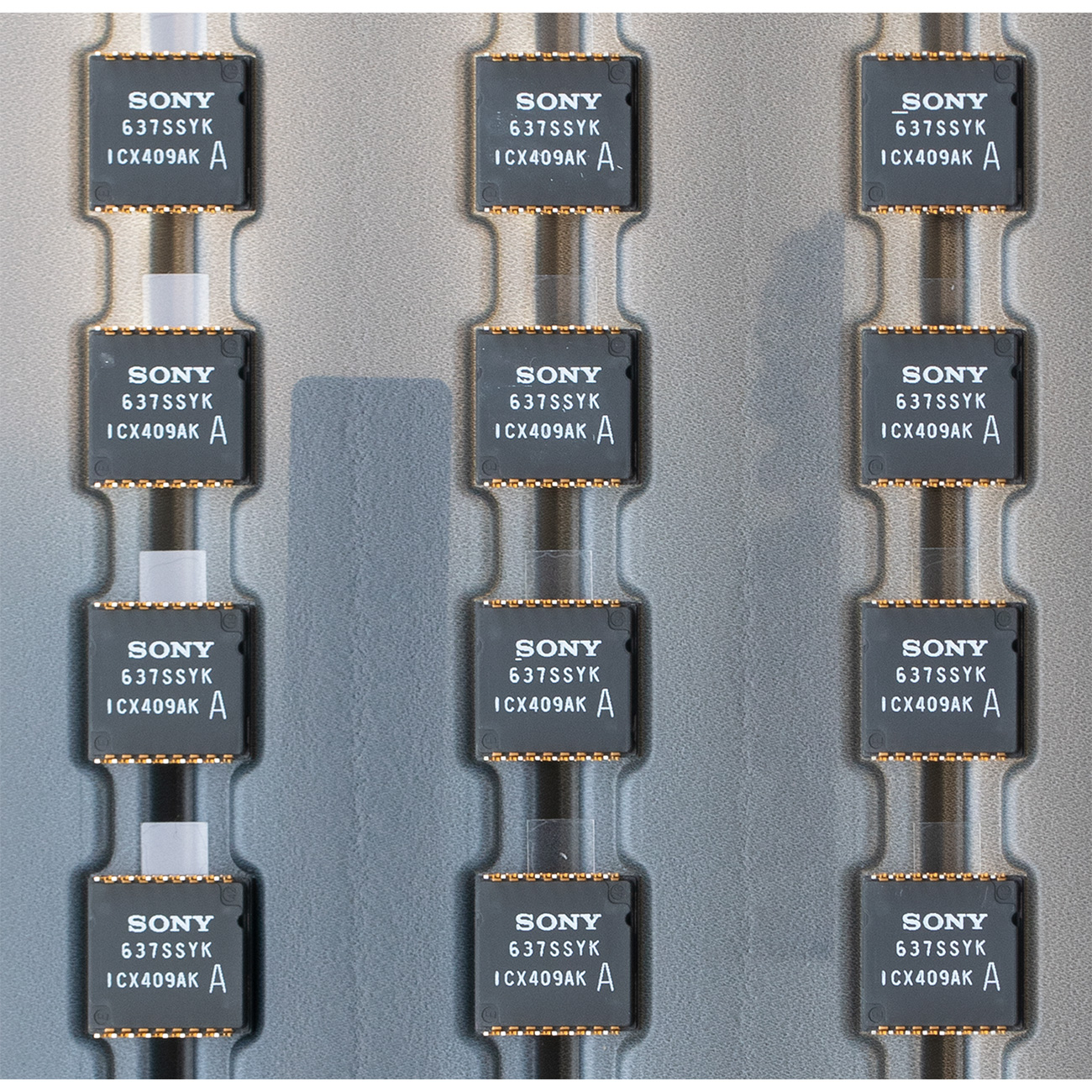

ICX409AK SONY索尼Diagonal 6mm (Type 1/3) CCD Image Sensor for PAL Color Video Cameras案防监控摄像机CCD图像传感器,security camera CCD senor
2022-08-17 16:34:25
点击购买
ICX409AK，SONY CCD，索尼CCD传感器，索尼监控摄像机感光，SONY安防CCD芯片，索尼图像传感器经销商，索尼高解析CCD SENSOR, SONY IMAGE SENSOR, sony 1/3-inch CCD,PAL制CCD,security camera CCD sensor
Description
The ICX409AK is an interline CCD solid-state image sensor suitable for PAL color video cameras with a diagonal 6mm (Type 1/3) system. Compared with the conventional product ICX059CK, basic characteristics such as sensitivity, smear, dynamic range and S/N are improved drastically.
This chip features a field period readout system and an electronic shutter with variable charge-storage time.
This chip is suitable for applications such as surveillance cameras, automotive cameras, etc.
Features
● High sensitivity (+6dB compared with the ICX059CK)
● Low smear (–15dB compared with the ICX059CK)
● High D range (+5dB compared with the ICX059CK)
● High S/N
● High resolution and low dark current
● Excellent antiblooming characteristics
● Ye, Cy, Mg, and G complementary color mosaic filters on chip
● Continuous variable-speed shutter
● No voltage adjustment (Reset gate and substrate bias are not adjusted.)
● Reset gate: 5V drive
● Horizontal register: 5V drive
● Package: DIP16
Device Structure
● Interline CCD image sensor
● Image size: Diagonal 6mm (Type 1/3)
● Number of effective pixels: 752 (H) × 582 (V) approx. 440K pixels
● Total number of pixels: 795 (H) × 596 (V) approx. 470K pixels
● Chip size: 5.59mm (H) × 4.68mm (V)
● Unit cell size: 6.50μm (H) × 6.25μm (V)
● Optical black: Horizontal (H) direction : Front 3 pixels, rear 40 pixels
Vertical (V) direction : Front 12 pixels, rear 2 pixels
● Number of dummy bits: Horizontal 22
Vertical 1 (even fields only)
● Substrate material: Silicon
CX409AK 对角线6mm(1/3型)CCD图像传感器，用于PAL彩色摄像机
描述
ICX409AK是一种线间CCD固态图像传感器，适用于对角线6mm(1/3型)PAL彩色摄像机。与传统产品ICX059CK相比，灵敏度、涂片、动态范围、信噪比等基本特性均有较大提高。
该芯片具有现场周期读出系统和可变充电存储时间的电子快门。
该芯片适用于监控摄像头、汽车摄像头等应用。
特性
● 高灵敏度(与ICX059CK相比+6dB)
● 低涂片(与ICX059CK相比-15dB)
● 高D范围(与ICX059CK相比+5dB)
● 高信噪比
● 分辨率高，暗电流低
● 优良的抗晕特性
● Ye, Cy, Mg, G芯片上的互补色马赛克滤镜
● 连续变速快门
● 无电压调整(复位门和衬底偏置不调整)
● 复位门:5V驱动
● 水平套筒:5V驱动
● 封装:DIP16
设备结构
● 线间CCD图像传感器
● 图像尺寸:对角线6mm(类型1/3)
● 有效像素数:752 (H) × 582 (V)约440 k像素
● 总像素数:795 (H) × 596 (V)约。470 k像素
● 芯片尺寸:5.59mm (H) × 4.68mm (V)
● 晶胞尺寸:6.50μm (H) × 6.25μm (V)
● 光学黑色:水平(H)方向:前3像素，后40像素
垂直(V)方向:前12像素，后2像素
● 虚位数:水平22位
垂直1(仅限偶数字段)
● 衬底材料:硅
有关ICX409AK的价格，datasheet download免费下载，简介，PDF文档下载，电路图，原理图，框架图，文档下载，原装现货，现货库存，芯片，图片，规格书下载，代理商，技术支持，产品介绍，参数，方案，分销，经销，官网，生产厂家，批量采购，模组，模块，特价，库存，哪里买，性价比，用途，封装厂，晶圆，代工，可咨询本公司
满2件全国包邮，如果你有货，可以卖给我，当我求购ICX409AK，你需要购买ICX409AK，可以找我买。

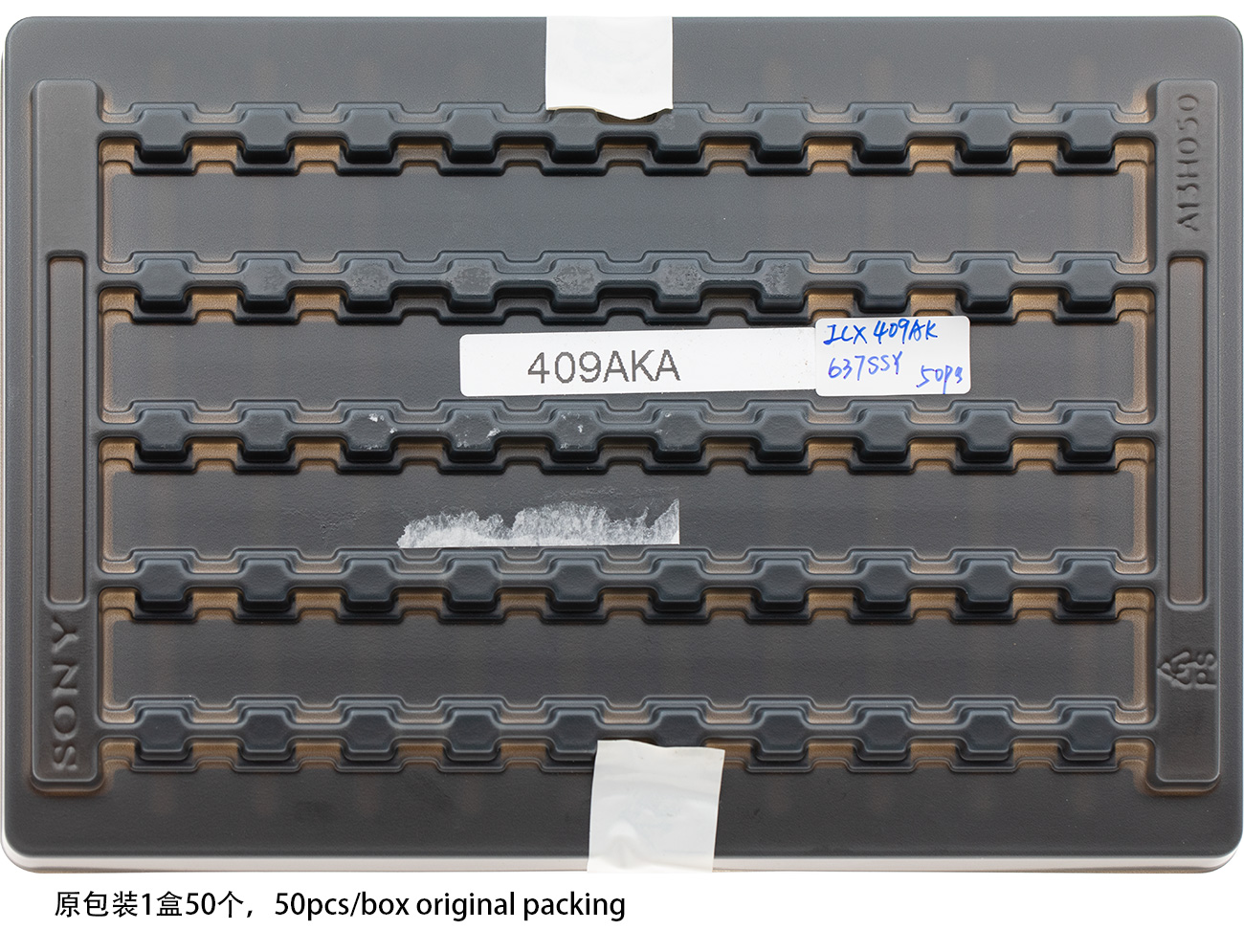

Freight is free when you buy 2 pieces in China, if you have ICX409AK inventory, you can sell to me, if you need buy ICX409AK, you can ask me to buy.
