VC0338中星微Vimicro USB2.0摄像头处理器超小型BGA88主控
2021-05-29 23:49:39
点击购买amazon

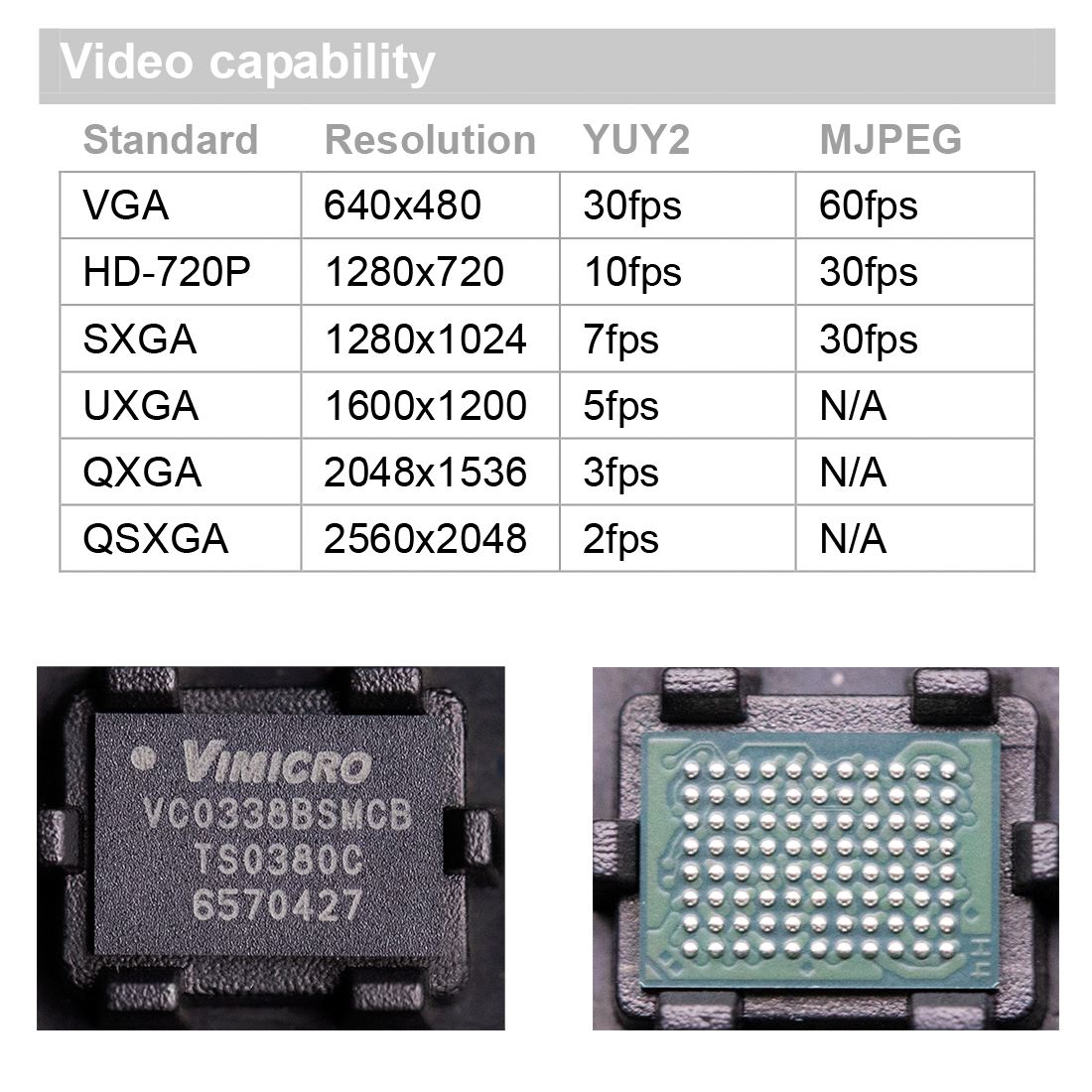

VC0338BSMCB,中星微Vimicro, PC CAMERA摄像头处理器,超小型封装,BGA88,USB2.0主控IC
VC0338BSMCB,中星微Vimicro, PC CAMERA摄像头处理器,超小型封装,BGA88,USB2.0主控IC
Vimicro VC0338 USB 2.0摄像头处理器

VC0338是一款高性能的USB 2.0摄像头处理器,针对高质量标准的单独PC摄像头。它配备了高质量的图像信号处理(ISP)单元和一个MJPEG压缩引擎。其灵活的传感器接口可以支持大多数常见的CMOS图像传感器在市场上。它也完全符合UVC和UAC标准。

关键特性
标准
内置USB2.0 HS & FS收发器,支持ISO ISO IN pipe视频流,兼容USB视频类1.1,兼容USB音频类1.0

单片机
内置8051微控制器
内置64KB OTP ROM用于程序代码
内置6KB RAM用于程序数据
支持DFU的外部闪存
支持EEPROM设置和代码

传感器接口
支持CMOS图像传感器
支持RAW / YUV输出传感器
支持10位并行接口
可编程传感器时钟输出
支持I2C传感器配置

ISP / IPP
支持10位ISP
支持AE / AWB /房颤
γ/亮度调整
对比/锐度调整
边缘增强
背光补偿
镜头阴影补偿
推进DPD&DPC
噪声管理

音频功能
内置PDM接口,用于数字MIC
支持最多2个数字麦克风
内置I2S接口的编解码器芯片
支持1个麦克风和1个扬声器
降低量化噪声

I / O
USB 2.0高速(设备)
GPIO / PWM / I2C / UART/ PDM

封装信息
零件号:VC0338BSMCB
封装类型:BGA 88pin
尺寸:7 x5x0.7mm

有关价格,datasheet,简介,文档下载,原装现货,现货库存,芯片,图片,规格书,代理商,技术支持,产品介绍,参数,方案商,分销商,经销商,官网,生产厂家,专卖店,高价收购,模组,模块,特价,库存,生产商,哪里买,性价比,用途,封装厂家等信息,均可咨询我。


Vimicro VC0338 USB2.0 Camera Processor
VC0338 is a high performance USB 2.0 camera processor targeting for high quality standard alone PC Camera. It comes with high quality Image Signal Processing (ISP) unit and a MJPEG compression engine. Its flexible sensor interface can support most common CMOS image sensors in the market. It is also fully compliant with UVC and UAC standard.

KEY FEATURES
Standards
Built in USB2.0 H S & F S transceiver Support ISO IN pipe for video streaming Compliant with USB Video Class 1.1 Compliant with USB Audio Class 1.0

MCU
Built in 80 51 micro controller
Built in 64KB OTP ROM for program code
Built in 6 KB RAM for program data
Support external flash memory for DFU
Support EEPROM for setting and code

Sensor Interface
Support CMOS Image Sensors
Support sensors with RAW / YUV output
Support 10bit parallel interface
Programmable sensor clock output
Support I2C for sensor configuration

ISP / IPP
Support 10bit ISP
Support AE/AWB/AF
Gamma /Brightness adjustment
Contrast/Sharpness adjustment
Edge Enhancement
Backlight compensation
Lens Shading Compensation
Advance DPD&DPC
Noise management

Audio capability
Built in PDM interface for digital MIC
Support up to 2 digital mic rophones
Built in I2S interface for codec chip
Support 1 microphone & 1 speaker
Quantization noise reduction

I/O
USB 2.0 High Speed (Device)
GPIO/ PWM /I2C /UART /PDM

Package Information
Part Number: VC0338BSMCB
Package Type: BGA 88pins
Size : 7x5x0.7mm
