ZR36470 ZORAN COACH 9M数码相机视频解决方案数字信号处理器(DSP) digital signal processing IC, SUPPORT UP TO 16MP,支持WMV MPEG-4、30帧/秒视频采集和回放 ,支持AVI,MOV
2021-07-22 02:00:08
点击购买/BUYamazon

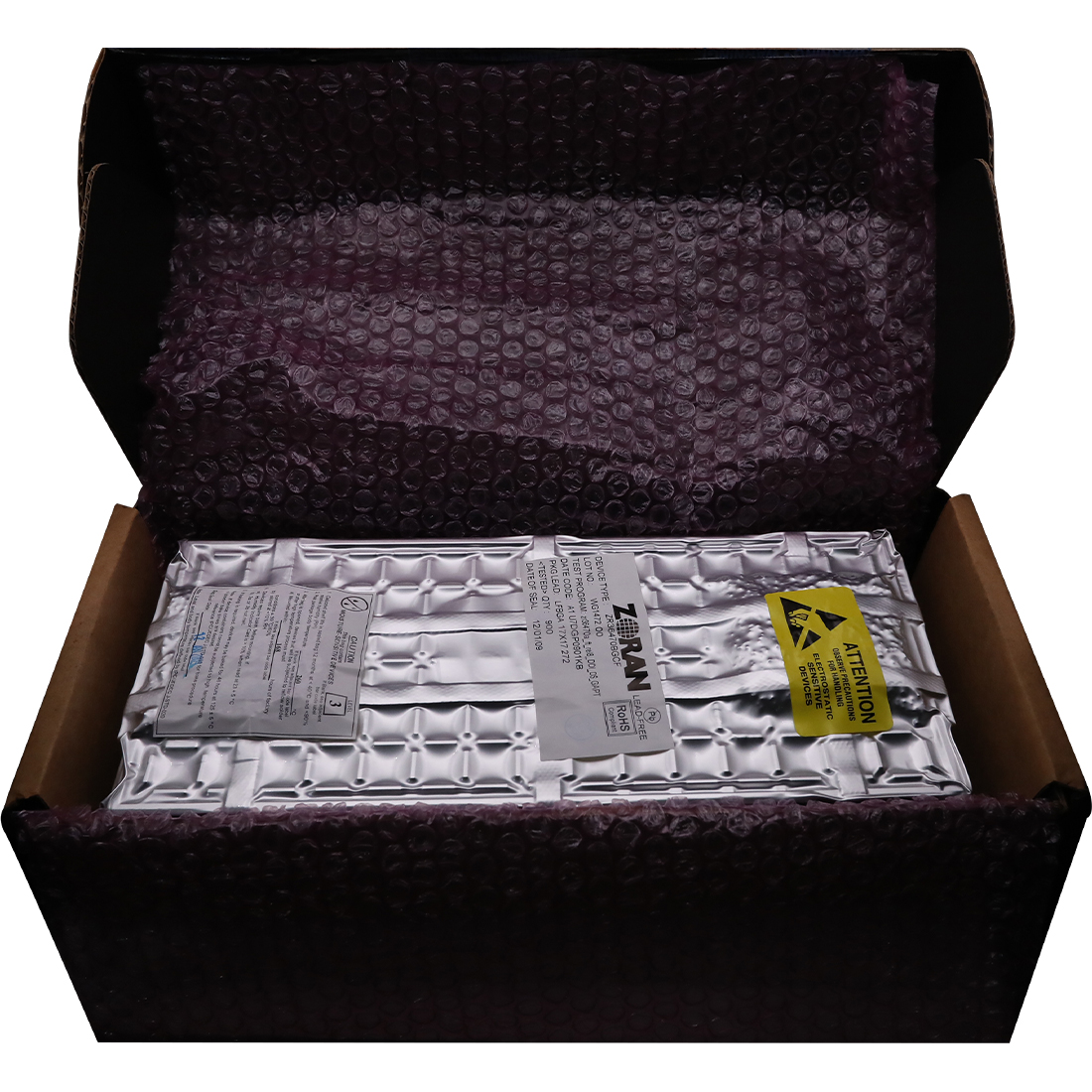

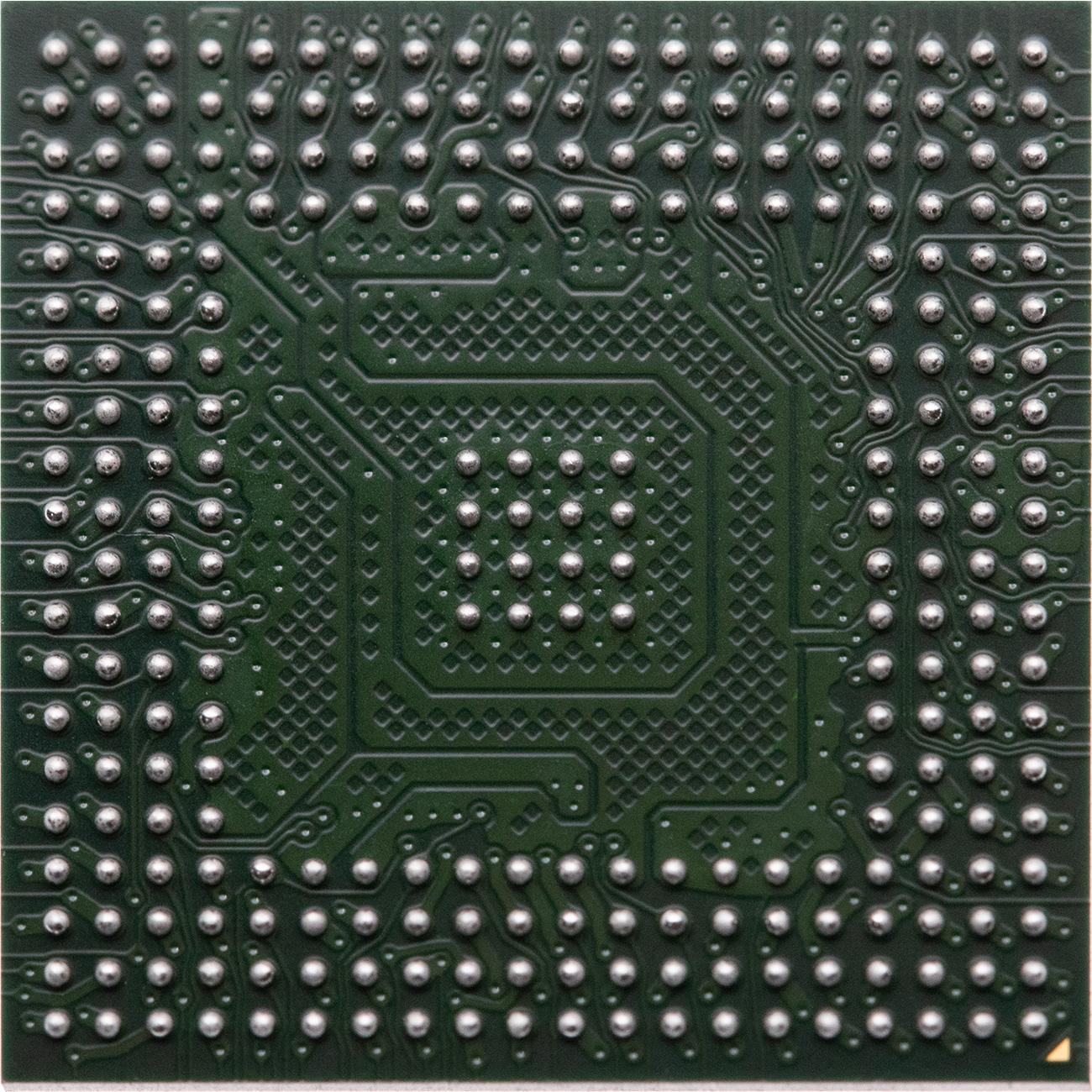

满2件全国包邮,图片都在最后

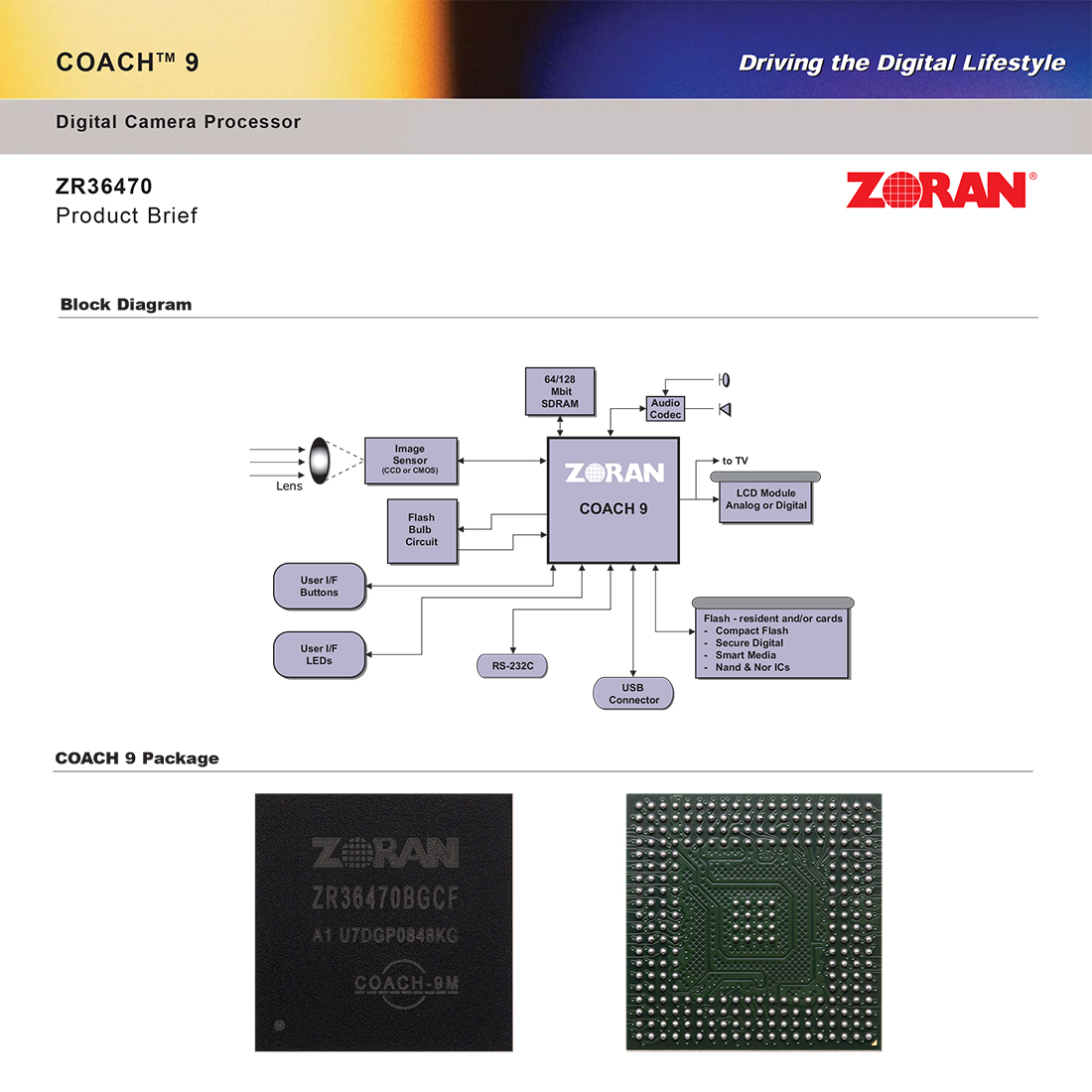

COACHTM 9 Digital Camera Processor Driving the Digital Lifestyle

ZR36470 Product Brief

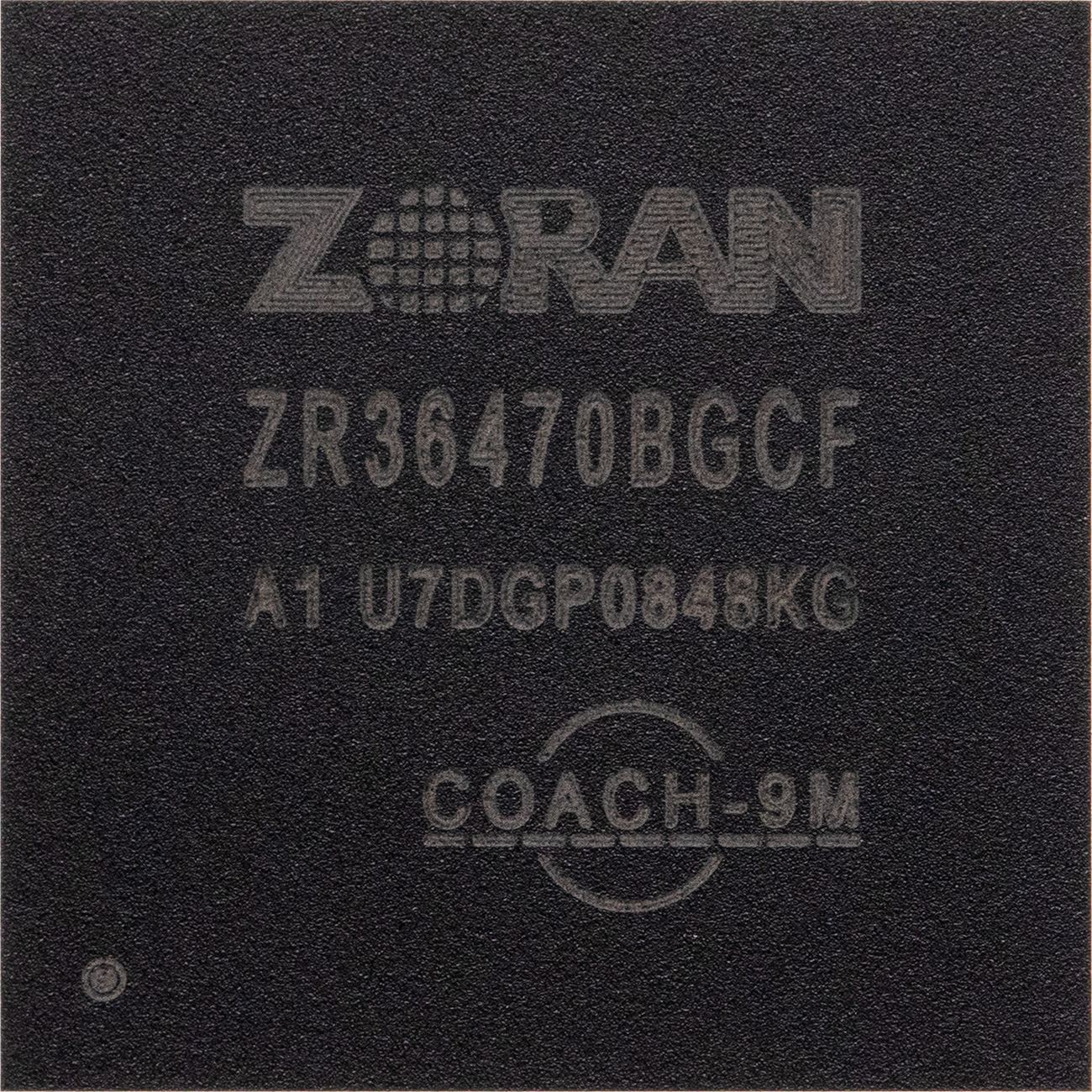

ZR36470BGCF, ZORAN COACH 9M,数码相机视频解决方案数字信号处理器,(DSP) digital signal processing IC, SUPPORT UP TO 16MP CAMERRA DSP
Description
COACH 9 is an application specific digital signal processing IC, which constitutes the heart of a digital camera for capturing still images and video. It provides a complete, integrated, low power and low cost solution for digital camera manufacturers. Coach 9 innovative features and integrations offer competitive performance and picture quality for digital cameras. The COACH 9 family enables platforms from entry-level to high end cameras including high quality digital video camcorders.

COACH 9 Family
※  COACH 9M (part # ZR36470BGCG) - Entry-mid range line, 12-bit color depth. Pin-to-pin compatible with COACH 7m and COACH 8m
※  COACH 9P (part # ZR36472BGCG) - Performance line,16-bit color depth, embedded timing generator & HDMI interface
※  COACH 9S (part # ZR36473BGCG) - Digital Still Capture line, with JPEG/Motion JPEG only
※  COACH 9MCM - Multichip package for space-saving boards for ultra-slim cameras

Feature List
※  Up to 16M Pixels image capture resolution
※  Click to click performance of 3 frames/sec at 7MP resolution
※  16-bit image processing for highest quality, includes multiple Zoran proprietary (patent pending) technologies.
※  Image enhancement and manipulation effects for better viewing and printing quality
※  Capable of WMV MPEG-4, video capture and playback of VGA resolution at 30 frames/sec including audio and 20 frames/sec at SVGA resolution
※  File formats including ASF, DivX, AVI and MOV can be supported
※  MPEG-4 encoding uses I, P and B frames for true video quality
※  Digital Video Motion Stabilization technology (patent pending) to compensate for unwanted camera movement during video capture
※  Capable of several Audio codecs including: WMA; Dolby Digital AAC; ADPCM; MPEG1
※  On-chip HDMI transmitter for native HD display support
※  Rich color on-screen display (OSD) with transparency levels
※  Picture-in-Picture with blending support in hardware
※  Direct output to TV monitor, on-chip encoder and video D/A
※  Digital video interface to LCD. Includes on-chip programmable controller for multiple LCD vendors
※  32-bit MIPS CPU provides ease of development and porting of SW applications
※  Direct interface to resident flash memory (NAND or NOR type) and/or removable memory card support (CompactFlash (CF), SmartMedia (SSFDC), Secure Digital (SD), MultiMediaCard (MMC), High Speed MMC (HSMMC) xD, Memory Stick, Memory Stick Pro (MS-Pro) and SDRAM storage
※  Direct interface to ATA-6 (or subset) hard disks.
※  16-bits data DDR-SDRAM interface supporting sizes of 64Mbit, 128Mbit, 256Mbit, 512Mbit and 1Gbit
※  On-chip High Speed USB 2.0 OTG interface
※  CCIR-601 input port for capturing from an external TV decoder.
※  Generic serial port for interfacing with peripheral HW units

Firmware Highlights
※  Embedded host control (HCE) software architecture enables customer creation of DSC applications with minimal effort
※  Backward compatibility with previous COACH software API set
※  Open firmware architecture for easy customer modification
※  All standard camera operation modes
※  Image playback allows up to 16x digital zoom, accelerated playback and image rotation
※  Advanced GUI support including rich OSD, bitmaps, picture in picture and more
※  Resizable, multicolor fonts
※  Optional audio annotation of pictures
※  Playback and recording of sound in AVI clips
※  Sound effects, including shutter effects
※  Dictaphone feature
※  Variety of protocols for USB interface supported including:
    - PC Video Capture mode, for capturing real time video (MJPEG compressed) to PC
    - WIA, Twain, and Twain 2 protocol for direct retrieving of images and live video
    - Bulk-Only Mass Storage, for representing camera as a PC drive. No drivers required for most operating systems
    - PTP
    - Pictbridge, for direct printing to all printers supporting Pictbridge interface

COACHTM 9数码相机处理器drriiviingthe digiittall liifeststyle

ZR36470产品简介
描述
COACH 9是一个特定于应用程序的数字信号处理IC,它构成了用于捕捉静止图像和视频的数码相机的核心。 它为数码相机制造商提供了一个完整、集成、低功耗、低成本的解决方案。 Coach 9的创新功能和集成为数码相机提供了具有竞争力的性能和图像质量。 COACH 9系列使平台从入门级到高端相机,包括高质量的数字视频摄像机。

COACH9家族
※  COACH 9M (part # ZR36470BGCF(G)) -入门级中档系列,12位色深。 针对针兼容COACH 7M和COACH 8M
※  COACH 9P (part # ZR36472BGCG) -性能线,16位颜色深度,嵌入式定时发生器和HDMI接口
※  COACH 9S (part # ZR36473BGCG) -数码静止捕捉线,仅支持JPEG/Motion JPEG
※  COACH 9MCM -多芯片封装,为超薄相机节省空间

特性列表
※  高达16M像素的图像采集分辨率
※  点击点击性能3帧/秒,7MP分辨率
※  高质量的16位图像处理,包括多种佐兰专有(专利申请中)技术。
※  图像增强和操作效果,以获得更好的观看和打印质量
※  支持WMV MPEG-4、30帧/秒VGA分辨率(包括音频)和20帧/秒SVGA分辨率的视频采集和回放
※  支持ASF、DivX、AVI、MOV等文件格式
※  MPEG-4编码使用I, P和B帧来实现真正的视频质量
※  数字视频运动稳定技术(专利申请中),以补偿在视频捕获期间不必要的摄像机运动
※  支持多种音频编解码器,包括:WMA; 杜比数字AAC格式; ADPCM; MPEG1
※  片上HDMI发射器,支持原生高清显示
※  丰富的彩色屏幕显示(OSD),具有透明度级别
※  图中图,硬件支持混合
※  直接输出到电视显示器,片上编码器和视频D/A
※  数字视频接口到LCD。 包括用于多个LCD厂商的片上可编程控制器
※  32位MIPS CPU为软件应用的开发和移植提供了便利
※  直接接口到居民闪存(NAND或NOR类型)和/或可移动存储卡支持(CompactFlash (CF), SmartMedia (SSFDC),安全数字(SD), MultiMediaCard (MMC),高速MMC (HSMMC) xD,记忆棒,记忆棒Pro (MS-Pro)和SDRAM存储
※  直接连接ATA-6(或子集)硬盘。
※  16位数据DDR-SDRAM接口,支持64Mbit、128Mbit、256Mbit、512Mbit和1Gbit大小
※  片上高速USB 2.0 OTG接口
※  CCIR-601输入端口,用于从外部电视解码器捕获。
※  通用串口,用于与外围硬件设备接口

固件
※  嵌入式主机控制(HCE)软件架构使客户以最少的努力创建DSC应用程序
※  向后兼容以前的COACH软件API集
※  开放的固件架构,便于客户修改
※  所有标准的相机操作模式
※  图像回放支持16倍数码变焦、加速回放和图像旋转
※  高级GUI支持,包括丰富的OSD,位图,图中图等
※  可调整大小,多色字体
※  可选图片音频注释
※  播放和录制声音的AVI剪辑
※  音效,包括快门效果
※  录音机功能、
※  支持多种USB接口协议,包括:
    - PC视频捕获模式,用于捕获实时视频(MJPEG压缩)到PC
    - WIA, Twain和Twain 2协议,用于直接检索图像和实时视频
    - Bulk-Only大容量存储,用于表示相机为PC驱动器。 大多数操作系统不需要驱动程序
    - PTP
    - Pictbridge,用于直接打印到所有支持Pictbridge接口的打印机
