MT9V139C12STC,ASX340CS2C00SPED0-DRBR,1/4-Inch Color NTSC/PAL Digital Image SOC with Overlay Processor,7x7mm,VGA CMOS sensor监控摄像机图像传感器
2021-10-15 12:26:32
点击购买amazon


ASX340CS2C00SPED0-DRBR,MT9V139C12STC, ASX340,1/4-Inch Color NTSC/PAL, Digital Image SOC, Overlay Processor,VGA CMOS sensor,监控摄像机图像传感器,Aptina cmos sensor专业供应商,ONSEMI cmos sensorASX340CS2C00SPED0-DRBR
MT9V139C12STC


MT9V139C12STC, ASX340CS2C00SPED0-DRBR Features

● Low-power image sensor with integrated image flow processor (IFP) and video encoder
● 1/4-inch optical format, VGA resolution (640H x 480V)
● 2x upscaling zoom and pan control
● ±40 additional columns and ±36 additional rows to compensate for lens alignment tolerances
● Option to use single 2.8V power supply with off-chip bypass transistor
● Overlay generator for dynamic bitmap overlay
● Integrated video encoder for NTSC/PAL with overlay capability and 10-bit I-DAC
● Integrated microcontroller for flexibility
● On-chip image flow processor performs sophisticated processing, such as color recovery and correction, sharpening, gamma, lens shading correction, on-the-fly defect correction, auto white balancing, and auto exposure
● Auto black level calibration
● 10-bit, on-chip analog-to-digital converter (ADC)
● Internal master clock generated by on-chip phase-locked loop (PLL)
● Two-wire serial programming interface
● Interface to low-cost EEPROM and Flash through SPI bus
● High-level host command interface
● Stand-alone operation support
● Comprehensive tool support for overlay generation and lens correction setup
● Development system with DevWare
ASX340
1/4-Inch Color NTSC/PAL
Digital Image SOC
Applications
● Analog surveillance CCTV
● Surveillance network IP camera

General Description
The Aptina ASX340/MT9V139 is a VGA-format, single-chip  active-pixel digital image sensor for surveillance applications. It captures high-quality color images at VGA resolu-tion and outputs NTSC or PAL interlaced composite video.

The VGA image sensor features Aptina's breakthrough low-noise imaging technology that achieves superior image quality (based on signal-to-noise ratio and low-light sensi-tivity) while maintaining the inherent size, cost, low power, and integration advantages of Aptina's advanced active pixel  process technology.

The ASX340/MT9V139 is a complete camera-on-a-chip. It incorporates sophisticated camera functions on-chip and is programmable through a simple two-wire serial inter-face or by an attached SPI EEPROM or Flash memory that contains setup information  that may be loaded automatically at startup.

The ASX340/MT9V139 performs sophisticated processing functions including color recovery, color correction, sharpening, programmable gamma correction, auto black reference clamping, auto exposure, 50Hz/60Hz flicker detection and avoidance, lens shading correction, auto white balance (AWB), and on-the-fly defect identification and correction.

The ASX340/MT9V139 outputs interlaced-scan images at 60 or 50 Fields per Second, supporting both NTSC and PAL video formats. The image data can be output on one or two output ports:
- Composite analog video (single-ended and differential output support)
- Parallel 8-10-bit digital.
Overlay Processor
VGA CMOS sensor
监控摄像机图像传感器
特性
● 低功耗图像传感器,集成图像流处理器(IFP)和视频编码器
● 1/4英寸光学格式,VGA分辨率(640H x 480V)
● 2倍缩放缩放和平移控制
● ±40额外列和±36额外行,以补偿镜头对准公差
● 可选择单路2.8V电源,片外旁路晶体管
● 覆盖生成器的动态位图覆盖
● 集成视频编码器NTSC/PAL覆盖能力和10位I-DAC
● 集成微控制器,灵活性强
● 片上图像流处理器执行复杂的处理,如颜色恢复和校正,锐化,伽马,镜头阴影校正、实时缺陷校正、自动白平衡和自动曝光
● 自动黑电平校准
● 10位片上模数转换器(ADC)
● 片上锁相环产生的内部主时钟
● 两线串行编程接口
● 通过SPI总线接口到低成本的EEPROM和Flash
● 高级主机命令界面
● 单机操作支持
● 全面的工具支持覆盖生成和镜头校正设置
● DevWare开发系统
Aptina cmos sensor专业代理供应商
应用
● 模拟监控闭路电视
● 监控网络IP摄像头
一般的描述

Aptina ASX340/MT9V139是一种vga格式的单片有源像素数字图像传感器,用于监控应用。它捕获高质量的彩色图像VGA分辨率和输出NTSC或PAL交错复合视频。

VGA图像传感器采用了Aptina突破性的低噪声成像技术,实现了卓越的图像质量(基于信噪比和低光敏度),同时保持了Aptina先进的主动像素处理技术的固有尺寸、成本、低功耗和集成优势。

ASX340/MT9V139是一个完整的摄像头芯片。它集成了复杂的芯片上的相机功能,并通过一个简单的两线串行接口或附加的SPI EEPROM或Flash存储器可编程,其中包含设置信息可能会在启动时自动加载。

ASX340/MT9V139执行复杂的处理功能,包括颜色恢复,颜色校正,锐化,可编程伽玛校正,自动黑色参考夹紧,自动曝光,50Hz/60Hz闪烁检测和避免,镜头
阴影校正,自动白平衡(AWB),以及实时缺陷识别和校正。

ASX340/MT9V139以每秒60或50 Fields的速度输出交错扫描图像,支持NTSC和PAL视频格式。图像数据可以在一个或两个输出端口上输出:
- 复合模拟视频(单端和差分输出支持)
- 并行8-10位数字。
ONSEMI cmos sensor专业代理供货商


有关ASX340/MT9V139C12STC的价格,datasheet,简介,电路图,原理图,框架图,文档下载,原装现货,现货库存,芯片,图片,规格书,代理商,技术支持,产品介绍,参数,方案商,分销商,经销商,官网,生产厂家,专卖店,高价收购,模组,模块,特价,库存,生产商,哪里买,性价比,用途,封装厂,晶圆厂,代工厂,可咨询本公司

点击上面链接可下载datasheet PDF,Click the link to download the datasheet PDF

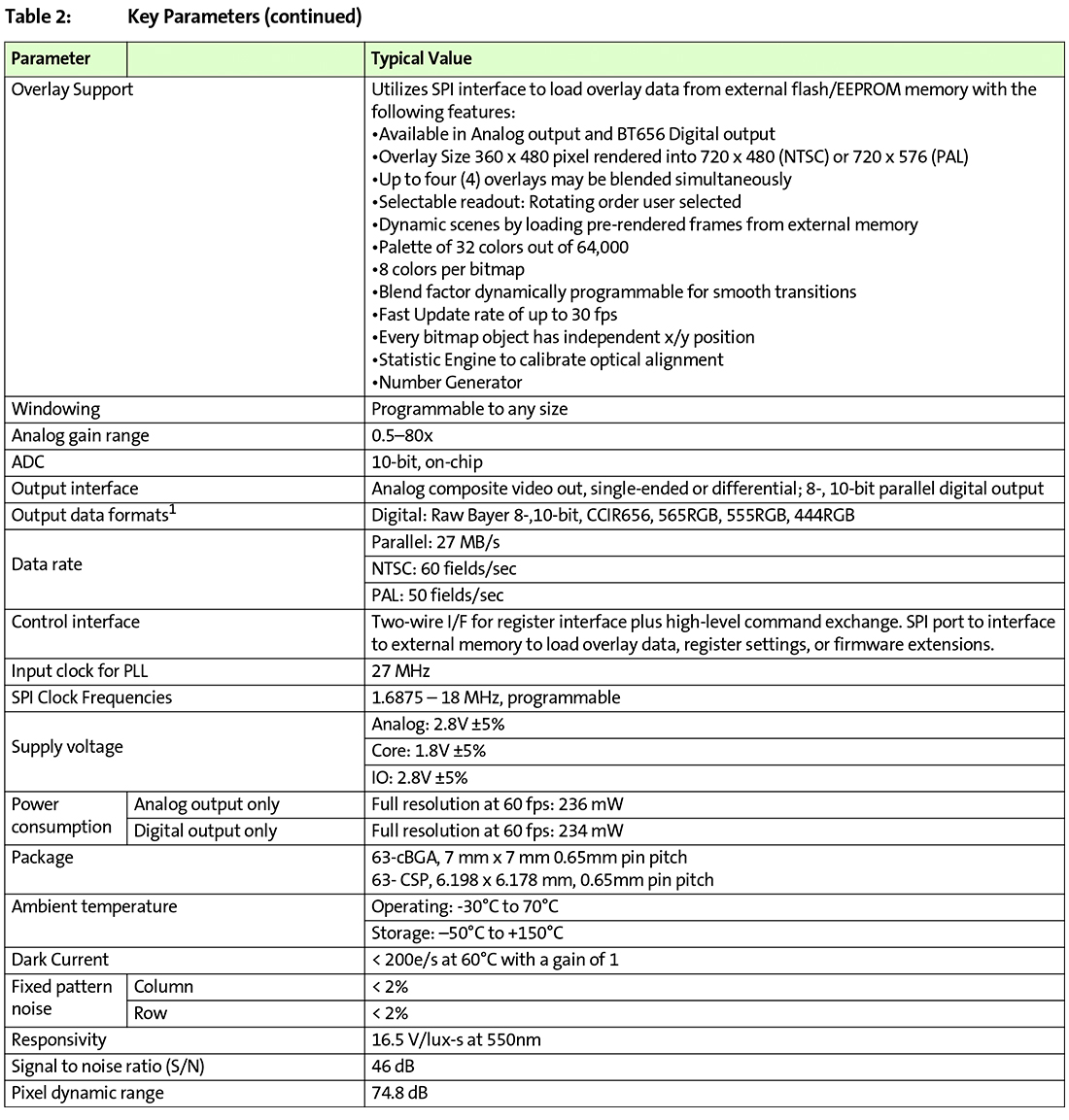

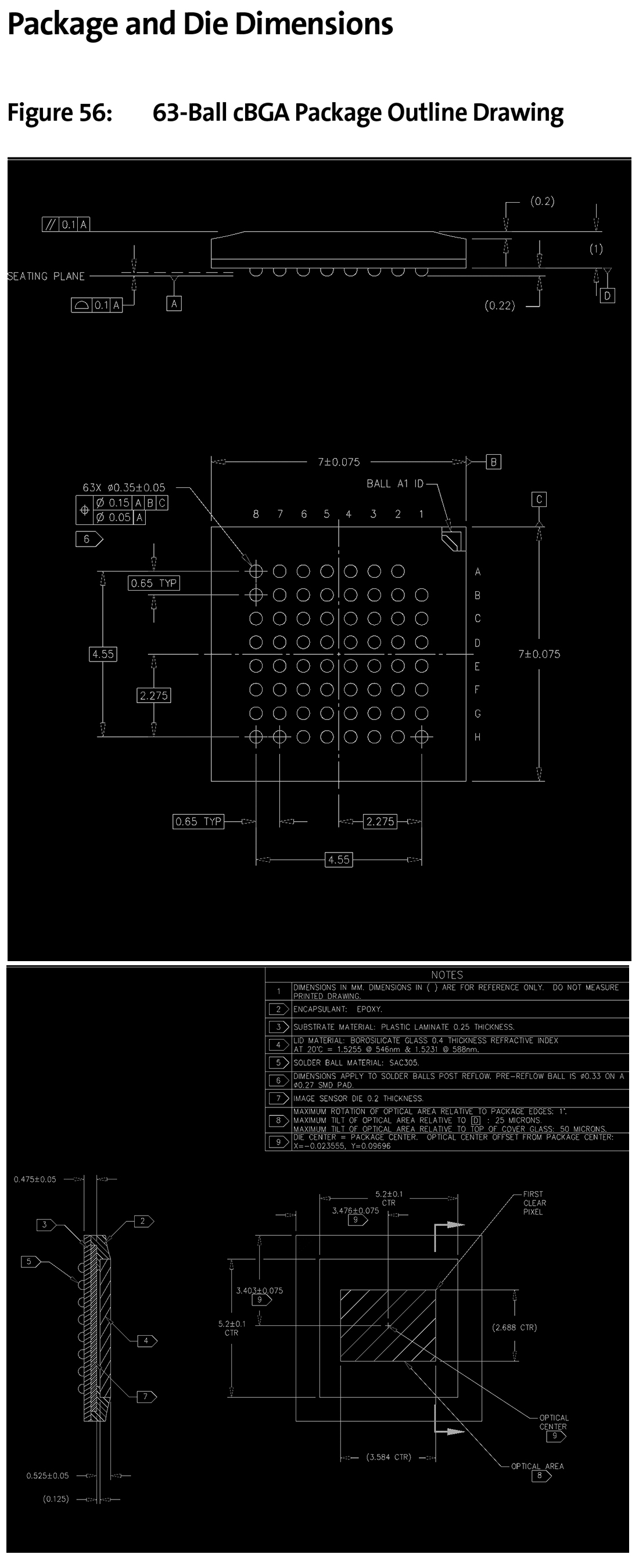

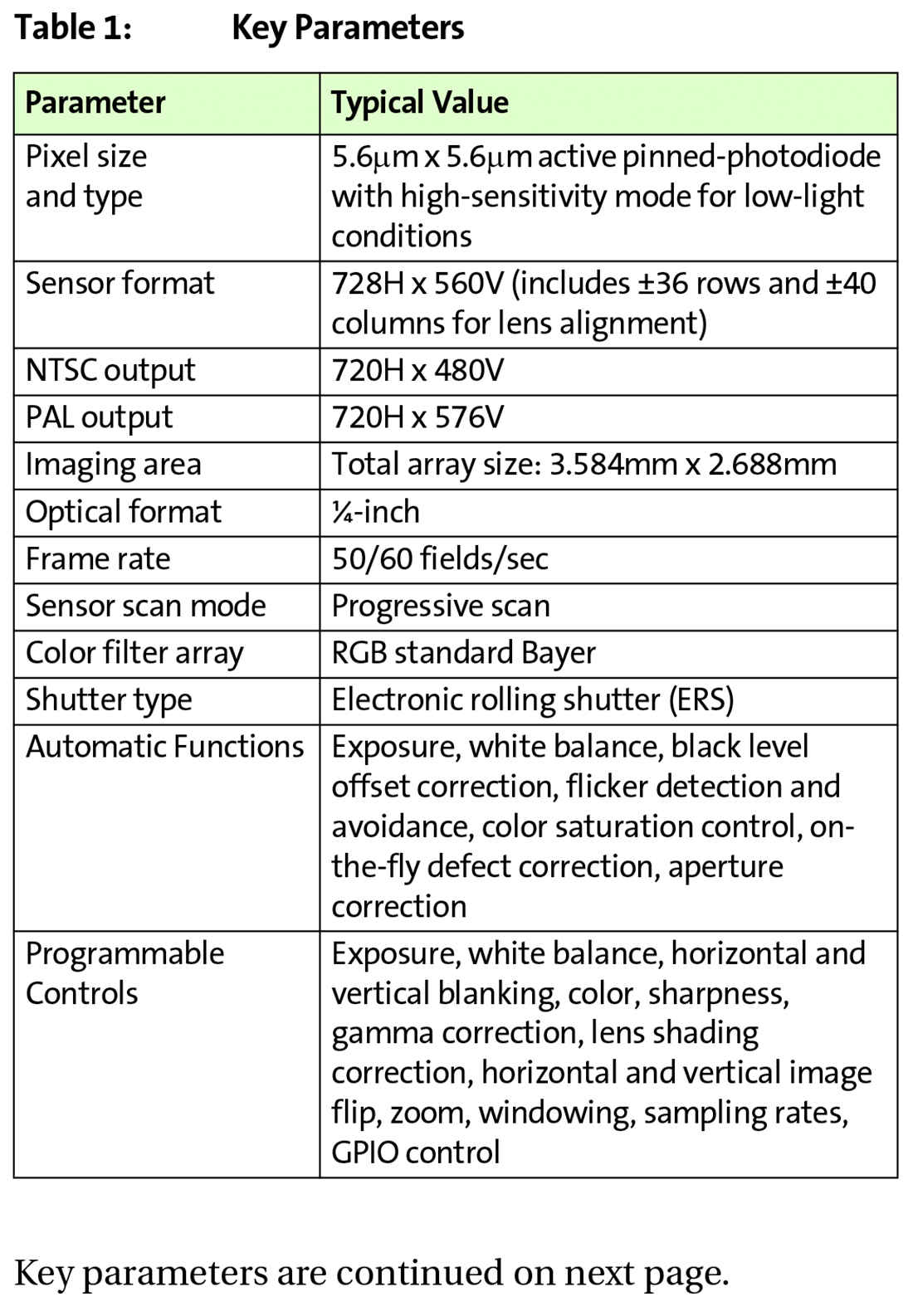

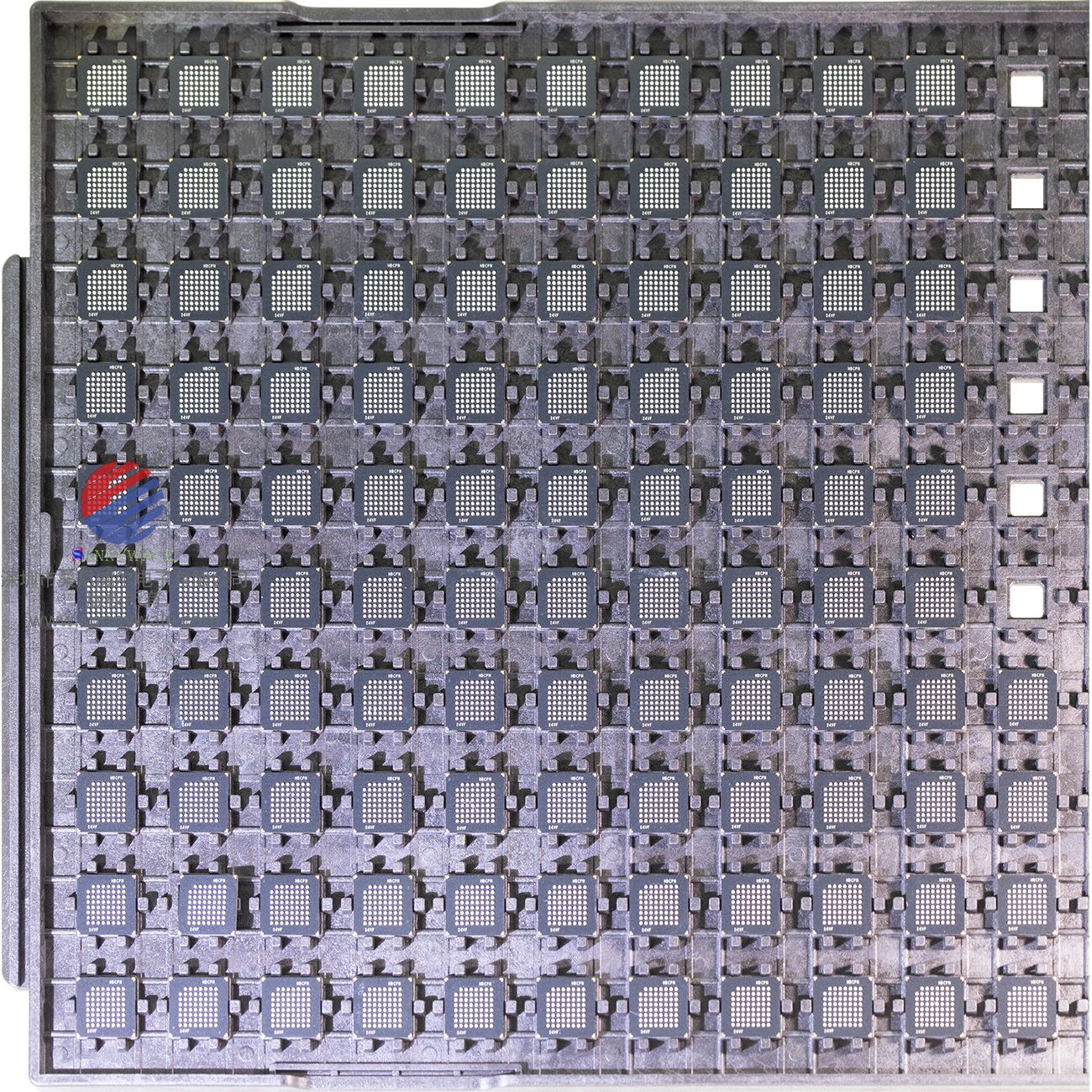

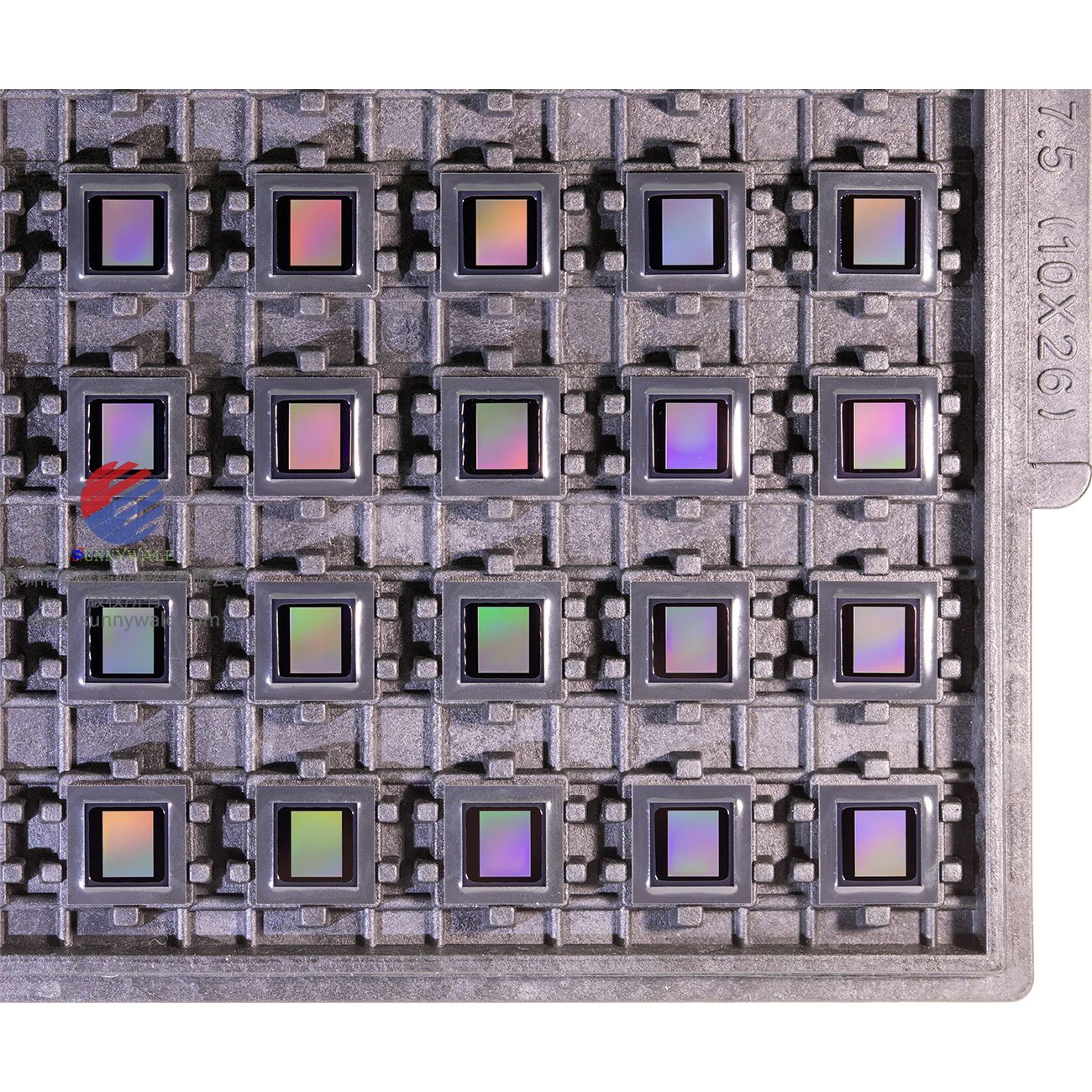

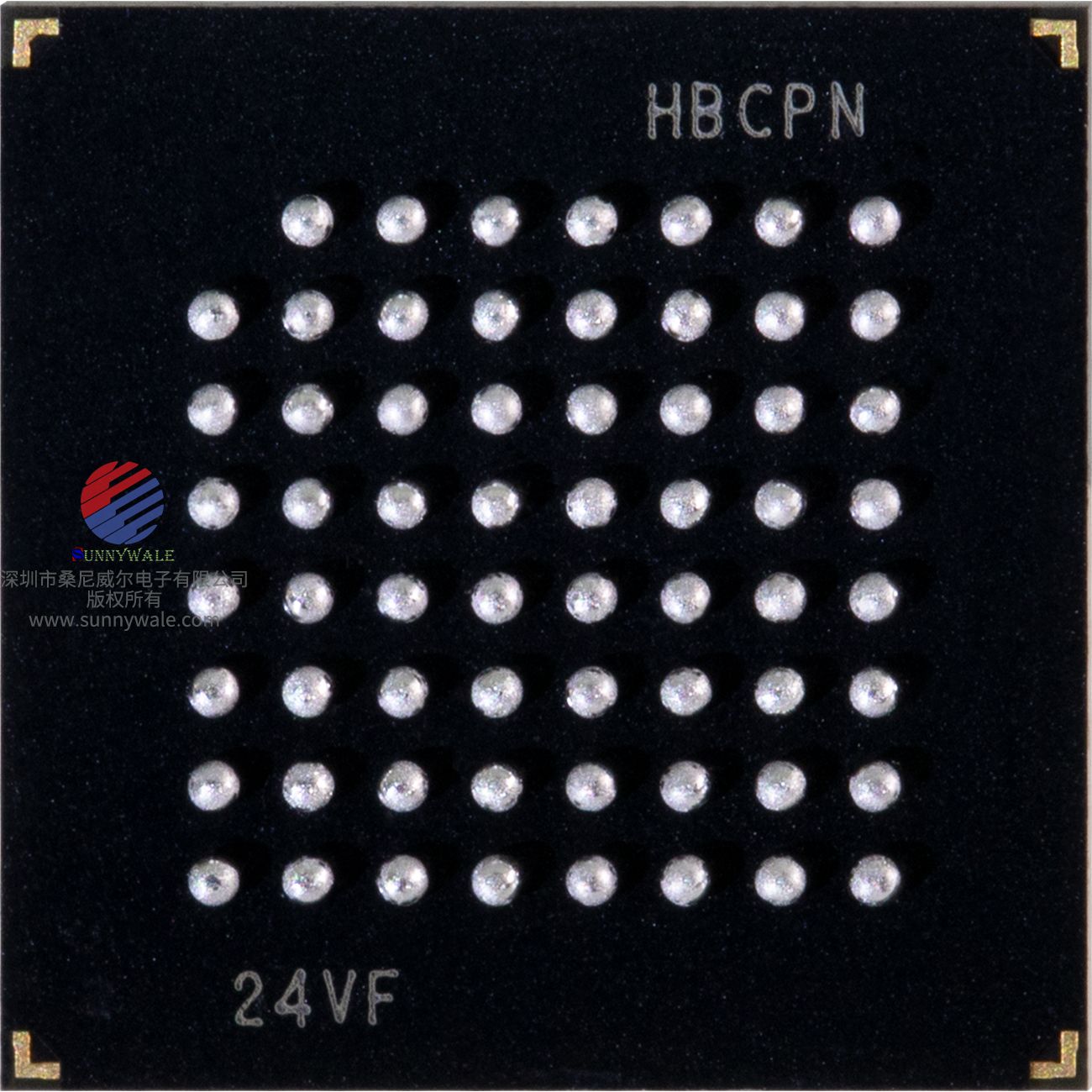

以上所有图片均为实物拍摄后抠图后即上线展示,所见即所得。

有关ASX340CS2C00SPED0/MT9V139C12STC的价格,datasheet download免费下载,简介,PDF文档下载,电路图,原理图,框架图,文档下载,原装现货,现货库存,芯片,图片,规格书下载,代理商,技术支持,产品介绍,参数,方案,分销,经销,官网,生产厂家,批量采购,模组,模块,特价,库存,哪里买,性价比,用途,封装厂,晶圆,代工,可咨询本公司

点击或者复制上面链接到浏览器打开,ASX340CS2C00SPED0/MT9V139C12STC datasheet PDF file可免费下载

或者直接访问本公司官网:sunnywale.com,搜索关键词"ASX340/MT9V139",即可查看。

如果想要了解此同类产品国产更便宜的性能相当的MT9V139/ASX340,车规的ASX342ATSC00XPED0或请点击相关链接,或访问本公司官网:sunnywale.com,搜索关键词“MT9V139/ASX340,ASX342”,即可展现更多详情。
