A12A55安霸Ambarella行车记录仪、航拍运动相机主控芯片2560x1440p@60fps主控芯片,集成系统芯片SoC平台用于单通道和多通道汽车摄像机,H.264视频压缩解决方案
2020-08-03 19:40:56
点击购买/BUYamazon

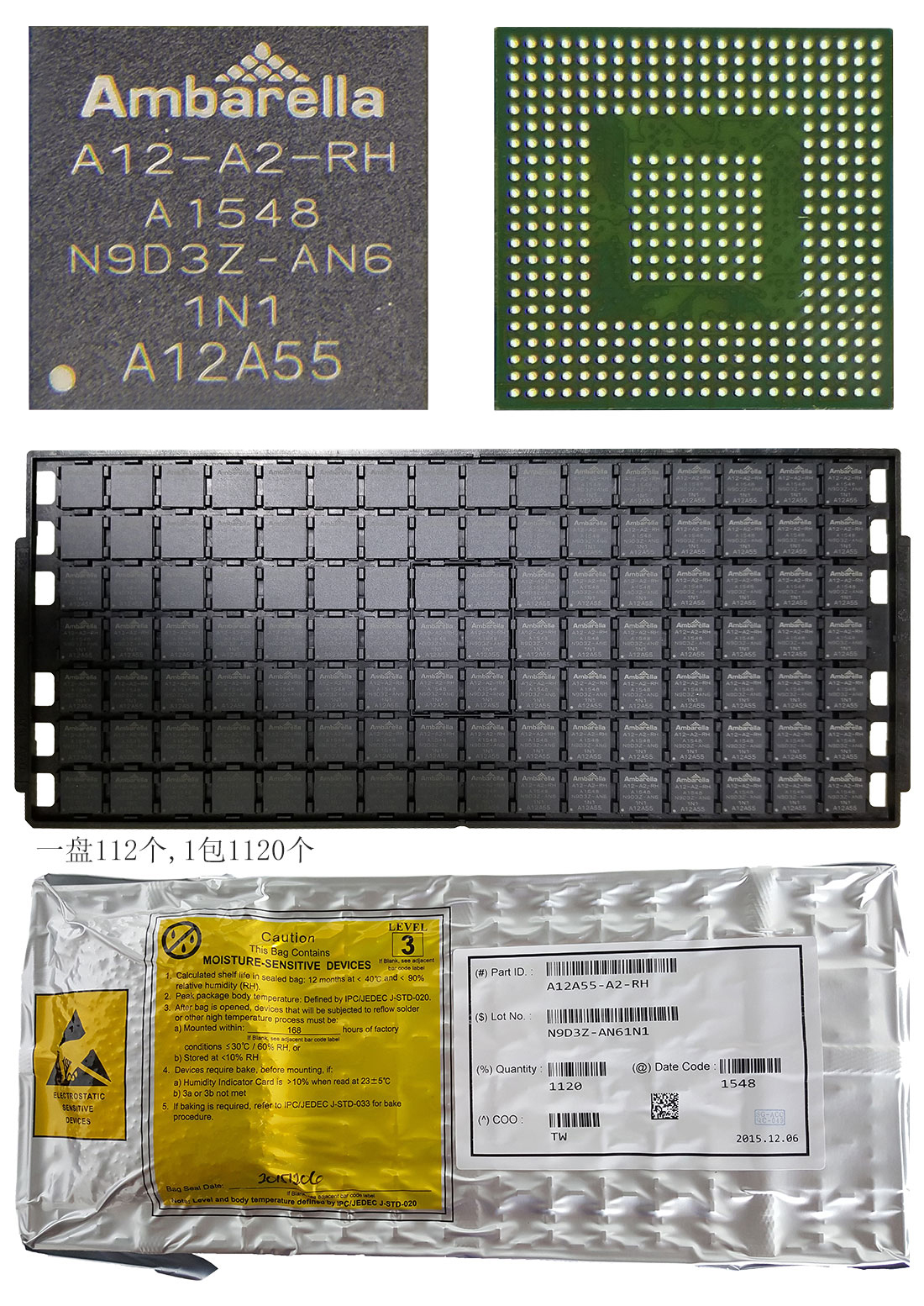

(高清实物大图在后面,High definition real object big picture at the end)
安霸A12A55-A2-RH行运动相机行车记录仪主控DSP编码器ISP芯片IC

概要描述内容
A12A55是一个集成系统芯片(Soc)平台用于单通道和多通道汽车摄像机解决方案。

A12A55芯片提供792-Mhz ARM Cortex-A9一种先进的数字信号处理系统(DSP)子系统具有一个6400万像素的图像传感器管道(ISP)和高清(HD) H.264编解码引擎。

关键特性
•嵌入式aRM cortex-a9 792 Mhz CPU Mhz
•提高4.8亿像素/秒的处理速度。64万像素的最大分辨率
•鱼眼镜头变形和桶形失真修正
•高级运动补偿锐化
•高级动态范围(WDR和HDR)引擎
•H.264 BP/MP/HP水平5.1和MJPEG编解码器
•编码性能可达4Mp30(单通道配置)或2Mp30+2Mp30(双通道配置)
•具有多个串行输入模式的两个输入通道
•114通用输入/输出(GPIO)短高度引脚
•404引脚TFBGA封装(15毫米x 15毫米)
•28nm CMOS低功耗(LP)技术


简介:
A12A55是一个集成系统芯片(SoC)平台,用于单通道和多通道汽车摄像机解决方案。A12A55芯片提供了一个单核Cortex-A9 ARM CPU和一个先进的数字信号处理(DSP)子系统,以及一个6400万像素图像传感器管道(ISP)和一个高清(HD) H.264编解码引擎。


Ambarella A12Axx部件编号列表中有5个等级,由低到高依次为:
A12A20-A2-RH,
A12A25-A2-RH,
A12A35-A2-RH,
A12A55-A2-RH,
A12A75-A2-RH。
A12可以支持高达1440P每秒30帧,或1296P或1080P。此外,Ambarella A12
具有预警、轨道偏差预警、停车监控、HDR高动态技术、四路高清等功能。

SUMMARY DESCRIPTIONT
he a12a55 is an integrated system-on-a-chip (Soc) platform for single- and multi-channel automotive video camera solutions.+a12a55 chips provide a 792-Mhz ARM cortex-a9.cPU and an advanced digitalsignal processing.(DSP) subsystem with apixel image sensor.pipeline (ISP) and a high-dinition (HD) H.264.codec engine.

KEY FEATURES
•Embedded ARM Cortex-A9 792-MHz CPU
•More than 480 MPixel/s processing rate 64-MPixel maximum resolution
•Fish-eye lens dewarping and barrel distortion correctior
•Advanced motion-compensated sharpening
•Advanced dynamic range (WDR and HDR) engine
•H.264 BP/MP/HP Level 5.1 and MJPEG codecs
•Encode performance up to 4Mp30 (in a singlechannel configuration) or 2Mp30+2Mp30 (in a dual-channel configuration)
•Two input channels with multiple serial input modes
•114 General Purpose Input/Output (GPIO short-height pins
•404-pin TFBGA package (15 mm x 15 mm)
•28-nm CMOS Low Power (LP) technology

Introduction
The A12A55 is an integrated system-on-a-chip (SoC) platform for single- and multi-channel automotive video camera solutions. A12A55 chips provide a single-core Cortex-A9 ARM CPU and an advanced digital signal processing (DSP) subsystem with a 64-Mpixel image sensor pipeline (ISP) and a high-definition (HD) H.264 codec engine.

There are 5 levels in the Ambarella A12Axx Part Number list, From the lowest to the highest levels are:
A12A20-A2-RH,
A12A25-A2-RH,
A12A35-A2-RH,
A12A55-A2-RH,
A12A75-A2-RH.
The A12Axx can support up to 1440P at 30 frames per second, or 1296P or 1080P. In addition,  Ambarella A12Axx has pre-warning, track deviation warning, parking monitoring, HDR high dynamic technology, four-way HD and other functions.




安霸A12A55,行运动相机行车记录仪主控,ARM Cortex-A9 chips,运动相机芯片DSP,H.264视频编码器,运动相机图像处理器,ISP主动芯片IC, 64MP像素的图像传感器管道(ISP), 高清(HD) ,H.264编解码引擎,2560x1440p@60fps,Vehicle recorder chip,航拍芯片,运动相机主控,运动相机芯片,h.264编码器,2560x1440p@60fps处理器,H.264视频编码处理器,视频SoC,可穿戴视频IC,无人机相机IC,安霸汽车记录仪处理器,低功耗SoC,视频解压缩芯片,高清视频处理器,2k视频处理器
安霸A12A55,行运动相机行车记录仪主控,ARM Cortex-A9 chips,运动相机芯片DSP,H.264视频编码器,运动相机图像处理器,ISP主动芯片IC, 64MP像素的图像传感器管道(ISP), 高清(HD) ,H.264编解码引擎,2560x1440p@60fps,Vehicle recorder chip,航拍芯片,运动相机主控,运动相机芯片,h.264编码器,2560x1440p@60fps处理器,H.264视频编码处理器,视频SoC,可穿戴视频IC,无人机相机IC,安霸汽车记录仪处理
https://www.sunnywale.com/uploadfile/2021/1029/A12A55_Awin.pdf
点击或者复制上面链接带浏览器打开,可下载datasheet PDF,Click or copy the link to download the datasheet PDF

有关A12A55的价格,datasheet,简介,电路图,原理图,框架图,文档下载,原装现货,现货库存,芯片,图片,规格书,代理商,技术支持,产品介绍,参数,方案商,分销商,经销商,官网,生产厂家,专卖店,高价收购,模组,模块,特价,库存,生产商,哪里买,性价比,用途,封装厂,晶圆厂,代工厂,可咨询本公司


满2件全国包邮,如果你有货,可以卖给我,当我求购A12A75,你需要购买A12A75,可以找我买。
Freight is free when you buy 2 pieces in China, if you have A12A75 inventory, you can sell to me, if you need buy A12A75, you can ask me to buy.

如果想要了解此同类产品A12A75,或请点击这里,或访问本公司官网:sunnywale.com,搜索关键词“A12A75”,即可展现更多详情。
If you want to know about similar products A12A75, or click here,or Visit The official website: sunnywale.com,Search the keywods“A12A75”,it can show more details.

还有A12A25, A12A35,if you need,please tell me ,I have many in stock and i can offer to you .
